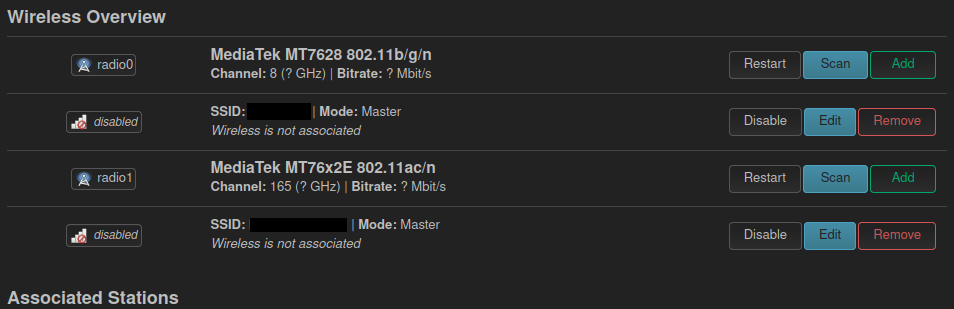

I installed Openwrt on Xiaomi r4ac (https://openwrt.org/inbox/toh/xiaomi/r4ac) and I am experiencing a strange issue. Wireless seems to be configured properly, but I can't see any new network pop up on my PC or phone.
/etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/10300000.wmac'
option channel '8'
option band '2g'
option htmode 'HT20'
option txpower '3'
option country 'SI'
option cell_density '0'
config wifi-device 'radio1'
option type 'mac80211'
option path 'pci0000:00/0000:00:00.0/0000:01:00.0'
option channel '165'
option band '5g'
option htmode 'VHT80'
option txpower '4'
option country 'SI'
option cell_density '0'
config wifi-iface 'wifinet0'
option device 'radio0'
option mode 'ap'
option ssid 'SSID1'
option encryption 'psk2+tkip+ccmp'
option key 'password'
option network 'lan'
config wifi-iface 'wifinet1'
option device 'radio1'
option mode 'ap'
option ssid 'SSID2'
option encryption 'psk2+tkip+ccmp'
option key 'password'
option network 'lan'
iw dev returns nothing, but iw list returns:
Wiphy phy1
wiphy index: 1
max # scan SSIDs: 4
max scan IEs length: 2247 bytes
max # sched scan SSIDs: 0
max # match sets: 0
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* IBSS
* managed
* AP
* AP/VLAN
* monitor
* mesh point
* P2P-client
* P2P-GO
Band 2:
Capabilities: 0x1ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 3839 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
VHT Capabilities (0x318001b0):
Max MPDU length: 3895
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
VHT extended NSS: not supported
Frequencies:
* 5180 MHz [36] (19.0 dBm)
* 5200 MHz [40] (19.0 dBm)
* 5220 MHz [44] (19.0 dBm)
* 5240 MHz [48] (19.0 dBm)
* 5260 MHz [52] (19.0 dBm) (radar detection)
* 5280 MHz [56] (19.0 dBm) (radar detection)
* 5300 MHz [60] (19.0 dBm) (radar detection)
* 5320 MHz [64] (19.0 dBm) (radar detection)
* 5500 MHz [100] (19.0 dBm) (radar detection)
* 5520 MHz [104] (19.0 dBm) (radar detection)
* 5540 MHz [108] (19.0 dBm) (radar detection)
* 5560 MHz [112] (19.0 dBm) (radar detection)
* 5580 MHz [116] (19.0 dBm) (radar detection)
* 5600 MHz [120] (19.0 dBm) (radar detection)
* 5620 MHz [124] (19.0 dBm) (radar detection)
* 5640 MHz [128] (19.0 dBm) (radar detection)
* 5660 MHz [132] (19.0 dBm) (radar detection)
* 5680 MHz [136] (19.0 dBm) (radar detection)
* 5700 MHz [140] (19.0 dBm) (radar detection)
* 5720 MHz [144] (13.0 dBm) (radar detection)
* 5745 MHz [149] (13.0 dBm)
* 5765 MHz [153] (13.0 dBm)
* 5785 MHz [157] (13.0 dBm)
* 5805 MHz [161] (13.0 dBm)
* 5825 MHz [165] (13.0 dBm)
* 5845 MHz [169] (13.0 dBm)
* 5865 MHz [173] (13.0 dBm)
* 5885 MHz [177] (disabled)
valid interface combinations:
* #{ IBSS } <= 1, #{ managed, AP, mesh point, P2P-client, P2P-GO } <= 8,
total <= 8, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz }
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Supported extended features:
* [ VHT_IBSS ]: VHT-IBSS
* [ RRM ]: RRM
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ SCAN_RANDOM_SN ]: use random sequence numbers in scans
* [ SCAN_MIN_PREQ_CONTENT ]: use probe request with only rate IEs in scans
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ DEL_IBSS_STA ]: deletion of IBSS station support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
Wiphy phy0
wiphy index: 0
max # scan SSIDs: 4
max scan IEs length: 2257 bytes
max # sched scan SSIDs: 0
max # match sets: 0
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* IBSS
* managed
* AP
* AP/VLAN
* monitor
* mesh point
* P2P-client
* P2P-GO
Band 1:
Capabilities: 0x1fe
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 3839 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
Frequencies:
* 2412 MHz [1] (14.0 dBm)
* 2417 MHz [2] (14.0 dBm)
* 2422 MHz [3] (14.0 dBm)
* 2427 MHz [4] (14.0 dBm)
* 2432 MHz [5] (14.0 dBm)
* 2437 MHz [6] (14.0 dBm)
* 2442 MHz [7] (14.0 dBm)
* 2447 MHz [8] (14.0 dBm)
* 2452 MHz [9] (14.0 dBm)
* 2457 MHz [10] (14.0 dBm)
* 2462 MHz [11] (14.0 dBm)
* 2467 MHz [12] (14.0 dBm)
* 2472 MHz [13] (14.0 dBm)
* 2484 MHz [14] (disabled)
valid interface combinations:
* #{ IBSS } <= 1, #{ managed, AP, mesh point, P2P-client, P2P-GO } <= 4,
total <= 4, #channels <= 1, STA/AP BI must match
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Supported extended features:
* [ RRM ]: RRM
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ SCAN_RANDOM_SN ]: use random sequence numbers in scans
* [ SCAN_MIN_PREQ_CONTENT ]: use probe request with only rate IEs in scans
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ DEL_IBSS_STA ]: deletion of IBSS station support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
Does anybody have any ideas how to fix this?
P.S.: During instalation I had to remove wpad-mbedtls and install wpa_supplicant-wolfssl, because im logging into a TTLS-PAP network (This works with no problems).
