Xiaomi Mi Router 4A Gigabit Edition (R4AG/R4A Gigabit) -- fully supported and flashable with OpenWRTInvasion

SamiPayne · July 3, 2021, 3:12pm

I am also trying to turn it off but I can , the wan port still lights but the power led is of

matrix200 · July 3, 2021, 6:04pm

Really?
On mine (RC2) it stays off and its not available for control.
Is there anyway to make it controllable?

ozan · July 4, 2021, 8:30am

Hi, My internet bandwidth is 200mbps but whatever I do, I can't get more than 94-95 mbit with this router over 5GHz. I tried switching channels and everything. Openwrt says the connection between router and pc is 730mbit. I had this problem with official firmware so I flashed openwrt, same thing. Anyone having a similar problem?

lvs98 · July 4, 2021, 10:46am

Seems like it is connected to a fast ethernet port.Have you checked if the router is connected to a fast ethernet port or via a fast ethernet cable? fast ethernet maxes at 100mbps so you need to connect it on a gigabit ethernet port.

ozan · July 4, 2021, 11:14am

Hi, Router is directly connected to isp box over wan port and using pppoe connection. Is there a way to check wan port speed? Sorry, I'm a newbie

lvs98 · July 4, 2021, 11:29am

You can check from the web interface on the Network->Switch section.The port status for WAN is the one you want to check.

ulpian · July 4, 2021, 11:46am

Hi there,
What do you mean by that? Is that an ONT (optical network terminal) or another router/modem? What device is that? And do you have the same speed issue with a wired connection?
ulpian

ozan · July 4, 2021, 11:56am

It's an ONT. Nokia g-010g-q. I can't try wired connection right now. But with another ZTE router, I can get 200Mbit over 5Ghz.

ozan · July 4, 2021, 11:57am

There is no switch section under network unfortunately.

lvs98 · July 6, 2021, 10:07am

Hello,
Are you using 21.02? I am on 19.07 and it's not missing. Unfortunately i don't know any way to find WAN speed on 21.02 (hope someone can help here)

matrix200 · July 7, 2021, 9:17am

If you are running 21.02RC3, you will have that info under VLAN config.
Go to Network->Interfaces
Click configure on br-lan.
Then click on "Bridge VLAN filtering".

tassapan · July 7, 2021, 11:31am

tassapan · July 7, 2021, 11:36am

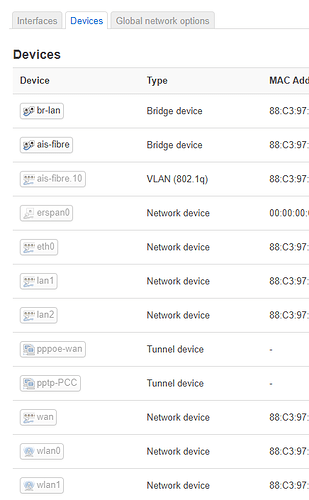

You can see it in Bridge VLAN filtering section. See my image above, 1000 Full Duplex.

rmilecki · July 7, 2021, 5:38pm

How stable is WiFi for you with OpenWrt?

I've a pretty bad experience with a cheaper but similar Xiaomi Mi Router 4C (MT7628AN). Slowdowns, stalls, disappearing SSID (no beacons).
Is Xiaomi Mi Router 4A Gigabit (MT7621 + MT7603 + MT7612) stable enough for daily use? Both 2.4 and 5 GHz? MT7628AN is just a variant of MT7603 so I'm a bit sceptical.

galotzas · July 7, 2021, 5:54pm

Good Evenin and sorry for my english.
In my case I use 2 such routers in dhcp client, and they are set with 802.11r. I am in the version 19.07 I have connected them with a cable and I cover 2 floors 110 square meters each up and down with 2 ssid. (2.4 and 5ghz).
I can say I am very happy I have not encountered any problem and all this at a cost of 40 euros.

tassapan · July 8, 2021, 1:12am

Stable enough for home use, sometimes ssid disappear for a moment.

Neustradamus · July 8, 2021, 2:21am

@db260179 and all, I have found "upgrade_2to3.zip" on:

What do you think?

matrix200 · July 8, 2021, 3:36am

Even with Byte-bite release?
I understand that his release is supposed to improve stability for this platform.

ulpian · July 8, 2021, 9:49am

I actively use it as main router with primary services such as pppoe, sqm, wireless on both bands etc. and I am quite satisfied. It's pretty stable and works well. Needless to say it's much better than stock firmware. Thank you for all your hard work and contributions.

ulpian

scaryzone · July 8, 2021, 12:12pm

im on RC3 and keep getting this crashlog:

[   19.542555] IPv6: ADDRCONF(NETDEV_CHANGE): wlan1: link becomes ready
[   19.549711] IPv6: ADDRCONF(NETDEV_CHANGE): wan: link becomes ready
[   20.004240] pppoe-wan: renamed from ppp0
[149351.090325] mt76x2e 0000:01:00.0: Firmware Version: 0.0.00
[149351.095919] mt76x2e 0000:01:00.0: Build: 1
[149351.100145] mt76x2e 0000:01:00.0: Build Time: 201507311614____
[149351.121080] mt76x2e 0000:01:00.0: Firmware running!
[149351.129304] ieee80211 phy1: Hardware restart was requested
[149359.753960] mt76x2e 0000:01:00.0: Firmware Version: 0.0.00
[149359.759552] mt76x2e 0000:01:00.0: Build: 1
[149359.763790] mt76x2e 0000:01:00.0: Build Time: 201507311614____
[149359.784790] mt76x2e 0000:01:00.0: Firmware running!
[149359.792985] ieee80211 phy1: Hardware restart was requested
[154549.962130] mt76x2e 0000:01:00.0: Firmware Version: 0.0.00
[154549.967878] mt76x2e 0000:01:00.0: Build: 1
[154549.972134] mt76x2e 0000:01:00.0: Build Time: 201507311614____
[154549.992943] mt76x2e 0000:01:00.0: Firmware running!
[154550.001145] ieee80211 phy1: Hardware restart was requested
