Hi,
I've narrowed down my problem on latest snapshot and found out, that if I do 160 mhz on 5220 mhz in ax mode between Ap 1 (wds main) and ap2 (wds client), it does NOT work. No data gets through the link, but both ap's tell they are connected fine. I can also see "associated", "authenticated" log lines on both so I'm sure they connect. But I cannot get a single packet through from ap1 to ap2 and vice versa, e.g. Ping.
Workaround: If it switch to ac mode with 160 mhz, the connection is established like before and I can get data through, e.g. ping the other ap.
Is this a driver bug?
Both devices are this:
Model
Xiaomi AX3600
Architecture
ARMv8 Processor rev 4
Target Platform
qualcommax/ipq807x
Firmware Version
OpenWrt SNAPSHOT r28282-0d21cc8a92 / LuCI Master 24.346.53951~31955d6
Kernel Version
6.6.63
Link is this:
Client (lan) - ap 1 - (wds client) - (wds main) - ap 2 - Client (lan)
Sidenote:
brada4
February 5, 2025, 1:14pm
2
Your router does not support 160mhz wide channels
I respect your knowledge, but are you sure?
brada4
February 6, 2025, 12:34am
4
4t4r \80mhz means 2400mbp, as per xiaomi advertised specs. Maybe it does 2t2r 160, not sure, not advertised. Should be somehow visible in iw list
1 Like
So, what do we have in regard of the hardware support?
iw list
Wiphy phy1
wiphy index: 1
max # scan SSIDs: 16
max scan IEs length: 398 bytes
max # sched scan SSIDs: 0
max # match sets: 0
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Available Antennas: TX 0xf0 RX 0xf0
Configured Antennas: TX 0xf0 RX 0xf0
Supported interface modes:
* managed
* AP
* monitor
* mesh point
Band 2:
Capabilities: 0x19e7
RX LDPC
HT20/HT40
Dynamic SM Power Save
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-31
VHT Capabilities (0x339b79f6):
Max MPDU length: 11454
Supported Channel Width: 160 MHz
RX LDPC
short GI (80 MHz)
short GI (160/80+80 MHz)
TX STBC
SU Beamformer
SU Beamformee
MU Beamformer
MU Beamformee
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: MCS 0-9
4 streams: MCS 0-9
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: MCS 0-9
4 streams: MCS 0-9
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
VHT extended NSS: supported
HE Iftypes: managed
HE MAC Capabilities (0x000b9a181040):
+HTC HE Supported
TWT Requester
Dynamic BA Fragementation Level: 1
BSR
Broadcast TWT
OM Control
Maximum A-MPDU Length Exponent: 3
RX Control Frame to MultiBSS
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0c604c897fdb839c010c00):
HE40/HE80/5GHz
HE160/5GHz
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
DCM Max Constellation: 1
DCM Max Constellation Rx: 1
SU Beamformer
SU Beamformee
MU Beamformer
Beamformee STS <= 80Mhz: 7
Beamformee STS > 80Mhz: 3
Sounding Dimensions <= 80Mhz: 3
Sounding Dimensions > 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
PPE Threshold Present
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
Max NC: 3
STBC Rx > 80MHz
HE ER SU PPDU 4x HE-LTF 0.8us GI
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x7b 0x1c 0xc7 0x71 0x1c 0xc7 0x71 0x1c 0x c7 0x71 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x000d9a181040):
+HTC HE Supported
TWT Responder
Dynamic BA Fragementation Level: 1
BSR
Broadcast TWT
OM Control
Maximum A-MPDU Length Exponent: 3
RX Control Frame to MultiBSS
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0c604c887fdb839c010c00):
HE40/HE80/5GHz
HE160/5GHz
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
DCM Max Constellation Rx: 1
SU Beamformer
SU Beamformee
MU Beamformer
Beamformee STS <= 80Mhz: 7
Beamformee STS > 80Mhz: 3
Sounding Dimensions <= 80Mhz: 3
Sounding Dimensions > 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
PPE Threshold Present
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
Max NC: 3
STBC Rx > 80MHz
HE ER SU PPDU 4x HE-LTF 0.8us GI
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x7b 0x1c 0xc7 0x71 0x1c 0xc7 0x71 0x1c 0x c7 0x71 0x1c 0xc7 0x71
HE Iftypes: mesh point
HE MAC Capabilities (0x00098a081040):
+HTC HE Supported
Dynamic BA Fragementation Level: 1
BSR
OM Control
Maximum A-MPDU Length Exponent: 1
RX Control Frame to MultiBSS
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0c600c807d5b811c000000):
HE40/HE80/5GHz
HE160/5GHz
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
SU Beamformer
SU Beamformee
Beamformee STS <= 80Mhz: 7
Beamformee STS > 80Mhz: 3
Sounding Dimensions <= 80Mhz: 3
Sounding Dimensions > 80Mhz: 3
Ng = 16 SU Feedback
Codebook Size SU Feedback
PPE Threshold Present
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
Max NC: 3
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: MCS 0-11
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x7b 0x1c 0xc7 0x71 0x1c 0xc7 0x71 0x1c 0x c7 0x71 0x1c 0xc7 0x71
Frequencies:
* 5180.0 MHz [36] (23.0 dBm)
* 5200.0 MHz [40] (23.0 dBm)
* 5220.0 MHz [44] (23.0 dBm)
* 5240.0 MHz [48] (23.0 dBm)
* 5260.0 MHz [52] (23.0 dBm) (radar detection)
* 5280.0 MHz [56] (23.0 dBm) (radar detection)
* 5300.0 MHz [60] (23.0 dBm) (radar detection)
* 5320.0 MHz [64] (23.0 dBm) (radar detection)
* 5500.0 MHz [100] (30.0 dBm) (radar detection)
* 5520.0 MHz [104] (30.0 dBm) (radar detection)
* 5540.0 MHz [108] (30.0 dBm) (radar detection)
* 5560.0 MHz [112] (30.0 dBm) (radar detection)
* 5580.0 MHz [116] (30.0 dBm) (radar detection)
* 5600.0 MHz [120] (30.0 dBm) (radar detection)
* 5620.0 MHz [124] (30.0 dBm) (radar detection)
* 5640.0 MHz [128] (30.0 dBm) (radar detection)
* 5660.0 MHz [132] (30.0 dBm) (radar detection)
* 5680.0 MHz [136] (30.0 dBm) (radar detection)
* 5700.0 MHz [140] (30.0 dBm) (radar detection)
* 5720.0 MHz [144] (disabled)
* 5745.0 MHz [149] (disabled)
* 5765.0 MHz [153] (disabled)
* 5785.0 MHz [157] (disabled)
* 5805.0 MHz [161] (disabled)
* 5825.0 MHz [165] (disabled)
* 5845.0 MHz [169] (disabled)
* 5865.0 MHz [173] (disabled)
* 5885.0 MHz [177] (disabled)
valid interface combinations:
* #{ managed } <= 1, #{ AP, mesh point } <= 16,
total <= 16, #channels <= 1, STA/AP BI must match, radar dete ct widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Maximum associated stations in AP mode: 128
Supported extended features:
* [ RRM ]: RRM
* [ SET_SCAN_DWELL ]: scan dwell setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ ACK_SIGNAL_SUPPORT ]: ack signal level support
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ ENABLE_FTM_RESPONDER ]: enable FTM (Fine Time Measurement) r esponder
* [ STA_TX_PWR ]: TX power control per station
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 con trol port support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
* [ BSS_COLOR ]: BSS coloring support
* [ POWERED_ADDR_CHANGE ]: can change MAC address while up
board.json says:
"phy1": {
"path": "platform/soc@0/c000000.wifi",
"info": {
"antenna_rx": 240,
"antenna_tx": 240,
"bands": {
"5G": {
"ht": true,
"vht": true,
"he": true,
"max_width": 160,
"modes": [
"NOHT",
"HT20",
"VHT20",
"HE20",
"HT40",
"VHT40",
"HE40",
"VHT80",
"HE80",
"VHT160",
"HE160"
],
"default_channel": 36
}
},
"radios": [
]
}
},
1 Like
brada4
February 6, 2025, 9:54pm
7
Try auto channel, might be radar signal detected in default one somehow.
Catfriend1:
HE160/5GHz

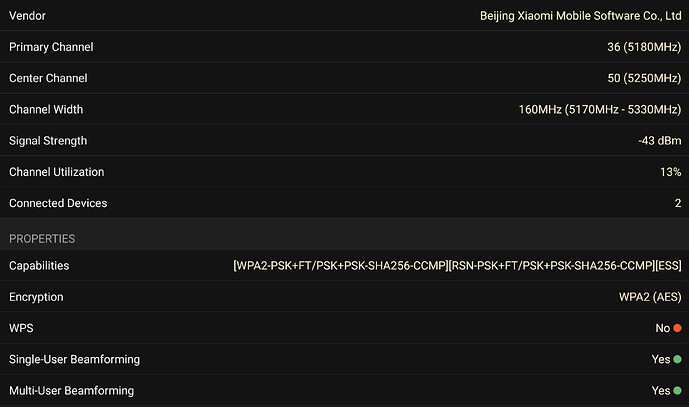

Setting HE160 ch100 or ch52 in LUCI works, but using WifiAnalyzer on my 160 MHz capable phone reveals, it's still doing 80 MHz after the radio1 AX came up.
Whatever I do, it is not doing 160mhz if selected, but 80mhz instead.
The device is capable of 160 mhz according to https://www.gizchina.com/2020/05/09/xiaomi-aiot-router-ax3600-to-get-a-major-upgrade-adds-160mhz-dynamic-bandwidth/
So I guess it's an openwrt ath11k driver problem?
I use 160MHz with Channel 36 in Germany without problems.
Tschau
Could you please use a wifi 6 capable phone with the app WifiAnalyzer to verify? Or alternatively the channel diag chart of FritzBox 7590 ax (or higher) shows the channel width. I have taken a lot of time today to measure using iperf3 between two ax3600 units and they "in reality" only send/recv on 80 mhz, no matter if I set 80mhz or 160mhz in luci. The measured speed is also the same for both settings like in 80mhz mode.
To check if the app works right, I've temporarily enabled Fritzbox' wifi 6 ax with 160 mhz channel width and the app immediately showed it.
The 160MHz channel is displayed on all my capable devices. Perhaps you have a radar signal nearby...
Tschau
Could you please post your wireless config? i'd apply it to my ap and then post screenshots of the used channels. (Redact pwd pls)
This is my wireless config (5G)
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc@0/c000000.wifi'
option band '5g'
option country 'DE'
option cell_density '1'
option channel '36'
option distance '10'
option htmode 'HE160'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option key 'xxxxxxxxxxxx'
option ssid 'xxxxxxxxxxxx'
option ieee80211w '1'
option wpa_disable_eapol_key_retries '1'
option encryption 'psk2+ccmp'
option multicast_to_unicast '1'
option multicast_to_unicast_all '1'
option disassoc_low_ack '0'
option skip_inactivity_poll '1'
option max_inactivity '3000'
option ieee80211r '1'
option ft_over_ds '0'
option ft_psk_generate_local '1'
1 Like
Thank you.
Indeed, now my phone reports 160 Mhz being sent by the AP. As soon as I switch to mesh, it's 80 MHz. I'll investigate further next time and report back, if I find some issues. Maybe I can do AP-STA with 160 MHz instead of mesh. Mesh also breaks, when DFS detects radar, I hope it can be better with auto channel and AP-STA.
