Wireguard no traffic on openwrt access point

Booka000 · December 30, 2024, 11:04am

Good day

I have Asus router RT_N12 VP B1 that I'm using as Access point ( the router is connected to the main router through LAN port, WAN is not being used). The LAN port gateway and dns are set to192.168.1.1(main router gateway). I've configured Wireguard using conf file. I'm 100% sure the configuration is correct as wg show shows:

interface: wg0
  public key: ZvfBA2BmWh2Gvwyp6xr1F+ko+zLPW6s5Y9gi88ZR4C8=
  private key: (hidden)
  listening port: 51820

peer: n0Ofs4B9hwdHmGWPsqqGTvmZpMZQu3xRT0EVaHxJZRg=
  preshared key: (hidden)
  endpoint: xxxxxxx:51820
  allowed ips: 0.0.0.0/0, ::/0
  latest handshake: 42 seconds ago
  transfer: 14.14 KiB received, 21.95 KiB sent
  persistent keepalive: every 25 seconds

I also can ping it:

root@OpenWrt:~# ping -I wg0 itdog.info
PING itdog.info (95.217.5.75): 56 data bytes
64 bytes from 95.217.5.75: seq=0 ttl=52 time=79.114 ms
64 bytes from 95.217.5.75: seq=1 ttl=52 time=77.103 ms
64 bytes from 95.217.5.75: seq=2 ttl=52 time=76.843 ms
64 bytes from 95.217.5.75: seq=3 ttl=52 time=76.806 ms
64 bytes from 95.217.5.75: seq=4 ttl=52 time=76.698 ms
64 bytes from 95.217.5.75: seq=5 ttl=52 time=76.894 ms

but even thought no traffic is being transferred neither through Wi-Fi or Lan cable.

Network

`config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fd17:7774:f81c::/48'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0.1'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.2'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option gateway '192.168.1.1'
        list dns '192.168.1.1'
        list dns '8.8.8.8'
        list dns '8.8.4.4'

config interface 'wan'
        option device 'eth0.2'
        option proto 'dhcp'`

config interface 'wan6'
        option device 'eth0.2'
        option proto 'dhcpv6'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option ports '0 1 2 3 6t'

config switch_vlan
        option device 'switch0'
        option vlan '2'
        option ports '4 6t'

config interface 'wg0'
        option proto 'wireguard'
        option private_key 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx'
        option listen_port '51820'
        list addresses '10.7.0.2/24'
        list addresses 'fddd:2c4:2c4:2c4::2/64'
        list dns '8.8.8.8'
        list dns '8.8.4.4'

config wireguard_wg0
        option public_key 'n0Ofs4B9hwdHmGWPsqqGTvmZpMZQu3xRT0EVaHxJZRg='
        option preshared_key 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx'
        list allowed_ips '0.0.0.0/0'
        list allowed_ips '::/0'
        option persistent_keepalive '25'
        option endpoint_host 'xxxxxxxxxxx'
        option endpoint_port '51820'
        option route_allowed_ips '1'

Firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config zone
        option name 'wgzone'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        list network 'wg0'

config forwarding
        option src 'lan'
        option dest 'wgzone'

Thank you

egc · December 30, 2024, 11:12am

That is expected as traffic will bypass your router on its way to the main router and thus will not be routed via WireGuard.

Easiest is to make a guest wifi on your AP, this will automatically use the WG VPN, you can also add one or more LAN ports of the AP to this guest wifi if you have connected LAN clients you want to use the WG VPN.
https://openwrt.org/docs/guide-user/network/wifi/guestwifi/guestwifi_dumbap

Alternatively point the gateway of your LAN clients to the AP and they will also use the WG VPN, if you have access to the main router you can even do that by letting DNSmasq of the main router hand out a different gateway on a per client base

Booka000 · December 30, 2024, 2:13pm

hello, thanks for answer

I have followed the steps of creating guest wifi but the new network has completely no access to the internet for some reason. I have followed the tutorial twice (

egc · December 30, 2024, 2:34pm

Disable WireGuard, with WireGuard disabled and following the tutorial you should have got internet if not then lease connect to your OpenWRT device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact keys, passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall

Booka000 · December 30, 2024, 5:00pm

thanks, I have tried as you said, but no changes, still no access to the internet, and I rested the router because I missed up with some settings. but any way here is the output from the commands:

ubus call system board

{
        "kernel": "5.15.167",
        "hostname": "OpenWrt",
        "system": "MediaTek MT7628AN ver:1 eco:2",
        "model": "Asus RT-N12 VP B1",
        "board_name": "asus,rt-n12-vp-b1",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "23.05.5",
                "revision": "r24106-10cc5fcd00",
                "target": "ramips/mt76x8",
                "description": "OpenWrt 23.05.5 r24106-10cc5fcd00"
        }
}

cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fd47:0df2:1ebf::/48'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0.1'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.250'
        option netmask '255.255.255.0'
        option ip6assign '60'
        list dns '192.168.1.1'
        option gateway '192.168.1.1'

config interface 'wan'
        option device 'eth0.2'
        option proto 'dhcp'

config interface 'wan6'
        option device 'eth0.2'
        option proto 'dhcpv6'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option ports '0 1 2 3 6t'

config switch_vlan
        option device 'switch0'
        option vlan '2'
        option ports '4 6t'

config device
        option type 'bridge'
        option name 'br-guest'
        option bridge_empty '1'

config interface 'guest'
        option proto 'static'
        option device 'br-guest'
        option ipaddr '192.168.2.1'
        option netmask '255.255.255.0'

cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path 'platform/10300000.wmac'
        option channel '1'
        option band '2g'
        option htmode 'HT20'
        option cell_density '0'

config wifi-iface 'default_radio0'
        option device 'radio0'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'psk2'
        option key 'xxxxxxxx'

config wifi-iface 'wifinet1'
        option device 'radio0'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'psk2'
        option key 'xxxxxxxxxxx'
        option network 'guest'
        option disabled '1'

cat /etc/config/dhcp

config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'
        option filter_aaaa '0'
        option filter_a '0'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option ignore '1'

config dhcp 'wan'
        option interface 'wan'
        option ignore '1'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'

config dhcp 'guest'
        option interface 'guest'
        option start '100'
        option limit '150'
        option leasetime '12h'

cat /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'lan'
        list network 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        option masq '1'

config zone
        option name 'wan'
        list network 'wan'
        list network 'wan6'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config zone
        option name 'guest'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        list network 'guest'

config forwarding
        option src 'guest'
        option dest 'lan'

config rule
        option name 'Guest_DHCP'
        list proto 'udp'
        option src 'guest'
        option dest_port '67'
        option target 'ACCEPT'

config rule
        option name 'Guest_DNS'
        option src 'guest'
        option dest_port '53'
        option target 'ACCEPT'

config rule
        option name 'Block_Guest_from_Lan'
        list proto 'all'
        list dest_ip '192.168.1.0/24'
        option target 'REJECT'

root@OpenWrt:~#
root@OpenWrt:~# cat /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'lan'
        list network 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        option masq '1'

config zone
        option name 'wan'
        list network 'wan'
        list network 'wan6'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config zone
        option name 'guest'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        list network 'guest'

config forwarding
        option src 'guest'
        option dest 'lan'

config rule
        option name 'Guest_DHCP'
        list proto 'udp'
        option src 'guest'
        option dest_port '67'
        option target 'ACCEPT'

config rule
        option name 'Guest_DNS'
        option src 'guest'
        option dest_port '53'
        option target 'ACCEPT'

config rule
        option name 'Block_Guest_from_Lan'
        list proto 'all'
        list dest_ip '192.168.1.0/24'
        option target 'REJECT'

Wg configs were erased after the reset but that's not an issue now

pavelgl · December 30, 2024, 5:28pm

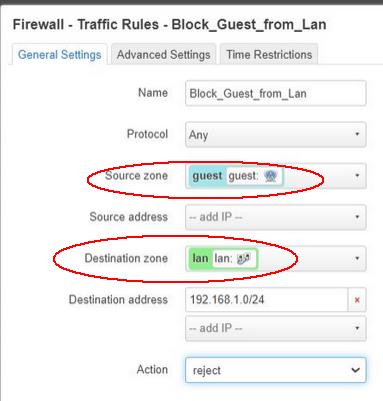

Fix this rule by adding a source and destination zone. From the guide:

Currently, DNS requests originating from the AP itself will be blocked and guest clients will not be served (because they use 192.168.2.1 as the DNS server).

Booka000 · December 30, 2024, 5:59pm

Thanks for answering, but still have no access to the Internet

egc · December 30, 2024, 6:06pm

Booka000:

config wifi-iface 'wifinet1'
        option device 'radio0'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'psk2'
        option key 'xxxxxxxxxxx'
        option network 'guest'
        option disabled '1'

Your default radio is also ssid OpenWRT , start with renaming this one so that you know you are connected to the Guest network, rename it to guest or vpn.
Furthermore remove option disabled '1'

After that reboot and test again

Booka000 · December 30, 2024, 6:15pm

I basically disable the default when testing so I'm sure I was testing the guest network, because the default works fine. but anyway will try

edit, I have tried changing the name, no effect

config wifi-iface 'wifinet1'
        option device 'radio0'
        option mode 'ap'
        option ssid 'OpenWrt_guest'
        option encryption 'psk2'
        option key 'xxxxxxxxx'
        option network 'guest'

pavelgl · December 30, 2024, 6:29pm

Please run these commands from a guest client and post the output.

ping 192.168.2.1
ping 8.8.8.8
nslookup openwrt.org
nslookup openwrt.org 192.168.2.1
nslookup openwrt.org 8.8.8.8

Booka000 · December 30, 2024, 6:49pm

ping 192.168.2.1

Pinging 192.168.2.1 with 32 bytes of data:
Reply from 192.168.2.1: Destination port unreachable.
Reply from 192.168.2.1: Destination port unreachable.
Reply from 192.168.2.1: Destination port unreachable.
Reply from 192.168.2.1: Destination port unreachable.

Ping statistics for 192.168.2.1:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

ping 8.8.8.8

Pinging 8.8.8.8 with 32 bytes of data:
Reply from 8.8.8.8: bytes=32 time=34ms TTL=104
Reply from 8.8.8.8: bytes=32 time=35ms TTL=104
Reply from 8.8.8.8: bytes=32 time=34ms TTL=104
Reply from 8.8.8.8: bytes=32 time=35ms TTL=104

Ping statistics for 8.8.8.8:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 34ms, Maximum = 35ms, Average = 34ms

nslookup openwrt.org
Server:  OpenWrt.lan
Address:  192.168.2.1

*** OpenWrt.lan can't find openwrt.org: Query refused

nslookup openwrt.org 192.168.2.1
Server:  OpenWrt.lan
Address:  192.168.2.1

*** OpenWrt.lan can't find openwrt.org: Query refused

nslookup openwrt.org 8.8.8.8
Server:  dns.google
Address:  8.8.8.8

Non-authoritative answer:
Name:    openwrt.org
Addresses:  2a03:b0c0:3:d0::1a51:c001
          64.226.122.113

Booka000 · December 30, 2024, 6:54pm

Now, something weird is going on! my phone has access to the internet through guest wifi (phone data is off) but the computer doesn't

pavelgl · December 30, 2024, 7:08pm

Please post the output of uci show firewall

Booka000 · December 30, 2024, 7:15pm

firewall.@defaults[0]=defaults
firewall.@defaults[0].input='REJECT'
firewall.@defaults[0].output='ACCEPT'
firewall.@defaults[0].forward='REJECT'
firewall.@defaults[0].synflood_protect='1'
firewall.@zone[0]=zone
firewall.@zone[0].name='lan'
firewall.@zone[0].network='lan'
firewall.@zone[0].input='ACCEPT'
firewall.@zone[0].output='ACCEPT'
firewall.@zone[0].forward='ACCEPT'
firewall.@zone[0].masq='1'
firewall.@zone[1]=zone
firewall.@zone[1].name='wan'
firewall.@zone[1].network='wan' 'wan6'
firewall.@zone[1].input='REJECT'
firewall.@zone[1].output='ACCEPT'
firewall.@zone[1].forward='REJECT'
firewall.@zone[1].masq='1'
firewall.@zone[1].mtu_fix='1'
firewall.@forwarding[0]=forwarding
firewall.@forwarding[0].src='lan'
firewall.@forwarding[0].dest='wan'
firewall.@rule[0]=rule
firewall.@rule[0].name='Allow-DHCP-Renew'
firewall.@rule[0].src='wan'
firewall.@rule[0].proto='udp'
firewall.@rule[0].dest_port='68'
firewall.@rule[0].target='ACCEPT'
firewall.@rule[0].family='ipv4'
firewall.@rule[1]=rule
firewall.@rule[1].name='Allow-Ping'
firewall.@rule[1].src='wan'
firewall.@rule[1].proto='icmp'
firewall.@rule[1].icmp_type='echo-request'
firewall.@rule[1].family='ipv4'
firewall.@rule[1].target='ACCEPT'
firewall.@rule[2]=rule
firewall.@rule[2].name='Allow-IGMP'
firewall.@rule[2].src='wan'
firewall.@rule[2].proto='igmp'
firewall.@rule[2].family='ipv4'
firewall.@rule[2].target='ACCEPT'
firewall.@rule[3]=rule
firewall.@rule[3].name='Allow-DHCPv6'
firewall.@rule[3].src='wan'
firewall.@rule[3].proto='udp'
firewall.@rule[3].dest_port='546'
firewall.@rule[3].family='ipv6'
firewall.@rule[3].target='ACCEPT'
firewall.@rule[4]=rule
firewall.@rule[4].name='Allow-MLD'
firewall.@rule[4].src='wan'
firewall.@rule[4].proto='icmp'
firewall.@rule[4].src_ip='fe80::/10'
firewall.@rule[4].icmp_type='130/0' '131/0' '132/0' '143/0'
firewall.@rule[4].family='ipv6'
firewall.@rule[4].target='ACCEPT'
firewall.@rule[5]=rule
firewall.@rule[5].name='Allow-ICMPv6-Input'
firewall.@rule[5].src='wan'
firewall.@rule[5].proto='icmp'
firewall.@rule[5].icmp_type='echo-request' 'echo-reply' 'destination-unreachable' 'packet-too-big' 'time-exceeded' 'bad-header' 'unknown-header-type' 'router-solicitation' 'neighbour-solicitation' 'router-advertisement' 'neighbour-advertisement'
firewall.@rule[5].limit='1000/sec'
firewall.@rule[5].family='ipv6'
firewall.@rule[5].target='ACCEPT'
firewall.@rule[6]=rule
firewall.@rule[6].name='Allow-ICMPv6-Forward'
firewall.@rule[6].src='wan'
firewall.@rule[6].dest='*'
firewall.@rule[6].proto='icmp'
firewall.@rule[6].icmp_type='echo-request' 'echo-reply' 'destination-unreachable' 'packet-too-big' 'time-exceeded' 'bad-header' 'unknown-header-type'
firewall.@rule[6].limit='1000/sec'
firewall.@rule[6].family='ipv6'
firewall.@rule[6].target='ACCEPT'
firewall.@rule[7]=rule
firewall.@rule[7].name='Allow-IPSec-ESP'
firewall.@rule[7].src='wan'
firewall.@rule[7].dest='lan'
firewall.@rule[7].proto='esp'
firewall.@rule[7].target='ACCEPT'
firewall.@rule[8]=rule
firewall.@rule[8].name='Allow-ISAKMP'
firewall.@rule[8].src='wan'
firewall.@rule[8].dest='lan'
firewall.@rule[8].dest_port='500'
firewall.@rule[8].proto='udp'
firewall.@rule[8].target='ACCEPT'
firewall.@zone[2]=zone
firewall.@zone[2].name='guest'
firewall.@zone[2].input='REJECT'
firewall.@zone[2].output='ACCEPT'
firewall.@zone[2].forward='REJECT'
firewall.@zone[2].network='guest'
firewall.@forwarding[1]=forwarding
firewall.@forwarding[1].src='guest'
firewall.@forwarding[1].dest='lan'
firewall.@rule[9]=rule
firewall.@rule[9].name='Guest_DHCP'
firewall.@rule[9].proto='udp'
firewall.@rule[9].src='guest'
firewall.@rule[9].dest_port='67'
firewall.@rule[9].target='ACCEPT'
firewall.@rule[10]=rule
firewall.@rule[10].name='Guest_DNS'
firewall.@rule[10].src='guest'
firewall.@rule[10].dest_port='53'
firewall.@rule[10].target='ACCEPT'
firewall.@rule[11]=rule
firewall.@rule[11].name='Block_Guest_from_Lan'
firewall.@rule[11].dest_ip='192.168.1.0/24'
firewall.@rule[11].target='REJECT'
firewall.@rule[11].proto='all'
firewall.@rule[11].dest='lan'

pavelgl · December 30, 2024, 7:45pm

Booka000:

nslookup openwrt.org 192.168.2.1
Server:  OpenWrt.lan
Address:  192.168.2.1

*** OpenWrt.lan can't find openwrt.org: Query refused

Booka000:

firewall.@rule[11]=rule
firewall.@rule[11].name='Block_Guest_from_Lan'
firewall.@rule[11].dest_ip='192.168.1.0/24'
firewall.@rule[11].target='REJECT'
firewall.@rule[11].proto='all'
firewall.@rule[11].dest='lan'

This rule still doesn't look right. Run this and test again.

uci set firewall.@rule[11].src='guest'
uci commit firewall
/etc/init.d/firewall restart

Booka000 · December 30, 2024, 8:25pm

Thank you so much! now the guest wifi works. the question now is how to route the traffic via wg vpn? the wg connection is already configured

egc · December 30, 2024, 9:39pm

If setup correctly so with Route Allowed IPs enabled all traffic of the guest wifi will be routed automatically via the vpn.

Booka000 · December 31, 2024, 6:28am

Ok, after configuring the wg now we are back to the same issue, guest wifi has no internet access, I'm not sure how to configure the firewall, as all the tutorials out there explains how to do it on normal DHCP connection not on AP like in my case, I have tried enabling forwarding to guest from wg and masquerading but not effect. maybe I need to add traffic rule? anyway here's firewall currently.

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'lan'
        list network 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        option masq '1'

config zone
        option name 'wan'
        list network 'wan'
        list network 'wan6'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config zone
        option name 'guest'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        list network 'guest'

config forwarding
        option src 'guest'
        option dest 'lan'

config rule
        option name 'Guest_DHCP'
        list proto 'udp'
        option src 'guest'
        option dest_port '67'
        option target 'ACCEPT'

config rule
        option name 'Guest_DNS'
        option src 'guest'
        option dest_port '53'
        option target 'ACCEPT'

config rule
        option name 'Block_Guest_from_Lan'
        list dest_ip '192.168.1.0/24'
        option target 'REJECT'
        list proto 'all'
        option dest 'lan'
        option src 'guest'

config zone
        option name 'vpn'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'REJECT'
        list network 'wg0'

config forwarding
        option src 'lan'
        option dest 'vpn'here

And yes, I have enabled route allowed ips

config wireguard_wg0
        option description 'Router.conf'
        option public_key 'xxxxxxxxxxxxxxxxxxxxxxxxxxxx='
        option preshared_key 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx='
        list allowed_ips '0.0.0.0/0'
        list allowed_ips '::/0'
        option persistent_keepalive '25'
        option endpoint_host 'xxxxxxxxx'
        option endpoint_port '51820'
        option route_allowed_ips '1'

pavelgl · December 31, 2024, 6:47am

uci set firewall.@zone[-1].masq='1'
uci del firewall.@forwarding[-1]
uci add firewall forwarding
uci set firewall.@forwarding[-1].src='guest'
uci set firewall.@forwarding[-1].dest='vpn'
uci commit firewall
/etc/init.d/firewall restart

Booka000 · December 31, 2024, 7:47am

Unfortunately, no effect

here is uci show firewall:

firewall.@defaults[0]=defaults
firewall.@defaults[0].input='REJECT'
firewall.@defaults[0].output='ACCEPT'
firewall.@defaults[0].forward='REJECT'
firewall.@defaults[0].synflood_protect='1'
firewall.@zone[0]=zone
firewall.@zone[0].name='lan'
firewall.@zone[0].network='lan'
firewall.@zone[0].input='ACCEPT'
firewall.@zone[0].output='ACCEPT'
firewall.@zone[0].forward='ACCEPT'
firewall.@zone[0].masq='1'
firewall.@zone[1]=zone
firewall.@zone[1].name='wan'
firewall.@zone[1].network='wan' 'wan6'
firewall.@zone[1].input='REJECT'
firewall.@zone[1].output='ACCEPT'
firewall.@zone[1].forward='REJECT'
firewall.@zone[1].masq='1'
firewall.@zone[1].mtu_fix='1'
firewall.@rule[0]=rule
firewall.@rule[0].name='Allow-DHCP-Renew'
firewall.@rule[0].src='wan'
firewall.@rule[0].proto='udp'
firewall.@rule[0].dest_port='68'
firewall.@rule[0].target='ACCEPT'
firewall.@rule[0].family='ipv4'
firewall.@rule[1]=rule
firewall.@rule[1].name='Allow-Ping'
firewall.@rule[1].src='wan'
firewall.@rule[1].proto='icmp'
firewall.@rule[1].icmp_type='echo-request'
firewall.@rule[1].family='ipv4'
firewall.@rule[1].target='ACCEPT'
firewall.@rule[2]=rule
firewall.@rule[2].name='Allow-IGMP'
firewall.@rule[2].src='wan'
firewall.@rule[2].proto='igmp'
firewall.@rule[2].family='ipv4'
firewall.@rule[2].target='ACCEPT'
firewall.@rule[3]=rule
firewall.@rule[3].name='Allow-DHCPv6'
firewall.@rule[3].src='wan'
firewall.@rule[3].proto='udp'
firewall.@rule[3].dest_port='546'
firewall.@rule[3].family='ipv6'
firewall.@rule[3].target='ACCEPT'
firewall.@rule[4]=rule
firewall.@rule[4].name='Allow-MLD'
firewall.@rule[4].src='wan'
firewall.@rule[4].proto='icmp'
firewall.@rule[4].src_ip='fe80::/10'
firewall.@rule[4].icmp_type='130/0' '131/0' '132/0' '143/0'
firewall.@rule[4].family='ipv6'
firewall.@rule[4].target='ACCEPT'
firewall.@rule[5]=rule
firewall.@rule[5].name='Allow-ICMPv6-Input'
firewall.@rule[5].src='wan'
firewall.@rule[5].proto='icmp'
firewall.@rule[5].icmp_type='echo-request' 'echo-reply' 'destination-unreachable' 'packet-too-big' 'time-exceeded' 'bad-header' 'unknown-header-type' 'router-solicitation' 'neighbour-solicitation' 'router-advertisement' 'neighbour-advertisement'
firewall.@rule[5].limit='1000/sec'
firewall.@rule[5].family='ipv6'
firewall.@rule[5].target='ACCEPT'
firewall.@rule[6]=rule
firewall.@rule[6].name='Allow-ICMPv6-Forward'
firewall.@rule[6].src='wan'
firewall.@rule[6].dest='*'
firewall.@rule[6].proto='icmp'
firewall.@rule[6].icmp_type='echo-request' 'echo-reply' 'destination-unreachable' 'packet-too-big' 'time-exceeded' 'bad-header' 'unknown-header-type'
firewall.@rule[6].limit='1000/sec'
firewall.@rule[6].family='ipv6'
firewall.@rule[6].target='ACCEPT'
firewall.@rule[7]=rule
firewall.@rule[7].name='Allow-IPSec-ESP'
firewall.@rule[7].src='wan'
firewall.@rule[7].dest='lan'
firewall.@rule[7].proto='esp'
firewall.@rule[7].target='ACCEPT'
firewall.@rule[8]=rule
firewall.@rule[8].name='Allow-ISAKMP'
firewall.@rule[8].src='wan'
firewall.@rule[8].dest='lan'
firewall.@rule[8].dest_port='500'
firewall.@rule[8].proto='udp'
firewall.@rule[8].target='ACCEPT'
firewall.@zone[2]=zone
firewall.@zone[2].name='guest'
firewall.@zone[2].input='REJECT'
firewall.@zone[2].output='ACCEPT'
firewall.@zone[2].forward='REJECT'
firewall.@zone[2].network='guest'
firewall.@forwarding[0]=forwarding
firewall.@forwarding[0].src='guest'
firewall.@forwarding[0].dest='lan'
firewall.@rule[9]=rule
firewall.@rule[9].name='Guest_DHCP'
firewall.@rule[9].proto='udp'
firewall.@rule[9].src='guest'
firewall.@rule[9].dest_port='67'
firewall.@rule[9].target='ACCEPT'
firewall.@rule[10]=rule
firewall.@rule[10].name='Guest_DNS'
firewall.@rule[10].src='guest'
firewall.@rule[10].dest_port='53'
firewall.@rule[10].target='ACCEPT'
firewall.@rule[11]=rule
firewall.@rule[11].name='Block_Guest_from_Lan'
firewall.@rule[11].dest_ip='192.168.1.0/24'
firewall.@rule[11].target='REJECT'
firewall.@rule[11].proto='all'
firewall.@rule[11].dest='lan'
firewall.@rule[11].src='guest'
firewall.@zone[3]=zone
firewall.@zone[3].name='vpn'
firewall.@zone[3].input='ACCEPT'
firewall.@zone[3].output='ACCEPT'
firewall.@zone[3].forward='REJECT'
firewall.@zone[3].network='wg0'
firewall.@forwarding[1]=forwarding
firewall.@forwarding[1].src='guest'
firewall.@forwarding[1].dest='vpn'
