Wireguard how to make routing betwin ppers

Installing and Using OpenWrt
1

I have 3 routers on OpenWrt and 1 of them like a server and two others like clients,
I need to have access from one client to the other client
both clients connected to server with an external IP so connection is all good status OK
But i cant ping one client fron the other

WG
WG1466×743 58.6 KB

How to make settings that allows ping from one peer to the other via server peer ?
I have tried to change mask didnt help what do i miss
from server peer i can ping both also i can ping server from both peers
but no ping from peer 1 to peer 2

2

Where is OpenWrt in this drawing? And are you trying to connect just the two peers themselves to each other, or is there a network behind each of the peers that need to be connected to each other?

1 Like
3

all connected all is good as discribded exept i cant ping peer 1 from peer2(they do not have externel IPs only server has ) there is no way i can coonect peer1 to peer 2 directly

4

But that doesn't answer the question -- where is OpenWrt? Peer 1? Peer 2? Server?

1 Like
5

in descriptioin
I have 3 routers on OpenWrt and 1 of them like a server and two others like clients,
3 routers connected to Internet only 1 has external static IP(server)

6

Ok... sorry I missed that.

Let's see the configs from each of the devices (label each):

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
grafik
Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/firewall
1 Like
7

i dont really think it is nessesary there are only wireguard interfaces in this schema
and i can ping both (peer1 and peer2) from server and i can ping server from both devices all good i only need to make awaliable ping from peer1 to peer2 via server.
i need advice what IPs and netmask should i use and where ? wireguard makes routing itself automaticly depending on allowed IPs

8

The reason I'm asking is to ensure that I understand the complete context... the config files really give that whole story. For example, I don't know what the allowed IPs looks like now for the peer 1 and peer 2 devices.

But...

The allowed IPs on both peer 1 and peer 2 should be 192.168.29.0/24.

If that doesn't solve the issue, the config files will probably be necessary so that there's enough info to advise properly.

1 Like
9

made on both peers 192.168.29.0/24,
no ping from peer 1 to peer 2

here is status of peer 1

peer1
peer1961×414 5.07 KB

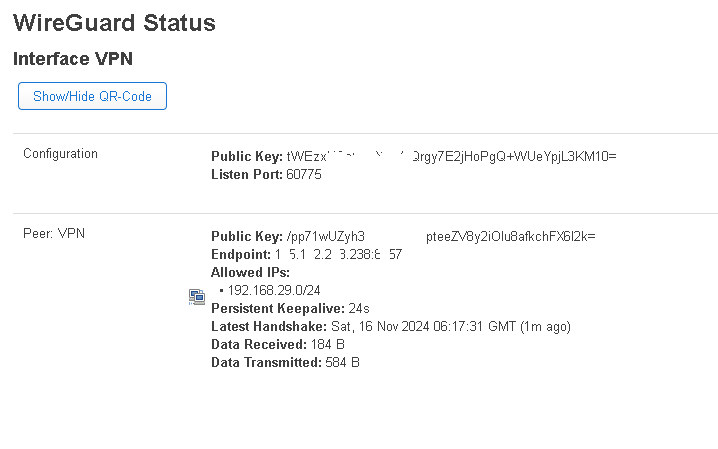

peer 2
peer2
peer2718×449 4.39 KB

and server
server
server1090×902 7.53 KB

10

Please post the requested text configs.

1 Like
11

peer 1

root@my:~# ubus call system board
{
        "kernel": "5.4.238",
        "hostname": "my",
        "system": "MediaTek MT7620N ver:2 eco:6",
        "model": "Zbtlink ZBT-WR8305RT",
        "board_name": "zbtlink,zbt-wr8305rt",
        "release": {
                "distribution": "OpenWrt",
                "version": "21.02.7",
                "revision": "r16847-f8282da11e",
                "target": "ramips/mt7620",
                "description": "OpenWrt 21.02.7 r16847-f8282da11e"
        }
}

peer2

{
        "kernel": "5.4.188",
        "hostname": "MakarSklad",
        "system": "MediaTek MT7620A ver:2 eco:6",
        "model": "Zbtlink ZBT-WE826 (16M)",
        "board_name": "zbtlink,zbt-we826-16m",
        "release": {
                "distribution": "OpenWrt",
                "version": "21.02.3",
                "revision": "r16554-1d4dea6d4f",
                "target": "ramips/mt7620",
                "description": "OpenWrt 21.02.3 r16554-1d4dea6d4f"
        }
}
server

{
"kernel": "5.10.221",
"hostname": "avnguard",
"system": "MediaTek MT7620N ver:2 eco:6",
"model": "Zbtlink ZBT-WR8305RT",
"board_name": "zbtlink,zbt-wr8305rt",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "22.03.7",
"revision": "r20341-591b7e93d3",
"target": "ramips/mt7620",
"description": "OpenWrt 22.03.7 r20341-591b7e93d3"
}
}

12

peer 1

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0.1'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option ipaddr '192.168.222.1'
        list dns '1.1.1.1'
        list dns '8.8.8.8'
        option delegate '0'
        option ipv6 '0'

config device
        option name 'eth0.2'
        option macaddr 'f8:5e:3c:0c:59:11'

config interface 'wan'
        option device 'eth0.2'
        option proto 'pppoe'
        option username '030390gb'
        option password '9eoaeE'
        option ipv6 '0'

config interface 'vpn'
        option proto 'wireguard'
        option private_key 'eOneDWUsYGBEvDAkBBvXA='
        list addresses '192.168.9.1/24'
        option listen_port '7473'

config device
        option name 'vpn'
        option ipv6 '0'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option vid '1'
        option ports '6t 1 2 3'

config switch_vlan
        option device 'switch0'
        option vlan '2'
        option ports '6t 4'
        option vid '2'

config wireguard_vpn
        option description 'cwifibridge'
        option public_key 'O7ZgyqzJgwQ7apmL+ZTKx3k3t41R4='
        option route_allowed_ips '1'
        list allowed_ips '192.168.9.88/32'

config wireguard_vpn
        option description 'CTR(16M)'
        option public_key 'SVF/Vdt9iEeZmOs0MonCAkxtayQg='
        list allowed_ips '192.168.9.30/32'

config wireguard_vpn
        option description 'WIFIPROJ'
        option public_key 'NFyn1iQskVGbyZKFB9Kq0FQF5X4='
        option route_allowed_ips '1'
        list allowed_ips '192.168.9.33/32'

config wireguard_vpn
        option route_allowed_ips '1'
        option public_key 'aanklfXMMc8MnD3DbiyOBASjcPAQ='
        option description 'BlackRouterAdmins'
        list allowed_ips '192.168.9.200/32'

config wireguard_vpn
        option description 'Ovchinikiva1Amikrotik'
        option public_key 'C1TdwWJN/ujmp6WeKtsIXzpMMWYkDzSfUCGPcle7rh4='
        option route_allowed_ips '1'
        list allowed_ips '192.168.9.199/32'

config wireguard_vpn
        option description 'Whimin'
        option public_key '480Jzj7jZiVNuarU94Em/+2w5Kjg='
        option route_allowed_ips '1'
        list allowed_ips '192.168.9.201/32'
        list allowed_ips '192.168.0.0/24'

config switch_vlan
        option device 'switch0'
        option vlan '3'
        option ports '6t 0'
        option vid '249'

config interface '249'
        option proto 'static'
        option device 'eth0.249'
        option ipaddr '192.168.249.1'
        option netmask '255.255.255.0'

config wireguard_vpn
        option description 'Sese'
        option public_key 'olzBZ4ABdnrbTWYiTPx7x4='
        option route_allowed_ips '1'
        list allowed_ips '192.168.9.121/32'
        list allowed_ips '192.168.121.0/24'

config wireguard_vpn
        option description 'SonyWorkNout'
        option public_key 'hsUyc2u8IuitokKJVkJ2fKGmY='
        list allowed_ips '192.168.9.7/32'
        option route_allowed_ips '1'

config interface 'wgcli'
        option proto 'wireguard'
        option private_key 'ABt8Bmk/VB5UcHYqPj2M='
        list addresses '192.168.29.2/24'

config wireguard_wgcli
        option description 'clienttoserv'
        option public_key '/pp71wUZyh3QMiOlu8afkchFX6l2k='
        option route_allowed_ips '1'
        option endpoint_host '1.122.253.238'
        option endpoint_port '8057'
        option persistent_keepalive '24'
        list allowed_ips '192.168.29.0/24'
13

peer2

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0.1'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option ipaddr '192.168.10.1'
        list dns '1.1.1.1'

config interface 'wan'
        option device 'eth0.2'
        option proto 'dhcp'
        option auto '0'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option ports '0 1 2 3 6t'

config switch_vlan
        option device 'switch0'
        option vlan '2'
        option ports '4 6t'

config interface '4g'
        option proto 'modemmanager'
        option device '/sys/devices/platform/101c0000.ehci/usb1/1-1/1-1.3'
        option apn 'public.mc'
        option auth 'none'
        option iptype 'ipv4v6'
        option signalrate '3'

config interface 'VPN'
        option proto 'wireguard'
        option private_key 'EB9fRbS3ea7TG1kV2BfznmQnc='
        list addresses '192.168.29.10/24'

config wireguard_VPN
        option route_allowed_ips '1'
        option description 'VPN'
        option persistent_keepalive '24'
        option public_key '/pp71wUZyh3u8afkchFX6l2k='
        option endpoint_host '1.122.253.238'
        option endpoint_port '8057'
        list allowed_ips '192.168.29.0/24'
14

server

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fd34:db0b:8256::/48'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0.1'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option netmask '255.255.255.0'
        option ip6assign '60'
        option ipaddr '192.168.44.1'

config device
        option name 'eth0.2'
        option macaddr 'f8:5e:3c:0c:59:ad'

config interface 'wan'
        option device 'eth0.2'
        option proto 'dhcp'

config switch
        option name 'switch0'
        option reset '1'
        option enable_vlan '1'

config switch_vlan
        option device 'switch0'
        option vlan '1'
        option ports '0 1 2 3 6t'

config switch_vlan
        option device 'switch0'
        option vlan '2'
        option ports '4 6t'

config interface 'WG'
        option proto 'wireguard'
        option private_key 'iDIXfd6exkTZEqxbEQ='
        option listen_port '8057'
        list addresses '192.168.29.1/24'

config wireguard_WG
        option description 'MAKARCHA'
        option public_key 'tWEzxUCcjL3KM10='
        option route_allowed_ips '1'
        list allowed_ips '192.168.29.10/32'

config wireguard_WG
        option public_key 'QIaJyzlqXkSsO+SB3w='
        option route_allowed_ips '1'
        option description '_ITSME_'
        list allowed_ips '192.168.29.2/32'
15

firewall peer1

config defaults
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'REJECT'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'
        list network 'wgcli'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'WG'
        list proto 'udp'
        option src 'wan'
        option dest_port '7473'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Support-UDP-Traceroute'
        option src 'wan'
        option dest_port '33434:33689'
        option proto 'udp'
        option family 'ipv4'
        option target 'REJECT'
        option enabled '0'

config include
        option path '/etc/firewall.user'

config zone
        option name 'VPN'
        option output 'ACCEPT'
        option forward 'REJECT'
        option input 'REJECT'
        option masq '1'
        list network 'vpn'

config rule
        option name 'Iperf3'
        option src 'wan'
        option dest_port '5201'
        option target 'ACCEPT'
        option enabled '0'

config forwarding
        option src 'lan'
        option dest 'VPN'

config zone
        option name 'videonet'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network '249'

config forwarding
        option src 'videonet'
        option dest 'wan'

config forwarding
        option src 'lan'
        option dest 'videonet'
16

firewall peer2

config defaults
        option output 'ACCEPT'
        option forward 'DROP'
        option input 'DROP'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'
        list network 'VPN'

config zone
        option name 'wan'
        option output 'ACCEPT'
        option mtu_fix '1'
        list network 'wan'
        list network '4g'
        option input 'DROP'
        option forward 'DROP'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'
        option enabled '0'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option src_ip 'fc00::/6'
        option dest_ip 'fc00::/6'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'
        option enabled '0'

config rule
        option name 'Support-UDP-Traceroute'
        option src 'wan'
        option dest_port '33434:33689'
        option proto 'udp'
        option family 'ipv4'
        option target 'REJECT'

config include
        option path '/etc/firewall.user'

config redirect
        option dest_port '1817'
        option src 'wan'
        option name 'cam1'
        option src_dport '1817'
        option target 'DNAT'
        option dest_ip '192.168.10.17'
        option dest 'lan'
        list proto 'tcp'

config redirect
        option dest_port '1816'
        option src 'wan'
        option name 'cam2'
        option src_dport '1816'
        option target 'DNAT'
        option dest_ip '192.168.10.16'
        option dest 'lan'
        list proto 'tcp'

config redirect
        option dest_port '1815'
        option src 'wan'
        option name 'cam3'
        option src_dport '1815'
        option target 'DNAT'
        option dest_ip '192.168.10.15'
        option dest 'lan'
        list proto 'tcp'

config redirect
        option dest_port '1818'
        option src 'wan'
        option name 'cam4'
        option src_dport '1818'
        option target 'DNAT'
        option dest_ip '192.168.10.18'
        option dest 'lan'
        list proto 'tcp'

config redirect
        option src 'wan'
        option name 'cam5'
        option target 'DNAT'
        option dest 'lan'
        list proto 'tcp'
        option dest_port '1819'
        option dest_ip '192.168.10.19'
        option src_dport '1819'

config redirect
        option dest_port '1820'
        option src 'wan'
        option name 'cam6'
        option src_dport '1820'
        option target 'DNAT'
        option dest_ip '192.168.10.20'
        option dest 'lan'
        list proto 'tcp'

config redirect
        option src 'wan'
        option name 'webif'
        option src_dport '8080'
        option target 'DNAT'
        option dest_ip '192.168.10.1'
        option dest 'lan'
        list proto 'tcp'
        option dest_port '443'

config nat
        list proto 'all'
        option name 'SNAT'
        option src_ip '192.168.10.0/24'
        option target 'SNAT'
        option snat_ip '83.169.210.130'
        option src 'wan'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'shhh'
        list proto 'tcp'
        option src 'wan'
        option src_dport '1425'
        option dest_ip '192.168.10.1'
        option dest_port '22'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'camera5 manage'
        option src 'wan'
        option src_dport '8019'
        option dest_ip '192.168.10.19'
        option dest_port '8019'
        option enabled '0'
17

firewall server

config defaults
        option syn_flood '1'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'REJECT'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'WG'
        list proto 'udp'
        option src 'wan'
        option dest_port '8057'
        option target 'ACCEPT'

config rule
        option name 'ssh'
        option src 'wan'
        option dest_port '22'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name '8080'
        option family 'ipv4'
        option src 'wan'
        option src_dport '8080'
        option dest_ip '192.168.44.1'
        option dest_port '80'

config zone
        option name 'VPN'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'REJECT'
        list network 'WG'
18

So did it help?

19

Try changing the forward rule on the server to ACCEPT.

Restart all three devices and test again.

1 Like
20

you are looking to VPN server rules that has nothing to do with client(peer1) client
the name for client is not VPN but WG
