Hello
On my newly configured ex5601-t56 I'm facing issue with TV detecting it. When I turn on TV it will not automatically connect to it. After about 5 minutes and that also sometimes it will detect it and once it detect connection will be fine. It works all fine with ISP provided router with auto connecting when it is turned on. Below is wifi config
ssid and password is same for both bands, I've changed encryption to different for 2g band considering WPA3 might not be supported by TV.
Every other device is not having any issue with connecting. Only TV seems to have issue.
What could be wrong here?
Many streaming sticks / TVs do not support Protected Management Frames (a.k.a. PMF / 802.11w), which is required for WPA3. I suspect part of your issue is that you have the same SSID / WiFi password on both radios, while simultaneously having different encryption options for each.
I would guess that your TV is not PMF-capable, and is attempting to connect to the radio with WPA3. Have you looked at the logs to see what is there about the connection attempts?
Perhaps reconsider changing the SSID to something different on Radio0 and see if the TV connects.
I tried changing name of 2g ssid and there is little improvement that it connect but still after few minutes. In ISP router it connects immediately without much delay. Have configured WPA2 now.
Any further ideas?
Is the ISP router upstream of your OpenWrt router? If so, how are the two connected (i.e. lan-lan, or lan-wan)?
Probably worth taking a look at your complete config:
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
Remember to redact passwords, MAC addresses and any public IP addresses you may have:
I've connected LAN port of ISP router to WAN port of this router. And I've turned of wifi of ISP router to avoid any interference. IP range of ISP router is 192.168.2.0/24
Below is config:
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.86",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Zyxel EX5601-T0 ubootmod",
"board_name": "zyxel,ex5601-t0-ubootmod",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.1",
"revision": "r28597-0425664679",
"target": "mediatek/filogic",
"description": "OpenWrt 24.10.1 r28597-0425664679",
"builddate": "1744562312"
}
}
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fddd:2206:6315::/48'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device 'eth1'
option proto 'dhcp'
config interface 'wan6'
option device 'eth1'
option proto 'dhcpv6'
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/soc/18000000.wifi'
option band '2g'
option channel '1'
option htmode 'HE20'
option country 'PL'
option cell_density '0'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'ssid1'
option encryption 'psk2'
option key '123'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc/18000000.wifi+1'
option band '5g'
option channel '36'
option htmode 'HE80'
option country 'PL'
option cell_density '0'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'ssid2'
option encryption 'sae'
option key '123'
option ocv '0'
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option syn_flood 1
option input REJECT
option output ACCEPT
option forward REJECT
# Uncomment this line to disable ipv6 rules
# option disable_ipv6 1
config zone
option name lan
list network 'lan'
option input ACCEPT
option output ACCEPT
option forward ACCEPT
config zone
option name wan
list network 'wan'
list network 'wan6'
option input REJECT
option output ACCEPT
option forward REJECT
option masq 1
option mtu_fix 1
config forwarding
option src lan
option dest wan
# We need to accept udp packets on port 68,
# see https://dev.openwrt.org/ticket/4108
config rule
option name Allow-DHCP-Renew
option src wan
option proto udp
option dest_port 68
option target ACCEPT
option family ipv4
# Allow IPv4 ping
config rule
option name Allow-Ping
option src wan
option proto icmp
option icmp_type echo-request
option family ipv4
option target ACCEPT
config rule
option name Allow-IGMP
option src wan
option proto igmp
option family ipv4
option target ACCEPT
# Allow DHCPv6 replies
# see https://github.com/openwrt/openwrt/issues/5066
config rule
option name Allow-DHCPv6
option src wan
option proto udp
option dest_port 546
option family ipv6
option target ACCEPT
config rule
option name Allow-MLD
option src wan
option proto icmp
option src_ip fe80::/10
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family ipv6
option target ACCEPT
# Allow essential incoming IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Input
option src wan
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
list icmp_type router-solicitation
list icmp_type neighbour-solicitation
list icmp_type router-advertisement
list icmp_type neighbour-advertisement
option limit 1000/sec
option family ipv6
option target ACCEPT
# Allow essential forwarded IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Forward
option src wan
option dest *
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
option limit 1000/sec
option family ipv6
option target ACCEPT
config rule
option name Allow-IPSec-ESP
option src wan
option dest lan
option proto esp
option target ACCEPT
config rule
option name Allow-ISAKMP
option src wan
option dest lan
option dest_port 500
option proto udp
option target ACCEPT
### EXAMPLE CONFIG SECTIONS
# do not allow a specific ip to access wan
#config rule
# option src lan
# option src_ip 192.168.45.2
# option dest wan
# option proto tcp
# option target REJECT
# block a specific mac on wan
#config rule
# option dest wan
# option src_mac 00:11:22:33:44:66
# option target REJECT
# block incoming ICMP traffic on a zone
#config rule
# option src lan
# option proto ICMP
# option target DROP
# port redirect port coming in on wan to lan
#config redirect
# option src wan
# option src_dport 80
# option dest lan
# option dest_ip 192.168.16.235
# option dest_port 80
# option proto tcp
# port redirect of remapped ssh port (22001) on wan
#config redirect
# option src wan
# option src_dport 22001
# option dest lan
# option dest_port 22
# option proto tcp
### FULL CONFIG SECTIONS
#config rule
# option src lan
# option src_ip 192.168.45.2
# option src_mac 00:11:22:33:44:55
# option src_port 80
# option dest wan
# option dest_ip 194.25.2.129
# option dest_port 120
# option proto tcp
# option target REJECT
#config redirect
# option src lan
# option src_ip 192.168.45.2
# option src_mac 00:11:22:33:44:55
# option src_port 1024
# option src_dport 80
# option dest_ip 194.25.2.129
# option dest_port 120
# option proto tcp
@frollic as of now nothing else, just now installed banIP and trying to configure it but it has no impact on above mentioned behavior as just now installed it.
But recently I setup a Netgear R7800 running OpenWrt 24.10.1 with full wpad-openssl at a relative's place. They have some android phones (2x Galaxy S24 Ultra and 1x Pixel 6) and an ISP provided and branded Android TV based IPTV box (most likely running Android 12).
The ISP provides an ONT + WiFi Router combo device (Genexis GX Earth 2022). Before I setup the R7800, this ONT was the only router and the ISP's Android TV device connected to both the 2.4 GHz and 5 GHz WiFi SSIDs (separate SSIDs) of this ONT without any issues.
The ISP's Android TV device could never detect either the R7800's 2.4 GHz or the 5 GHz WiFi SSIDs (separate SSIDs). The three Android phones are able to detect and connect to the R7800's WiFi SSID (both 2.4 GHz and 5 GHz bands) just fine but not the Android TV device. I resolved the issue by connecting the Android TV box via Ethernet cable to R7800.

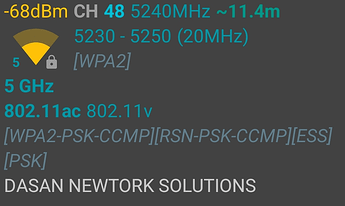

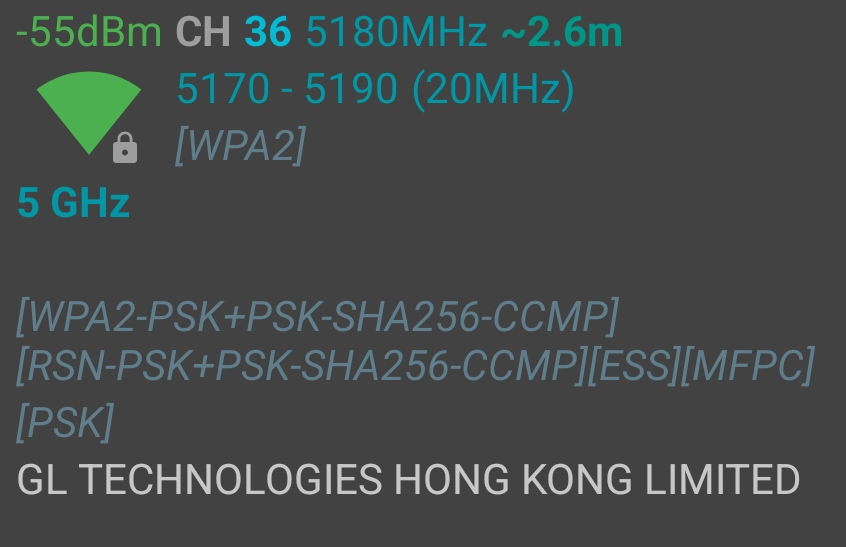

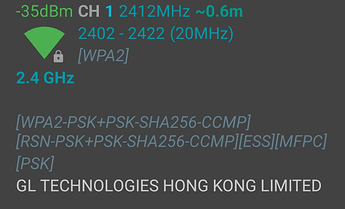

Right now at my location I do not have an Android TV box to test, but I also have an ISP (different one) provided ONT (Dasan H660GM-A) and a GL.iNet GL-MT6000 (Flint 2) running OpenWrt 24.10.1 and (full) wpad-openssl .
Thanks for this information but it didn't help instead after taking their advice I got no Internet connection error. After changing back to Automatic time, it connected.

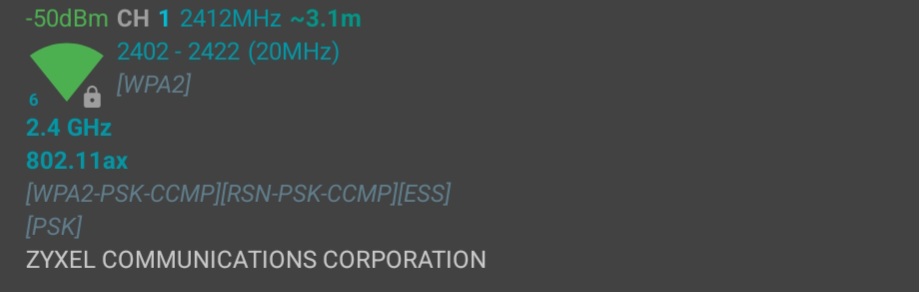

Also checked with wifi analyzer and configuration of both looked same:
