Hey,
I have just logged in into my web interface and i noticed that IPv6 Upstream appeared there by itself. Is it something to worry about or what? I didn't touch my router or anything.
In the Interfaces tab, there is a new wan_6 with the same pppoe-wan tunnel interface as on my wan interface. And for some reason i can't restart nor stop it.
wan6 is still there, unchaged.
If someone could share a light on what i might have just happened, that would be great.
Is any device in it?
it is the same pppoe-wan tunnel device
I mean in LuCI Status/overview
the network wan6 is included by default in OpenWrt and will be there unless you delete it. wan_6 (with the underscore) is not the way it should be in a default situation.
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
Remember to redact passwords, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall
wan_6 is created during ppp negotiation if the pppoe interface is configured for automatic IPv6, and the ISP sends a pppoe packet that advertises they support an IPv6 connection.
If it appeared "just now" it is probably because the ISP has added IPv6 capability while they did not before.
well, it wasn't in default until just now.
{
"kernel": "5.15.134",
"hostname": "OpenWrt",
"system": "MediaTek MT7621 ver:1 eco:3",
"model": "TP-Link Archer A6 v3",
"board_name": "tplink,archer-a6-v3",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "23.05.0",
"revision": "r23497-6637af95aa",
"target": "ramips/mt7621",
"description": "OpenWrt 23.05.0 r23497-6637af95aa"
}
}
for the network
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fdc4:3588:c281::/48'
option packet_steering '1'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan1'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config interface 'wan'
option device 'wan'
option proto 'pppoe'
option username '*'
option password '*'
option ipv6 'auto'
option peerdns '0'
list dns '1.1.1.1'
list dns '1.0.0.1'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
config device 'guest_dev'
option type 'bridge'
option name 'br-guest'
config interface 'guest'
option proto 'static'
option device 'br-guest'
option ipaddr '192.168.3.1/24'
option ip6assign '60'
for wireless
option type 'mac80211'
option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
option channel 'auto'
option band '2g'
option htmode 'HT20'
option country '*'
option cell_density '0'
config wifi-device 'radio1'
option type 'mac80211'
option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0'
option channel 'auto'
option band '5g'
option htmode 'VHT80'
option cell_density '0'
config wifi-iface 'guest'
option device 'radio0'
option mode 'ap'
option network 'guest'
option ssid 'OpenWrt'
option encryption 'psk2'
option key '*'
option isolate '1'
config wifi-iface 'guest2'
option device 'radio1'
option mode 'ap'
option network 'guest'
option ssid 'OpenWrt'
option encryption 'psk2'
option key '*'
option isolate '1'
and dhcp
```config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
option serversfile '/var/run/adblock-fast/dnsmasq.servers'
list server '127.0.0.1#5054'
list server '/mask.icloud.com/'
list server '/mask-h2.icloud.com/'
list server '/use-application-dns.net/'
list server '127.0.0.1#5053'
option doh_backup_noresolv '-1'
option noresolv '1'
list doh_backup_server '127.0.0.1#5054'
list doh_backup_server '/mask.icloud.com/'
list doh_backup_server '/mask-h2.icloud.com/'
list doh_backup_server '/use-application-dns.net/'
list doh_backup_server '127.0.0.1#5053'
list doh_server '127.0.0.1#5053'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
config dhcp 'guest'
option interface 'guest'
option start '100'
option limit '150'
option leasetime '1h'
option dhcpv6 'server'
option ra 'server'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config host
option name 'picsos'
option ip '192.168.1.237'
option mac '00:17:42:62:02:F6'
and firewall
option syn_flood '1'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
config zone
option name 'lan'
list network 'lan'
option input 'ACCEPT'
option output 'ACCEPT'
option forward 'ACCEPT'
config zone
option name 'wan'
list network 'wan'
list network 'wan6'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
option masq '1'
option mtu_fix '1'
config forwarding
option src 'lan'
option dest 'wan'
config rule
option name 'Allow-DHCP-Renew'
option src 'wan'
option proto 'udp'
option dest_port '68'
option target 'ACCEPT'
option family 'ipv4'
config rule 'icmp'
option name 'Allow-Ping'
option src '*'
option proto 'icmp'
option icmp_type 'echo-request'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-IGMP'
option src 'wan'
option proto 'igmp'
option family 'ipv4'
option target 'ACCEPT'
config rule
option name 'Allow-DHCPv6'
option src 'wan'
option proto 'udp'
option dest_port '546'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-MLD'
option src 'wan'
option proto 'icmp'
option src_ip 'fe80::/10'
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family 'ipv6'
option target 'ACCEPT'
config rule 'icmp6'
option name 'Allow-ICMPv6-Input'
option src '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
list icmp_type 'router-solicitation'
list icmp_type 'neighbour-solicitation'
list icmp_type 'router-advertisement'
list icmp_type 'neighbour-advertisement'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-ICMPv6-Forward'
option src 'wan'
option dest '*'
option proto 'icmp'
list icmp_type 'echo-request'
list icmp_type 'echo-reply'
list icmp_type 'destination-unreachable'
list icmp_type 'packet-too-big'
list icmp_type 'time-exceeded'
list icmp_type 'bad-header'
list icmp_type 'unknown-header-type'
option limit '1000/sec'
option family 'ipv6'
option target 'ACCEPT'
config rule
option name 'Allow-IPSec-ESP'
option src 'wan'
option dest 'lan'
option proto 'esp'
option target 'ACCEPT'
config rule
option name 'Allow-ISAKMP'
option src 'wan'
option dest 'lan'
option dest_port '500'
option proto 'udp'
option target 'ACCEPT'
config zone 'guest'
option name 'guest'
option network 'guest'
option input 'REJECT'
option output 'ACCEPT'
option forward 'REJECT'
config forwarding 'guest_wan'
option src 'guest'
option dest 'wan'
config rule 'guest_dns'
option name 'Allow-DNS-Guest'
option src 'guest'
option dest_port '53'
option proto 'tcp udp'
option target 'ACCEPT'
config rule 'guest_dhcp'
option name 'Allow-DHCP-Guest'
option src 'guest'
option dest_port '67'
option proto 'udp'
option family 'ipv4'
option target 'ACCEPT'
config rule 'guest_dhcp6'
option name 'Allow-DHCPv6-Guest'
option src 'guest'
option dest_port '547'
option proto 'udp'
option family 'ipv6'
option target 'ACCEPT'
config rule 'guest_jellyfin'
option name 'Allow-Jellyfin'
option src 'guest'
option dest 'lan'
option proto 'tcp udp'
option dest_ip '192.168.1.237'
option dest_port '8097'
option target 'ACCEPT'
that should be everything
I am not exactly sure where are you referring to.

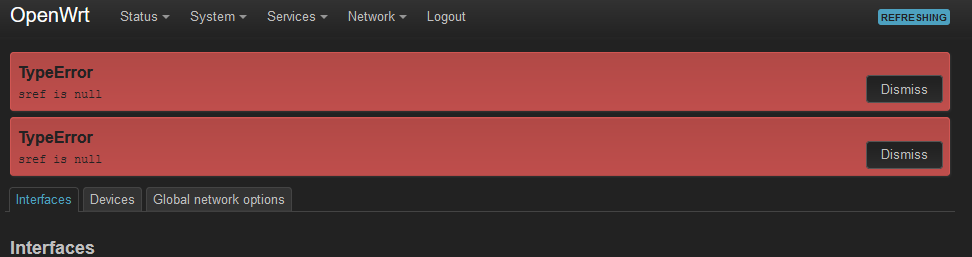

trying to edit the wan_6 just doesn't work.
and

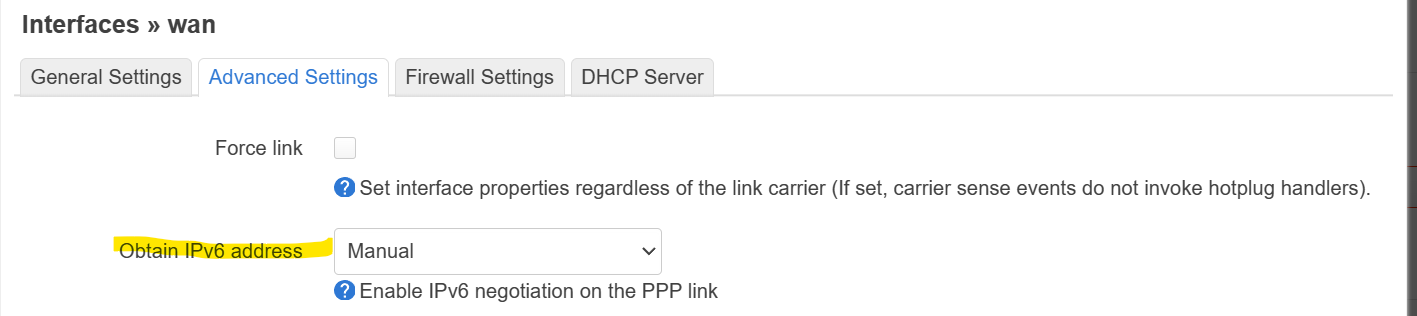

Ohhhh, it is set to automatic for me. Does it mean my ISP offers ipv6 internet connection now? Is there any benefit having it on or is it better to be manual instead.
I will set to manual for now.
@psherman will fix all this but to answer directly: click the big OpenWrt letters in the top left.
nah... @mk24 has the right answer.
should have checked https://openwrt.org/docs/guide-user/network/ipv6/configuration before posting, but ah well
you live you learn
