Hello! I have TP-Link RE350 V1 and I has built FW for it with minimal configuration as Wifi to eth AP.
Previous build on ver 22.* was the best. But now I has tryed to build 23.05.5 and this version of build work very SLOW. Device work very very slow and some time reseting by WatchDog.
I tested other vesions with same config and last work well is 23.05.3
All newer version have same proble - look like high CPU load on Idle, but no CPU load int TOP.
But no one process no load CPU in top output.
TOP
Mem: 44484K used, 10840K free, 132K shrd, 0K buff, 2912K cached
CPU: 0% usr 0% sys 0% nic 99% idle 0% io 0% irq 0% sirq
Load average: 0.89 4.91 3.37 1/99 2884
PID PPID USER STAT VSZ %VSZ %CPU COMMAND
2884 434 root R 1392 3% 0% top -b -n 2 -d 1
1066 1 root S 4812 9% 0% /usr/sbin/hostapd -s -g /var/run/hostapd/global
589 2 root SW 0 0% 0% [napi/phy1-9]
553 2 root SW 0 0% 0% [napi/phy0-7]
9 2 root IW 0 0% 0% [kworker/u8:0-ph]
949 1 root S 3512 6% 0% /sbin/rpcd -s /var/run/ubus/ubus.sock -t 30
1129 1 root S 2124 4% 0% /sbin/netifd
1 0 root S 1952 4% 0% /sbin/procd
1348 1 root S 1752 3% 0% /usr/sbin/odhcpd
895 1 root S 1684 3% 0% /sbin/logread -f -h 1.wifi -r 192.168.60.1 514 -p /var/run/logread.2.pid -u
1472 1 root S 1644 3% 0% /usr/sbin/uhttpd -f -h /www -r 1.wifi -x /cgi-bin -t 60 -T 30 -k 20 -A 1 -n 3 -N 100 -R -p 0.0.0.0:80 -p [::]:80
433 1 ubus S 1496 3% 0% /sbin/ubusd
894 1 logd S 1484 3% 0% /sbin/logd -S 64
434 1 root S 1380 2% 0% /bin/ash --login
1407 1 root S 1380 2% 0% /usr/sbin/crond -f -c /etc/crontabs -l 5
2291 1 root S< 1376 2% 0% /usr/sbin/ntpd -n -N -S /usr/sbin/ntpd-hotplug -p 0.openwrt.pool.ntp.org -p 1.openwrt.pool.ntp.org -p 2.openwrt.pool.ntp.org -p 3.openwrt.pool.ntp.org
1794 1129 root S 1376 2% 0% udhcpc -p /var/run/udhcpc-br-lan.pid -s /lib/netifd/dhcp.script -f -t 0 -i br-lan -x hostname:1.wifi -C -R -O 121
1016 1 root S 1244 2% 0% /usr/sbin/dropbear -F -P /var/run/dropbear.1.pid -p 22 -K 300 -T 3 -W 262144
1793 1129 root S 1220 2% 0% odhcp6c -s /lib/netifd/dhcpv6.script -Ntry -P0 -t120 br-lan
469 1 root S 1212 2% 0% /sbin/urngd
1635 1 root S 1128 2% 0% /usr/sbin/apinger -f -c /var/run/apinger-home.conf
69 2 root SW 0 0% 0% [kswapd0]
386 2 root IW< 0 0% 0% [kworker/2:1H-kb]
246 2 root IW< 0 0% 0% [kworker/3:1H-kb]
70 2 root IW< 0 0% 0% [kworker/0:1H-kb]
264 2 root IW< 0 0% 0% [kworker/1:1H-kb]
137 2 root SW 0 0% 0% [spi0]
549 2 root IW 0 0% 0% [kworker/1:3-eve]
274 2 root IW 0 0% 0% [kworker/0:2-eve]
562 2 root SW 0 0% 0% [mt76-tx phy0]
129 2 root IW 0 0% 0% [kworker/3:5-eve]
13 2 root IW 0 0% 0% [rcu_sched]
189 2 root IW 0 0% 0% [kworker/u8:3-ph]
17 2 root SW 0 0% 0% [migration/1]
260 2 root IW 0 0% 0% [kworker/2:2-eve]
22 2 root SW 0 0% 0% [migration/2]
14 2 root SW 0 0% 0% [migration/0]
68 2 root IW 0 0% 0% [kworker/u8:2-ph]
27 2 root SW 0 0% 0% [migration/3]
36 2 root SW 0 0% 0% [kcompactd0]
12 2 root SW 0 0% 0% [ksoftirqd/0]
58 2 root IW 0 0% 0% [kworker/u8:1-ph]
33 2 root IW 0 0% 0% [kworker/1:1-eve]
23 2 root SW 0 0% 0% [ksoftirqd/2]
7 2 root IW 0 0% 0% [kworker/0:0-eve]
2608 2 root IW 0 0% 0% [kworker/u8:4-ph]
28 2 root SW 0 0% 0% [ksoftirqd/3]
18 2 root SW 0 0% 0% [ksoftirqd/1]
290 2 root IW< 0 0% 0% [kworker/3:2H-kb]
226 2 root SW 0 0% 0% [napi/mtk_eth-6]
225 2 root SW 0 0% 0% [napi/mtk_eth-5]
994 2 root IW< 0 0% 0% [kworker/1:2H-kb]
1021 2 root IW< 0 0% 0% [kworker/2:2H-kb]
1069 2 root IW< 0 0% 0% [kworker/0:2H]
2 0 root SW 0 0% 0% [kthreadd]
92 2 root IW 0 0% 0% [kworker/2:1-mm_]
2638 2 root IW< 0 0% 0% [kworker/1:0H]
265 2 root SW 0 0% 0% [irq/30-keys]
249 2 root SW 0 0% 0% [irq/23-mt7530]
266 2 root SW 0 0% 0% [irq/31-keys]
245 2 root IW< 0 0% 0% [ipv6_addrconf]
244 2 root IW< 0 0% 0% [mld]
268 2 root SW 0 0% 0% [irq/26-keys]
541 2 root IW< 0 0% 0% [cryptodev_queue]
547 2 root IW< 0 0% 0% [cfg80211]
247 2 root IW< 0 0% 0% [dsa_ordered]
267 2 root SW 0 0% 0% [irq/25-keys]
71 2 root IW< 0 0% 0% [kthrotld]
54 2 root IW< 0 0% 0% [kblockd]
42 2 root IW< 0 0% 0% [pdecrypt_serial]
55 2 root IW< 0 0% 0% [blkcg_punt_bio]
34 2 root SW 0 0% 0% [oom_reaper]
35 2 root IW< 0 0% 0% [writeback]
41 2 root IW< 0 0% 0% [pencrypt_serial]
56 2 root SW 0 0% 0% [watchdogd]
26 2 root SW 0 0% 0% [cpuhp/3]
21 2 root SW 0 0% 0% [cpuhp/2]
30 2 root IW< 0 0% 0% [kworker/3:0H-ev]
11 2 root SW 0 0% 0% [rcu_tasks_trace]
15 2 root SW 0 0% 0% [cpuhp/0]
6 2 root IW< 0 0% 0% [netns]
4 2 root IW< 0 0% 0% [rcu_par_gp]
3 2 root IW< 0 0% 0% [rcu_gp]
5 2 root IW< 0 0% 0% [slub_flushwq]
10 2 root IW< 0 0% 0% [mm_percpu_wq]
16 2 root SW 0 0% 0% [cpuhp/1]
31 2 root IW< 0 0% 0% [inet_frag_wq]
128 2 root IW 0 0% 0% [kworker/3:4-eve]
590 2 root SW 0 0% 0% [napi/phy1-10]
2016 2 root SWN 0 0% 0% [jffs2_gcd_mtd4]
2634 2 root IW< 0 0% 0% [kworker/2:0H]
554 2 root SW 0 0% 0% [napi/phy0-8]
609 2 root SW 0 0% 0% [mt76-tx phy1]
2637 2 root IW< 0 0% 0% [kworker/0:0H-kb]
2657 2 root IW 0 0% 0% [kworker/u8:5-ph]
2668 2 root IW 0 0% 0% [kworker/0:3]
2667 2 root IW 0 0% 0% [kworker/0:1-rcu]
2688 2 root IW 0 0% 0% [kworker/2:0-eve]
2690 2 root IW 0 0% 0% [kworker/2:3]

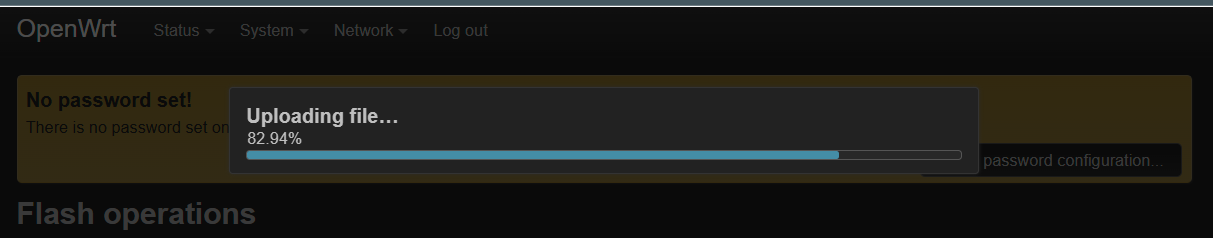

After this FW no way to sysupgrade to any other - device freezes on flashing start. Only flashing via recovery mode.
.config
CONFIG_TARGET_ramips=y
CONFIG_TARGET_ramips_mt7621=y
CONFIG_TARGET_ramips_mt7621_DEVICE_tplink_re350-v1=y
CONFIG_CLEAN_IPKG=y
# CONFIG_DOWNLOAD_CHECK_CERTIFICATE is not set
# CONFIG_DROPBEAR_DBCLIENT is not set
# CONFIG_KERNEL_DEBUG_INFO is not set
# CONFIG_KERNEL_ELF_CORE is not set
CONFIG_KERNEL_IO_URING=y
CONFIG_LUCI_SRCDIET=y
CONFIG_PACKAGE_apinger=y
# CONFIG_PACKAGE_ca-bundle is not set
CONFIG_PACKAGE_cgi-io=y
# CONFIG_PACKAGE_dnsmasq is not set
# CONFIG_PACKAGE_firewall4 is not set
CONFIG_PACKAGE_hostapd-mbedtls=y
# CONFIG_PACKAGE_jansson is not set
CONFIG_PACKAGE_kmod-crypto-authenc=y
# CONFIG_PACKAGE_kmod-crypto-crc32c is not set
CONFIG_PACKAGE_kmod-cryptodev=y
# CONFIG_PACKAGE_kmod-lib-crc-ccitt is not set
# CONFIG_PACKAGE_kmod-lib-crc32c is not set
# CONFIG_PACKAGE_kmod-nf-conntrack is not set
# CONFIG_PACKAGE_kmod-nf-conntrack6 is not set
# CONFIG_PACKAGE_kmod-nf-flow is not set
# CONFIG_PACKAGE_kmod-nf-log is not set
# CONFIG_PACKAGE_kmod-nf-log6 is not set
# CONFIG_PACKAGE_kmod-nf-nat is not set
# CONFIG_PACKAGE_kmod-nf-reject is not set
# CONFIG_PACKAGE_kmod-nf-reject6 is not set
# CONFIG_PACKAGE_kmod-nfnetlink is not set
# CONFIG_PACKAGE_kmod-nft-core is not set
# CONFIG_PACKAGE_kmod-nft-fib is not set
# CONFIG_PACKAGE_kmod-nft-nat is not set
# CONFIG_PACKAGE_kmod-nft-offload is not set
# CONFIG_PACKAGE_kmod-ppp is not set
# CONFIG_PACKAGE_knot-resolver_dnstap is not set
CONFIG_PACKAGE_liblua=y
CONFIG_PACKAGE_liblucihttp=y
CONFIG_PACKAGE_liblucihttp-ucode=y
# CONFIG_PACKAGE_libmnl is not set
# CONFIG_PACKAGE_libnftnl is not set
# CONFIG_PACKAGE_libpthread is not set
# CONFIG_PACKAGE_libuclient is not set
# CONFIG_PACKAGE_libustream-mbedtls is not set
CONFIG_PACKAGE_lua=y
CONFIG_PACKAGE_luci-base=y
CONFIG_PACKAGE_luci-mod-network=y
CONFIG_PACKAGE_luci-mod-status=y
CONFIG_PACKAGE_luci-mod-system=y
CONFIG_PACKAGE_luci-proto-ipv6=y
CONFIG_PACKAGE_luci-theme-bootstrap=y
# CONFIG_PACKAGE_nftables-json is not set
# CONFIG_PACKAGE_openwrt-keyring is not set
# CONFIG_PACKAGE_opkg is not set
# CONFIG_PACKAGE_ppp is not set
# CONFIG_PACKAGE_procd-ujail is not set
CONFIG_PACKAGE_rpcd=y
CONFIG_PACKAGE_rpcd-mod-file=y
CONFIG_PACKAGE_rpcd-mod-iwinfo=y
CONFIG_PACKAGE_rpcd-mod-luci=y
CONFIG_PACKAGE_rpcd-mod-ucode=y
# CONFIG_PACKAGE_uclient-fetch is not set
CONFIG_PACKAGE_ucode-mod-html=y
CONFIG_PACKAGE_ucode-mod-math=y
CONFIG_PACKAGE_uhttpd=y
# CONFIG_PACKAGE_usign is not set
# CONFIG_PACKAGE_wpad-basic-mbedtls is not set
# CONFIG_SIGNATURE_CHECK is not set
# CONFIG_SIGNED_PACKAGES is not set
# CONFIG_TARGET_ROOTFS_INITRAMFS is not set
# CONFIG_WOLFSSL_HAS_CERTGEN is not set
# CONFIG_WOLFSSL_HAS_OPENVPN is not set
# CONFIG_WOLFSSL_HAS_TLSV10 is not set
dmesg
[ 0.000000] Linux version 5.15.162 (spider@mail.spider.vc) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r24012-d8dd03c46f) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 SMP Mon Jul 15 22:14:18 2024
[ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3
[ 0.000000] printk: bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc)
[ 0.000000] MIPS: machine is TP-LINK RE350 v1
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] VPE topology {2,2} total 4
[ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] percpu: Embedded 12 pages/cpu s17584 r8192 d23376 u49152
[ 0.000000] pcpu-alloc: s17584 r8192 d23376 u49152 alloc=12*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 16240
[ 0.000000] Kernel command line: console=ttyS0,57600 rootfstype=squashfs,jffs2
[ 0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear)
[ 0.000000] Writing ErrCtl register=000554c0
[ 0.000000] Readback ErrCtl register=000554c0
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 54064K/65536K available (7043K kernel code, 620K rwdata, 1432K rodata, 1260K init, 210K bss, 11472K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[ 0.000000] NR_IRQS: 256
[ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns
[ 0.000004] sched_clock: 64 bits at 880MHz, resolution 1ns, wraps every 4398046511103ns
[ 0.016011] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688)
[ 0.088318] pid_max: default: 32768 minimum: 301
[ 0.098290] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.112717] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.132110] rcu: Hierarchical SRCU implementation.
[ 0.142375] smp: Bringing up secondary CPUs ...
[ 0.152168] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[ 0.152198] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.152214] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.152266] CPU1 revision is: 0001992f (MIPS 1004Kc)
[ 0.211873] Synchronize counters for CPU 1: done.
[ 0.273974] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[ 0.273999] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.274011] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.274036] CPU2 revision is: 0001992f (MIPS 1004Kc)
[ 0.333034] Synchronize counters for CPU 2: done.
[ 0.393480] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes.
[ 0.393505] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.393516] MIPS secondary cache 256kB, 8-way, linesize 32 bytes.
[ 0.393547] CPU3 revision is: 0001992f (MIPS 1004Kc)
[ 0.452621] Synchronize counters for CPU 3: done.
[ 0.512222] smp: Brought up 1 node, 4 CPUs
[ 0.525540] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.545045] futex hash table entries: 1024 (order: 3, 32768 bytes, linear)
[ 0.558971] pinctrl core: initialized pinctrl subsystem
[ 0.570661] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.594829] FPU Affinity set after 11720 emulations
[ 0.607945] clocksource: Switched to clocksource GIC
[ 0.619075] NET: Registered PF_INET protocol family
[ 0.628876] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.643812] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear)
[ 0.660366] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.675714] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.690913] TCP bind hash table entries: 1024 (order: 1, 8192 bytes, linear)
[ 0.704917] TCP: Hash tables configured (established 1024 bind 1024)
[ 0.717684] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.730612] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 0.744769] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.755992] PCI: CLS 0 bytes, default 32
[ 0.766811] workingset: timestamp_bits=14 max_order=14 bucket_order=0
[ 0.784921] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.796517] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.821507] mt7621_gpio 1e000600.gpio: registering 32 gpios
[ 0.833029] mt7621_gpio 1e000600.gpio: registering 32 gpios
[ 0.844496] mt7621_gpio 1e000600.gpio: registering 32 gpios
[ 0.856081] mt7621-pci 1e140000.pcie: host bridge /pcie@1e140000 ranges:
[ 0.869339] mt7621-pci 1e140000.pcie: No bus range found for /pcie@1e140000, using [bus 00-ff]
[ 0.886804] mt7621-pci 1e140000.pcie: MEM 0x0060000000..0x006fffffff -> 0x0060000000
[ 0.903030] mt7621-pci 1e140000.pcie: IO 0x001e160000..0x001e16ffff -> 0x0000000000
[ 1.277940] mt7621-pci 1e140000.pcie: pcie2 no card, disable it (RST & CLK)
[ 1.291720] mt7621-pci 1e140000.pcie: PCIE0 enabled
[ 1.301366] mt7621-pci 1e140000.pcie: PCIE1 enabled
[ 1.311065] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002
[ 1.325265] mt7621-pci 1e140000.pcie: PCI host bridge to bus 0000:00
[ 1.337797] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 1.348684] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff]
[ 1.362319] pci_bus 0000:00: root bus resource [io 0x0000-0xffff]
[ 1.374637] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400
[ 1.386526] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff]
[ 1.398969] pci 0000:00:00.0: reg 0x14: [mem 0x60400000-0x6040ffff]
[ 1.411506] pci 0000:00:00.0: supports D1
[ 1.419358] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[ 1.431628] pci 0000:00:01.0: [0e8d:0801] type 01 class 0x060400
[ 1.443545] pci 0000:00:01.0: reg 0x10: [mem 0x00000000-0x7fffffff]
[ 1.455937] pci 0000:00:01.0: reg 0x14: [mem 0x60410000-0x6041ffff]
[ 1.468464] pci 0000:00:01.0: supports D1
[ 1.476298] pci 0000:00:01.0: PME# supported from D0 D1 D3hot
[ 1.490070] pci 0000:01:00.0: [14c3:7603] type 00 class 0x028000
[ 1.501998] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff]
[ 1.514507] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold
[ 1.527979] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 1.538290] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff]
[ 1.550368] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff]
[ 1.563849] pci 0000:00:00.0: bridge window [mem 0x60100000-0x601fffff pref]
[ 1.578189] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01
[ 1.591658] pci 0000:02:00.0: [14c3:7662] type 00 class 0x028000
[ 1.603541] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit]
[ 1.617041] pci 0000:02:00.0: reg 0x30: [mem 0x00000000-0x0000ffff pref]
[ 1.630385] pci 0000:02:00.0: PME# supported from D0 D3hot D3cold
[ 1.643832] pci 0000:00:01.0: PCI bridge to [bus 02-ff]
[ 1.654160] pci 0000:00:01.0: bridge window [io 0x0000-0x0fff]
[ 1.666221] pci 0000:00:01.0: bridge window [mem 0x60200000-0x602fffff]
[ 1.679690] pci 0000:00:01.0: bridge window [mem 0x60300000-0x603fffff pref]
[ 1.694043] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02
[ 1.707215] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000]
[ 1.720308] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000]
[ 1.734131] pci 0000:00:01.0: BAR 0: no space for [mem size 0x80000000]
[ 1.747251] pci 0000:00:01.0: BAR 0: failed to assign [mem size 0x80000000]
[ 1.761090] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff]
[ 1.774566] pci 0000:00:00.0: BAR 9: assigned [mem 0x60100000-0x601fffff pref]
[ 1.788911] pci 0000:00:01.0: BAR 8: assigned [mem 0x60200000-0x602fffff]
[ 1.802387] pci 0000:00:01.0: BAR 9: assigned [mem 0x60300000-0x603fffff pref]
[ 1.816720] pci 0000:00:00.0: BAR 1: assigned [mem 0x60400000-0x6040ffff]
[ 1.830209] pci 0000:00:01.0: BAR 1: assigned [mem 0x60410000-0x6041ffff]
[ 1.843688] pci 0000:00:00.0: BAR 7: assigned [io 0x0000-0x0fff]
[ 1.855784] pci 0000:00:01.0: BAR 7: assigned [io 0x1000-0x1fff]
[ 1.867914] pci 0000:01:00.0: BAR 0: assigned [mem 0x60000000-0x600fffff]
[ 1.881360] pci 0000:00:00.0: PCI bridge to [bus 01]
[ 1.891197] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff]
[ 1.903301] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff]
[ 1.916781] pci 0000:00:00.0: bridge window [mem 0x60100000-0x601fffff pref]
[ 1.931124] pci 0000:02:00.0: BAR 0: assigned [mem 0x60200000-0x602fffff 64bit]
[ 1.945648] pci 0000:02:00.0: BAR 6: assigned [mem 0x60300000-0x6030ffff pref]
[ 1.959973] pci 0000:00:01.0: PCI bridge to [bus 02]
[ 1.969835] pci 0000:00:01.0: bridge window [io 0x1000-0x1fff]
[ 1.981917] pci 0000:00:01.0: bridge window [mem 0x60200000-0x602fffff]
[ 1.995402] pci 0000:00:01.0: bridge window [mem 0x60300000-0x603fffff pref]
[ 2.012747] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled
[ 2.027172] printk: console [ttyS0] disabled
[ 2.035725] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 19, base_baud = 3125000) is a 16550A
[ 2.053652] printk: console [ttyS0] enabled
[ 2.070189] printk: bootconsole [early0] disabled
[ 2.092929] spi-mt7621 1e000b00.spi: sys_freq: 220000000
[ 2.105318] spi-nor spi0.0: s25fl064k (8192 Kbytes)
[ 2.115174] 4 fixed-partitions partitions found on MTD device spi0.0
[ 2.127925] OF: Bad cell count for /palmbus@1e000000/spi@b00/flash@0/partitions
[ 2.142546] OF: Bad cell count for /palmbus@1e000000/spi@b00/flash@0/partitions
[ 2.157434] OF: Bad cell count for /palmbus@1e000000/spi@b00/flash@0/partitions
[ 2.172069] OF: Bad cell count for /palmbus@1e000000/spi@b00/flash@0/partitions
[ 2.187632] Creating 4 MTD partitions on "spi0.0":
[ 2.197290] 0x000000000000-0x000000020000 : "u-boot"
[ 2.208625] 0x000000020000-0x000000650000 : "firmware"
[ 2.220702] 2 tplink-fw partitions found on MTD device firmware
[ 2.232584] Creating 2 MTD partitions on "firmware":
[ 2.242506] 0x000000000000-0x0000002bc174 : "kernel"
[ 2.252404] mtd: partition "kernel" doesn't end on an erase/write block -- force read-only
[ 2.270122] 0x0000002bc174-0x000000630000 : "rootfs"
[ 2.280085] mtd: partition "rootfs" doesn't start on an erase/write block boundary -- force read-only
[ 2.299883] mtd: setting mtd3 (rootfs) as root device
[ 2.310152] 1 squashfs-split partitions found on MTD device rootfs
[ 2.322513] 0x000000580000-0x000000630000 : "rootfs_data"
[ 2.334531] 0x0000007f0000-0x0000007fff00 : "radio"
[ 2.345481] 0x0000007fff00-0x000000800000 : "config"
[ 2.490910] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module
[ 2.513356] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 21
[ 2.532282] i2c_dev: i2c /dev entries driver
[ 2.544179] NET: Registered PF_INET6 protocol family
[ 2.556494] Segment Routing with IPv6
[ 2.563971] In-situ OAM (IOAM) with IPv6
[ 2.571937] NET: Registered PF_PACKET protocol family
[ 2.582506] 8021q: 802.1Q VLAN Support v1.8
[ 2.597177] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module
[ 2.631047] mt7530-mdio mdio-bus:1f: configuring for fixed/rgmii link mode
[ 2.645599] mt7530-mdio mdio-bus:1f: Link is Up - 1Gbps/Full - flow control rx/tx
[ 2.648755] mt7530-mdio mdio-bus:1f lan (uninitialized): PHY [mt7530-0:00] driver [MediaTek MT7530 PHY] (irq=24)
[ 2.684576] DSA: tree 0 setup
[ 2.692273] clk: Disabling unused clocks
[ 2.711081] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 2.729872] Freeing unused kernel image (initmem) memory: 1260K
[ 2.741796] This architecture does not have kernel memory protection.
[ 2.754654] Run /sbin/init as init process
[ 2.762822] with arguments:
[ 2.762829] /sbin/init
[ 2.762834] with environment:
[ 2.762839] HOME=/
[ 2.762845] TERM=linux
[ 3.495391] init: Console is alive
[ 3.502836] init: - watchdog -
[ 4.268270] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 4.292268] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 4.317362] init: - preinit -
[ 5.423688] random: jshn: uninitialized urandom read (4 bytes read)
[ 5.576792] random: jshn: uninitialized urandom read (4 bytes read)
[ 5.630158] random: jshn: uninitialized urandom read (4 bytes read)
[ 5.991821] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode
[ 6.013149] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
[ 6.030475] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode
[ 6.045201] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 8.262888] mount_root: jffs2 not ready yet, using temporary tmpfs overlay
[ 8.281243] urandom-seed: Seed file not found (/etc/urandom.seed)
[ 8.481067] procd: - early -
[ 8.487043] procd: - watchdog -
[ 9.052096] procd: - watchdog -
[ 9.059165] procd: - ubus -
[ 9.141619] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.156290] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.232392] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.248668] procd: - init -
[ 9.769925] kmodloader: loading kernel modules from /etc/modules.d/*
[ 9.972315] cryptodev: driver 1.12 loaded.
[ 9.982627] Loading modules backported from Linux version v6.1.97-0-g7753af06eebfb
[ 9.997800] Backport generated by backports.git v6.1.97-1-0-g2431d56e
[ 10.386409] pci 0000:00:00.0: enabling device (0006 -> 0007)
[ 10.397820] mt7603e 0000:01:00.0: enabling device (0000 -> 0002)
[ 10.410117] mt7603e 0000:01:00.0: ASIC revision: 76030010
[ 10.426256] mt7603e 0000:01:00.0: Firmware Version: ap_pcie
[ 10.437463] mt7603e 0000:01:00.0: Build Time: 20160107100755
[ 10.487939] mt7603e 0000:01:00.0: firmware init done
[ 10.657953] mt7603e 0000:01:00.0: registering led 'mt76-phy0'
[ 10.671180] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
[ 10.687550] pci 0000:00:01.0: enabling device (0006 -> 0007)
[ 10.698932] mt76x2e 0000:02:00.0: enabling device (0000 -> 0002)
[ 10.711271] mt76x2e 0000:02:00.0: ASIC revision: 76120044
[ 11.064084] urngd: v1.0.2 started.
[ 11.565035] mt76x2e 0000:02:00.0: ROM patch build: 20141115060606a
[ 11.581730] mt76x2e 0000:02:00.0: Firmware Version: 0.0.00
[ 11.592713] mt76x2e 0000:02:00.0: Build: 1
[ 11.600873] mt76x2e 0000:02:00.0: Build Time: 201607111443____
[ 11.635937] mt76x2e 0000:02:00.0: Firmware running!
[ 11.645836] mt76x2e 0000:02:00.0: registering led 'mt76-phy1'
[ 11.659042] ieee80211 phy1: Selected rate control algorithm 'minstrel_ht'
[ 11.664840] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 11.848464] random: jshn: uninitialized urandom read (4 bytes read)
[ 11.934089] random: jshn: uninitialized urandom read (4 bytes read)
[ 11.974288] random: jshn: uninitialized urandom read (4 bytes read)
[ 12.195318] random: crng init done
[ 12.202248] random: 30 urandom warning(s) missed due to ratelimiting
[ 20.853809] mtk_soc_eth 1e100000.ethernet eth0: Link is Down
[ 20.949446] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode
[ 20.965929] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
[ 20.986907] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode
[ 21.002971] br-lan: port 1(lan) entered blocking state
[ 21.013330] br-lan: port 1(lan) entered disabled state
[ 21.025407] device lan entered promiscuous mode
[ 21.034530] device eth0 entered promiscuous mode
[ 24.475825] mt7530-mdio mdio-bus:1f lan: Link is Up - 1Gbps/Full - flow control rx/tx
[ 24.491596] br-lan: port 1(lan) entered blocking state
[ 24.501890] br-lan: port 1(lan) entered forwarding state
[ 24.513426] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[ 41.711570] jffs2_scan_eraseblock(): End of filesystem marker found at 0x0
[ 41.725408] jffs2_build_filesystem(): unlocking the mtd device...
[ 41.725425] done.
[ 41.741693] jffs2_build_filesystem(): erasing all blocks after the end marker...
[ 44.218161] done.
[ 44.236977] jffs2: notice: (1996) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found.
[ 44.571931] overlayfs: upper fs does not support tmpfile.
