Using Redmi note 12 RNDIS

[nitinjs]

I am trying to use TP-Link Archer C5 V4 with Android through USB
My phone is Redmi note 12

I followed this guide: https://openwrt.org/docs/guide-user/network/wan/smartphone.usb.tethering

when I fire dmesg I am able to get

[    3.955680] usb 1-1: new high-speed USB device number 2 using ehci-platform
[   19.294948] usbcore: registered new interface driver rndis_host

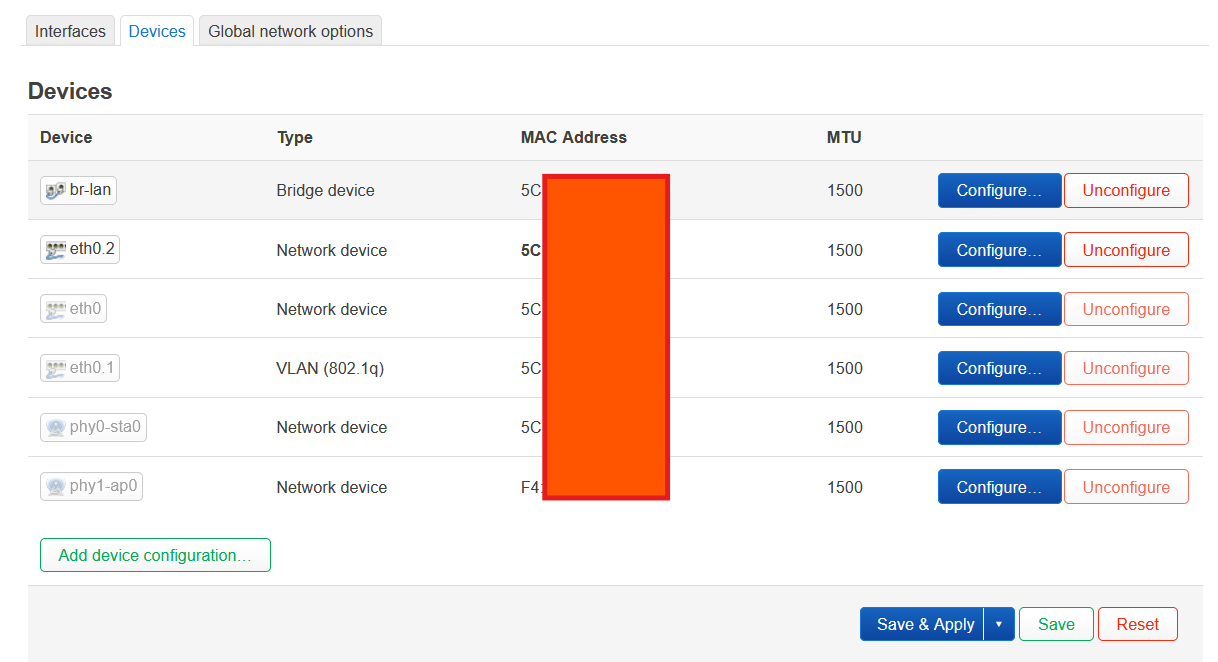

however I do not see ethX or usb0 in devices list

help, my only aim is to use usb rndis internet on router

[AndrewZ]

Please show the output of cat /sys/kernel/debug/usb/devices

[brada4]

Show lsusb when phone is connected. In general screen has to be unlocked and tethering option enabled as long as data connection is used.

[nitinjs]

root@Archer-C5:~# cat /sys/kernel/debug/usb/devices

T:  Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=480  MxCh= 1
B:  Alloc=  0/800 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 2.00 Cls=09(hub  ) Sub=00 Prot=00 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0002 Rev= 6.06
S:  Manufacturer=Linux 6.6.63 ehci_hcd
S:  Product=EHCI Host Controller
S:  SerialNumber=101c0000.ehci
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   4 Ivl=256ms

T:  Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#=  3 Spd=480  MxCh= 0
D:  Ver= 2.10 Cls=00(>ifc ) Sub=00 Prot=00 MxPS=64 #Cfgs=  1
P:  Vendor=2717 ProdID=ff80 Rev= 5.04
S:  Manufacturer=Xiaomi
S:  Product=Redmi Note 12 5G
S:  SerialNumber=xkcd
C:* #Ifs= 2 Cfg#= 1 Atr=80 MxPwr=500mA
A:  FirstIf#= 0 IfCount= 2 Cls=ef(misc ) Sub=04 Prot=01
I:* If#= 0 Alt= 0 #EPs= 1 Cls=ef(misc ) Sub=04 Prot=01 Driver=rndis_host
E:  Ad=81(I) Atr=03(Int.) MxPS=   8 Ivl=32ms
I:* If#= 1 Alt= 0 #EPs= 2 Cls=0a(data ) Sub=00 Prot=00 Driver=rndis_host
E:  Ad=8e(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E:  Ad=0f(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms

T:  Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#=  1 Spd=12   MxCh= 1
B:  Alloc=  0/900 us ( 0%), #Int=  0, #Iso=  0
D:  Ver= 1.10 Cls=09(hub  ) Sub=00 Prot=00 MxPS=64 #Cfgs=  1
P:  Vendor=1d6b ProdID=0001 Rev= 6.06
S:  Manufacturer=Linux 6.6.63 ohci_hcd
S:  Product=Generic Platform OHCI controller
S:  SerialNumber=101c1000.ohci
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr=  0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub  ) Sub=00 Prot=00 Driver=hub
E:  Ad=81(I) Atr=03(Int.) MxPS=   2 Ivl=255ms
root@Archer-C5:~#

[AndrewZ]

Please do not use pictures when you need to show text.

[nitinjs]

@nitinjs

S:  Manufacturer=Xiaomi
S:  Product=Redmi Note 12 5G

updated text

[AndrewZ]

Not bad so far. Disconnect the phone, run logread -f then reconnect the phone and make sure thethering is enabled, etc. like @brada4 said. Give it a few moments to run and post the log data collected.

[nitinjs]

restarted both phone and router again

root@Archer-C5:~# logread -f
Thu Dec  5 02:19:35 2024 kern.info kernel: [  751.095983] usb 1-1: new high-speed USB device number 5 using ehci-platform

now created interfaces with eth1 DHCP and DHCPV6 and it worked,
not sure how eth1 does not appear in the devices tab, anyways no issues now, thanks all
