Unable to ping to openwrt.org from new AP

[KOA]

I have connected modem’s lan port to AP lan port. I can access internet via wifi, but I am unable to ping openwrt.org

Network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd4b:ff2d:7fa::/48'
	option packet_steering '1'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'lan1'
	list ports 'lan2'
	list ports 'lan3'
	list ports 'lan4'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.18.2'
	option netmask '255.255.255.0'
	option ip6assign '60'
	option gateway '192.168.18.1'

config interface 'wwan'
	option proto 'dhcp'

config interface 'wlan'
	option proto 'dhcp'
	option defaultroute '0'

DHCP

config dnsmasq
	option domainneeded '1'
	option boguspriv '1'
	option filterwin2k '0'
	option localise_queries '1'
	option rebind_protection '1'
	option rebind_localhost '1'
	option local '/lan/'
	option domain 'lan'
	option expandhosts '1'
	option nonegcache '0'
	option cachesize '1000'
	option authoritative '1'
	option readethers '1'
	option leasefile '/tmp/dhcp.leases'
	option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
	option nonwildcard '1'
	option localservice '1'
	option ednspacket_max '1232'
	option filter_aaaa '0'
	option filter_a '0'

config dhcp 'lan'
	option interface 'lan'
	option start '100'
	option limit '150'
	option leasetime '12h'
	option dhcpv4 'server'
	option ignore '1'

config odhcpd 'odhcpd'
	option maindhcp '0'
	option leasefile '/tmp/hosts/odhcpd'
	option leasetrigger '/usr/sbin/odhcpd-update'
	option loglevel '4'

firewall

config defaults
	option syn_flood '1'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'

config zone
	option name 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	list network 'lan'
	list network 'wwan'

config zone
	option name 'wan'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

config zone
	option input 'ACCEPT'
	option name 'sun'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	option masq '1'
	list network 'wlan'

config redirect
	option name 'SUN2000'
	option target 'DNAT'
	option src 'lan'
	option src_dport '6607'
	option dest 'sun'
	option dest_ip '192.168.200.1'
	option dest_port '6607'
	list proto 'tcp'

wireless

config wifi-device 'radio0'
	option type 'mac80211'
	option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0'
	option band '2g'
	option channel '11'
	option htmode 'HT20'
	option cell_density '0'

config wifi-iface 'default_radio0'
	option device 'radio0'
	option network 'lan'
	option mode 'ap'
	option ssid 'OpenWrt-S3'
	option encryption 'psk-mixed'
	option key 'xxxxxxxxxxx'

config wifi-device 'radio1'
	option type 'mac80211'
	option path '1e140000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0'
	option band '5g'
	option channel 'auto'
	option htmode 'VHT80'
	option cell_density '0'

config wifi-iface 'default_radio1'
	option device 'radio1'
	option network 'lan'
	option mode 'ap'
	option ssid 'OpenWrt-S3-5G'
	option encryption 'psk-mixed'
	option key 'xxxxxxxxxxxx'

config wifi-iface 'wifinet2'
	option device 'radio0'
	option mode 'sta'
	option network 'wlan'
	option ssid 'SUN2000-HVxxxxxxxxxxx'
	option encryption 'psk2'
	option key 'Changeme'

[psherman]

You're missing DNS. I'm assuming it's the same as your gateway...

@KOA

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.18.2'
	option netmask '255.255.255.0'
	option ip6assign '60'
	option gateway '192.168.18.1'

Add:

	option dns '192.168.18.1'

Then reboot and test again.

[psherman]

looking more closely... I see this:

@KOA

config wifi-iface 'wifinet2'
	option device 'radio0'
	option mode 'sta'
	option network 'wlan'
	option ssid 'SUN2000-HVxxxxxxxxxxx'
	option encryption 'psk2'
	option key 'Changeme'

What is the uplink? Is it wired or wireless?

[KOA]

Connect to Huwaei SUN2000 inverter using fiber modem

So to summarize, I did this. Note Huawei inverter is on another subnet that is 192.168.200.0. [image] Flash Openwrt on the router Setup your router as a dumb AP. https://openwrt.org/docs/guide-user/network/wifi/dumbap Connect it to your ISP router via ethernet. This will change the IP to something in the router’s subnet range. e.g if your ISP’s router Ip is 192.168.1.1 then your OpenWrt's router IP will be 192.168.1.24 (anything in between 192.168.1.2 to 192.168.1.100) Connect to your Huwae…

I am replacing my old Netgear with this new estilat S3 which is new openwrt router in this diagram. just assume the ip of primary modem to be 192.168.18.1 and of openwrt 192.168.18.2

[psherman]

ok... try the DNS fix.... that's necessary. If that doesn't work, the problem may be with that sta mode connection -- we'll want to look at route to see what's going on.

[KOA]

PING openwrt.org (64.226.122.113): 56 data bytes
64 bytes from 64.226.122.113: seq=0 ttl=47 time=138.078 ms
64 bytes from 64.226.122.113: seq=1 ttl=47 time=136.828 ms
64 bytes from 64.226.122.113: seq=2 ttl=47 time=136.855 ms
64 bytes from 64.226.122.113: seq=3 ttl=47 time=137.141 ms
64 bytes from 64.226.122.113: seq=4 ttl=47 time=136.771 ms

--- openwrt.org ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 136.771/137.134/138.078 ms

[KOA]

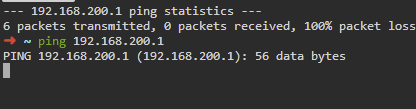

this issue seems to be fixed but other one remains. I can ping the inverter from router itself but not from homeassistant

[psherman]

Glad that it’s working now.

For the remaining issue, review the config from the netgear ap as a starting point. If that first help, start a new thread for a deeper dive.
