Unable to have a stable ssh tunnel after I installed OpenWrt

[vakarami]

I recently installed openwrt (OpenWrt 22.03.3 r20028-43d71ad93e) to my Xiaomi 4A Gigabyte edition. Before I used to be able to open a ssh tunnel to my personal VPS from my laptop (Ubuntu 18), after installing the openwrt on my router, I can open the same ssh tunnel however the connection drops after a short time (a few seconds up to 1 or 2 minutes).
The problem is the same when the laptop connects via LAN or Wifi.

I installed openwrt on my router to be able to open ssh tunnel from the router itself, but now I can't open the tunnel neither from laptop nor from openwrt (the connection drops from openwrt as well).

I already tried some ssh configs such as ServerAliveInterval and ServerAliveCountMax but they didn't help out.

I believe the problem might be from openwrt settings or firewall rules, because everything used to work fine before installing openwrt.

Does someone know from where the problem might be? Is there any rule/settings that might drop the ssh connection? any specific rule should be added to firewall?

[trendy]

Please run the following commands (copy-paste the whole block) and paste the output here, using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have

ubus call system board; \
uci export network; uci export dhcp; uci export firewall; \
nft list ruleset; \
ip -4 addr ; ip -4 ro li tab all ; ip -4 ru; ip link; \
ls -l  /etc/resolv.* /tmp/resolv.* /tmp/resolv.*/* ; head -n -0 /etc/resolv.* /tmp/resolv.* /tmp/resolv.*/*

[vakarami]

{
	"kernel": "5.10.161",
	"hostname": "OpenWrt",
	"system": "MediaTek MT7621 ver:1 eco:3",
	"model": "Xiaomi Mi Router 4A Gigabit Edition",
	"board_name": "xiaomi,mi-router-4a-gigabit",
	"rootfs_type": "squashfs",
	"release": {
		"distribution": "OpenWrt",
		"version": "22.03.3",
		"revision": "r20028-43d71ad93e",
		"target": "ramips/mt7621",
		"description": "OpenWrt 22.03.3 r20028-43d71ad93e"
	}
}
package network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option packet_steering '1'
	option ula_prefix 'fd5d:296c:d682::/48'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'lan1'
	list ports 'lan2'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'
	option ip6assign '60'

config interface 'wan'
	option device 'wan'
	option proto 'dhcp'

config interface 'wan6'
	option device 'wan'
	option proto 'dhcpv6'

package dhcp

config dnsmasq
	option domainneeded '1'
	option boguspriv '1'
	option filterwin2k '0'
	option localise_queries '1'
	option rebind_protection '1'
	option rebind_localhost '1'
	option local '/lan/'
	option domain 'lan'
	option expandhosts '1'
	option nonegcache '0'
	option authoritative '1'
	option readethers '1'
	option leasefile '/tmp/dhcp.leases'
	option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
	option nonwildcard '1'
	option localservice '1'
	option ednspacket_max '1232'

config dhcp 'lan'
	option interface 'lan'
	option start '100'
	option limit '150'
	option leasetime '12h'
	option dhcpv4 'server'
	option dhcpv6 'server'
	option ra 'server'
	option ra_slaac '1'
	list ra_flags 'managed-config'
	list ra_flags 'other-config'

config dhcp 'wan'
	option interface 'wan'
	option ignore '1'

config odhcpd 'odhcpd'
	option maindhcp '0'
	option leasefile '/tmp/hosts/odhcpd'
	option leasetrigger '/usr/sbin/odhcpd-update'
	option loglevel '4'

package firewall

config defaults
	option syn_flood '1'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'REJECT'

config zone
	option name 'lan'
	list network 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'

config zone
	option name 'wan'
	list network 'wan'
	list network 'wan6'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

config redirect
	option dest 'lan'
	option target 'DNAT'
	option name '1080'
	option src 'wan'
	option src_dport '1080'
	option dest_port '1080'
	option enabled '0'

config redirect
	option dest 'lan'
	option target 'DNAT'
	option name '8888'
	option src 'wan'
	option src_dport '8888'
	option dest_port '8888'
	option enabled '0'

config rule
	option name '1080'
	option src 'wan'
	option dest '*'
	option target 'ACCEPT'
	option dest_port '1080'

table inet fw4 {
	chain input {
		type filter hook input priority filter; policy accept;
		iifname "lo" accept comment "!fw4: Accept traffic from loopback"
		ct state established,related accept comment "!fw4: Allow inbound established and related flows"
		tcp flags syn / fin,syn,rst,ack jump syn_flood comment "!fw4: Rate limit TCP syn packets"
		iifname "br-lan" jump input_lan comment "!fw4: Handle lan IPv4/IPv6 input traffic"
		iifname "wan" jump input_wan comment "!fw4: Handle wan IPv4/IPv6 input traffic"
	}

	chain forward {
		type filter hook forward priority filter; policy drop;
		ct state established,related accept comment "!fw4: Allow forwarded established and related flows"
		iifname "br-lan" jump forward_lan comment "!fw4: Handle lan IPv4/IPv6 forward traffic"
		iifname "wan" jump forward_wan comment "!fw4: Handle wan IPv4/IPv6 forward traffic"
		jump handle_reject
	}

	chain output {
		type filter hook output priority filter; policy accept;
		oifname "lo" accept comment "!fw4: Accept traffic towards loopback"
		ct state established,related accept comment "!fw4: Allow outbound established and related flows"
		oifname "br-lan" jump output_lan comment "!fw4: Handle lan IPv4/IPv6 output traffic"
		oifname "wan" jump output_wan comment "!fw4: Handle wan IPv4/IPv6 output traffic"
	}

	chain prerouting {
		type filter hook prerouting priority filter; policy accept;
		iifname "br-lan" jump helper_lan comment "!fw4: Handle lan IPv4/IPv6 helper assignment"
	}

	chain handle_reject {
		meta l4proto tcp reject with tcp reset comment "!fw4: Reject TCP traffic"
		reject comment "!fw4: Reject any other traffic"
	}

	chain syn_flood {
		limit rate 25/second burst 50 packets return comment "!fw4: Accept SYN packets below rate-limit"
		drop comment "!fw4: Drop excess packets"
	}

	chain input_lan {
		jump accept_from_lan
	}

	chain output_lan {
		jump accept_to_lan
	}

	chain forward_lan {
		jump accept_to_wan comment "!fw4: Accept lan to wan forwarding"
		jump accept_to_lan
	}

	chain helper_lan {
	}

	chain accept_from_lan {
		iifname "br-lan" counter packets 29482 bytes 1977540 accept comment "!fw4: accept lan IPv4/IPv6 traffic"
	}

	chain accept_to_lan {
		oifname "br-lan" counter packets 4558 bytes 287137 accept comment "!fw4: accept lan IPv4/IPv6 traffic"
	}

	chain input_wan {
		meta nfproto ipv4 udp dport 68 counter packets 0 bytes 0 accept comment "!fw4: Allow-DHCP-Renew"
		icmp type echo-request counter packets 0 bytes 0 accept comment "!fw4: Allow-Ping"
		meta nfproto ipv4 meta l4proto igmp counter packets 0 bytes 0 accept comment "!fw4: Allow-IGMP"
		meta nfproto ipv6 udp dport 546 counter packets 0 bytes 0 accept comment "!fw4: Allow-DHCPv6"
		ip6 saddr fe80::/10 icmpv6 type . icmpv6 code { mld-listener-query . no-route, mld-listener-report . no-route, mld-listener-done . no-route, mld2-listener-report . no-route } counter packets 0 bytes 0 accept comment "!fw4: Allow-MLD"
		icmpv6 type { destination-unreachable, time-exceeded, echo-request, echo-reply, nd-router-solicit, nd-router-advert } limit rate 1000/second counter packets 102 bytes 6528 accept comment "!fw4: Allow-ICMPv6-Input"
		icmpv6 type . icmpv6 code { packet-too-big . no-route, parameter-problem . no-route, nd-neighbor-solicit . no-route, nd-neighbor-advert . no-route, parameter-problem . admin-prohibited } limit rate 1000/second counter packets 0 bytes 0 accept comment "!fw4: Allow-ICMPv6-Input"
		jump reject_from_wan
	}

	chain output_wan {
		jump accept_to_wan
	}

	chain forward_wan {
		icmpv6 type { destination-unreachable, time-exceeded, echo-request, echo-reply } limit rate 1000/second counter packets 0 bytes 0 accept comment "!fw4: Allow-ICMPv6-Forward"
		icmpv6 type . icmpv6 code { packet-too-big . no-route, parameter-problem . no-route, parameter-problem . admin-prohibited } limit rate 1000/second counter packets 0 bytes 0 accept comment "!fw4: Allow-ICMPv6-Forward"
		meta l4proto esp counter packets 0 bytes 0 jump accept_to_lan comment "!fw4: Allow-IPSec-ESP"
		udp dport 500 counter packets 0 bytes 0 jump accept_to_lan comment "!fw4: Allow-ISAKMP"
		tcp dport 1080 counter packets 0 bytes 0 accept comment "!fw4: 1080"
		udp dport 1080 counter packets 0 bytes 0 accept comment "!fw4: 1080"
		jump reject_to_wan
	}

	chain accept_to_wan {
		oifname "wan" counter packets 35573 bytes 7066854 accept comment "!fw4: accept wan IPv4/IPv6 traffic"
	}

	chain reject_from_wan {
		iifname "wan" counter packets 678 bytes 48440 jump handle_reject comment "!fw4: reject wan IPv4/IPv6 traffic"
	}

	chain reject_to_wan {
		oifname "wan" counter packets 0 bytes 0 jump handle_reject comment "!fw4: reject wan IPv4/IPv6 traffic"
	}

	chain dstnat {
		type nat hook prerouting priority dstnat; policy accept;
	}

	chain srcnat {
		type nat hook postrouting priority srcnat; policy accept;
		oifname "wan" jump srcnat_wan comment "!fw4: Handle wan IPv4/IPv6 srcnat traffic"
	}

	chain srcnat_wan {
		meta nfproto ipv4 masquerade comment "!fw4: Masquerade IPv4 wan traffic"
	}

	chain raw_prerouting {
		type filter hook prerouting priority raw; policy accept;
	}

	chain raw_output {
		type filter hook output priority raw; policy accept;
	}

	chain mangle_prerouting {
		type filter hook prerouting priority mangle; policy accept;
	}

	chain mangle_postrouting {
		type filter hook postrouting priority mangle; policy accept;
	}

	chain mangle_input {
		type filter hook input priority mangle; policy accept;
	}

	chain mangle_output {
		type route hook output priority mangle; policy accept;
	}

	chain mangle_forward {
		type filter hook forward priority mangle; policy accept;
		iifname "wan" tcp flags syn tcp option maxseg size set rt mtu comment "!fw4: Zone wan IPv4/IPv6 ingress MTU fixing"
		oifname "wan" tcp flags syn tcp option maxseg size set rt mtu comment "!fw4: Zone wan IPv4/IPv6 egress MTU fixing"
	}

	chain dstnat_lan {
	}

	chain srcnat_lan {
	}

	chain dstnat_wan {
	}
}
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
5: wan@eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    inet 192.168.1.2/24 brd 192.168.1.255 scope global wan
       valid_lft forever preferred_lft forever
8: br-lan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    inet 192.168.1.1/24 brd 192.168.1.255 scope global br-lan
       valid_lft forever preferred_lft forever
default via 192.168.1.1 dev wan  src 192.168.1.2
192.168.1.0/24 dev br-lan scope link  src 192.168.1.1
192.168.1.0/24 dev wan scope link  src 192.168.1.2
broadcast 127.0.0.0 dev lo table local scope link  src 127.0.0.1
local 127.0.0.0/8 dev lo table local scope host  src 127.0.0.1
local 127.0.0.1 dev lo table local scope host  src 127.0.0.1
broadcast 127.255.255.255 dev lo table local scope link  src 127.0.0.1
broadcast 192.168.1.0 dev br-lan table local scope link  src 192.168.1.1
broadcast 192.168.1.0 dev wan table local scope link  src 192.168.1.2
local 192.168.1.1 dev br-lan table local scope host  src 192.168.1.1
local 192.168.1.2 dev wan table local scope host  src 192.168.1.2
broadcast 192.168.1.255 dev br-lan table local scope link  src 192.168.1.1
broadcast 192.168.1.255 dev wan table local scope link  src 192.168.1.2
0:	from all lookup local
32766:	from all lookup main
32767:	from all lookup default
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1504 qdisc fq_codel state UP qlen 1000
    link/ether 9c:9d:7e:ea:01:0c brd ff:ff:ff:ff:ff:ff
3: lan2@eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue master br-lan state LOWERLAYERDOWN qlen 1000
    link/ether 9c:9d:7e:ea:01:0c brd ff:ff:ff:ff:ff:ff
4: lan1@eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue master br-lan state LOWERLAYERDOWN qlen 1000
    link/ether 9c:9d:7e:ea:01:0c brd ff:ff:ff:ff:ff:ff
5: wan@eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether 9c:9d:7e:ea:01:0d brd ff:ff:ff:ff:ff:ff
8: br-lan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP qlen 1000
    link/ether 9c:9d:7e:ea:01:0c brd ff:ff:ff:ff:ff:ff
11: wlan1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-lan state UP qlen 1000
    link/ether 9c:9d:7e:ea:01:0f brd ff:ff:ff:ff:ff:ff
12: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-lan state UP qlen 1000
    link/ether 9c:9d:7e:ea:01:0e brd ff:ff:ff:ff:ff:ff
13: wlan0-1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master br-lan state UP qlen 1000
    link/ether 9e:9d:7e:ea:01:0e brd ff:ff:ff:ff:ff:ff
lrwxrwxrwx    1 root     root            16 Jan  3 00:24 /etc/resolv.conf -> /tmp/resolv.conf
-rw-r--r--    1 root     root            47 Feb 18 17:39 /tmp/resolv.conf
-rw-r--r--    1 root     root            68 Jan  3 00:25 /tmp/resolv.conf.d/resolv.conf.auto

/tmp/resolv.conf.d:
-rw-r--r--    1 root     root            68 Jan  3 00:25 resolv.conf.auto
==> /etc/resolv.conf <==
search lan
nameserver 127.0.0.1
nameserver ::1

==> /tmp/resolv.conf <==
search lan
nameserver 127.0.0.1
nameserver ::1

==> /tmp/resolv.conf.d <==
head: /tmp/resolv.conf.d: I/O error

==> /tmp/resolv.conf.d/resolv.conf.auto <==
# Interface wan
nameserver 5.200.200.200
nameserver 217.218.127.127

I'm trying to setup the ssh tunnel on port 1080 (-D 1080) and a http proxy on 8888, that's why there are some firewall rules on these ports, but obviously they're not correct.

[psherman]

You've got a lot of stuff going on in the firewall... have you tried with a default firewall config?

[vakarami]

This is the default firewall settings, I just added two redirect rules (that are disabled) and another rule to open 1080

[psherman]

@vakarami

table inet fw4 {

is this just a listing of the rules as translated from the UCI firewall config or have you added or modified any of these chains?

[rj-45]

Wan and br-lan use the same ip subnet (192.168.1.0/24). I think that is not okay.

[psherman]

@rj-45

Wan and br-lan

Good catch!

Yes, @vakarami - this needs to be changed.

[vakarami]

I just copy/pasted the output of the command that @trendy shared. No manual modification in the output.

This is a screenshot from Luci

[psherman]

Ok... good.

But your screnshot confirms that your wan and lan are on the same subnet. They must be different.

Change your lan subnet to something else... maybe 192.168.5.0/24 (so you'd likely use the address 192.168.5.1 for your OpenWrt lan).

Change LAN IP in LuCI (to an IP on a different subnet)

[vakarami]

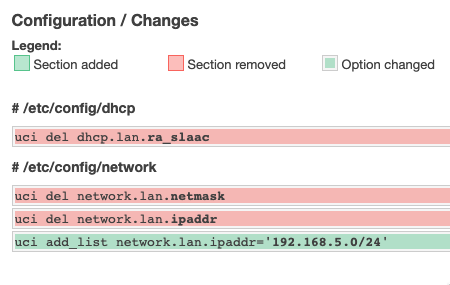

Sorry, can you confirm wether the following configs are ok, before I apply it

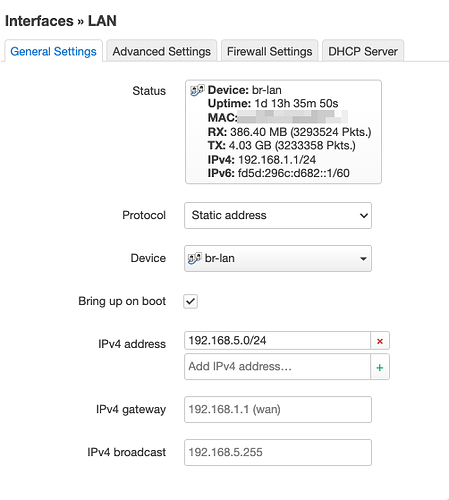

I'm trying to change the IP from here

[psherman]

no... the .0 address in a /24 is not a valid host address.
use

192.168.5.1 /24

[vakarami]

It's been 30 minutes since I changed the IP, and the tunnel is up since then
I can't believe the problem was because of it, I noticed this is not normal, but I had no idea that it could lead to this kind of issues.

Thanks @psherman and @rj-45.

However I think openwrt source code can be improved in a way to automatically select a different IP range on openwrt installation if WAN is occupied with 192.168.1.1/24 range.

[psherman]

Glad things are working now.

@vakarami

However I think openwrt source code can be improved in a way to automatically select a different IP range on openwrt installation if WAN is occupied with 192.168.1.1/24 range.

See this:

Automatic LAN subnet reassignment upon conflict with WAN

This would only work (and be useful) if the user 1) opens the router admin page, and 2) does it before the router performs the automatic reassignment. That said, a notice that the subnet has changed could be useful, still, in case the user does have a network that includes devices with static IP assignments and/or switches/APs that are downstream of the router and may therefore not bounce the connection.
