Troubleshooting UDP blocked?

Installing and Using OpenWrt
1

I have openwrt with luci installed in my Xiaomi Mi Router AX3000T and also using a synology nas.
My torrents works from my PC (using tixati) but not from synology download station. Its weird because the ports are allowed in the firewall settings.
Anything i can check to troubleshoot?

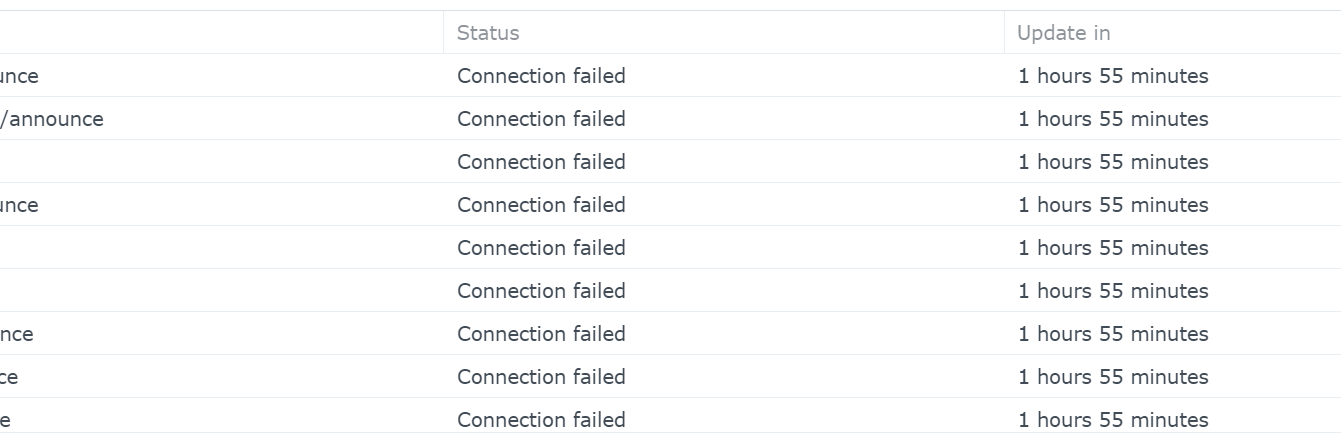

Synology screenshot:

image1341×442 29.9 KB

2

UDP does not make connections. Can you tcpdump the moment it fails?

3

The .172 is the ip of the synology nas
21:51:24.529225 br-lan Out IP (tos 0x0, ttl 112, id 3448, offset 0, flags [none] , proto UDP (17), length 131)
94.245.148.7.5320 > 192.168.31.172.16882: UDP, length 103
21:51:24.529235 lan3 Out IP (tos 0x0, ttl 112, id 3448, offset 0, flags [none], proto UDP (17), length 131)
94.245.148.7.5320 > 192.168.31.172.16882: UDP, length 103
21:51:24.529239 eth0 Out IP (tos 0x0, ttl 112, id 3448, offset 0, flags [none], proto UDP (17), length 131)
94.245.148.7.5320 > 192.168.31.172.16882: UDP, length 103
21:51:24.529669 lan3 In IP (tos 0x0, ttl 64, id 48924, offset 0, flags [DF], p roto UDP (17), length 86)
192.168.31.172.16882 > 178.235.177.91.27749: UDP, length 58
21:51:24.529669 br-lan In IP (tos 0x0, ttl 64, id 48924, offset 0, flags [DF], proto UDP (17), length 86)
192.168.31.172.16882 > 178.235.177.91.27749: UDP, length 58
21:51:24.529756 wan Out IP (tos 0x0, ttl 63, id 48924, offset 0, flags [DF], p roto UDP (17), length 86)
192.168.100.2.21954 > 178.235.177.91.27749: UDP, length 58
21:51:24.529760 eth0 Out IP (tos 0x0, ttl 63, id 48924, offset 0, flags [DF], p roto UDP (17), length 86)
192.168.100.2.21954 > 178.235.177.91.27749: UDP, length 58
21:51:24.529669 lan3 In IP (tos 0x0, ttl 64, id 9840, offset 0, flags [DF], pr oto UDP (17), length 165)
192.168.31.172.16882 > 94.245.148.7.5320: UDP, length 137
21:51:24.529669 br-lan In IP (tos 0x0, ttl 64, id 9840, offset 0, flags [DF], p roto UDP (17), length 165)
192.168.31.172.16882 > 94.245.148.7.5320: UDP, length 137
21:51:24.529812 wan Out IP (tos 0x0, ttl 63, id 9840, offset 0, flags [DF], pr oto UDP (17), length 165)
192.168.100.2.16882 > 94.245.148.7.5320: UDP, length 137
21:51:24.529814 eth0 Out IP (tos 0x0, ttl 63, id 9840, offset 0, flags [DF], pr oto UDP (17), length 165)
192.168.100.2.16882 > 94.245.148.7.5320: UDP, length 137
