TP-Link XC220-G3V Support

For Developers
1

https://www.tp-link.com/in/service-provider/gpon/xc220-g3v/

Hardware -

There are many hardware versions of this.

1 Ports-

  • 1 PON
  • 1 Telephone
  • 4 Ethernet

  1. Telephone

  2. PON -

  • XPON
  • Has OLT Modes
  1. Wireless -
  • 2.4Ghz and 5Ghz
  • Beamforming
  • MU-MIMO

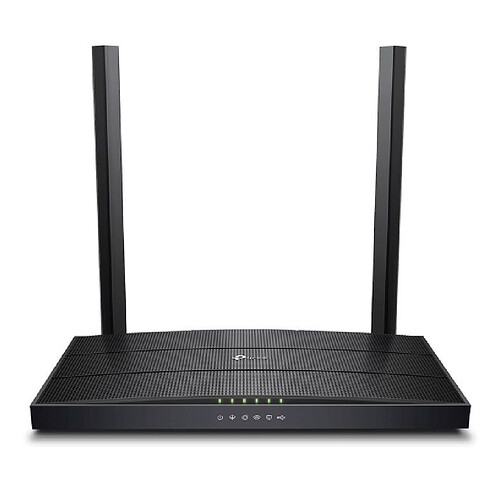

Looks like Archer C6

Archer C6

51ax8peHlPL._SX679_1
51ax8peHlPL._SX679_1679×679 21.5 KB

XC220-G3V

image787×787 44.4 KB

image1000×438 43.6 KB

Some Hardware version looks like this -

image953×810 70.4 KB

2

Open it up, post a photo of the PCB.

3

Even without a clue about the technical specifications, chances of that device getting supported are effectively zero (in all capital letters) - just on the basis of PON ports and telephony features (Broadcom heritage is likely, MaxLinear wouldn't be much better, nor would be EcoNet).

4

@frollic @slh
I have got the firmware how do I upload it
and I got it from tplink (because it is a ISP issue model) can there be any identifiable info in firmware file

5

@frollic allow me to edit the main post

6

Firmware File (not availed on TP-Link Website, firmware is only provided to ISP)

1 Like
