TP-Link Archer C6v2 (US) - Return to Stock - Bad Magic Number

U-Boot 1.1.4-g32af8ab6-dirty (Oct  9 2019 - 16:15:31)

ap152 - Dragonfly 1.0

DRAM:  128 MB

Top of RAM usable for U-Boot at: 88000000

Reserving 402k for U-Boot at: 87f98000

Reserving 192k for malloc() at: 87f68000

Reserving 44 Bytes for Board Info at: 87f67fd4

Reserving 36 Bytes for Global Data at: 87f67fb0

Reserving 128k for boot params() at: 87f47fb0

Stack Pointer at: 87f47f98

Now running in RAM - U-Boot at: 87f98000

Flash Manuf Id 0xef, DeviceId0 0x40, DeviceId1 0x18

flash size 16MB, sector count = 256

Flash: 16 MB

Using default environment

In:    serial

Out:   serial

Err:   serial

Net:   ath_gmac_enet_initialize...

No valid address in Flash. Using fixed address

ath_gmac_enet_initialize: reset mask:c02200

athr_mgmt_init ::done

Dragonfly  ----> S17 PHY *

athrs17_reg_init: complete

SGMII in forced mode

athr_gmac_sgmii_setup SGMII done

: cfg1 0x80000000 cfg2 0x7114

eth0: 00:03:7f:09:0b:ad

eth0 up

eth0

Setting 0x181162c0 to 0x50a02100

extra-para:01 01

[393]factory boot check integer ok.

factory boot load fs uboot len 131072 to addr 0x80010000.

Hit any key to stop autoboot:  0

and the printenv output

ath> printenv

bootargs=console=ttyS0,115200 board=AP152 rootfstype=squashfs init=/etc/preinit mtdparts=spi0.0:192k(factory-uboot),128k(u-boot),1152k(uImage),14784k(rootfs),64k@0xff0000(ART)

bootcmd=bootm 0x9f050000

bootdelay=1

baudrate=115200

ethaddr=0x00:0xaa:0xbb:0xcc:0xdd:0xee

ipaddr=192.168.0.2

serverip=192.168.0.10

dir=

lu=tftp 0x80060000 ${dir}tuboot.bin&&erase 0x9f000000 +$filesize&&cp.b $fileaddr 0x9f000000 $filesize

lf=tftp 0x80060000 ${dir}ap152${bc}-jffs2&&erase 0x9f010000 +$filesize&&cp.b $fileaddr 0x9f010000 $filesize

lk=tftp 0x80060000 ${dir}vmlinux${bc}.lzma.uImage&&erase 0x9f300000 +$filesize&&cp.b $fileaddr 0x9f300000 $filesize

stdin=serial

stdout=serial

stderr=serial

ethact=eth0

Environment size: 692/65532 bytes

Update I have tried to go back to stock firmware and getting error

Bad magic number

when flashing stock would indicate you're using the wrong image, or your device have been customized (by ISP, etc).

post a photo of your C6's bottom sticker, blur the MAC addresses.

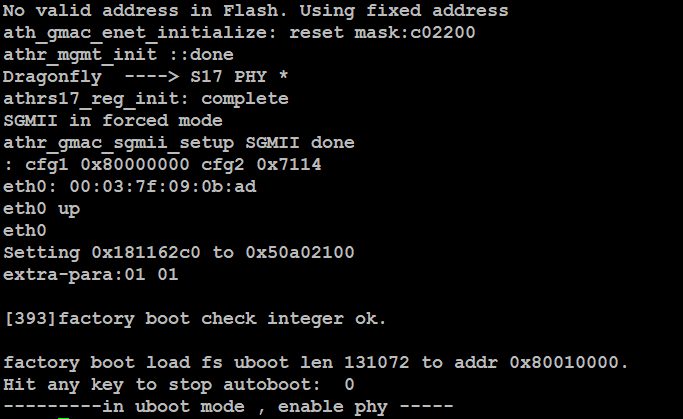

bootup image

printenv image

Please paste the text as text.
And post the output of ubus call system board
