Pulver:
Architecture: AArch64
Please try new image: asus_zenwifi-bt8-ubi-cleaner__arm.trx
By the way, this is what the ubi-cleaner should look like:
UART Log
UBI volume [linux] id 4 mismatch! (expect 3)
UBI volume [linux] size 3ff000 smaller than 45fe000!
Creating dynamic volume linux2 of size 0x45fe000
ubi0 error: ubi_create_volume: not enough PEBs, only 2 available
ubi0 error: ubi_create_volume: cannot create volume 7, error -28
Create volume linux2 fail. rcode 0xffffffe4
UBI volume [jffs2] id 3 mismatch! (expect 5)
Latest UBI volumes layout.
UBI: vol_id reserved_pebs alignment data_pad vol_type usable_leb_size used_ebs used_bytes last_eb_bytes corrupted upd_marker name_len name
UBI: 0 1 1 0 dynamic 1f000 1 1f000 1f000 0 0 5 nvram
UBI: 1 8 1 0 dynamic 1f000 8 f8000 1f000 0 0 7 Factory
UBI: 2 8 1 0 dynamic 1f000 8 f8000 1f000 0 0 8 Factory2
UBI: 3 2 1 0 dynamic 1f000 2 3e000 1f000 0 0 5 jffs2
UBI: 4 21 1 0 dynamic 1f000 21 3ff000 1f000 0 0 5 linux
UBI: 5 105 1 0 dynamic 1f000 105 1f9b000 1f000 0 0 6 rootfs
UBI: 6 679 1 0 dynamic 1f000 679 c8a7000 1f000 0 0 b rootfs_data
UBI: 7fffefff 2 1 0 dynamic 1f000 2 3e000 2 0 0 d layout volume
Read 1015808 bytes from volume Factory to 000000005f707ac0
EEPROM set 0: OK (version 106)
Read 1015808 bytes from volume Factory2 to 000000005f707ac0
EEPROM set 1: OK (version 106)
Read 1015808 bytes from volume Factory to 000000005fb455d0
Select EEPROM set 0 at offset 0x0.
Please choose the operation:
1: Load System code to SDRAM via TFTP.
2: Load System code then write to Flash via TFTP.
3: Boot System code via Flash (default).
4: Entr boot command line interface.
7: Load Boot Loader code then write to Flash via Serial.
9: Load Boot Loader code then write to Flash via TFTP. 0
3: Boot System code via Flash (default).
TUF-AX4200 bootloader version: 1.0.0.3
MAC Address: C8:7F:54:78:BB:3E
HwID A
Read 40 bytes from volume linux to 0000000046000000
FIT/FDT format image found at 0x46000000,size 0x51608
Read 333360 bytes from volume linux to 0000000046000000
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-u-boot
Type: Kernel Image
Compression: lzma compressed
Data Start: 0x460000e8
Data Size: 309449 Bytes = 302.2 KiB
Architecture: AArch64
OS: Linux
Load Address: 0x41e00000
Entry Point: 0x41e00000
Hash algo: crc32
Hash value: c4cfb488
Hash algo: sha1
Hash value: c86d83a59d9ed0315dcc9d0fa5a1716d8036e1c1
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt asus_tuf-ax4200 device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x4604baf4
Data Size: 22008 Bytes = 21.5 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: 1724de63
Hash algo: sha1
Hash value: 4f573bff5708d8fb444732bdd23c49022c3b8ce5
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x4604baf4
Volume linux2 not found!
ubi0: detaching mtd4
ubi0: mtd4 is detached
Copy firmware from linux1(c060f000) to linux2(c4c0d000), length 51630
Uncompressing Kernel Image
Loading Device Tree to 000000005f7f3000, end 000000005f7fb5f7 ... OK
volume linux seq: 4
Starting kernel ...
U-Boot 2024.01-OpenWrt-r25402-012be0468c (Mar 02 2024 - 14:26:04 +0000)
CPU: MediaTek MT7986
Model: ASUS TUF-AX4200
DRAM: 512 MiB
Core: 38 devices, 18 uclasses, devicetree: separate
MMC:
Loading Environment from nowhere... OK
In: serial@11002000
Out: serial@11002000
Err: serial@11002000
Loading Environment from nowhere... OK
Net:
Warning: ethernet@15100000 (eth0) using random MAC address - 12:20:f4:c8:b0:a0
eth0: ethernet@15100000
Autoboot in 0 seconds
run ubi_CLEAN
LED 'white:system' not found (err=-19)
LED 'red:wan' not found (err=-19)
spi-nand: spi_nand spi_nand@1: Winbond SPI NAND was found.
spi-nand: spi_nand spi_nand@1: 256 MiB, block size: 128 KiB, page size: 2048, OOB size: 128
run ubi_clean
Remove UBI volume linux (id 4)
Volume linux2 not found!
Remove UBI volume rootfs (id 5)
Remove UBI volume rootfs_data (id 6)
Remove UBI volume jffs2 (id 3)
Pulver
March 28, 2025, 8:51am
186
Unfortunately, now I get this:
reset button pressed!
## Enter Rescue Mode ##
switch prereq:0
tftpd start
Our IP address is:(192.168.1.1)
Wait for TFTP request...
tftpd open
URL: http://192.168.1.1/
D D D D Got ARP REQUEST, return our IP
GET /
GET /style.css
GET /style.css
D D D D POST /upload
Content-Length: 418287
failsafe_validate_image: ptr(0000000046000000) copysize(0) data(00000000460000c4) size(418028) image_load_addr(1174405120)
magic_offset(27fff9)
failsafe_validate_image fail
I added a lot of zeros to the image. Try it.
Pulver
March 28, 2025, 12:11pm
188
I saw that there were two files now - the asus_zenwifi-bt8-ubi-cleaner__arm.trx did not work:
Uncompressing Kernel Image to 48080000
Bad Linux ARM64 Image magic!
Failed to prep arm64 kernel (err=1)
Resetting the board...
The asus_zenwifi-bt8-ubi-cleaner__uboot.trx seems to work - but it is still bootlooping:
ASUS Web UI started
Press Ctrl+C to exit
URL: http://192.168.1.1/
switch prereq:0
Got ARP REQUEST, return our IP
GET /
GET /style.css
GET /style.css
POST /upload
Content-Length: 2625797
failsafe_validate_image: ptr(0000000000000000) copysize(0) data(00000000460000c8) size(2625536) image_load_addr(1174405120)
## Booting kernel from Legacy Image at 460000c8 ...
Image Name:
Image Type: AArch64 Linux Kernel Image (uncompressed)
Data Size: 417964 Bytes = 408.2 KiB
Load Address: 00000000
Entry Point: 00000000
Verifying Checksum ... OK
failsafe_validate_image() fw_size(418028) copysize(2625536)
GET /style.css
GET /style.css
POST /flashing
Content-Length: 59
GET /style.css
GET /style.css
GET /result
RAMtoFLASH
Chk trx magic
Download of 0x281000 bytes completed
Check TRX and write it to FLASH
Solve TRX, ptr=0x00000000460000c8
Erase kernel block !!
From c06c9000 To c094a000 (2625536/h:281000)
0x280fc0 bytes written to volume linux
done. 2625536 bytes written
resetting ...
F0: 102B 0000
FA: 1042 0000
FA: 1042 0000 [0200]
F9: 0000 0000
V0: 0000 0000 [0001]
00: 0000 0000
BP: 0600 0041 [0000]
G0: 1190 0000
EC: 0000 0000 [1000]
MK: 0000 0000 [0000]
T0: 0000 019E [0101]
Jump to BL
NOTICE: BL2: v2.10.0(release):
NOTICE: BL2: Built : 14:59:39, May 28 2024
NOTICE: WDT: [40000000] Software reset (reboot)
NOTICE: CPU: MT7988
NOTICE: EMI: Using DDR4 settings
NOTICE: EMI: Detected DRAM size: 1024 MB
NOTICE: EMI: complex R/W mem test passed
NOTICE: SPI_NAND parses attributes from parameter page.
NOTICE: SPI_NAND Detected ID 0xef
NOTICE: Page size 2048, Block size 131072, size 134217728
NOTICE: BL2: Booting BL31
NOTICE: BL31: v2.10.0(release):
NOTICE: BL31: Built : 14:59:48, May 28 2024
U-Boot 2024.04 (May 30 2024 - 18:58:13 +0800)
BT8 bootloader version: 1.0.0.2
CPU: MediaTek MT7988
Model: mt7988-rfb
DRAM: 1 GiB
Core: 44 devices, 12 uclasses, devicetree: separate
Loading Environment from MTD...
SPINAND raw ID: EF AE 21
spi-nand: spi_nand spi_nand@0: Winbond W25N01KV SPI NAND was found.
spi-nand: spi_nand spi_nand@0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 94, ECC strength 4/512, custom ECC status.
OK
In: serial@11000000
Out: serial@11000000
Err: serial@11000000
ASUS BT8 gpio/led init
Net: eth0: ethernet@15100000
ubi0: attaching mtd4
ubi0: scanning is finished
ubi0: attached mtd4 (name "UBI_DEV", size 124 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 992, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 7, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 12/8, WL threshold: 4096, image sequence number: 1694403399
ubi0: available PEBs: 2, total reserved PEBs: 990, PEBs reserved for bad PEB handling: 20
UBI: vol_id reserved_pebs alignment data_pad vol_type usable_leb_size used_ebs used_bytes last_eb_bytes corrupted upd_marker name_len name
UBI: 0 1 1 0 dynamic 1f000 1 1f000 1f000 0 0 5 nvram
UBI: 1 b 1 0 dynamic 1f000 b 155000 1f000 0 0 7 Factory
UBI: 2 b 1 0 dynamic 1f000 b 155000 1f000 0 0 8 Factory2
UBI: 3 2f 1 0 dynamic 1f000 2f 5b1000 1f000 0 0 5 linux
UBI: 4 2 1 0 dynamic 1f000 2 3e000 1f000 0 0 5 jffs2
UBI: 5 5a 1 0 dynamic 1f000 5a ae6000 1f000 0 0 6 rootfs
UBI: 6 324 1 0 dynamic 1f000 324 615c000 1f000 0 0 b rootfs_data
UBI: 7fffefff 2 1 0 dynamic 1f000 2 3e000 2 0 0 d layout volume
UBI volume [linux] size 5b1000 smaller than 40e8000!
Read 1396736 bytes from volume Factory to 000000007f6a7ff0
EEPROM set 0: OK (version 108)
Read 1396736 bytes from volume Factory2 to 000000007f6a7ff0
EEPROM set 1: OK (version 108)
Read 1396736 bytes from volume Factory to 000000007fb3fbf0
Select EEPROM set 0 at offset 0x0.
BT8 bootloader version: 1.0.0.2
MAC Address: BC:FC:E7:24:A1:20
Please choose the operation:
1: Load System code to SDRAM via TFTP.
2: Load System code then write to Flash via TFTP.
3: Boot System code via Flash (default).
4: Entr boot command line interface.
7: Load Boot Loader code then write to Flash via Serial.
9: Load Boot Loader code then write to Flash via TFTP.
0
3: Boot System code via Flash (default).
HwID B
Read 40 bytes from volume linux to 0000000046000000
FIT/FDT format image found at 0x46000000,size 0x6606c
Read 417940 bytes from volume linux to 0000000046000000
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-u-boot
Type: Kernel Image
Compression: lzma compressed
Data Start: 0x460000e8
Data Size: 371810 Bytes = 363.1 KiB
Architecture: AArch64
OS: U-Boot
Load Address: 0x48080000
Entry Point: 0x48080000
Hash algo: crc32
Hash value: 22a3f451
Hash algo: sha1
Hash value: 0a91a39196e87aafc0f81586068a68a9ba9ef445
Verifying Hash Integrity ... crc32+ sha1+ OK
Uncompressing Kernel Image to 48080000
Resetting the board...
Im thinking it might be something wrong with my setup ? But I have just installed OpenWRT from original asus using the standard method.
No.
1 Like
Pulver
March 28, 2025, 4:43pm
190
Im just adding as a sidenote that im also testing the Asus Zenwifi BT8 (Uboot mod)
I have not tested the entire install process since this is my recovered BT8 which has OpenWRT Uboot.
I was a little worried since my ubi-layout not seems to be standard that updates might fail, but this is after a sysupgrade to the latest compiled version and everything went OK
And Im starting to see some advantage having a OpenWRT controlled uboot too
q9q
March 29, 2025, 10:49am
191
Thanks to the openwrt community for working on and testing the BT8.
@Pulver , I see you're still trying to get the router working reliably. Would you mind running iperf3 -s -D && iperf3 -c 127.0.0.1 ? It would be nice to see some numbers. Thanks.
Pulver
March 29, 2025, 11:36am
192
Im actually not working - im merely testing other peoples work
At this point we have several versions that work and they are all easy to install, what is lacking is an easy way to go back to asus original firmware.

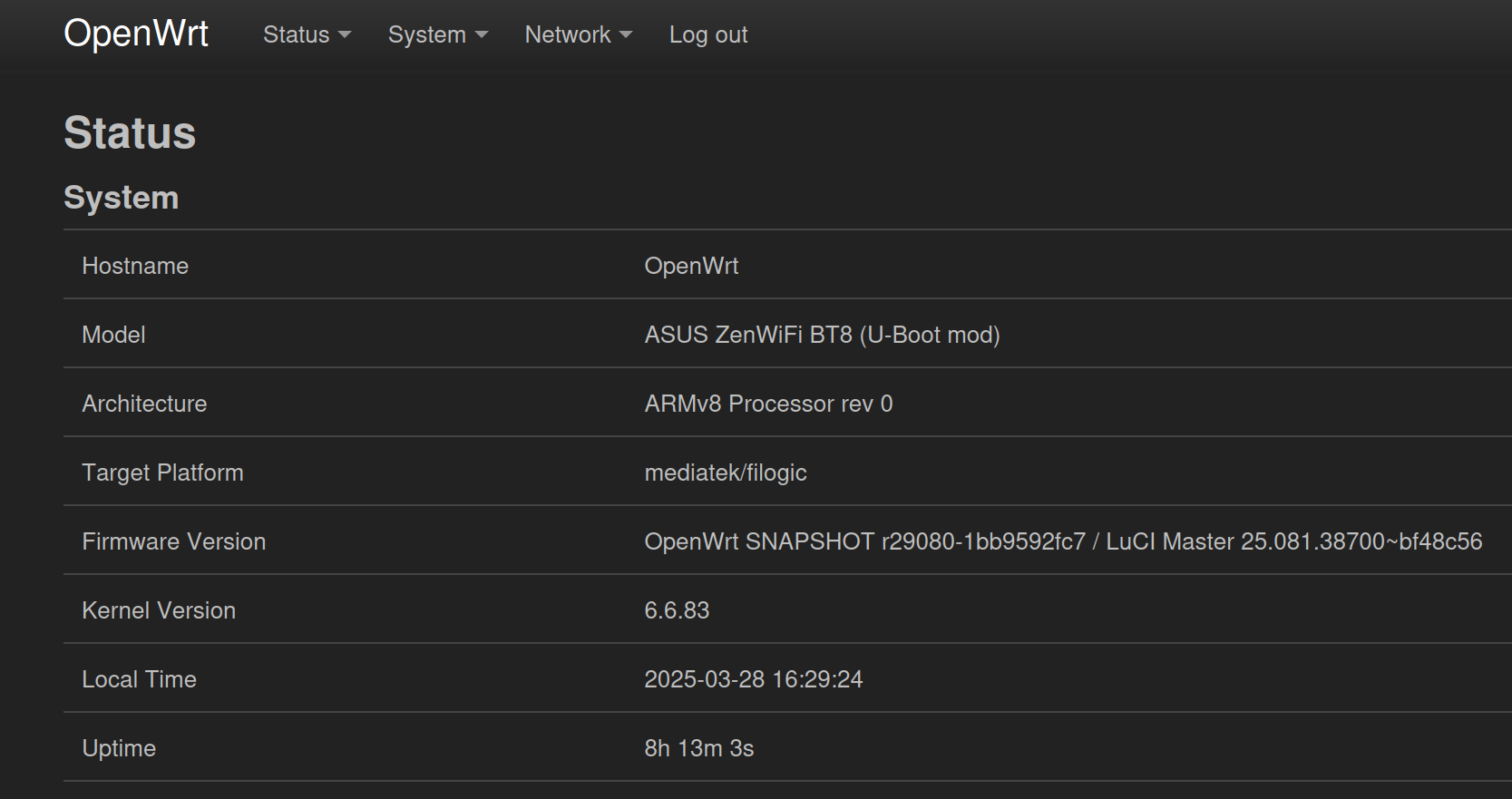

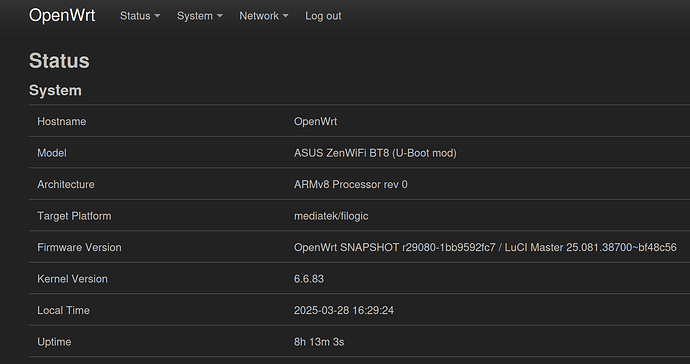

I ran your command on one of the BT8:s that is running OpenWRT:
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 50984 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 2.26 GBytes 19.4 Gbits/sec 0 959 KBytes
[ 5] 1.00-2.00 sec 2.26 GBytes 19.4 Gbits/sec 0 1.87 MBytes
[ 5] 2.00-3.00 sec 1.44 GBytes 12.4 Gbits/sec 0 1.94 MBytes
[ 5] 3.00-4.00 sec 1.43 GBytes 12.3 Gbits/sec 0 1.94 MBytes
[ 5] 4.00-5.00 sec 1.95 GBytes 16.7 Gbits/sec 0 1.94 MBytes
[ 5] 5.00-6.00 sec 2.27 GBytes 19.5 Gbits/sec 0 1.94 MBytes
[ 5] 6.00-7.00 sec 2.29 GBytes 19.7 Gbits/sec 0 1.94 MBytes
[ 5] 7.00-8.00 sec 2.31 GBytes 19.9 Gbits/sec 0 1.94 MBytes
[ 5] 8.00-9.00 sec 2.32 GBytes 20.0 Gbits/sec 0 1.94 MBytes
[ 5] 9.00-10.00 sec 2.34 GBytes 20.1 Gbits/sec 0 1.94 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 20.9 GBytes 17.9 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 20.9 GBytes 17.9 Gbits/sec receiver
3 Likes
I updated ubi-cleaner.trx image (added AMDd header).
2 Likes
Pulver
March 30, 2025, 9:10am
194
This is from manually starting the Asus Uboot web recovery:
ASUS Web UI started
Press Ctrl+C to exit
URL: http://192.168.1.1/
switch prereq:0
Got ARP REQUEST, return our IP
GET /
GET /style.css
GET /style.css
Got ARP REQUEST, return our IP
POST /upload
Content-Length: 2625790
failsafe_validate_image: ptr(0000000000000000) copysize(0) data(00000000460000c0) size(2625536) image_load_addr(1174405120)
## Booting kernel from Legacy Image at 460000c0 ...
Image Name:
Image Type: AArch64 Linux Kernel Image (uncompressed)
Data Size: 1049416 Bytes = 1 MiB
Load Address: 48080000
Entry Point: 48080000
Verifying Checksum ... OK
failsafe_validate_image() fw_size(1049480) copysize(2625536)
GET /style.css
GET /style.css
POST /flashing
Content-Length: 58
GET /style.css
GET /style.css
GET /result
RAMtoFLASH
Chk trx magic
Download of 0x281000 bytes completed
Check TRX and write it to FLASH
Solve TRX, ptr=0x00000000460000c0
Erase kernel block !!
From c06c9000 To c094a000 (2625536/h:281000)
0x280fc0 bytes written to volume linux
done. 2625536 bytes written
resetting ...
F0: 102B 0000
FA: 1042 0000
FA: 1042 0000 [0200]
F9: 0000 0000
V0: 0000 0000 [0001]
00: 0000 0000
BP: 0600 0041 [0000]
G0: 1190 0000
EC: 0000 0000 [1000]
MK: 0000 0000 [0000]
T0: 0000 019E [0101]
Jump to BL
NOTICE: BL2: v2.10.0(release):
NOTICE: BL2: Built : 14:59:39, May 28 2024
NOTICE: WDT: [40000000] Software reset (reboot)
NOTICE: CPU: MT7988
NOTICE: EMI: Using DDR4 settings
NOTICE: EMI: Detected DRAM size: 1024 MB
NOTICE: EMI: complex R/W mem test passed
NOTICE: SPI_NAND parses attributes from parameter page.
NOTICE: SPI_NAND Detected ID 0xef
NOTICE: Page size 2048, Block size 131072, size 134217728
NOTICE: BL2: Booting BL31
NOTICE: BL31: v2.10.0(release):
NOTICE: BL31: Built : 14:59:48, May 28 2024
U-Boot 2024.04 (May 30 2024 - 18:58:13 +0800)
BT8 bootloader version: 1.0.0.2
CPU: MediaTek MT7988
Model: mt7988-rfb
DRAM: 1 GiB
Core: 44 devices, 12 uclasses, devicetree: separate
Loading Environment from MTD...
SPINAND raw ID: EF AE 21
spi-nand: spi_nand spi_nand@0: Winbond W25N01KV SPI NAND was found.
spi-nand: spi_nand spi_nand@0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 94, ECC strength 4/512, custom ECC status.
OK
In: serial@11000000
Out: serial@11000000
Err: serial@11000000
ASUS BT8 gpio/led init
Net: eth0: ethernet@15100000
ubi0: attaching mtd4
ubi0: scanning is finished
ubi0: attached mtd4 (name "UBI_DEV", size 124 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 992, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 7, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 12/8, WL threshold: 4096, image sequence number: 1694403399
ubi0: available PEBs: 2, total reserved PEBs: 990, PEBs reserved for bad PEB handling: 20
UBI: vol_id reserved_pebs alignment data_pad vol_type usable_leb_size used_ebs used_bytes last_eb_bytes corrupted upd_marker name_len name
UBI: 0 1 1 0 dynamic 1f000 1 1f000 1f000 0 0 5 nvram
UBI: 1 b 1 0 dynamic 1f000 b 155000 1f000 0 0 7 Factory
UBI: 2 b 1 0 dynamic 1f000 b 155000 1f000 0 0 8 Factory2
UBI: 3 2f 1 0 dynamic 1f000 2f 5b1000 1f000 0 0 5 linux
UBI: 4 2 1 0 dynamic 1f000 2 3e000 1f000 0 0 5 jffs2
UBI: 5 5a 1 0 dynamic 1f000 5a ae6000 1f000 0 0 6 rootfs
UBI: 6 324 1 0 dynamic 1f000 324 615c000 1f000 0 0 b rootfs_data
UBI: 7fffefff 2 1 0 dynamic 1f000 2 3e000 2 0 0 d layout volume
UBI volume [linux] size 5b1000 smaller than 40e8000!
Read 1396736 bytes from volume Factory to 000000007f6a7ff0
EEPROM set 0: OK (version 108)
Read 1396736 bytes from volume Factory2 to 000000007f6a7ff0
EEPROM set 1: OK (version 108)
Read 1396736 bytes from volume Factory to 000000007fb3fbf0
Select EEPROM set 0 at offset 0x0.
BT8 bootloader version: 1.0.0.2
MAC Address: BC:FC:E7:24:A1:20
Please choose the operation:
1: Load System code to SDRAM via TFTP.
2: Load System code then write to Flash via TFTP.
3: Boot System code via Flash (default).
4: Entr boot command line interface.
7: Load Boot Loader code then write to Flash via Serial.
9: Load Boot Loader code then write to Flash via TFTP.
0
3: Boot System code via Flash (default).
HwID B
Read 40 bytes from volume linux to 0000000046000000
FIT/FDT format image found at 0x46000000,size 0x100308
Read 1049392 bytes from volume linux to 0000000046000000
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-u-boot
Type: Kernel Image
Compression: uncompressed
Data Start: 0x460000e8
Data Size: 1034472 Bytes = 1010.2 KiB
Architecture: AArch64
OS: Linux
Load Address: 0x48080000
Entry Point: 0x48080000
Hash algo: crc32
Hash value: 175b93d5
Hash algo: sha1
Hash value: 6481f8440e39391d31a420925a334686cdc31bb9
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt asus_zenwifi-bt8 device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x460fcb10
Data Size: 13016 Bytes = 12.7 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: c14ff478
Hash algo: sha1
Hash value: bcf9627127ecb07ddc4c6443b631a0029b3d2e82
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x460fcb10
Working FDT set to 460fcb10
Loading Kernel Image to 48080000
Moving Image from 0x48080000 to 0x48200000, end=482fc8e8
Loading Device Tree to 000000007f7f2000, end 000000007f7f82d7 ... OK
Working FDT set to 7f7f2000
Starting kernel ...
But after this - nothing happens, the cursor is still blinking so its not frozen.
Should I try the other options ? Windows restore tool etc ?
No. The problem is not on your side.
I'll try to change the address for loading the image...
1 Like
I updated ubi-cleaner.trx image (change load addr to 0x48200000).
1 Like
Pulver
March 30, 2025, 2:01pm
197
Unfortunately, its still the same:
U-Boot 2024.04 (May 30 2024 - 18:58:13 +0800)
MT7988> asus_httpd
ASUS Web UI started
Press Ctrl+C to exit
URL: http://192.168.1.1/
switch prereq:0
Got ARP REQUEST, return our IP
POST /ubus/
Content-Length: 45
GET /luci-static/resources/validation.js
GET /luci-static/resources/uci.js
GET /luci-static/resources/fs.js
GET /
GET /style.css
GET /style.css
POST /upload
Content-Length: 2625790
failsafe_validate_image: ptr(0000000000000000) copysize(0) data(00000000460000c0) size(2625536) image_load_addr(1174405120)
## Booting kernel from Legacy Image at 460000c0 ...
Image Name:
Image Type: AArch64 Linux Kernel Image (uncompressed)
Data Size: 1049432 Bytes = 1 MiB
Load Address: 48200000
Entry Point: 48200000
Verifying Checksum ... OK
failsafe_validate_image() fw_size(1049496) copysize(2625536)
GET /style.css
GET /style.css
POST /flashing
Content-Length: 59
GET /style.css
GET /style.css
GET /result
RAMtoFLASH
Chk trx magic
Download of 0x281000 bytes completed
Check TRX and write it to FLASH
Solve TRX, ptr=0x00000000460000c0
Erase kernel block !!
From c06c9000 To c094a000 (2625536/h:281000)
0x280fc0 bytes written to volume linux
done. 2625536 bytes written
resetting ...
F0: 102B 0000
FA: 1042 0000
FA: 1042 0000 [0200]
F9: 0000 0000
V0: 0000 0000 [0001]
00: 0000 0000
BP: 0600 0041 [0000]
G0: 1190 0000
EC: 0000 0000 [1000]
MK: 0000 0000 [0000]
T0: 0000 019E [0101]
Jump to BL
NOTICE: BL2: v2.10.0(release):
NOTICE: BL2: Built : 14:59:39, May 28 2024
NOTICE: WDT: [40000000] Software reset (reboot)
NOTICE: CPU: MT7988
NOTICE: EMI: Using DDR4 settings
NOTICE: EMI: Detected DRAM size: 1024 MB
NOTICE: EMI: complex R/W mem test passed
NOTICE: SPI_NAND parses attributes from parameter page.
NOTICE: SPI_NAND Detected ID 0xef
NOTICE: Page size 2048, Block size 131072, size 134217728
NOTICE: BL2: Booting BL31
NOTICE: BL31: v2.10.0(release):
NOTICE: BL31: Built : 14:59:48, May 28 2024
U-Boot 2024.04 (May 30 2024 - 18:58:13 +0800)
BT8 bootloader version: 1.0.0.2
CPU: MediaTek MT7988
Model: mt7988-rfb
DRAM: 1 GiB
Core: 44 devices, 12 uclasses, devicetree: separate
Loading Environment from MTD...
SPINAND raw ID: EF AE 21
spi-nand: spi_nand spi_nand@0: Winbond W25N01KV SPI NAND was found.
spi-nand: spi_nand spi_nand@0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 94, ECC strength 4/512, custom ECC status.
OK
In: serial@11000000
Out: serial@11000000
Err: serial@11000000
ASUS BT8 gpio/led init
Net: eth0: ethernet@15100000
ubi0: attaching mtd4
ubi0: scanning is finished
ubi0: attached mtd4 (name "UBI_DEV", size 124 MiB)
ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
ubi0: good PEBs: 992, bad PEBs: 0, corrupted PEBs: 0
ubi0: user volume: 7, internal volumes: 1, max. volumes count: 128
ubi0: max/mean erase counter: 15/10, WL threshold: 4096, image sequence number: 1694403399
ubi0: available PEBs: 2, total reserved PEBs: 990, PEBs reserved for bad PEB handling: 20
UBI: vol_id reserved_pebs alignment data_pad vol_type usable_leb_size used_ebs used_bytes last_eb_bytes corrupted upd_marker name_len name
UBI: 0 1 1 0 dynamic 1f000 1 1f000 1f000 0 0 5 nvram
UBI: 1 b 1 0 dynamic 1f000 b 155000 1f000 0 0 7 Factory
UBI: 2 b 1 0 dynamic 1f000 b 155000 1f000 0 0 8 Factory2
UBI: 3 2f 1 0 dynamic 1f000 2f 5b1000 1f000 0 0 5 linux
UBI: 4 2 1 0 dynamic 1f000 2 3e000 1f000 0 0 5 jffs2
UBI: 5 5a 1 0 dynamic 1f000 5a ae6000 1f000 0 0 6 rootfs
UBI: 6 324 1 0 dynamic 1f000 324 615c000 1f000 0 0 b rootfs_data
UBI: 7fffefff 2 1 0 dynamic 1f000 2 3e000 2 0 0 d layout volume
UBI volume [linux] size 5b1000 smaller than 40e8000!
Read 1396736 bytes from volume Factory to 000000007f6a7ff0
EEPROM set 0: OK (version 108)
Read 1396736 bytes from volume Factory2 to 000000007f6a7ff0
EEPROM set 1: OK (version 108)
Read 1396736 bytes from volume Factory to 000000007fb3fbf0
Select EEPROM set 0 at offset 0x0.
BT8 bootloader version: 1.0.0.2
MAC Address: BC:FC:E7:24:A1:20
Please choose the operation:
1: Load System code to SDRAM via TFTP.
2: Load System code then write to Flash via TFTP.
3: Boot System code via Flash (default).
4: Entr boot command line interface.
7: Load Boot Loader code then write to Flash via Serial.
9: Load Boot Loader code then write to Flash via TFTP.
0
3: Boot System code via Flash (default).
HwID B
Read 40 bytes from volume linux to 0000000046000000
FIT/FDT format image found at 0x46000000,size 0x100318
Read 1049408 bytes from volume linux to 0000000046000000
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-u-boot
Type: Kernel Image
Compression: uncompressed
Data Start: 0x460000e8
Data Size: 1034488 Bytes = 1010.2 KiB
Architecture: AArch64
OS: Linux
Load Address: 0x48200000
Entry Point: 0x48200000
Hash algo: crc32
Hash value: d69ec63c
Hash algo: sha1
Hash value: 6f87435fb43bbe781af5803dee69484f59f0c7f8
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt asus_zenwifi-bt8 device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x460fcb20
Data Size: 13016 Bytes = 12.7 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: c14ff478
Hash algo: sha1
Hash value: bcf9627127ecb07ddc4c6443b631a0029b3d2e82
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x460fcb20
Working FDT set to 460fcb20
Loading Kernel Image to 48200000
Loading Device Tree to 000000007f7f2000, end 000000007f7f82d7 ... OK
Working FDT set to 7f7f2000
Starting kernel ...
I made a similar image for my router and got the same result:
Please choose the operation:
1: Load System code to SDRAM via TFTP.
2: Load System code then write to Flash via TFTP.
3: Boot System code via Flash (default).
4: Entr boot command line interface.
7: Load Boot Loader code then write to Flash via Serial.
9: Load Boot Loader code then write to Flash via TFTP. 0
3: Boot System code via Flash (default).
TUF-AX4200 bootloader version: 1.0.0.3
MAC Address: C8:7F:54:78:BB:3E
HwID A
Read 40 bytes from volume linux to 0000000046000000
FIT/FDT format image found at 0x46000000,size 0x4e930
Read 321880 bytes from volume linux to 0000000046000000
## Loading kernel from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-u-boot
Type: Kernel Image
Compression: lzma compressed
Data Start: 0x460000e8
Data Size: 311193 Bytes = 303.9 KiB
Architecture: AArch64
OS: Linux
Load Address: 0x41e00000
Entry Point: 0x41e00000
Hash algo: crc32
Hash value: 5a6d5381
Hash algo: sha1
Hash value: a519985dcab3cf9b267f59793da1f0f6c2304d3d
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 46000000 ...
Using 'config-1' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt asus_tuf-ax4200 device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x4604c1c4
Data Size: 8784 Bytes = 8.6 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: 76e4b7f8
Hash algo: sha1
Hash value: b72e744c4ba65ec5e7d6b20ac40beadfe79b764f
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x4604c1c4
Read 40 bytes from volume linux2 to 000000005f7ffb90
Uncompressing Kernel Image
Loading Device Tree to 000000005f7f6000, end 000000005f7fb24f ... OK
volume linux seq: 4
Starting kernel ...
I will try to fix this....
1 Like

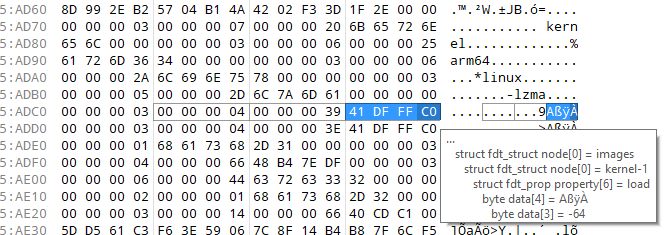

I'll try to change the address for loading the image and text_offset ...

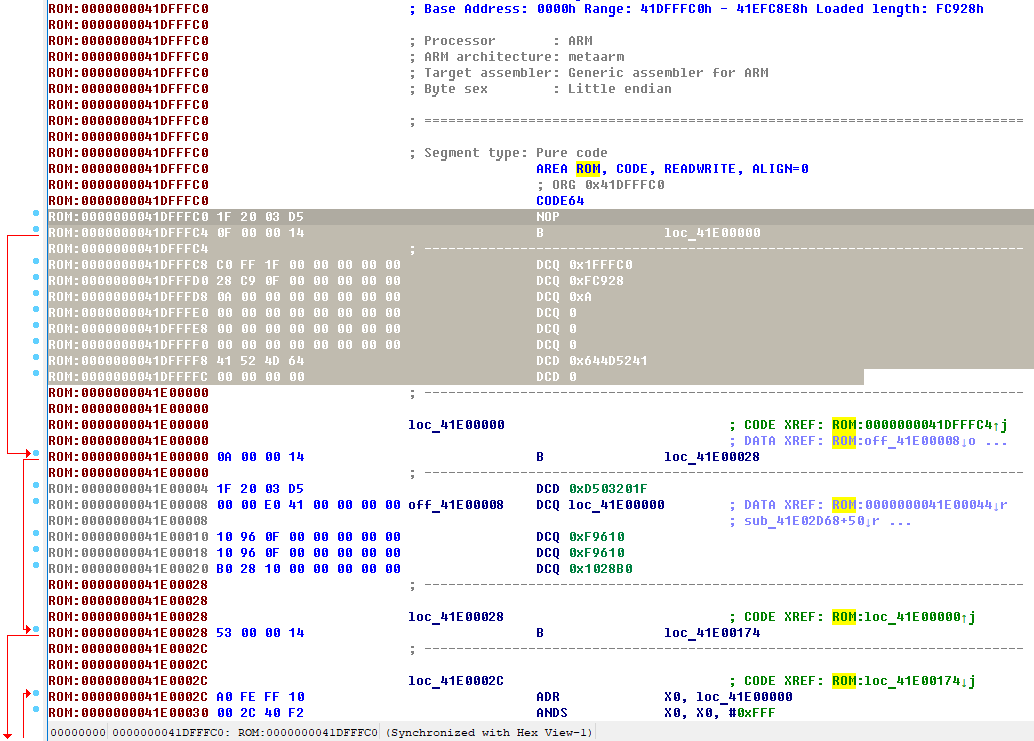

define Build/x-uboot-with-arm64hdr
rm -f $@
$(call Build/x-append-hex,'1F 20 03 D5') # code0: NOP
$(call Build/x-append-hex,'0F 00 00 14') # code1: B +60
$(call Build/x-append-hex,'C0 FF 1F 00 00 00 00 00') # text_offset: 0x1FFFC0
$(call Build/x-append-uboot-size-le32,$(1) 64) # image_size: file_size + 64
$(call Build/x-append-hex,'00 00 00 00') # image_size: HIGHest 32-bits
$(call Build/x-append-hex,'08 00 00 00 00 00 00 00') # flags: BIT(3)
$(call Build/x-append-hex,'00 00 00 00 00 00 00 00') # res2: 0
$(call Build/x-append-hex,'00 00 00 00 00 00 00 00') # res3: 0
$(call Build/x-append-hex,'00 00 00 00 00 00 00 00') # res4: 0
$(call Build/x-append-hex,'41 52 4D 64') # magic: "ARMd" = LINUX_ARM64_IMAGE_MAGIC
$(call Build/x-append-hex,'00 00 00 00') # res5: 0
$(call Build/x-uboot-bin,$(1))
endef
I updated ubi-cleaner.trx image. Please try its.
Pulver:
Sending a PM
Great news! Additional bootloader starts. All that's left is to fix the boot config execution.
4 Likes
Pulver
March 30, 2025, 9:18pm
202
Will post a log when its working for everyone to see
And for those that might have missed it:
Commit for Asus Zenwifi BT8 and Asus Zenwifi BT8 Uboot mod
Snapshots are already available at OpenWRT firmware selector
1 Like
Pulver
March 31, 2025, 8:45am
203
The last test went OK and hopefully we can see an updated version of facinstall soon that has support for the BT8
Factory image installer for OpenWrt
And remind me what doesn't work there.
Let me remind you that facinstall only supports the stock bootloader and stock NAND layout.
