Support for Alcatel HH41V?

[learner981]

@frollic

try which dropbear.
post output of cat /etc/init.d/dropbear

root@flybox:/# which dropbear
[   81.890000] SQUASHFS error: Unable to read metadata cache entry [a35ed6]
[   81.890000] SQUASHFS error: Unable to read inode 0x27ae1eb7

root@flybox:/# p.�9�ɽ�����
#!/bin/sh /etc/rc.common
# Copyright (C) 2006-2010 OpenWrt.org
# Copyright (C) 2006 Carlos Sobrinho

START=50
STOP=50

SERVICE_USE_PID=1

NAME=dropbear
PROG=/usr/sbin/dropbear
PIDCOUNT=0
EXTRA_COMMANDS="killclients"
EXTRA_HELP="    killclients Kill ${NAME} processes except servers and yourself"

dropbear_start()
{
        append_ports()
        {
                local ifname="$1"
                local port="$2"

                grep -qs "^ *$ifname:" /proc/net/dev || {
                        append args "-p $port"
                        return
                }

                for addr in $(
                        ifconfig "$ifname" | sed -ne '
                                /addr: *fe[89ab][0-9a-f]:/d
                                s/.* addr: *\([0-9a-f:\.]*\).*/\1/p
                        '
                ); do
                        append args "-p $addr:$port"
                done
        }


        local section="$1"

        # check if section is enabled (default)
        local enabled
        config_get_bool enabled "${section}" enable 1
        [ "${enabled}" -eq 0 ] && return 1

        # verbose parameter
        local verbosed
        config_get_bool verbosed "${section}" verbose 0

        # increase pid file count to handle multiple instances correctly
        PIDCOUNT="$(( ${PIDCOUNT} + 1))"

        # prepare parameters (initialise with pid file)
        local pid_file="/var/run/${NAME}.${PIDCOUNT}.pid"
        local args="-P $pid_file"
        local val
        # A) password authentication
        config_get_bool val "${section}" PasswordAuth 1
        [ "${val}" -eq 0 ] && append args "-s"
        # B) listen interface and port
        local port
        local interface
        config_get interface "${section}" Interface
        config_get interface "${interface}" ifname "$interface"
        config_get port "${section}" Port 22
        append_ports "$interface" "$port"
        # C) banner file
        config_get val "${section}" BannerFile
        [ -f "${val}" ] && append args "-b ${val}"
        # D) gatewayports
        config_get_bool val "${section}" GatewayPorts 0
        [ "${val}" -eq 1 ] && append args "-a"
        # E) root password authentication
        config_get_bool val "${section}" RootPasswordAuth 1
        [ "${val}" -eq 0 ] && append args "-g"
        # F) root login
        config_get_bool val "${section}" RootLogin 1
        [ "${val}" -eq 0 ] && append args "-w"
        # G) host keys
        config_get val "${section}" rsakeyfile
        [ -f "${val}" ] && append args "-r ${val}"
        config_get val "${section}" dsskeyfile
        [ -f "${val}" ] && append args "-d ${val}"

        # execute program and return its exit code
        [ "${verbosed}" -ne 0 ] && echo "${initscript}: section ${section} starting ${PROG} ${args}"
        SERVICE_PID_FILE="$pid_file" service_start ${PROG} ${args}
}

keygen()
{
        for keytype in rsa dss; do
                # check for keys
                key=dropbear/dropbear_${keytype}_host_key
                [ -f /tmp/$key -o -s /etc/$key ] || {
                        # generate missing keys
                        mkdir -p /tmp/dropbear
                        [ -x /usr/bin/dropbearkey ] && {
                                /usr/bin/dropbearkey -t $keytype -f /tmp/$key 2>&- >&- && exec /etc/rc.common "$initscript" start
                        } &
                exit 0
                }
        done

        lock /tmp/.switch2jffs
        mkdir -p /etc/dropbear
        mv /tmp/dropbear/dropbear_* /etc/dropbear/
        lock -u /tmp/.switch2jffs
        chown root /etc/dropbear
        chmod 0700 /etc/dropbear
}

start()
{
        echo "dropbear_start" > /dev/kmsg
        [ -s /etc/dropbear/dropbear_rsa_host_key -a \
          -s /etc/dropbear/dropbear_dss_host_key ] || keygen

        include /lib/network
        scan_interfaces
        config_load "${NAME}"
        config_foreach dropbear_start dropbear
        echo "dropbear_start_end" > /dev/kmsg
}

stop()
{
        echo "dropbear_stop" > /dev/kmsg
        local pid_file pid_files

        pid_files=`ls /var/run/${NAME}.*.pid 2>/dev/null`

        [ -z "$pid_files" ] && return 1

        for pid_file in $pid_files; do
                SERVICE_PID_FILE="$pid_file" service_stop ${PROG} && {
                        rm -f ${pid_file}
                }
        done
}

killclients()
{
        local ignore=''
        local server
        local pid

        # if this script is run from inside a client session, then ignore that session
        pid="$$"
        while [ "${pid}" -ne 0 ]
         do
                # get parent process id
                pid=`cut -d ' ' -f 4 "/proc/${pid}/stat"`
                [ "${pid}" -eq 0 ] && break

                # check if client connection
                grep -F -q -e "${PROG}" "/proc/${pid}/cmdline" && {
                        append ignore "${pid}"
                        break
                }
        done

        # get all server pids that should be ignored
        for server in `cat /var/run/${NAME}.*.pid`
         do
                append ignore "${server}"
        done

        # get all running pids and kill client connections
        local skip
        for pid in `pidof "${NAME}"`
         do
                # check if correct program, otherwise process next pid
                grep -F -q -e "${PROG}" "/proc/${pid}/cmdline" || {
                        continue
                }

                # check if pid should be ignored (servers, ourself)
                skip=0
                for server in ${ignore}
                 do
                        if [ "${pid}" == "${server}" ]
                         then
                                skip=1
                                break
                        fi
                done
                [ "${skip}" -ne 0 ] && continue

                # kill process
                echo "${initscript}: Killing ${pid}..."
                kill -KILL ${pid}
        done
}

[learner981]

when i try:
./serio.py -s update.bin -d /tmp/update.sh -p /dev/ttyUSB0 -b 115200
i get:

$sudo ./serio.py -s update.bin -d /tmp/update.sh -p /dev/ttyUSB0 -b 115200
ERROR: No module named 'serial'

[frollic]

@learner981

ERROR: No module named 'serial'

that's not an openwrt issue, but I guess you need pyserial ?

[learner981]

@learner981

module

thank you, i have downloaded pyserial and now serio is working but it is very very slow.

[frollic]

Yes, it is, image transfer time is probably 10-15 mins

Imagine BBSes in the 80ies running at 300bps, you're at 115200.

[learner981]

i have added a pull request:

ath79: add support for TCL HH41V

the content of this file: qca9531_tcl_hh41v.dts is the same as you added just with name of device changed.
i think the mac address of eth0 may be different because the port is not working
how to i get the proper mac adress of that port to adjust that file? and what other changes i have to do? i hope that you can help. thank you.

[frollic]

@learner981

added a pull request:

it's not following the template, nor does it contain any install how to.

[learner981]

i have added the installation methode.
which template?
i have followed this:

ath79: add support for Alcatel HH40V

[frollic]

@learner981

i have added the installation methode.

I thought it didn't work on the 41V ?

[learner981]

i have tested it with 3 modems and it worked, the modem that did not work with it i think the problem is in that modem: there may be something corrupted in its system.

[learner981]

in the original firmware:, the art partition shows:
root@(none):/# cat /dev/mtd6 |hexdump

0000000 9c4f cfd5 06c1 9c4f cfd8 fe3a ffff ffff
0000010 ffff ffff ffff ffff ffff ffff ffff ffff
*
0001000 0202 9c4f cfb3 ea02 0000 0000 0000 0000
0001010 0000 0000 0000 0000 0000 0000 0000 1f00
0001020 3302 0000 0000 0400 0400 4d04 0300 08ff

the Mac adresses:

root@flybox:/# ifconfig
ath0      Link encap:Ethernet  HWaddr 9C:4F:CF:B3:EA:02
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:39 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

br-lan    Link encap:Ethernet  HWaddr 9C:4F:CF:D8:FE:3A
          inet addr:192.168.1.1  Bcast:192.168.1.255  Mask:255.255.255.0
          inet6 addr: fe80::9e4f:cfff:fed8:fe3a/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:9522 errors:0 dropped:0 overruns:0 frame:0
          TX packets:10818 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1646522 (1.5 MiB)  TX bytes:4371764 (4.1 MiB)

eth0      Link encap:Ethernet  HWaddr 9C:4F:CF:D5:06:C1
          UP BROADCAST MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)
          Interrupt:4

eth1      Link encap:Ethernet  HWaddr 9C:4F:CF:D8:FE:3A
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:9522 errors:0 dropped:0 overruns:0 frame:0
          TX packets:10813 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:1779830 (1.6 MiB)  TX bytes:4371226 (4.1 MiB)
          Interrupt:5

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:16436  Metric:1
          RX packets:4178 errors:0 dropped:0 overruns:0 frame:0
          TX packets:4178 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:240264 (234.6 KiB)  TX bytes:240264 (234.6 KiB)

usb0      Link encap:Ethernet  HWaddr D6:C2:4A:61:BF:EC
          inet addr:192.168.225.111  Bcast:192.168.225.255  Mask:255.255.255.0
          inet6 addr: fe80::d4c2:4aff:fe61:bfec/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:3039 errors:0 dropped:0 overruns:0 frame:0
          TX packets:3973 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:429754 (419.6 KiB)  TX bytes:551568 (538.6 KiB)

wifi0     Link encap:UNSPEC  HWaddr 9C-4F-CF-B3-EA-02-00-93-00-00-00-00-00-00-00-00
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:17 errors:0 dropped:0 overruns:0 frame:0
          TX packets:10186 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:2699
          RX bytes:3926 (3.8 KiB)  TX bytes:2690742 (2.5 MiB)
          Interrupt:47 Memory:b8100000-b8120000

so there are 3 adresses, but in the file: qca9531_alcatel_hh40v.dts there are just 2 MAC adresses? why is this?

&eth0 {
	status = "okay";

	nvmem-cells = <&macaddr_art_0>;
	nvmem-cell-names = "mac-address";

	phy-handle = <&swphy4>;
};

&eth1 {
	compatible = "qca,qca9530-eth", "syscon", "simple-mfd";

	nvmem-cells = <&macaddr_art_6>;
	nvmem-cell-names = "mac-address";
};

&wmac {
	status = "okay";

	nvmem-cells = <&cal_art_1000>;
	nvmem-cell-names = "calibration";
};

[andyboeh]

IIRC, the ath9k (or ath10k?) driver automatically extracts the Mac address from the ART partition, hence there is no need to manually override the Mac address.

[learner981]

thank you.
for the image of hhv40 it worked with me on hh41v with the version 24.10.1 and the modem is worknig with it, but with version 24.10.2 and the snapshot: the rndis modem is not giving the internet connection.

edit: even when i go back to 24.10.1 i does not give the internet to the wifi connected devices nor to the lan port. i made restart the configuration but the same problem. when i ping openwrt.org from the router it has access to internet but not the connected devices. what can cause this problem?

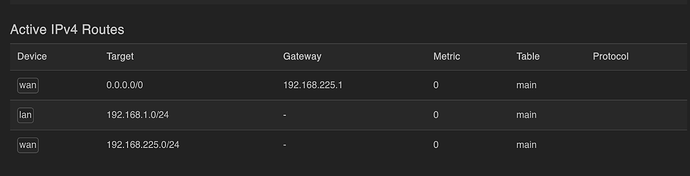

i think the problem may be in the gateway

edit:
the problem is solved by adding the wan interface to the wan firewall zone

[learner981]

the hh40v firmware is working well with hh41v.
and to let the lan2/wan port working and gives ip adress: eth0 should be added to br-lan and wan6 should be deleted.

we can generate a version from the download page with this uc-defaults to run in the first boot:
uci -q batch << 'EOF'
set network.wan.device='usb0'
delete network.wan6
add_list network.br_lan.ports='eth0'
delete wireless.@wifi-device[0].disabled
delete wireless.@wifi-iface[0].disabled
commit network
commit wireless
EOF

[learner981]

this pr adds this device to openwrt:

ath79: add HH41V compatibility to Alcatel HH40V device tree (#23732)

and this pr adds an app that comunicate with the internal modem like the oem original firmware:

luci-app-hh4xmodem: application to monitor and control the MDM9207 modem found in HH40V and HH41V routers. (#8713)
