Suffering to configure Wireguard - I need some help - [SOLVED]

topsbr · May 30, 2024, 4:34pm

Hello all...

Exercising and improving my knowledge, I set out to learn how to configure wireguard on my router...

Initially, I based myself on the Openwrt Wiki, official tutorial and installed the packages, but I can't connect my clients to the router...

I have a problem that I don't know/can't solve in any way, although I'm searching on the internet...

Come on, the clients send packets, I see that the router receives them, but they cannot connect.

Here are my settings:

/etc/config/network

root@horus:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fda2:fbc6:8a20::/48'

config interface 'lan'
        option device 'eth1'
        option proto 'static'
        list ipaddr '192.168.15.1/26'
        option ip6assign '64'

config interface 'wan'
        option proto 'pppoe'
        option device 'eth0'
        option username 'cliente@cliente'
        option password 'cliente'
        option ipv6 'auto'
        option metric '1024'

config interface 'onu_vsol'
        option proto 'static'
        option device 'eth0'
        list ipaddr '192.168.1.2/30'

config interface 'wireguard_vpn'
        option proto 'wireguard'
        option private_key 'REMOVED'
        list addresses '192.168.20.1/24'
        option listen_port '51820'

config wireguard_wireguard_vpn
        option description 'CEL_POCOX3PRO_RR'
        option public_key 'f7q2yL2Xv6EEh5PLYCRoQ+U2krjrc/aSxDpOOpuXl2A='
        option private_key 'REMOVED'
        list allowed_ips '192.168.20.2/32'
        option route_allowed_ips '1'

root@horus:~#

etc/config/firewall:

root@horus:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fda2:fbc6:8a20::/48'

config interface 'lan'
        option device 'eth1'
        option proto 'static'
        list ipaddr '192.168.15.1/26'
root@horus:~# cat /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'
        option drop_invalid '1'
        option flow_offloading '1'
        option flow_offloading_hw '1'

config zone 'lan'
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list device 'tun+'
        list network 'lan'
        list network 'wireguard_vpn'

config zone 'wan'
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'
        list network 'onu_vsol'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config rule 'wg'
        option name 'Allow-WireGuard'
        option src 'wan'
        option dest_port '51820'
        option proto 'udp'
        option target 'ACCEPT'

config forwarding
        option src 'lan'
        option dest 'wan'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'NintendoSwitch-NAT_A'
        list proto 'udp'
        option src 'wan'
        option src_dport '45000-65535'
        option dest_ip '192.168.15.30'
        option dest_port '45000-65535'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'DDNS-8181'
        option src 'wan'
        option src_dport '80'
        option dest_ip '192.168.15.1'
        option dest_port '8181'
        list proto 'tcp'

config rule 'ovpn'
        option name 'Allow-OpenVPN'
        option src 'wan'
        option dest_port '1194'
        option proto 'udp'
        option target 'ACCEPT'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'WireGuard_VPN'
        list proto 'udp'
        option src 'wan'
        option src_dport '51820'
        option dest_ip '192.168.20.1'
        option dest_port '51820'

root@horus:~#

I have openvpn running on this router perfectly!

Using the comand "tcpdump -evni any udp port 51820", I have...

root@horus:~# tcpdump -evni any udp port 51820
tcpdump: data link type LINUX_SLL2
tcpdump: listening on any, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144 bytes
13:31:06.852410 pppoe-wan In  ifindex 5 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 57, id 0, offset 0, flags [none], proto UDP (17), length 176)
    189.98.248.59.63689 > 177.102.51.128.51820: UDP, length 148
13:31:06.852619 eth1  Out ifindex 3 b8:ae:ed:86:c5:06 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 56, id 0, offset 0, flags [none], proto UDP (17), length 176)
    189.98.248.59.63689 > 192.168.15.30.51820: UDP, length 148
13:31:11.963208 pppoe-wan In  ifindex 5 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 57, id 0, offset 0, flags [none], proto UDP (17), length 176)
    189.98.248.59.63689 > 177.102.51.128.51820: UDP, length 148
13:31:11.963376 eth1  Out ifindex 3 b8:ae:ed:86:c5:06 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 56, id 0, offset 0, flags [none], proto UDP (17), length 176)
    189.98.248.59.63689 > 192.168.15.30.51820: UDP, length 148
13:31:16.988861 pppoe-wan In  ifindex 5 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 57, id 0, offset 0, flags [none], proto UDP (17), length 176)
    189.98.248.59.63689 > 177.102.51.128.51820: UDP, length 148
13:31:16.988989 eth1  Out ifindex 3 b8:ae:ed:86:c5:06 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 56, id 0, offset 0,
ags [none], proto UDP (17), length 176)
13:31:22.043045 pppoe-wan In  ifindex 5 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 57, id 0, offset 0, flags [none], proto UDP (17), length 176)
    189.98.248.59.63689 > 177.102.51.128.51820: UDP, length 148
13:31:22.043177 eth1  Out ifindex 3 b8:ae:ed:86:c5:06 ethertype IPv4 (0x0800), length 196: (tos 0x0, ttl 56, id 0, offset 0, flags [none], proto UDP (17), length 176)
    189.98.248.59.63689 > 192.168.15.30.51820: UDP, length 148
13:31:27.123093 pppoe-wan In  ifindex 5 ethertype IPv4 (0x0800), l

Where is my problem?
I've already tried reconfiguring, but it didn't have the desired effect.

Thanks one more time, friends!

psherman · May 30, 2024, 4:38pm

As a test, change the configuration on your phone so that the endpoint address is 192.168.15.1. Then, try to connect while your phone is on your local wifi.

post the output of

wg show

egc · May 30, 2024, 4:57pm

You can delete this as you are already allowing port 51820

topsbr:

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'WireGuard_VPN'
        list proto 'udp'
        option src 'wan'
        option src_dport '51820'
        option dest_ip '192.168.20.1'
        option dest_port '51820'

This seems like a secondary router e.g. behind an other router, did you set a port forward on the primary router?

Follow the instructions from @psherman so that we know if the rest of the setup is OK

topsbr · May 30, 2024, 5:06pm

Sorry man...

root@horus:~# wg show
interface: wireguard_vpn
  public key: YzYtway7hlxFYjpZLVEVt73jDS9lMx07q0M8tQYweiQ=
  private key: (hidden)
  listening port: 51820

peer: f7q2yL2Xv6EEh5PLYCRoQ+U2krjrc/aSxDpOOpuXl2A=
  allowed ips: 192.168.20.2/32

topsbr · May 30, 2024, 5:07pm

Isn´t the secondary router, it´s the same router...

I think that config is wrong, right?

Can I remove this?

psherman · May 30, 2024, 5:08pm

There is no handshake.

That suggests that there may be a key issue. You may want to simply generate new keys to ensure that they are correct.

egc · May 30, 2024, 5:12pm

My bad, you probably have setup a second wan interface to connect to your modem?
That should be no problem

topsbr · May 30, 2024, 5:33pm

I can, no problem, but I've done it three times.

I'm generating the keys through Luci, I believe that's not the problem, right (possible interface bug).

psherman · May 30, 2024, 5:37pm

The LuCI option should be fine. There are no bugs that I am aware of.

To simplify the process, you can actually generate the remote peer keys, too, and then use a qr code to transfer the config to your mobile device.

topsbr · May 30, 2024, 5:42pm

New pairs generated...

Same problem

These can be the problem?

How could I check if port 51820 in the udp protocol is open? I think this might be the problem.

For testing, I disabled the forward port...

psherman · May 30, 2024, 6:34pm

Those are not issues. However, change the endpoint to 192.168.15.1 for this initial test.

Don't forget to restart your router after changing the keys.
After you restart the router, try establishing the wg connection while you are on your local wifi again.

If it doesn't work, post the output of:

cat /etc/config/network
cat /etc/config/firewall
wg show

topsbr · May 30, 2024, 7:23pm

@psherman ,

192.168.15.1/26 is my home network...

192.168.25.0/28 is my OpenVPN interface.. (/28 - users limits)

I'm trying to configure Wireguard on 192.168.20.1/24... (I will change to /28 too when works)...

My files are:

01 - /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fda2:fbc6:8a20::/48'

config interface 'lan'
        option device 'eth1'
        option proto 'static'
        list ipaddr '192.168.15.1/26'
        option ip6assign '64'

config interface 'wan'
        option proto 'pppoe'
        option device 'eth0'
        option username 'cliente@cliente'
        option password 'cliente'
        option ipv6 'auto'
        option metric '1024'

config interface 'onu_vsol'
        option proto 'static'
        option device 'eth0'
        list ipaddr '192.168.1.2/30'

config interface 'wireguard_vpn'
        option proto 'wireguard'
        option private_key 'uAcRqrBmNWUakiv74dGFDSJURlIJeCQRNVn+r4ajvGQ='
        list addresses '192.168.20.1/24'
        option listen_port '51820'

config wireguard_wireguard_vpn
        option description 'CEL_POCOX3PRO_RR'
        option public_key 'wQampIs97sk431v7olygiBbWwacfDoHGEeUeqlkljjc='
        option private_key 'yKpavAfZhoBgLFdZfCbl/rt9PPyo14xRzzVVPtSuvk4='
        list allowed_ips '192.168.20.2/32'
        option route_allowed_ips '1'

02 - /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'
        option drop_invalid '1'
        option flow_offloading '1'
        option flow_offloading_hw '1'

config zone 'lan'
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list device 'tun+'
        list network 'lan'
        list network 'wireguard_vpn'

config zone 'wan'
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'
        list network 'onu_vsol'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config rule 'wg'
        option name 'Allow-WireGuard'
        option src 'wan'
        option dest_port '51820'
        option proto 'udp'
        option target 'ACCEPT'

config forwarding
        option src 'lan'
        option dest 'wan'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'NintendoSwitch-NAT_A'
        list proto 'udp'
        option src 'wan'
        option src_dport '45000-65535'
        option dest_ip '192.168.15.30'
        option dest_port '45000-65535'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'DDNS-8181'
        option src 'wan'
        option src_dport '80'
        option dest_ip '192.168.15.1'
        option dest_port '8181'
        list proto 'tcp'

config rule 'ovpn'
        option name 'Allow-OpenVPN'
        option src 'wan'
        option dest_port '1194'
        option proto 'udp'
        option target 'ACCEPT'

config redirect
        option dest 'lan'
        option target 'DNAT'
        option name 'WireGuard_VPN'
        list proto 'udp'
        option src 'wan'
        option src_dport '51820'
        option dest_ip '192.168.20.1'
        option dest_port '51820'
        option enabled '0'

03 - wg show

interface: wireguard_vpn
  public key: BKGfq8pez68QTI0x/9VHdJWS4inFjbbsWVaQeDpRhzo=
  private key: (hidden)
  listening port: 51820

peer: f7q2yL2Xv6EEh5PLYCRoQ+U2krjrc/aSxDpOOpuXl2A=
  allowed ips: 192.168.20.2/32

Don't worry about the keys...
I believe that if the connection works out, I can generate new pairs, correct?

psherman · May 30, 2024, 8:11pm

Yes. Please create new keys once things are working since these are compromised by nature. It's fine for now, though.

Please show us the latest config from your phone.

psherman · May 30, 2024, 8:12pm

Also, did you reboot your router? It looks like the keys don't match between the config and the wg show output.

topsbr · May 30, 2024, 8:16pm

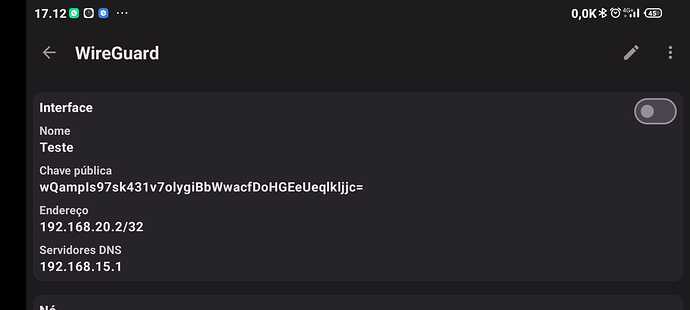

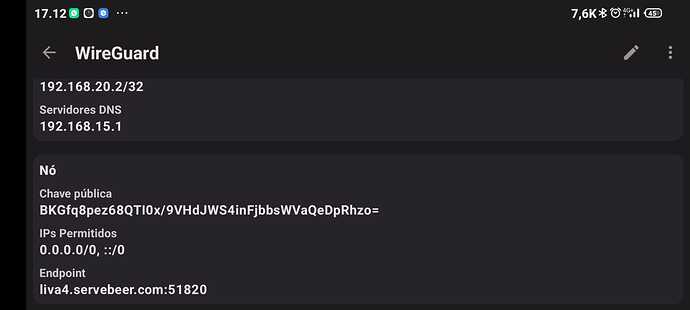

There they are...

They were captured via QR Code.

The DDNS connection works well...

psherman · May 30, 2024, 8:17pm

Does this mean it's working now?

topsbr · May 30, 2024, 8:23pm

No, wireguard doesn't work...

I mentioned that the DDNS connection works normally, I use it on OpenVPN without any problems...

psherman · May 30, 2024, 8:23pm

Is OpenVPN setup as a server or client?

topsbr · May 30, 2024, 8:36pm

Server...

Works fine!

psherman · May 30, 2024, 8:40pm

ok... so go ahead and restart your router. Once again, change the endpoint (on your phone) to 192.168.15.1 and make sure you're connected to wifi and on the same subnet. Then try to connect again.
