Static routes don't work

[cave]

Hi,

I have here an OpenWrt 22.03.3 r20028-43d71ad93e ArcherA7

i have set some static routes, but only some are added to the routing table.

my /etc/config network contains these routes.

config route
option interface 'vwrtx'
option target '192.168.5.64/27'
option gateway '192.168.8.26'

config route
option target '192.168.6.96/28'
option interface 'vwrtx'
option gateway '192.168.8.26'

config route
option target '192.168.6.112/28'
option interface 'vwrtx'
option gateway '192.168.8.26'

config route
option interface 'vwrtx'
option target '192.168.6.144/28'
option gateway '192.168.8.26'

config route
option interface 'vwrtx'
option target '192.168.8.32/29'
option gateway '192.168.8.27'

config route 'aptold'
option interface 'vwrtx'
option target '192.168.9.12/30'
option gateway '192.168.8.27'

config route 'pihole'
option interface 'vwrtx'
option target '192.168.9.16/30'
option gateway '192.168.8.27'

config route 'sshbackup'
option interface 'vwrtx'
option target '192.168.9.20/30'
option gateway '192.168.6.27'

config route 'apt'
option interface 'vwrtx'
option target '192.168.9.24'
option netmask '255.255.255.252'
option gateway '192.168.6.28'

after

root@archer:~# /etc/init.d/network restart

root@archer:~# route
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
default         nnn.d 0.0.0.0         UG    0      0        0 eth0.2
nnn.nnn.nnn.0     *               255.255.255.0   U     0      0        0 eth0.2
192.168.5.64    vwrt1.cave. 255.255.255.224 UG    0      0        0 eth0.15
192.168.6.32    *               255.255.255.240 U     0      0        0 eth0.10
192.168.6.96    vwrt1.cave. 255.255.255.240 UG    0      0        0 eth0.15
192.168.6.112   vwrt1.cave. 255.255.255.240 UG    0      0        0 eth0.15
192.168.6.144   vwrt1.cave. 255.255.255.240 UG    0      0        0 eth0.15
192.168.8.24    *               255.255.255.248 U     0      0        0 eth0.15
192.168.8.32    vwrt2.cave. 255.255.255.248 UG    0      0        0 eth0.15
192.168.9.12    vwrt2.cave. 255.255.255.252 UG    0      0        0 eth0.15
192.168.9.16    vwrt2.cave. 255.255.255.252 UG    0      0        0 eth0.15
192.168.100.0   *               255.255.255.0   U     0      0        0 br-lan

Why is the route to 192.168.9.12/30 192.168.9.16/30 present in the routing table?
But 192.168.9.20/30 and 192.168.9.24/30 do not?

root@archer:~# uci show network
...
...
...
network.aptold=route
network.aptold.interface='vwrtx'
network.aptold.target='192.168.9.12/30'
network.aptold.gateway='192.168.8.27'
network.pihole=route
network.pihole.interface='vwrtx'
network.pihole.target='192.168.9.16/30'
network.pihole.gateway='192.168.8.27'
network.sshbackup=route
network.sshbackup.interface='vwrtx'
network.sshbackup.target='192.168.9.20/30'
network.sshbackup.gateway='192.168.6.27'
network.apt=route
network.apt.interface='vwrtx'
network.apt.target='192.168.9.24'
network.apt.netmask='255.255.255.252'
network.apt.gateway='192.168.6.28'

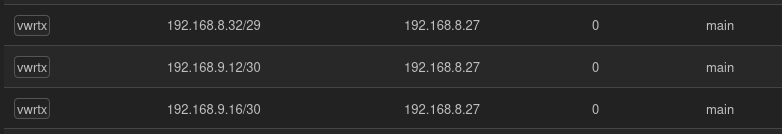

Network Routing Settings in the Gui

Also in the GUI i see only the same routes active. But missing the others.

i have also tried multiple kinds of settings.

config route 'apt'
option interface 'vwrtx'
option target '192.168.9.24'
option netmask '255.255.255.252'
option gateway '192.168.6.28'

config route
option interface 'vwrtx'
option target '192.168.9.24/30'
option gateway '192.168.6.28'

Skipped the route name or used /30 instead of netmask.

Where is a log which i could check why it is failing?
Where is my error/mistake in the config/network file?

[brada4]

ubus call system board
cat /etc/config/network
ip ro sh # remove last 2 numbers from any public IP-s

Why different handling? Probably one gateway is not reachable by any present interface?

Upgrade to 23.05.5 or 24.10.0-rcX

[cave]

@brada4

Probably one gateway is not reachable by any present interface?

stupid me, wrong 6/9 number flip in route gateway
