Static route is being dropped after some time

Installing and Using OpenWrt Network and Wireless Configuration
1

Ahoy friends. Yesterday i had some trouble with routing through my Wireguard VPN device, but now it works, at least for some time. Create Route for VPN for connected LAN devices

I want to route 192.168.2.0 IPs through the 10.0.0.1 Wireguard interface, and it works for a time using my static route.
But unfortunately for some reason, after some time i'm not able to get access to these ip's anymore. When trying to login into the OpenWRT device itself i still can ping and traceroute these ip's, but from my LAN connected devices not.
What's the problem here? I have never seen something like that, kind of self-destruction.

Here running fine

chairman@workstation:~$ traceroute 192.168.2.1
traceroute to 192.168.2.1 (192.168.2.1), 30 hops max, 60 byte packets
 1  OpenWrt.lan (192.168.1.1)  0.317 ms  0.381 ms  0.443 ms
 2  10.0.0.1 (10.0.0.1)  448.333 ms  449.055 ms  466.175 ms
 3  192.168.2.1 (192.168.2.1)  466.933 ms  470.350 ms  470.513 ms

After some time, it doesn't work anymore.


chairman@workstation:~$ traceroute 192.168.2.1
traceroute to 192.168.2.1 (192.168.2.1), 30 hops max, 60 byte packets
 1  OpenWrt.lan (192.168.1.1)  0.343 ms  0.353 ms  0.393 ms
 2  192.168.43.1 (192.168.43.1)  3.177 ms  5.129 ms  5.226 ms
 3  * * *
 4  * * *
 5  * * *
 6  * * *
 7  * * *
 8  * * *
 9  * * *
10  * * *
11  * * *
12  * * *
13  * * *
14  * * *
15  * * *
16  * * *
17  * * *
18  * * *^C

I hope someone has got some ideas!
The Wireguard connection itself is still established, and both sides are pinging each other.

2

How did you apply the static route?

2 Likes
3

Inside of LuCI

Target network 192.168.2.0/24 255.255.255.0 netmask, via 10.0.0.1 for all 192.168.1.0/24 adresses.
It works for some time, and later traceroute ends up with 192.168.43.1 for some reason.
From the other side it works, able to traceroute to 192.168.1.1.

Fixxed it for now.
I added 10.0.0.1 (remote peer) to ipv4 gateway on "br-lan"

Is this a proper solution?

EDIT: Seems like the problem has not been solved yet.
After a reboot same situation like in the beginning.



traceroute 192.168.2.1
traceroute to 192.168.2.1 (192.168.2.1), 30 hops max, 60 byte packets
 1  OpenWrt.lan (192.168.1.1)  0.340 ms  0.415 ms  0.463 ms
 2  192.168.43.1 (192.168.43.1)  7.721 ms  8.360 ms  8.423 ms
4

Are you still trying to route the WireGuard over the relayd?
Post here your /etc/config/network , dhcp and firewall

1 Like
5

I have reset everything to default now.
So i got my basic setup again.
The LAN part (br-lan), currently without relayd bridge.
The wwan0 wifi Radio, which is connected to another WiFi network to provide the internet connection.
The configured and working wireguard-wg0 interface.
What do i have to do in order to passthrough the devices connected to br-lan, to wwan0 via wg0?
Is it a good idea to create a classic bridge, something like using brctl, bridge-utils instead of relayd?

The weird thing is, it has worked, but only sometimes, and only for a few hours.

6

Is there a specific reason you need the LAN part of your router to be in the same broadcast domain with the wireless of the wwan? This is essentially complicating things too much.

1 Like
7

No there is no reason.
Only thing i wanted to achieve is the route from the LAN devices, to the remote network 192.168.2.0 via 10.0.0.1.
How it's done doesn't matter, but unfortunately i only know the relayd way.
Other targets (except 192.168.2.0) should be routed to the internet (wwan0)

The wan interface is not in use in my case.

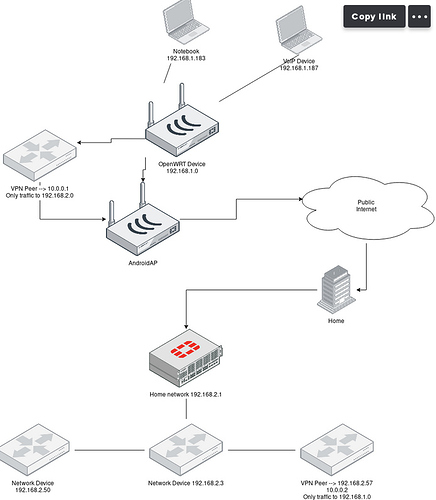

I got a photo now, maybe it's easier to understand.
Traffic to 192.168.2.0, somehow should go to the Wireguard interface.
Everything else to the internet.

net
net696×797 76.1 KB

https://imgur.com/undefined

8

Then there is no need to setup any relay protocol.
On OpenWrt you have the LAN bridge which covers lan ports and the wireless access point.
Create the wwan interface that connects as station to the AndroidAP, assign it to wan firewall zone and you have internet already.
Then setup WireGuard to connect to the home, allow the necessary subnets from each side and route those subnets.

1 Like
9

Thanks, seems like it has solved the problem.
Now i got one issue left.
How can i set up this rule using LuCi?
It only works when i perform this command using SSH

ip route add 192.168.2.0/24 via 10.0.0.1

The LuCi version does not seem to be applied, because when i use ip route show, there is nothing. Only when using the command above

Is this

config route
        option type 'multicast'
        option netmask '255.255.255.0'
        option target '192.168.2.0/24'
        option gateway '10.0.0.1/32'
        option onlink '1'
        option source '192.168.1.0/24'
        option interface 'wg0'

The same like this one?

ip route add 192.168.2.0/24 via 10.0.0.1

10

No need to do it like this.
Add it in the list of allowed IPs for the peer and select to route the allowed IPs.
If it still doesn't work, post here the uci export network

1 Like
11

Thanks friend, it works fine this way!!! In conclusion it's very easy.
To conclude the issue was the relayd bridge. Thanks for your help with the firewall stuff.
Thanks.

12

I am glad you got it working eventually the right way.
