SQM not seeming to work

iehtn-openwrtrouter · January 28, 2025, 8:34pm

Hello,

I am trying to get SQM working on my Linksys MX4300. I have T-mobile Home Internet. After running a speed test I set the Download speed (ingress) to 80000 and the upload to 5000. Very low compared to the speed test results because I know there will be fluctuation and I am OK running slower, at least to start.

My issue is that SQM does not appear to be making any difference. Download and Upload speeds remain the same, along with the same latency. Should the Download and Upload not cap to the 80000 and 5000 I set? I can not figure out why it won’t limit or provide bandwidth management.

root@OpenWrt:~# ubus call system board
{
        "kernel": "6.6.74",
        "hostname": "OpenWrt",
        "system": "ARMv8 Processor rev 4",
        "model": "Linksys MX4300",
        "board_name": "linksys,mx4300",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "SNAPSHOT",
                "revision": "r28722-734331e4e6",
                "target": "qualcommax/ipq807x",
                "description": "OpenWrt SNAPSHOT r28722-734331e4e6",
                "builddate": "1738057906"

root@OpenWrt:~# tc -s qdisc
qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev wan root
 Sent 171040 bytes 1050 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev wan parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 2123 bytes 15 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wan parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 26758 bytes 114 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wan parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 12710 bytes 183 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev wan parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 129449 bytes 738 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan3 root
 Sent 749713 bytes 3552 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan3 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 2566 bytes 24 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 183498 bytes 839 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 22579 bytes 133 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 541070 bytes 2556 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan2 root
 Sent 21321874 bytes 30838 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan2 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 4125093 bytes 3960 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 7448721 bytes 10283 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 6479067 bytes 10956 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 3268993 bytes 5639 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan1 root
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan1 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev br-lan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy0-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0

SQM Disabled

SQM Enabled

brada4 · January 28, 2025, 9:40pm

Do the test of actual achievable speeds with SQM disabled and device rebooted
https://www.waveform.com/tools/bufferbloat
And post the link to result.

iehtn-openwrtrouter · January 30, 2025, 5:20am

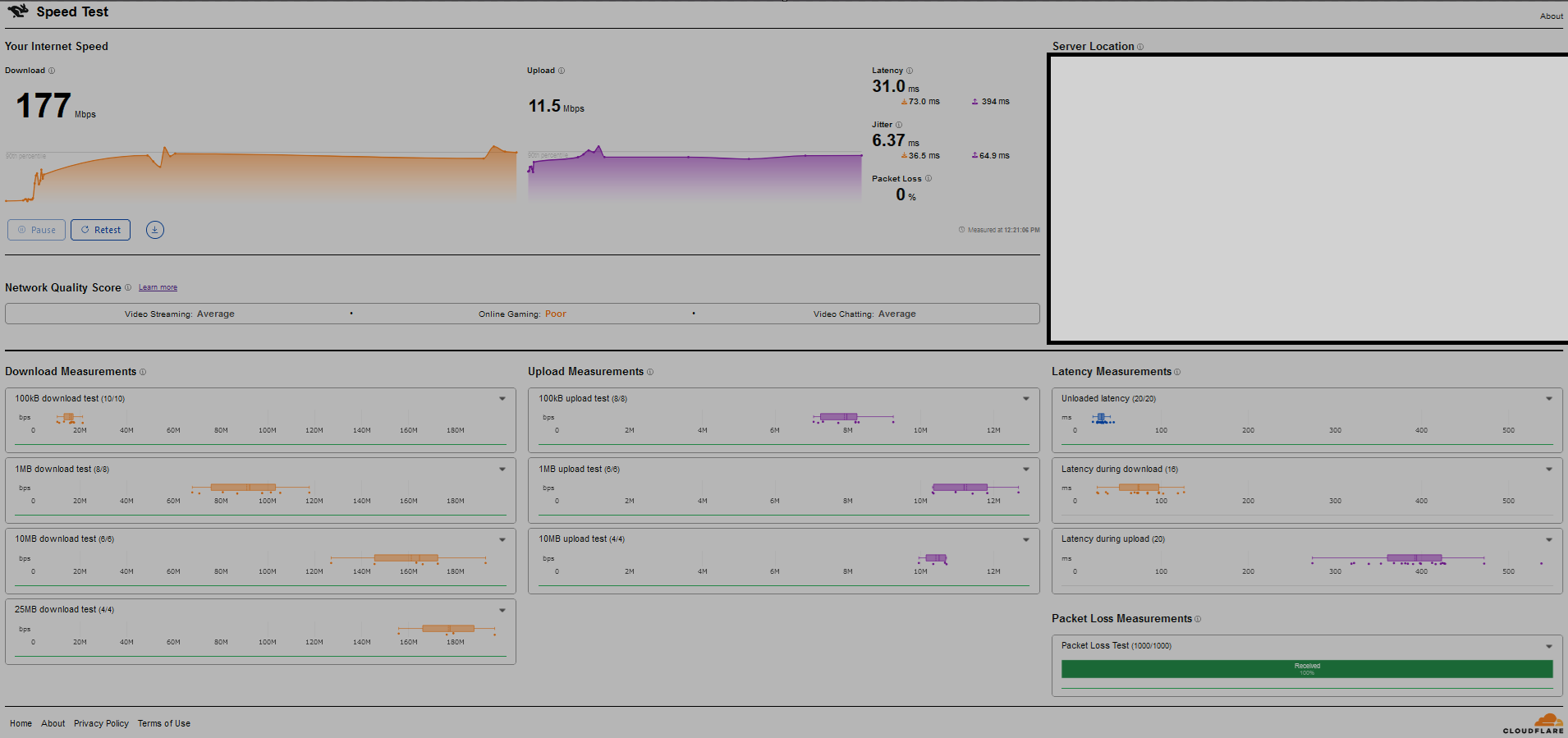

https://www.waveform.com/tools/bufferbloat?test-id=616a7c52-739e-4a58-a982-939aa4424f09

Disabled and then rebooted.

moeller0 · January 30, 2025, 5:51am

No sign of any traffic shaper (htb, tbf or cake) in the tc output, so sqm is not actually running explaining your measurements. The next question to tackle is why? I will post later when I am at a computer how to further diagnose this...

moeller0 · January 30, 2025, 5:58am

Please try:

/etc/init.d/sqm stop ; SQM_DEBUG=0 SQM_VERBOSITY_MAX=8 /etc/init.d/sqm start

And post the output here, as well as:

cat /etc/config/sqm

ifstatus wan | grep device

iehtn-openwrtrouter · January 30, 2025, 6:14pm

Thanks Moeller0

root@OpenWrt:~# /etc/init.d/sqm stop ; SQM_DEBUG=0 SQM_VERBOSITY_MAX=8 /etc/init.d/sqm start
SQM: Stopping SQM on wan
SQM: Starting SQM script: piece_of_cake.qos on wan, in: 80000 Kbps, out: 5000 Kbps
SQM: fn_exists: function candidate name: sqm_start
SQM: fn_exists: TYPE_OUTPUT: sqm_start: not found
SQM: fn_exists: return value: 1
SQM: Using generic sqm_start_default function.
SQM: fn_exists: function candidate name: sqm_prepare_script
SQM: fn_exists: TYPE_OUTPUT: sqm_prepare_script is a function
SQM: fn_exists: return value: 0
SQM: sqm_start_default: starting sqm_prepare_script
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name SQM_IFB_21c59 type ifb
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc replace dev SQM_IFB_21c59 root cake
SQM: QDISC cake is useable.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev SQM_IFB_21c59 down
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link delete SQM_IFB_21c59 type ifb
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name SQM_IFB_4597c type ifb
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc replace dev SQM_IFB_4597c root cake
SQM: QDISC cake is useable.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev SQM_IFB_4597c down
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link delete SQM_IFB_4597c type ifb
SQM: sqm_start_default: Starting piece_of_cake.qos
SQM: ifb associated with interface wan:
SQM: Currently no ifb is associated with wan, this is normal during starting of the sqm system.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name ifb4wan type ifb
SQM: fn_exists: function candidate name: egress
SQM: fn_exists: TYPE_OUTPUT: egress is a function
SQM: fn_exists: return value: 0
SQM: egress
SQM: cmd_wrapper: tc: invocation silenced by request, FAILURE either expected or acceptable.
SQM: cmd_wrapper: tc: FAILURE (2): /sbin/tc qdisc del dev wan root
SQM: cmd_wrapper: tc: LAST ERROR: RTNETLINK answers: No such file or directory
SQM: LLA: default link layer adjustment method for cake is cake
SQM: cake link layer adjustments:  overhead 44 mpu 0
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc add dev wan root cake bandwidth 5000kbit overhead 44 mpu 0 besteffort
SQM: sqm_start_default: egress shaping activated
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name SQM_IFB_33635 type ifb
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc replace dev SQM_IFB_33635 ingress
SQM: QDISC ingress is useable.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev SQM_IFB_33635 down
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link delete SQM_IFB_33635 type ifb
SQM: fn_exists: function candidate name: ingress
SQM: fn_exists: TYPE_OUTPUT: ingress is a function
SQM: fn_exists: return value: 0
SQM: ingress
SQM: cmd_wrapper: tc: invocation silenced by request, FAILURE either expected or acceptable.
SQM: cmd_wrapper: tc: FAILURE (2): /sbin/tc qdisc del dev wan handle ffff: ingress
SQM: cmd_wrapper: tc: LAST ERROR: RTNETLINK answers: Invalid argument
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc add dev wan handle ffff: ingress
SQM: cmd_wrapper: tc: invocation silenced by request, FAILURE either expected or acceptable.
SQM: cmd_wrapper: tc: FAILURE (2): /sbin/tc qdisc del dev ifb4wan root
SQM: cmd_wrapper: tc: LAST ERROR: RTNETLINK answers: No such file or directory
SQM: LLA: default link layer adjustment method for cake is cake
SQM: cake link layer adjustments:  overhead 44 mpu 0
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc add dev ifb4wan root cake bandwidth 80000kbit overhead 44 mpu 0 besteffort wash
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev ifb4wan up
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc filter add dev wan parent ffff: protocol all prio 10 u32 match u32 0 0 flowid 1:1 action mirred egress redirect dev ifb4wan
SQM: sqm_start_default: ingress shaping activated
SQM: piece_of_cake.qos was started on wan successfully

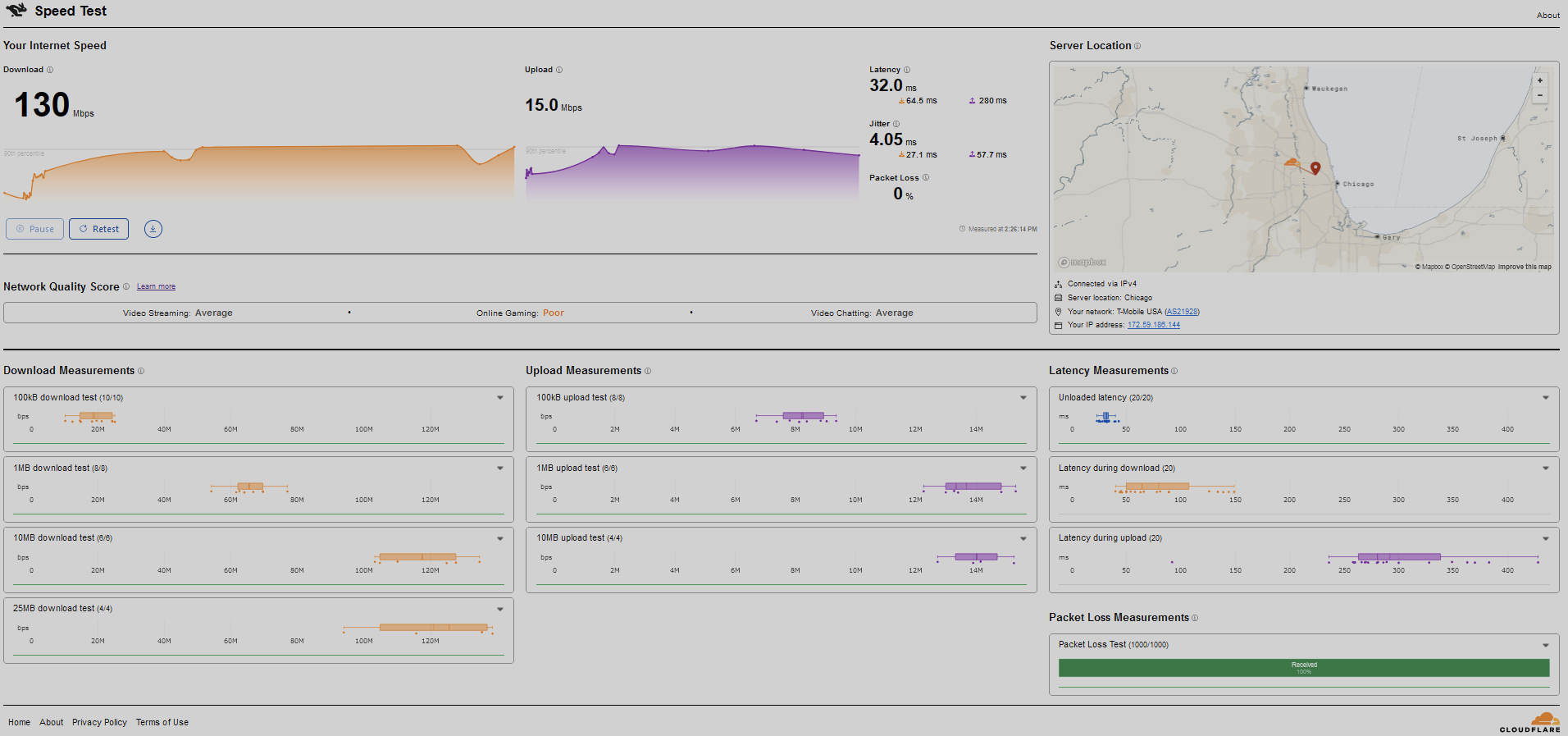

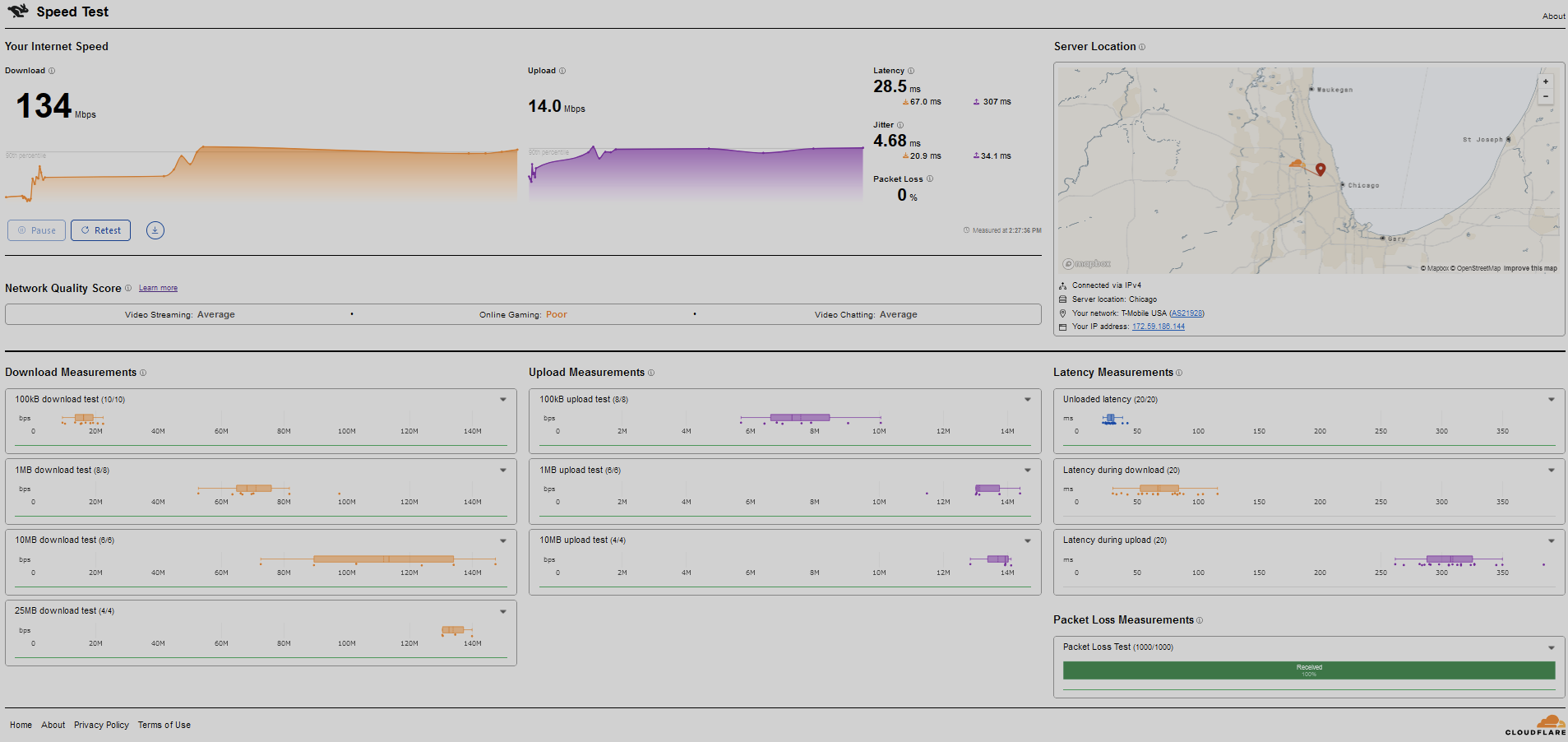

https://www.waveform.com/tools/bufferbloat?test-id=d4acb43d-e0e2-4d52-9279-2bdae85ad396

root@OpenWrt:~# cat /etc/config/sqm

config queue 'eth1'
        option enabled '1'
        option interface 'wan'
        option download '80000'
        option upload '5000'
        option qdisc 'cake'
        option script 'piece_of_cake.qos'
        option linklayer 'ethernet'
        option debug_logging '0'
        option verbosity '5'
        option overhead '44'
        option linklayer_advanced '1'
        option tcMTU '2047'
        option tcTSIZE '128'
        option tcMPU '0'
        option linklayer_adaptation_mechanism 'default'

root@OpenWrt:~# ifstatus wan | grep device
        "l3_device": "wan",
        "device": "wan",

moeller0 · January 30, 2025, 6:18pm

Mmmh, but I bet tc -s qdisc will not show a single cake instance...
Could you please post the output of:

/etc/init.d/sqm stop ; SQM_DEBUG=0 SQM_VERBOSITY_MAX=8 /etc/init.d/sqm start ; echo "" ; tc -s qdisc

to see whether immediately after sqm-scripts runs we see some cake instances...

iehtn-openwrtrouter · January 30, 2025, 6:46pm

root@OpenWrt:~# /etc/init.d/sqm stop ; SQM_DEBUG=0 SQM_VERBOSITY_MAX=8 /etc/init.d/sqm start ; echo "" ; tc -s qdisc
SQM: ifb associated with interface wan: ifb4wan
SQM: Stopping SQM on wan
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc del dev wan ingress
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc del dev wan root
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link delete dev ifb4wan type ifb
SQM: /usr/lib/sqm/stop-sqm: ifb4wan interface deleted
SQM: Starting SQM script: piece_of_cake.qos on wan, in: 80000 Kbps, out: 5000 Kbps
SQM: fn_exists: function candidate name: sqm_start
SQM: fn_exists: TYPE_OUTPUT: sqm_start: not found
SQM: fn_exists: return value: 1
SQM: Using generic sqm_start_default function.
SQM: fn_exists: function candidate name: sqm_prepare_script
SQM: fn_exists: TYPE_OUTPUT: sqm_prepare_script is a function
SQM: fn_exists: return value: 0
SQM: sqm_start_default: starting sqm_prepare_script
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name SQM_IFB_72bb5 type ifb
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc replace dev SQM_IFB_72bb5 root cake
SQM: QDISC cake is useable.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev SQM_IFB_72bb5 down
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link delete SQM_IFB_72bb5 type ifb
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name SQM_IFB_28fde type ifb
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc replace dev SQM_IFB_28fde root cake
SQM: QDISC cake is useable.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev SQM_IFB_28fde down
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link delete SQM_IFB_28fde type ifb
SQM: sqm_start_default: Starting piece_of_cake.qos
SQM: ifb associated with interface wan:
SQM: Currently no ifb is associated with wan, this is normal during starting of the sqm system.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name ifb4wan type ifb
SQM: fn_exists: function candidate name: egress
SQM: fn_exists: TYPE_OUTPUT: egress is a function
SQM: fn_exists: return value: 0
SQM: egress
SQM: cmd_wrapper: tc: invocation silenced by request, FAILURE either expected or acceptable.
SQM: cmd_wrapper: tc: FAILURE (2): /sbin/tc qdisc del dev wan root
SQM: cmd_wrapper: tc: LAST ERROR: RTNETLINK answers: No such file or directory
SQM: LLA: default link layer adjustment method for cake is cake
SQM: cake link layer adjustments:  overhead 44 mpu 0
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc add dev wan root cake bandwidth 5000kbit overhead 44 mpu 0 besteffort
SQM: sqm_start_default: egress shaping activated
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link add name SQM_IFB_0edfb type ifb
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc replace dev SQM_IFB_0edfb ingress
SQM: QDISC ingress is useable.
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev SQM_IFB_0edfb down
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link delete SQM_IFB_0edfb type ifb
SQM: fn_exists: function candidate name: ingress
SQM: fn_exists: TYPE_OUTPUT: ingress is a function
SQM: fn_exists: return value: 0
SQM: ingress
SQM: cmd_wrapper: tc: invocation silenced by request, FAILURE either expected or acceptable.
SQM: cmd_wrapper: tc: FAILURE (2): /sbin/tc qdisc del dev wan handle ffff: ingress
SQM: cmd_wrapper: tc: LAST ERROR: RTNETLINK answers: Invalid argument
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc add dev wan handle ffff: ingress
SQM: cmd_wrapper: tc: invocation silenced by request, FAILURE either expected or acceptable.
SQM: cmd_wrapper: tc: FAILURE (2): /sbin/tc qdisc del dev ifb4wan root
SQM: cmd_wrapper: tc: LAST ERROR: RTNETLINK answers: No such file or directory
SQM: LLA: default link layer adjustment method for cake is cake
SQM: cake link layer adjustments:  overhead 44 mpu 0
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc qdisc add dev ifb4wan root cake bandwidth 80000kbit overhead 44 mpu 0 besteffort wash
SQM: cmd_wrapper: ip: SUCCESS: /sbin/ip link set dev ifb4wan up
SQM: cmd_wrapper: tc: SUCCESS: /sbin/tc filter add dev wan parent ffff: protocol all prio 10 u32 match u32 0 0 flowid 1:1 action mirred egress redirect dev ifb4wan
SQM: sqm_start_default: ingress shaping activated
SQM: piece_of_cake.qos was started on wan successfully

qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 8015: dev wan root refcnt 5 bandwidth 5Mbit besteffort triple-isolate nonat nowash no-ack-filter split-gso rtt 100ms noatm overhead 44
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 0b of 4Mb
 capacity estimate: 5Mbit
 min/max network layer size:        65535 /       0
 min/max overhead-adjusted size:    65535 /       0
 average network hdr offset:            0

                  Tin 0
  thresh          5Mbit
  target            5ms
  interval        100ms
  pk_delay          0us
  av_delay          0us
  sp_delay          0us
  backlog            0b
  pkts                0
  bytes               0
  way_inds            0
  way_miss            0
  way_cols            0
  drops               0
  marks               0
  ack_drop            0
  sp_flows            0
  bk_flows            0
  un_flows            0
  max_len             0
  quantum           300

qdisc ingress ffff: dev wan parent ffff:fff1 ----------------
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev lan3 root
 Sent 7034886 bytes 110534 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan3 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 11643 bytes 100 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 2336426 bytes 7074 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 98354 bytes 400 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 4588463 bytes 102960 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan2 root
 Sent 13427278 bytes 135530 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan2 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 184538 bytes 1668 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 304937 bytes 2479 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 6541769 bytes 19383 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 6396034 bytes 112000 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan1 root
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan1 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev br-lan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy0-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 8016: dev ifb4wan root refcnt 2 bandwidth 80Mbit besteffort triple-isolate nonat wash no-ack-filter split-gso rtt 100ms noatm overhead 44
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 0b of 4Mb
 capacity estimate: 80Mbit
 min/max network layer size:        65535 /       0
 min/max overhead-adjusted size:    65535 /       0
 average network hdr offset:            0

                  Tin 0
  thresh         80Mbit
  target            5ms
  interval        100ms
  pk_delay          0us
  av_delay          0us
  sp_delay          0us
  backlog            0b
  pkts                0
  bytes               0
  way_inds            0
  way_miss            0
  way_cols            0
  drops               0
  marks               0
  ack_drop            0
  sp_flows            0
  bk_flows            0
  un_flows            0
  max_len             0
  quantum          1514

moeller0 · January 30, 2025, 6:50pm

Ah, this time we see two cake instances....

Now can you run a test at:

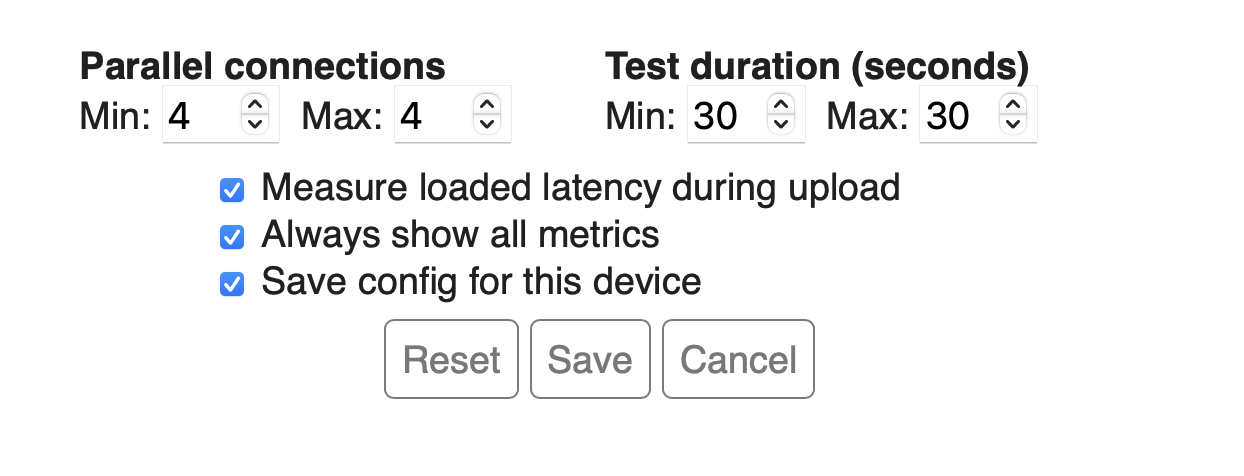

and post a screenshot of the full result page (feel free to redact the shown IP address and porecise location cloudflare estimates for you)...

iehtn-openwrtrouter · January 31, 2025, 4:34pm

Test completed.

moeller0 · January 31, 2025, 4:51pm

What we need is

tc -s qdisc
if this shows two cale instances
cloadflare capacity test ckose in time to 1)
followed by
tc -s qdisc

Do you, by chance have software flow offloading enabled, or hardware flow offloading?

iehtn-openwrtrouter · January 31, 2025, 6:28pm

Hmm, I guess there might be offloading?

Under Firewall "Flow offloading type" is set to "None"

However, I am running on an Linksys LN1301/MX4300 with no official support, yet. A community build I found was created by someone named qosmio. According to the reddit page I found it on.
"qosmio has developed a version with NSS, which offloads the network processing from the CPUs onto qualcomm proprietary cores."

root@OpenWrt:~# tc -s qdisc
qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 8015: dev wan root refcnt 5 bandwidth 5Mbit besteffort triple-isolate nonat nowash no-ack-filter split-gso rtt 100ms noatm overhead 44
 Sent 43320875 bytes 202261 pkt (dropped 48, overlimits 171070 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 464768b of 4Mb
 capacity estimate: 5Mbit
 min/max network layer size:           28 /    1500
 min/max overhead-adjusted size:       72 /    1544
 average network hdr offset:           14

                  Tin 0
  thresh          5Mbit
  target            5ms
  interval        100ms
  pk_delay       2.91ms
  av_delay        678us
  sp_delay         13us
  backlog            0b
  pkts           202309
  bytes        43384064
  way_inds        13096
  way_miss        24482
  way_cols            0
  drops              48
  marks               0
  ack_drop            0
  sp_flows            2
  bk_flows            1
  un_flows            0
  max_len         17400
  quantum           300

qdisc ingress ffff: dev wan parent ffff:fff1 ----------------
 Sent 48018994 bytes 219811 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev lan3 root
 Sent 23218429 bytes 260342 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan3 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 32443 bytes 276 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 10948307 bytes 34411 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 312658 bytes 1333 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 11925021 bytes 224322 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan2 root
 Sent 33378923 bytes 319103 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan2 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 1136032 bytes 5662 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 1626046 bytes 9385 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 14417283 bytes 57703 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 16199562 bytes 246353 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan1 root
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan1 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev br-lan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy0-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 8016: dev ifb4wan root refcnt 2 bandwidth 80Mbit besteffort triple-isolate nonat wash no-ack-filter split-gso rtt 100ms noatm overhead 44
 Sent 51313266 bytes 219786 pkt (dropped 25, overlimits 62532 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 822016b of 4Mb
 capacity estimate: 80Mbit
 min/max network layer size:           46 /    1500
 min/max overhead-adjusted size:       90 /    1544
 average network hdr offset:           14

                  Tin 0
  thresh         80Mbit
  target            5ms
  interval        100ms
  pk_delay         51us
  av_delay         11us
  sp_delay          2us
  backlog            0b
  pkts           219811
  bytes        51349076
  way_inds        14258
  way_miss        24308
  way_cols            0
  drops              25
  marks               0
  ack_drop            0
  sp_flows            3
  bk_flows            1
  un_flows            0
  max_len         17160
  quantum          1514

root@OpenWrt:~# tc -s qdisc
qdisc noqueue 0: dev lo root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 8015: dev wan root refcnt 5 bandwidth 5Mbit besteffort triple-isolate nonat nowash no-ack-filter split-gso rtt 100ms noatm overhead 44
 Sent 43366014 bytes 202520 pkt (dropped 48, overlimits 171349 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 464768b of 4Mb
 capacity estimate: 5Mbit
 min/max network layer size:           28 /    1500
 min/max overhead-adjusted size:       72 /    1544
 average network hdr offset:           14

                  Tin 0
  thresh          5Mbit
  target            5ms
  interval        100ms
  pk_delay       3.69ms
  av_delay        711us
  sp_delay          8us
  backlog            0b
  pkts           202568
  bytes        43429203
  way_inds        13109
  way_miss        24512
  way_cols            0
  drops              48
  marks               0
  ack_drop            0
  sp_flows            2
  bk_flows            1
  un_flows            0
  max_len         17400
  quantum           300

qdisc ingress ffff: dev wan parent ffff:fff1 ----------------
 Sent 48059290 bytes 220080 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc mq 0: dev lan3 root
 Sent 23223901 bytes 260366 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan3 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 32443 bytes 276 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 10952523 bytes 34427 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 312658 bytes 1333 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan3 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 11926277 bytes 224330 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan2 root
 Sent 33411998 bytes 319309 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan2 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 1140412 bytes 5671 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 1632496 bytes 9408 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 14437744 bytes 57863 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan2 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 16201346 bytes 246367 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc mq 0: dev lan1 root
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc fq_codel 0: dev lan1 parent :4 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :3 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :2 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc fq_codel 0: dev lan1 parent :1 limit 10240p flows 1024 quantum 1514 target 5ms interval 100ms memory_limit 4Mb ecn drop_batch 64
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
  maxpacket 0 drop_overlimit 0 new_flow_count 0 ecn_mark 0
  new_flows_len 0 old_flows_len 0
qdisc noqueue 0: dev br-lan root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy0-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap0 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc noqueue 0: dev phy1-ap1 root refcnt 2
 Sent 0 bytes 0 pkt (dropped 0, overlimits 0 requeues 0)
 backlog 0b 0p requeues 0
qdisc cake 8016: dev ifb4wan root refcnt 2 bandwidth 80Mbit besteffort triple-isolate nonat wash no-ack-filter split-gso rtt 100ms noatm overhead 44
 Sent 51357328 bytes 220055 pkt (dropped 25, overlimits 62576 requeues 0)
 backlog 0b 0p requeues 0
 memory used: 822016b of 4Mb
 capacity estimate: 80Mbit
 min/max network layer size:           46 /    1500
 min/max overhead-adjusted size:       90 /    1544
 average network hdr offset:           14

                  Tin 0
  thresh         80Mbit
  target            5ms
  interval        100ms
  pk_delay        138us
  av_delay         12us
  sp_delay          3us
  backlog            0b
  pkts           220080
  bytes        51393138
  way_inds        14288
  way_miss        24343
  way_cols            0
  drops              25
  marks               0
  ack_drop            0
  sp_flows            2
  bk_flows            1
  un_flows            0
  max_len         17160
  quantum          1514

moeller0 · January 31, 2025, 7:22pm

This is odd, both cake instances actually saw some traffic, but still the capacity test results are way outside the configured shaper rates...

moeller0 · January 31, 2025, 7:23pm

What does ifconfig on that router return?

iehtn-openwrtrouter · January 31, 2025, 7:31pm

Thanks again.

root@OpenWrt:~# ifconfig
br-lan    Link encap:Ethernet  HWaddr 80:69:1A:21:94:E2
          inet addr:192.168.1.1  Bcast:192.168.1.255  Mask:255.255.255.0
          inet6 addr: fdd5:5668:ec89::1/60 Scope:Global
          inet6 addr: fe80::8269:1aff:fe21:94e2/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:4475324 errors:0 dropped:20 overruns:0 frame:0
          TX packets:16603693 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:1564473409 (1.4 GiB)  TX bytes:20065164748 (18.6 GiB)

ifb4wan   Link encap:Ethernet  HWaddr 3A:A6:3C:CC:09:5F
          inet6 addr: fe80::38a6:3cff:fecc:95f/64 Scope:Link
          UP BROADCAST RUNNING NOARP  MTU:1500  Metric:1
          RX packets:233379 errors:0 dropped:0 overruns:0 frame:0
          TX packets:233379 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:32
          RX bytes:53559990 (51.0 MiB)  TX bytes:53559990 (51.0 MiB)

lan1      Link encap:Ethernet  HWaddr 80:69:1A:21:94:E2
          UP BROADCAST MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)
          Base address:0x1800

lan2      Link encap:Ethernet  HWaddr 80:69:1A:21:94:E2
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:2124500 errors:0 dropped:116 overruns:0 frame:0
          TX packets:6299942 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:428435143 (408.5 MiB)  TX bytes:7473264530 (6.9 GiB)
          Base address:0x1600

lan3      Link encap:Ethernet  HWaddr 80:69:1A:21:94:E2
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:11403 errors:0 dropped:0 overruns:0 frame:0
          TX packets:266984 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:949072 (926.8 KiB)  TX bytes:32410795 (30.9 MiB)
          Base address:0x1400

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:61354 errors:0 dropped:0 overruns:0 frame:0
          TX packets:61354 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:8032530 (7.6 MiB)  TX bytes:8032530 (7.6 MiB)

phy0-ap0  Link encap:Ethernet  HWaddr 80:69:1A:21:94:E4
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:996885 errors:0 dropped:0 overruns:0 frame:0
          TX packets:5701030 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:303007265 (288.9 MiB)  TX bytes:5149888454 (4.7 GiB)

phy1-ap0  Link encap:Ethernet  HWaddr 80:69:1A:21:94:E3
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:2443425 errors:0 dropped:0 overruns:0 frame:0
          TX packets:6449212 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:1389014612 (1.2 GiB)  TX bytes:8079556086 (7.5 GiB)

phy1-ap1  Link encap:Ethernet  HWaddr 82:69:1A:21:94:E3
          inet addr:192.168.2.1  Bcast:192.168.2.255  Mask:255.255.255.0
          inet6 addr: fe80::8069:1aff:fe21:94e3/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:2465171 errors:0 dropped:414 overruns:0 frame:0
          TX packets:5584243 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:249955910 (238.3 MiB)  TX bytes:7689839881 (7.1 GiB)

wan       Link encap:Ethernet  HWaddr 80:69:1A:21:94:E2
          inet addr:192.168.12.202  Bcast:192.168.12.255  Mask:255.255.255.0
          inet6 addr: fe80::8269:1aff:fe21:94e2/64 Scope:Link
          inet6 addr: 2607:fb91:2297:428a::f093/128 Scope:Global
          inet6 addr: 2607:fb91:2297:428a:8269:1aff:fe21:94e2/64 Scope:Global
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:22179121 errors:0 dropped:52930 overruns:0 frame:0
          TX packets:6745255 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:27840935312 (25.9 GiB)  TX bytes:1788599762 (1.6 GiB)
          Base address:0x1200

moeller0 · January 31, 2025, 7:38pm

I know this is a silly question, but are you sure that your speedtest runs via that router? and not e.g. via a WiFi or WiFi mesh link to the T-mobile Home Internet modem/router? (I assume that is fixed wireless access and not fiber)?

iehtn-openwrtrouter · January 31, 2025, 8:41pm

I get it, have to cover all bases.

Correct, it is not fiber, it is cellular internet.

This machine is not connect to any WiFi network it has an Ethernet cable directly to the router. The Router is plugged into the T-mobile cellular Gateway.

The Gateway is a Arcadyan KVD21.

moeller0 · February 1, 2025, 12:12pm

This is still odd, tc reports operational cake instances that actually see traffic (according to the counters), yet the capacity test results are way above the shaper rates... either the shaper misbehaves or the traffic does flow around the shaper somehow...

Could you do me a favor and:
0) configure the netflix capacity test under https://fast.com like this:

save that configuration for that device but keep the browser open

restart the router (so we start from a clean slate with low counters)
collect the output of:
date ; echo ""; echo ""; echo "" ; tc -s qdisc ; echo "" ; ifconfig
run a capacity test (and capture the final result page in a screenshot, we really want to see the counters of traffic in both directions):
https://fast.com
collect the output of:
date ; echo ""; echo ""; echo "" ; tc -s qdisc ; echo "" ; ifconfig

post the information for 2-4 to this thread. This should allow us to see over which interfaces the traffic passed.

Please try to keep the cross-traffic from other devices low during the measurement, so we get cleaner easier to interpret numbers...

iehtn-openwrtrouter · February 1, 2025, 7:09pm

Yes, I can look into doing this. Unfortunately it will most likely be tomorrow when I can.

slh · February 2, 2025, 4:20am

This is probably a large part of your problem, anything offloaded (NSS) is out of sight of the kernel.
