Bingo
June 25, 2025, 4:52pm
1

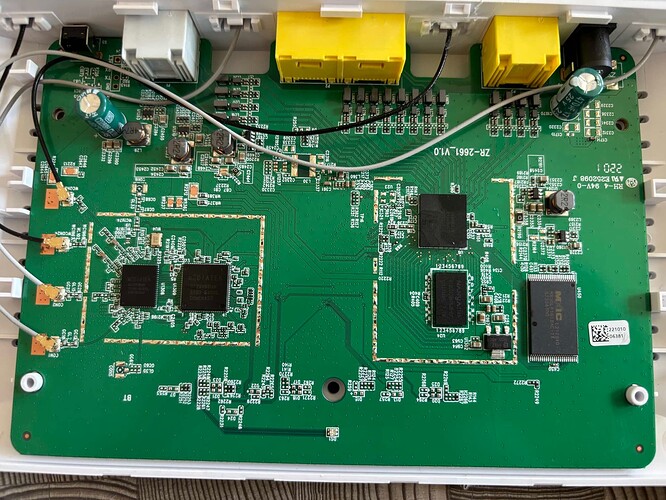

My EDUP 2960 AX1800 is working "fine".
I lost the LED , it's blinking pink'ish during boot , and then just permanently blue.
I initially asked for a fix/hint in this thread, and now someone has made a patch.
The leds in Simax and EDUP are in different GPIO pins. There is a patch , that fixes this.
You have to build custom OpenWRT .
What is the chance for getting that applied to a EDUP 2960 AX1800 specific build ?
I "think" i might be able to build a kernel w the patch, but i have no idea how2 apply (load) it to my router (newbie)
TIA
Ps:
So if you ever have some time, it would be nice .....
Pps:
Bingo
July 6, 2025, 3:59pm
2
I just built a patched firmware, following this guide (for openwrt build)
My led is now green when openWRT is loaded , and read during boot.

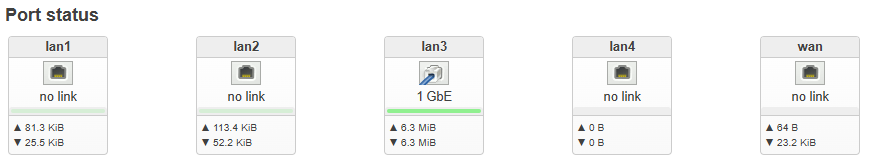

I even think one can fix the issue , where the Owrt lan ports are wrong to the Phys lan ports.
&switch0 {
ports {
port@1 {
status = "okay";
label = "lan3";
};
port@2 {
status = "okay";
label = "lan2";
};
port@3 {
status = "okay";
label = "lan1";
};
};
};
That looks like it's excactly what messes up the EDUP lan mapping.
Bingo
July 10, 2025, 7:20am
3

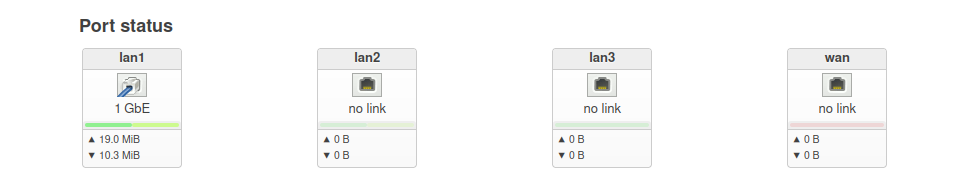

We are now two that has "confirmed" that the LED/Lan-Port patches works on the EDUP 2960
Well, I built a patched version and now everything seems working fine: Leds, mac addresses and I also fixed the lan numbers, so now are not inverted anymore.
Anyway, at the end, the building didn't take so much time, probably because I avoid this step
wget https://downloads.openwrt.org/releases/24.10.2/targets/ramips/mt7621/config.buildinfo -O .config
configuring everything using the menuconfig.
If can be useful I used this configuration, after I edited the dtsi file:
CONFIG_TARGET_ramips=y…
What is the possibilities of getting a separate build for the EDUP 2960 ?
It would be great, only adding this dtsi to the building we would have a full compatible version of OpenWrt:
// SPDX-License-Identifier: GPL-2.0-or-later OR MIT
#include "mt7621.dtsi"
#include <dt-bindings/gpio/gpio.h>
#include <dt-bindings/input/input.h>
#include <dt-bindings/leds/common.h>
/ {
aliases {
label-mac-device = &gmac1;
led-boot = &led_status_red;
led-failsafe = &led_status_blue;
led-running = &led_status_green;
led-upgrade = &led_status_blue;
};
chosen {
bootargs = "console=ttyS0,115200";
bootargs-override = "console=ttyS0,115200";
};
keys {
compatible = "gpio-keys";
reset {
label = "reset";
gpios = <&gpio 16 GPIO_ACTIVE_LOW>;
linux,code = <KEY_RESTART>;
};
wps {
label = "wps";
gpios = <&gpio 4 GPIO_ACTIVE_LOW>;
linux,code = <KEY_WPS_BUTTON>;
};
};
leds {
compatible = "gpio-leds";
led_status_blue: led-0 {
color = <LED_COLOR_ID_BLUE>;
function = LED_FUNCTION_STATUS;
gpios = <&gpio 15 GPIO_ACTIVE_LOW>;
};
led_status_green: led-1 {
color = <LED_COLOR_ID_GREEN>;
function = LED_FUNCTION_STATUS;
gpios = <&gpio 13 GPIO_ACTIVE_LOW>;
};
led_status_red: led-2 {
color = <LED_COLOR_ID_RED>;
function = LED_FUNCTION_STATUS;
gpios = <&gpio 17 GPIO_ACTIVE_LOW>;
};
};
};
&gmac0 {
nvmem-cells = <&macaddr_factory_8004 0>;
nvmem-cell-names = "mac-address";
};
&gmac1 {
status = "okay";
label = "wan";
phy-handle = <ðphy4>;
nvmem-cells = <&macaddr_factory_8004 (-3)>;
nvmem-cell-names = "mac-address";
};
ðphy4 {
/delete-property/ interrupts;
};
&nand {
status = "okay";
partitions {
compatible = "fixed-partitions";
#address-cells = <1>;
#size-cells = <1>;
partition@0 {
label = "u-boot";
reg = <0x0000000 0x0080000>;
read-only;
};
partition@80000 {
label = "u-boot-env";
reg = <0x0080000 0x0080000>;
};
partition@100000 {
label = "factory";
reg = <0x0100000 0x0080000>;
read-only;
nvmem-layout {
compatible = "fixed-layout";
#address-cells = <1>;
#size-cells = <1>;
eeprom_factory_0: eeprom@0 {
reg = <0x0 0xe00>;
};
macaddr_factory_8004: macaddr@3fff4 {
compatible = "mac-base";
reg = <0x3fff4 0x6>;
#nvmem-cell-cells = <1>;
};
};
};
partition@180000 {
label = "firmware";
reg = <0x0180000 0x7a80000>;
compatible = "fixed-partitions";
#address-cells = <1>;
#size-cells = <1>;
partition@0 {
label = "kernel";
reg = <0x0000000 0x0400000>;
};
partition@400000 {
label = "ubi";
reg = <0x0400000 0x7680000>;
};
};
/* last 128KiB *32 is reserved for bad blocks management */
};
};
&pcie {
status = "okay";
};
&pcie1 {
wifi@0,0 {
compatible = "mediatek,mt76";
reg = <0x0000 0 0 0 0>;
nvmem-cells = <&eeprom_factory_0>;
nvmem-cell-names = "eeprom";
mediatek,disable-radar-background;
};
};
&state_default {
gpio {
groups = "i2c", "uart3", "wdt";
function = "gpio";
};
};
&switch0 {
ports {
port@1 {
status = "okay";
label = "lan1";
};
port@2 {
status = "okay";
label = "lan2";
};
port@3 {
status = "okay";
label = "lan3";
};
};
};
&xhci {
status = "disabled";
};
Hey all
I’m happy to report I have also managed to build the firmware for this device with the modified DTSI. All appears to be working fine
I followed these steps:
https://openwrt.org/user/ahorner/build-guide - skipping buildinfo and kernel_menuconfig.
Before you start the build, simply replace the contents of target/linux/ramips/dts/mt7621_sim_simax1800t.dts with Alex’s dts file contents.
My .config file is as follows:
CONFIG_MODULES=y
CONFIG_HAVE_DOT_CONFIG=y
CONFIG_HOST_OS_LINUX=y
CONFIG_TARGET_ramips=y
CONFIG_TARGET_ramips_mt7621=y
CONFIG_TARGET_ramips_mt7621_DEVICE_sim_simax1800t=y
CONFIG_HAS_SUBTARGETS=y
CONFIG_HAS_DEVICES=y
CONFIG_TARGET_BOARD="ramips"
CONFIG_TARGET_SUBTARGET="mt7621"
CONFIG_TARGET_PROFILE="DEVICE_sim_simax1800t"
CONFIG_TARGET_ARCH_PACKAGES="mipsel_24kc"
CONFIG_DEFAULT_TARGET_OPTIMIZATION="-Os -pipe -mno-branch-likely -mips32r2 -mtune=24kc"
CONFIG_CPU_TYPE="24kc"
CONFIG_LINUX_6_6=y
CONFIG_DEFAULT_base-files=y
CONFIG_DEFAULT_ca-bundle=y
CONFIG_DEFAULT_dnsmasq=y
CONFIG_DEFAULT_dropbear=y
CONFIG_DEFAULT_firewall4=y
CONFIG_DEFAULT_fstools=y
CONFIG_DEFAULT_iwinfo=y
CONFIG_DEFAULT_kmod-crypto-hw-eip93=y
CONFIG_DEFAULT_kmod-gpio-button-hotplug=y
CONFIG_DEFAULT_kmod-leds-gpio=y
CONFIG_DEFAULT_kmod-mt7915-firmware=y
CONFIG_DEFAULT_kmod-nft-offload=y
CONFIG_DEFAULT_libc=y
CONFIG_DEFAULT_libgcc=y
CONFIG_DEFAULT_libustream-mbedtls=y
CONFIG_DEFAULT_logd=y
CONFIG_DEFAULT_mtd=y
CONFIG_DEFAULT_netifd=y
CONFIG_DEFAULT_nftables=y
CONFIG_DEFAULT_odhcp6c=y
CONFIG_DEFAULT_odhcpd-ipv6only=y
CONFIG_DEFAULT_ppp=y
CONFIG_DEFAULT_ppp-mod-pppoe=y
CONFIG_DEFAULT_procd-ujail=y
CONFIG_DEFAULT_uboot-envtools=y
CONFIG_DEFAULT_uci=y
CONFIG_DEFAULT_uclient-fetch=y
CONFIG_DEFAULT_urandom-seed=y
CONFIG_DEFAULT_urngd=y
CONFIG_DEFAULT_wpad-basic-mbedtls=y
CONFIG_AUDIO_SUPPORT=y
CONFIG_GPIO_SUPPORT=y
CONFIG_PCI_SUPPORT=y
CONFIG_USB_SUPPORT=y
CONFIG_RTC_SUPPORT=y
CONFIG_USES_DEVICETREE=y
CONFIG_USES_INITRAMFS=y
CONFIG_USES_SQUASHFS=y
CONFIG_USES_MINOR=y
CONFIG_HAS_MIPS16=y
CONFIG_NAND_SUPPORT=y
CONFIG_mipsel=y
CONFIG_ARCH="mipsel"
CONFIG_TARGET_ROOTFS_INITRAMFS=y
CONFIG_TARGET_INITRAMFS_COMPRESSION_LZMA=y
CONFIG_EXTERNAL_CPIO=""
CONFIG_TARGET_ROOTFS_SQUASHFS=y
CONFIG_TARGET_SQUASHFS_BLOCK_SIZE=256
CONFIG_TARGET_UBIFS_FREE_SPACE_FIXUP=y
CONFIG_TARGET_UBIFS_JOURNAL_SIZE=""
CONFIG_JSON_OVERVIEW_IMAGE_INFO=y
CONFIG_SIGNED_PACKAGES=y
CONFIG_SIGNATURE_CHECK=y
CONFIG_DOWNLOAD_CHECK_CERTIFICATE=y
CONFIG_SHADOW_PASSWORDS=y
CONFIG_KERNEL_BUILD_USER=""
CONFIG_KERNEL_BUILD_DOMAIN=""
CONFIG_KERNEL_PRINTK=y
CONFIG_KERNEL_SWAP=y
CONFIG_KERNEL_DEBUG_FS=y
CONFIG_KERNEL_KALLSYMS=y
CONFIG_KERNEL_DEBUG_KERNEL=y
CONFIG_KERNEL_DEBUG_INFO=y
CONFIG_KERNEL_DEBUG_INFO_REDUCED=y
CONFIG_KERNEL_FRAME_WARN=1024
CONFIG_KERNEL_AIO=y
CONFIG_KERNEL_FHANDLE=y
CONFIG_KERNEL_FANOTIFY=y
CONFIG_KERNEL_MAGIC_SYSRQ=y
CONFIG_KERNEL_COREDUMP=y
CONFIG_KERNEL_ELF_CORE=y
CONFIG_KERNEL_PRINTK_TIME=y
CONFIG_KERNEL_RELAY=y
CONFIG_KERNEL_KEYS=y
CONFIG_KERNEL_CGROUPS=y
CONFIG_KERNEL_FREEZER=y
CONFIG_KERNEL_CGROUP_PIDS=y
CONFIG_KERNEL_CGROUP_RDMA=y
CONFIG_KERNEL_CGROUP_BPF=y
CONFIG_KERNEL_CPUSETS=y
CONFIG_KERNEL_CGROUP_CPUACCT=y
CONFIG_KERNEL_RESOURCE_COUNTERS=y
CONFIG_KERNEL_MM_OWNER=y
CONFIG_KERNEL_MEMCG=y
CONFIG_KERNEL_MEMCG_SWAP=y
CONFIG_KERNEL_MEMCG_KMEM=y
CONFIG_KERNEL_CGROUP_SCHED=y
CONFIG_KERNEL_FAIR_GROUP_SCHED=y
CONFIG_KERNEL_CFS_BANDWIDTH=y
CONFIG_KERNEL_RT_GROUP_SCHED=y
CONFIG_KERNEL_BLK_CGROUP=y
CONFIG_KERNEL_BLK_DEV_THROTTLING=y
CONFIG_KERNEL_NAMESPACES=y
CONFIG_KERNEL_UTS_NS=y
CONFIG_KERNEL_IPC_NS=y
CONFIG_KERNEL_USER_NS=y
CONFIG_KERNEL_PID_NS=y
CONFIG_KERNEL_NET_NS=y
CONFIG_KERNEL_DEVPTS_MULTIPLE_INSTANCES=y
CONFIG_KERNEL_POSIX_MQUEUE=y
CONFIG_KERNEL_SECCOMP_FILTER=y
CONFIG_KERNEL_SECCOMP=y
CONFIG_KERNEL_IP_MROUTE=y
CONFIG_KERNEL_IP_MROUTE_MULTIPLE_TABLES=y
CONFIG_KERNEL_IP_PIMSM_V1=y
CONFIG_KERNEL_IP_PIMSM_V2=y
CONFIG_KERNEL_IPV6=y
CONFIG_KERNEL_IPV6_MULTIPLE_TABLES=y
CONFIG_KERNEL_IPV6_SUBTREES=y
CONFIG_KERNEL_IPV6_MROUTE=y
CONFIG_KERNEL_IPV6_MROUTE_MULTIPLE_TABLES=y
CONFIG_KERNEL_IPV6_PIMSM_V2=y
CONFIG_KERNEL_IPV6_SEG6_LWTUNNEL=y
CONFIG_KERNEL_NET_L3_MASTER_DEV=y
CONFIG_KERNEL_PAGE_POOL=y
CONFIG_KERNEL_MPTCP=y
CONFIG_KERNEL_MPTCP_IPV6=y
CONFIG_KERNEL_NF_CONNTRACK_TIMEOUT=y
CONFIG_USE_FS_ACL_ATTR=y
CONFIG_KERNEL_FS_POSIX_ACL=y
CONFIG_KERNEL_BTRFS_FS_POSIX_ACL=y
CONFIG_KERNEL_EXT4_FS_POSIX_ACL=y
CONFIG_KERNEL_F2FS_FS_POSIX_ACL=y
CONFIG_KERNEL_JFFS2_FS_POSIX_ACL=y
CONFIG_KERNEL_TMPFS_POSIX_ACL=y
CONFIG_KERNEL_CIFS_ACL=y
CONFIG_KERNEL_HFS_FS_POSIX_ACL=y
CONFIG_KERNEL_HFSPLUS_FS_POSIX_ACL=y
CONFIG_KERNEL_NFS_ACL_SUPPORT=y
CONFIG_KERNEL_REISER_FS_POSIX_ACL=y
CONFIG_KERNEL_XFS_POSIX_ACL=y
CONFIG_KERNEL_JFS_POSIX_ACL=y
CONFIG_KERNEL_SQUASHFS_FRAGMENT_CACHE_SIZE=3
CONFIG_KERNEL_CC_OPTIMIZE_FOR_PERFORMANCE=y
CONFIG_KERNEL_EXT4_FS_SECURITY=y
CONFIG_KERNEL_F2FS_FS_SECURITY=y
CONFIG_KERNEL_UBIFS_FS_SECURITY=y
CONFIG_KERNEL_JFFS2_FS_SECURITY=y
CONFIG_KERNEL_WERROR=y
CONFIG_IPV6=y
CONFIG_USE_SSTRIP=y
CONFIG_SSTRIP_DISCARD_TRAILING_ZEROES=y
CONFIG_PKG_CHECK_FORMAT_SECURITY=y
CONFIG_PKG_ASLR_PIE_REGULAR=y
CONFIG_PKG_CC_STACKPROTECTOR_REGULAR=y
CONFIG_KERNEL_CC_STACKPROTECTOR_REGULAR=y
CONFIG_KERNEL_STACKPROTECTOR=y
CONFIG_PKG_FORTIFY_SOURCE_1=y
CONFIG_PKG_RELRO_FULL=y
CONFIG_USE_SECCOMP=y
CONFIG_BINARY_FOLDER=""
CONFIG_DOWNLOAD_TOOL_CUSTOM=""
CONFIG_DOWNLOAD_FOLDER=""
CONFIG_LOCALMIRROR=""
CONFIG_AUTOREBUILD=y
CONFIG_BUILD_SUFFIX=""
CONFIG_TARGET_ROOTFS_DIR=""
CONFIG_CCACHE_DIR=""
CONFIG_KERNEL_CFLAGS=""
CONFIG_EXTERNAL_KERNEL_TREE=""
CONFIG_KERNEL_GIT_CLONE_URI=""
CONFIG_BUILD_LOG_DIR=""
CONFIG_EXTRA_OPTIMIZATION="-fno-caller-saves -fno-plt"
CONFIG_TARGET_OPTIMIZATION="-Os -pipe -mno-branch-likely -mips32r2 -mtune=24kc"
CONFIG_SOFT_FLOAT=y
CONFIG_USE_MIPS16=y
CONFIG_EXTRA_BINUTILS_CONFIG_OPTIONS=""
CONFIG_EXTRA_GCC_CONFIG_OPTIONS=""
CONFIG_MUSL_DISABLE_CRYPT_SIZE_HACK=y
CONFIG_GDB=y
CONFIG_HAS_BPF_TOOLCHAIN=y
CONFIG_USE_MUSL=y
CONFIG_SSP_SUPPORT=y
CONFIG_BINUTILS_VERSION_2_42=y
CONFIG_BINUTILS_VERSION="2.42"
CONFIG_GCC_VERSION="13.3.0"
CONFIG_GCC_USE_DEFAULT_VERSION=y
CONFIG_LIBC="musl"
CONFIG_TARGET_SUFFIX="musl"
CONFIG_TARGET_PREINIT_SUPPRESS_STDERR=y
CONFIG_TARGET_PREINIT_TIMEOUT=4
CONFIG_TARGET_PREINIT_IFNAME=""
CONFIG_TARGET_PREINIT_IP="192.168.1.1"
CONFIG_TARGET_PREINIT_NETMASK="255.255.255.0"
CONFIG_TARGET_PREINIT_BROADCAST="192.168.1.255"
CONFIG_TARGET_INIT_PATH="/usr/sbin:/usr/bin:/sbin:/bin"
CONFIG_TARGET_INIT_ENV=""
CONFIG_TARGET_INIT_CMD="/sbin/init"
CONFIG_TARGET_INIT_SUPPRESS_STDERR=y
CONFIG_PER_FEED_REPO=y
CONFIG_FEED_packages=y
CONFIG_FEED_luci=y
CONFIG_FEED_routing=y
CONFIG_FEED_telephony=y
CONFIG_PACKAGE_attendedsysupgrade-common=y
CONFIG_PACKAGE_base-files=y
CONFIG_PACKAGE_busybox=y
CONFIG_BUSYBOX_DEFAULT_HAVE_DOT_CONFIG=y
CONFIG_BUSYBOX_DEFAULT_INCLUDE_SUSv2=y
CONFIG_BUSYBOX_DEFAULT_LONG_OPTS=y
CONFIG_BUSYBOX_DEFAULT_SHOW_USAGE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VERBOSE_USAGE=y
CONFIG_BUSYBOX_DEFAULT_LFS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_DEVPTS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_PIDFILE=y
CONFIG_BUSYBOX_DEFAULT_PID_FILE_PATH="/var/run"
CONFIG_BUSYBOX_DEFAULT_FEATURE_PREFER_APPLETS=y
CONFIG_BUSYBOX_DEFAULT_BUSYBOX_EXEC_PATH="/proc/self/exe"
CONFIG_BUSYBOX_DEFAULT_FEATURE_SYSLOG=y
CONFIG_BUSYBOX_DEFAULT_CROSS_COMPILER_PREFIX=""
CONFIG_BUSYBOX_DEFAULT_SYSROOT=""
CONFIG_BUSYBOX_DEFAULT_EXTRA_CFLAGS=""
CONFIG_BUSYBOX_DEFAULT_EXTRA_LDFLAGS=""
CONFIG_BUSYBOX_DEFAULT_EXTRA_LDLIBS=""
CONFIG_BUSYBOX_DEFAULT_INSTALL_APPLET_SYMLINKS=y
CONFIG_BUSYBOX_DEFAULT_PREFIX="./_install"
CONFIG_BUSYBOX_DEFAULT_NO_DEBUG_LIB=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_BUFFERS_GO_ON_STACK=y
CONFIG_BUSYBOX_DEFAULT_PASSWORD_MINLEN=6
CONFIG_BUSYBOX_DEFAULT_MD5_SMALL=1
CONFIG_BUSYBOX_DEFAULT_SHA1_SMALL=3
CONFIG_BUSYBOX_DEFAULT_SHA1_HWACCEL=y
CONFIG_BUSYBOX_DEFAULT_SHA256_HWACCEL=y
CONFIG_BUSYBOX_DEFAULT_SHA3_SMALL=1
CONFIG_BUSYBOX_DEFAULT_FEATURE_NON_POSIX_CP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_USE_SENDFILE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_COPYBUF_KB=4
CONFIG_BUSYBOX_DEFAULT_MONOTONIC_SYSCALL=y
CONFIG_BUSYBOX_DEFAULT_IOCTL_HEX2STR_ERROR=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_EDITING=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_EDITING_MAX_LEN=512
CONFIG_BUSYBOX_DEFAULT_FEATURE_EDITING_HISTORY=256
CONFIG_BUSYBOX_DEFAULT_FEATURE_TAB_COMPLETION=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_EDITING_FANCY_PROMPT=y
CONFIG_BUSYBOX_DEFAULT_SUBST_WCHAR=0
CONFIG_BUSYBOX_DEFAULT_LAST_SUPPORTED_WCHAR=0
CONFIG_BUSYBOX_DEFAULT_TRY_LOOP_CONFIGURE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_SEAMLESS_GZ=y
CONFIG_BUSYBOX_DEFAULT_GUNZIP=y
CONFIG_BUSYBOX_DEFAULT_ZCAT=y
CONFIG_BUSYBOX_DEFAULT_BZIP2_SMALL=0
CONFIG_BUSYBOX_DEFAULT_GZIP=y
CONFIG_BUSYBOX_DEFAULT_GZIP_FAST=0
CONFIG_BUSYBOX_DEFAULT_FEATURE_GZIP_DECOMPRESS=y
CONFIG_BUSYBOX_DEFAULT_TAR=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TAR_CREATE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TAR_FROM=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TAR_GNU_EXTENSIONS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_PRESERVE_HARDLINKS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_HUMAN_READABLE=y
CONFIG_BUSYBOX_DEFAULT_BASENAME=y
CONFIG_BUSYBOX_DEFAULT_CAT=y
CONFIG_BUSYBOX_DEFAULT_CHGRP=y
CONFIG_BUSYBOX_DEFAULT_CHMOD=y
CONFIG_BUSYBOX_DEFAULT_CHOWN=y
CONFIG_BUSYBOX_DEFAULT_CHROOT=y
CONFIG_BUSYBOX_DEFAULT_CP=y
CONFIG_BUSYBOX_DEFAULT_CUT=y
CONFIG_BUSYBOX_DEFAULT_DATE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_DATE_ISOFMT=y
CONFIG_BUSYBOX_DEFAULT_DD=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_DD_SIGNAL_HANDLING=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_DD_IBS_OBS=y
CONFIG_BUSYBOX_DEFAULT_DF=y
CONFIG_BUSYBOX_DEFAULT_DIRNAME=y
CONFIG_BUSYBOX_DEFAULT_DU=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_DU_DEFAULT_BLOCKSIZE_1K=y
CONFIG_BUSYBOX_DEFAULT_ECHO=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FANCY_ECHO=y
CONFIG_BUSYBOX_DEFAULT_ENV=y
CONFIG_BUSYBOX_DEFAULT_EXPR=y
CONFIG_BUSYBOX_DEFAULT_EXPR_MATH_SUPPORT_64=y
CONFIG_BUSYBOX_DEFAULT_FALSE=y
CONFIG_BUSYBOX_DEFAULT_HEAD=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FANCY_HEAD=y
CONFIG_BUSYBOX_DEFAULT_ID=y
CONFIG_BUSYBOX_DEFAULT_LN=y
CONFIG_BUSYBOX_DEFAULT_LS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_FILETYPES=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_FOLLOWLINKS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_RECURSIVE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_WIDTH=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_SORTFILES=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_TIMESTAMPS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_USERNAME=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_COLOR=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LS_COLOR_IS_DEFAULT=y
CONFIG_BUSYBOX_DEFAULT_MD5SUM=y
CONFIG_BUSYBOX_DEFAULT_SHA256SUM=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_MD5_SHA1_SUM_CHECK=y
CONFIG_BUSYBOX_DEFAULT_MKDIR=y
CONFIG_BUSYBOX_DEFAULT_MKFIFO=y
CONFIG_BUSYBOX_DEFAULT_MKNOD=y
CONFIG_BUSYBOX_DEFAULT_MKTEMP=y
CONFIG_BUSYBOX_DEFAULT_MV=y
CONFIG_BUSYBOX_DEFAULT_NICE=y
CONFIG_BUSYBOX_DEFAULT_PRINTF=y
CONFIG_BUSYBOX_DEFAULT_PWD=y
CONFIG_BUSYBOX_DEFAULT_READLINK=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_READLINK_FOLLOW=y
CONFIG_BUSYBOX_DEFAULT_RM=y
CONFIG_BUSYBOX_DEFAULT_RMDIR=y
CONFIG_BUSYBOX_DEFAULT_SEQ=y
CONFIG_BUSYBOX_DEFAULT_SLEEP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FANCY_SLEEP=y
CONFIG_BUSYBOX_DEFAULT_SORT=y
CONFIG_BUSYBOX_DEFAULT_SYNC=y
CONFIG_BUSYBOX_DEFAULT_FSYNC=y
CONFIG_BUSYBOX_DEFAULT_TAIL=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FANCY_TAIL=y
CONFIG_BUSYBOX_DEFAULT_TEE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TEE_USE_BLOCK_IO=y
CONFIG_BUSYBOX_DEFAULT_TEST=y
CONFIG_BUSYBOX_DEFAULT_TEST1=y
CONFIG_BUSYBOX_DEFAULT_TEST2=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TEST_64=y
CONFIG_BUSYBOX_DEFAULT_TOUCH=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TOUCH_SUSV3=y
CONFIG_BUSYBOX_DEFAULT_TR=y
CONFIG_BUSYBOX_DEFAULT_TRUE=y
CONFIG_BUSYBOX_DEFAULT_UNAME=y
CONFIG_BUSYBOX_DEFAULT_UNAME_OSNAME="GNU/Linux"
CONFIG_BUSYBOX_DEFAULT_UNIQ=y
CONFIG_BUSYBOX_DEFAULT_WC=y
CONFIG_BUSYBOX_DEFAULT_YES=y
CONFIG_BUSYBOX_DEFAULT_CLEAR=y
CONFIG_BUSYBOX_DEFAULT_DEFAULT_SETFONT_DIR=""
CONFIG_BUSYBOX_DEFAULT_RESET=y
CONFIG_BUSYBOX_DEFAULT_RESIZE=y
CONFIG_BUSYBOX_DEFAULT_START_STOP_DAEMON=y
CONFIG_BUSYBOX_DEFAULT_WHICH=y
CONFIG_BUSYBOX_DEFAULT_AWK=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_AWK_LIBM=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_AWK_GNU_EXTENSIONS=y
CONFIG_BUSYBOX_DEFAULT_CMP=y
CONFIG_BUSYBOX_DEFAULT_SED=y
CONFIG_BUSYBOX_DEFAULT_VI=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_MAX_LEN=1024
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_COLON=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_YANKMARK=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_SEARCH=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_USE_SIGNALS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_DOT_CMD=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_READONLY=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_SETOPTS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_SET=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_WIN_RESIZE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_ASK_TERMINAL=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_VI_UNDO_QUEUE_MAX=0
CONFIG_BUSYBOX_DEFAULT_FEATURE_ALLOW_EXEC=y
CONFIG_BUSYBOX_DEFAULT_FIND=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_PRINT0=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_MTIME=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_MMIN=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_PERM=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_TYPE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_XDEV=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_MAXDEPTH=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_NEWER=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_EXEC=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_USER=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_GROUP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_NOT=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_DEPTH=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_PAREN=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_SIZE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_PRUNE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_PATH=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FIND_REGEX=y
CONFIG_BUSYBOX_DEFAULT_GREP=y
CONFIG_BUSYBOX_DEFAULT_EGREP=y
CONFIG_BUSYBOX_DEFAULT_FGREP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_GREP_CONTEXT=y
CONFIG_BUSYBOX_DEFAULT_XARGS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_XARGS_SUPPORT_CONFIRMATION=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_XARGS_SUPPORT_QUOTES=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_XARGS_SUPPORT_TERMOPT=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_XARGS_SUPPORT_ZERO_TERM=y
CONFIG_BUSYBOX_DEFAULT_HALT=y
CONFIG_BUSYBOX_DEFAULT_POWEROFF=y
CONFIG_BUSYBOX_DEFAULT_REBOOT=y
CONFIG_BUSYBOX_DEFAULT_TELINIT_PATH=""
CONFIG_BUSYBOX_DEFAULT_FEATURE_KILL_DELAY=0
CONFIG_BUSYBOX_DEFAULT_INIT_TERMINAL_TYPE=""
CONFIG_BUSYBOX_DEFAULT_FEATURE_SHADOWPASSWDS=y
CONFIG_BUSYBOX_DEFAULT_USE_BB_CRYPT_SHA=y
CONFIG_BUSYBOX_DEFAULT_LAST_ID=0
CONFIG_BUSYBOX_DEFAULT_FIRST_SYSTEM_ID=0
CONFIG_BUSYBOX_DEFAULT_LAST_SYSTEM_ID=0
CONFIG_BUSYBOX_DEFAULT_FEATURE_DEFAULT_PASSWD_ALGO="sha256"
CONFIG_BUSYBOX_DEFAULT_LOGIN=y
CONFIG_BUSYBOX_DEFAULT_LOGIN_SESSION_AS_CHILD=y
CONFIG_BUSYBOX_DEFAULT_PASSWD=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_PASSWD_WEAK_CHECK=y
CONFIG_BUSYBOX_DEFAULT_DEFAULT_MODULES_DIR=""
CONFIG_BUSYBOX_DEFAULT_DEFAULT_DEPMOD_FILE=""
CONFIG_BUSYBOX_DEFAULT_DMESG=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_DMESG_PRETTY=y
CONFIG_BUSYBOX_DEFAULT_FLOCK=y
CONFIG_BUSYBOX_DEFAULT_HEXDUMP=y
CONFIG_BUSYBOX_DEFAULT_HWCLOCK=y
CONFIG_BUSYBOX_DEFAULT_MKSWAP=y
CONFIG_BUSYBOX_DEFAULT_MOUNT=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_MOUNT_HELPERS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_MOUNT_CIFS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_MOUNT_FLAGS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_MOUNT_FSTAB=y
CONFIG_BUSYBOX_DEFAULT_PIVOT_ROOT=y
CONFIG_BUSYBOX_DEFAULT_SETSID=y
CONFIG_BUSYBOX_DEFAULT_SWAPON=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_SWAPON_DISCARD=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_SWAPON_PRI=y
CONFIG_BUSYBOX_DEFAULT_SWAPOFF=y
CONFIG_BUSYBOX_DEFAULT_SWITCH_ROOT=y
CONFIG_BUSYBOX_DEFAULT_TASKSET=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TASKSET_FANCY=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TASKSET_CPULIST=y
CONFIG_BUSYBOX_DEFAULT_UMOUNT=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_UMOUNT_ALL=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_MOUNT_LOOP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_BEEP_FREQ=0
CONFIG_BUSYBOX_DEFAULT_FEATURE_BEEP_LENGTH_MS=0
CONFIG_BUSYBOX_DEFAULT_CROND=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_CROND_DIR="/etc"
CONFIG_BUSYBOX_DEFAULT_CRONTAB=y
CONFIG_BUSYBOX_DEFAULT_LESS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_LESS_MAXLINES=9999999
CONFIG_BUSYBOX_DEFAULT_LOCK=y
CONFIG_BUSYBOX_DEFAULT_STRINGS=y
CONFIG_BUSYBOX_DEFAULT_TIME=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IPV6=y
CONFIG_BUSYBOX_DEFAULT_VERBOSE_RESOLUTION_ERRORS=y
CONFIG_BUSYBOX_DEFAULT_BRCTL=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_BRCTL_FANCY=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_BRCTL_SHOW=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_HTTPD_PORT_DEFAULT=80
CONFIG_BUSYBOX_DEFAULT_IFCONFIG=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IFCONFIG_STATUS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IFCONFIG_HW=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IFCONFIG_BROADCAST_PLUS=y
CONFIG_BUSYBOX_DEFAULT_IFUPDOWN_IFSTATE_PATH=""
CONFIG_BUSYBOX_DEFAULT_IP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IP_ADDRESS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IP_LINK=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IP_ROUTE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IP_ROUTE_DIR="/etc/iproute2"
CONFIG_BUSYBOX_DEFAULT_FEATURE_IP_RULE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_IP_NEIGH=y
CONFIG_BUSYBOX_DEFAULT_NC=y
CONFIG_BUSYBOX_DEFAULT_NETMSG=y
CONFIG_BUSYBOX_DEFAULT_NETSTAT=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_NETSTAT_WIDE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_NETSTAT_PRG=y
CONFIG_BUSYBOX_DEFAULT_NSLOOKUP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_NSLOOKUP_BIG=y
CONFIG_BUSYBOX_DEFAULT_NTPD=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_NTPD_SERVER=y
CONFIG_BUSYBOX_DEFAULT_PING=y
CONFIG_BUSYBOX_DEFAULT_PING6=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_FANCY_PING=y
CONFIG_BUSYBOX_DEFAULT_ROUTE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TELNETD_PORT_DEFAULT=23
CONFIG_BUSYBOX_DEFAULT_TRACEROUTE=y
CONFIG_BUSYBOX_DEFAULT_TRACEROUTE6=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TRACEROUTE_VERBOSE=y
CONFIG_BUSYBOX_DEFAULT_DHCPD_LEASES_FILE=""
CONFIG_BUSYBOX_DEFAULT_UDHCPC=y
CONFIG_BUSYBOX_DEFAULT_UDHCPC_DEFAULT_SCRIPT="/usr/share/udhcpc/default.script"
CONFIG_BUSYBOX_DEFAULT_UDHCPC6_DEFAULT_SCRIPT=""
CONFIG_BUSYBOX_DEFAULT_UDHCPC_DEFAULT_INTERFACE=""
CONFIG_BUSYBOX_DEFAULT_UDHCP_DEBUG=0
CONFIG_BUSYBOX_DEFAULT_UDHCPC_SLACK_FOR_BUGGY_SERVERS=80
CONFIG_BUSYBOX_DEFAULT_FEATURE_UDHCP_RFC3397=y
CONFIG_BUSYBOX_DEFAULT_IFUPDOWN_UDHCPC_CMD_OPTIONS=""
CONFIG_BUSYBOX_DEFAULT_FEATURE_MIME_CHARSET=""
CONFIG_BUSYBOX_DEFAULT_FEATURE_FAST_TOP=y
CONFIG_BUSYBOX_DEFAULT_FREE=y
CONFIG_BUSYBOX_DEFAULT_KILL=y
CONFIG_BUSYBOX_DEFAULT_KILLALL=y
CONFIG_BUSYBOX_DEFAULT_PGREP=y
CONFIG_BUSYBOX_DEFAULT_PIDOF=y
CONFIG_BUSYBOX_DEFAULT_PS=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_PS_WIDE=y
CONFIG_BUSYBOX_DEFAULT_BB_SYSCTL=y
CONFIG_BUSYBOX_DEFAULT_TOP=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TOP_CPU_USAGE_PERCENTAGE=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_TOP_CPU_GLOBAL_PERCENTS=y
CONFIG_BUSYBOX_DEFAULT_UPTIME=y
CONFIG_BUSYBOX_DEFAULT_SV_DEFAULT_SERVICE_DIR=""
CONFIG_BUSYBOX_DEFAULT_SH_IS_ASH=y
CONFIG_BUSYBOX_DEFAULT_BASH_IS_NONE=y
CONFIG_BUSYBOX_DEFAULT_SHELL_ASH=y
CONFIG_BUSYBOX_DEFAULT_ASH=y
CONFIG_BUSYBOX_DEFAULT_ASH_INTERNAL_GLOB=y
CONFIG_BUSYBOX_DEFAULT_ASH_BASH_COMPAT=y
CONFIG_BUSYBOX_DEFAULT_ASH_JOB_CONTROL=y
CONFIG_BUSYBOX_DEFAULT_ASH_ALIAS=y
CONFIG_BUSYBOX_DEFAULT_ASH_RANDOM_SUPPORT=y
CONFIG_BUSYBOX_DEFAULT_ASH_EXPAND_PRMT=y
CONFIG_BUSYBOX_DEFAULT_ASH_ECHO=y
CONFIG_BUSYBOX_DEFAULT_ASH_PRINTF=y
CONFIG_BUSYBOX_DEFAULT_ASH_TEST=y
CONFIG_BUSYBOX_DEFAULT_ASH_GETOPTS=y
CONFIG_BUSYBOX_DEFAULT_ASH_CMDCMD=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_SH_MATH=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_SH_MATH_64=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_SH_NOFORK=y
CONFIG_BUSYBOX_DEFAULT_LOGGER=y
CONFIG_BUSYBOX_DEFAULT_FEATURE_SYSLOGD_READ_BUFFER_SIZE=0
CONFIG_BUSYBOX_DEFAULT_FEATURE_IPC_SYSLOG_BUFFER_SIZE=0
CONFIG_PACKAGE_ca-bundle=y
CONFIG_PACKAGE_dnsmasq=y
CONFIG_PACKAGE_dropbear=y
CONFIG_DROPBEAR_CURVE25519=y
CONFIG_DROPBEAR_ED25519=y
CONFIG_DROPBEAR_CHACHA20POLY1305=y
CONFIG_DROPBEAR_U2F=y
CONFIG_DROPBEAR_ED25519_SK=y
CONFIG_DROPBEAR_DBCLIENT=y
CONFIG_DROPBEAR_DBCLIENT_AGENTFORWARD=y
CONFIG_DROPBEAR_SCP=y
CONFIG_DROPBEAR_AGENTFORWARD=y
CONFIG_PACKAGE_firewall4=y
CONFIG_PACKAGE_fstools=y
CONFIG_FSTOOLS_UBIFS_EXTROOT=y
CONFIG_PACKAGE_fwtool=y
CONFIG_PACKAGE_getrandom=y
CONFIG_PACKAGE_jsonfilter=y
CONFIG_PACKAGE_libc=y
CONFIG_PACKAGE_libgcc=y
CONFIG_PACKAGE_libpthread=y
CONFIG_PACKAGE_logd=y
CONFIG_PACKAGE_mtd=y
CONFIG_PACKAGE_netifd=y
CONFIG_PACKAGE_openwrt-keyring=y
CONFIG_PACKAGE_opkg=y
CONFIG_PACKAGE_procd=y
CONFIG_PACKAGE_procd-seccomp=y
CONFIG_PACKAGE_procd-ujail=y
CONFIG_PACKAGE_rpcd=y
CONFIG_PACKAGE_rpcd-mod-file=y
CONFIG_PACKAGE_rpcd-mod-iwinfo=y
CONFIG_PACKAGE_rpcd-mod-rpcsys=y
CONFIG_PACKAGE_rpcd-mod-ucode=y
CONFIG_PACKAGE_ubox=y
CONFIG_PACKAGE_ubus=y
CONFIG_PACKAGE_ubusd=y
CONFIG_PACKAGE_uci=y
CONFIG_PACKAGE_urandom-seed=y
CONFIG_PACKAGE_urngd=y
CONFIG_PACKAGE_usign=y
CONFIG_PACKAGE_wifi-scripts=y
CONFIG_ZABBIX_POSTGRESQL=y
CONFIG_NETJSON_MONITORING_IWINFO=y
CONFIG_PACKAGE_libiwinfo-data=y
CONFIG_PACKAGE_wireless-regdb=y
CONFIG_PACKAGE_kmod-crypto-aead=y
CONFIG_PACKAGE_kmod-crypto-authenc=y
CONFIG_PACKAGE_kmod-crypto-ccm=y
CONFIG_PACKAGE_kmod-crypto-cmac=y
CONFIG_PACKAGE_kmod-crypto-crc32c=y
CONFIG_PACKAGE_kmod-crypto-ctr=y
CONFIG_PACKAGE_kmod-crypto-des=y
CONFIG_PACKAGE_kmod-crypto-gcm=y
CONFIG_PACKAGE_kmod-crypto-geniv=y
CONFIG_PACKAGE_kmod-crypto-gf128=y
CONFIG_PACKAGE_kmod-crypto-ghash=y
CONFIG_PACKAGE_kmod-crypto-hash=y
CONFIG_PACKAGE_kmod-crypto-hmac=y
CONFIG_PACKAGE_kmod-crypto-hw-eip93=y
CONFIG_PACKAGE_kmod-crypto-manager=y
CONFIG_PACKAGE_kmod-crypto-md5=y
CONFIG_PACKAGE_kmod-crypto-null=y
CONFIG_PACKAGE_kmod-crypto-rng=y
CONFIG_PACKAGE_kmod-crypto-seqiv=y
CONFIG_PACKAGE_kmod-crypto-sha1=y
CONFIG_PACKAGE_kmod-crypto-sha256=y
CONFIG_PACKAGE_kmod-crypto-sha3=y
CONFIG_PACKAGE_kmod-crypto-sha512=y
CONFIG_PACKAGE_kmod-gpio-button-hotplug=y
CONFIG_PACKAGE_kmod-hwmon-core=y
CONFIG_PACKAGE_kmod-leds-gpio=y
CONFIG_PACKAGE_kmod-lib-crc-ccitt=y
CONFIG_PACKAGE_kmod-lib-crc32c=y
CONFIG_PACKAGE_kmod-nf-conntrack=y
CONFIG_PACKAGE_kmod-nf-conntrack6=y
CONFIG_PACKAGE_kmod-nf-flow=y
CONFIG_PACKAGE_kmod-nf-log=y
CONFIG_PACKAGE_kmod-nf-log6=y
CONFIG_PACKAGE_kmod-nf-nat=y
CONFIG_PACKAGE_kmod-nf-reject=y
CONFIG_PACKAGE_kmod-nf-reject6=y
CONFIG_PACKAGE_kmod-nfnetlink=y
CONFIG_PACKAGE_kmod-nft-core=y
CONFIG_PACKAGE_kmod-nft-fib=y
CONFIG_PACKAGE_kmod-nft-nat=y
CONFIG_PACKAGE_kmod-nft-offload=y
CONFIG_PACKAGE_kmod-ppp=y
CONFIG_PACKAGE_kmod-pppoe=y
CONFIG_PACKAGE_kmod-pppox=y
CONFIG_PACKAGE_kmod-slhc=y
CONFIG_PACKAGE_kmod-thermal=y
CONFIG_PACKAGE_kmod-cfg80211=y
CONFIG_PACKAGE_kmod-mac80211=y
CONFIG_PACKAGE_MAC80211_DEBUGFS=y
CONFIG_PACKAGE_MAC80211_MESH=y
CONFIG_PACKAGE_kmod-mt76-connac=y
CONFIG_PACKAGE_kmod-mt76-core=y
CONFIG_PACKAGE_kmod-mt7915-firmware=y
CONFIG_PACKAGE_kmod-mt7915e=y
CONFIG_GOLANG_EXTERNAL_BOOTSTRAP_ROOT=""
CONFIG_GOLANG_BUILD_CACHE_DIR=""
CONFIG_LUA_ECO_MBEDTLS=y
CONFIG_HAS_LUAJIT_ARCH=y
CONFIG_RUST_SCCACHE_DIR=""
CONFIG_PACKAGE_ucode=y
CONFIG_PACKAGE_ucode-mod-fs=y
CONFIG_PACKAGE_ucode-mod-math=y
CONFIG_PACKAGE_ucode-mod-nl80211=y
CONFIG_PACKAGE_ucode-mod-rtnl=y
CONFIG_PACKAGE_ucode-mod-ubus=y
CONFIG_PACKAGE_ucode-mod-uci=y
CONFIG_PACKAGE_ucode-mod-uloop=y
CONFIG_PACKAGE_libmbedtls=y
CONFIG_MBEDTLS_AES_C=y
CONFIG_MBEDTLS_CMAC_C=y
CONFIG_MBEDTLS_DES_C=y
CONFIG_MBEDTLS_GCM_C=y
CONFIG_MBEDTLS_NIST_KW_C=y
CONFIG_MBEDTLS_RSA_NO_CRT=y
CONFIG_MBEDTLS_KEY_EXCHANGE_PSK_ENABLED=y
CONFIG_MBEDTLS_KEY_EXCHANGE_ECDHE_PSK_ENABLED=y
CONFIG_MBEDTLS_KEY_EXCHANGE_ECDHE_RSA_ENABLED=y
CONFIG_MBEDTLS_KEY_EXCHANGE_ECDHE_ECDSA_ENABLED=y
CONFIG_MBEDTLS_ECP_DP_SECP256R1_ENABLED=y
CONFIG_MBEDTLS_ECP_DP_SECP384R1_ENABLED=y
CONFIG_MBEDTLS_ECP_DP_SECP521R1_ENABLED=y
CONFIG_MBEDTLS_ECP_DP_SECP256K1_ENABLED=y
CONFIG_MBEDTLS_ECP_DP_CURVE25519_ENABLED=y
CONFIG_MBEDTLS_HKDF_C=y
CONFIG_MBEDTLS_THREADING_C=y
CONFIG_MBEDTLS_THREADING_PTHREAD=y
CONFIG_MBEDTLS_PSA_CRYPTO_CLIENT=y
CONFIG_MBEDTLS_SSL_PROTO_TLS1_2=y
CONFIG_MBEDTLS_SSL_PROTO_TLS1_3=y
CONFIG_MBEDTLS_SSL_TLS1_3_COMPATIBILITY_MODE=y
CONFIG_MBEDTLS_SSL_TLS1_3_KEY_EXCHANGE_MODE_PSK_ENABLED=y
CONFIG_MBEDTLS_SSL_TLS1_3_KEY_EXCHANGE_MODE_EPHEMERAL_ENABLED=y
CONFIG_MBEDTLS_SSL_TLS1_3_KEY_EXCHANGE_MODE_PSK_EPHEMERAL_ENABLED=y
CONFIG_MBEDTLS_ENTROPY_FORCE_SHA256=y
CONFIG_WOLFSSL_HAS_AES_CCM=y
CONFIG_WOLFSSL_HAS_CHACHA_POLY=y
CONFIG_WOLFSSL_HAS_DH=y
CONFIG_WOLFSSL_HAS_ARC4=y
CONFIG_WOLFSSL_HAS_CERTGEN=y
CONFIG_WOLFSSL_HAS_TLSV10=y
CONFIG_WOLFSSL_HAS_TLSV13=y
CONFIG_WOLFSSL_HAS_SESSION_TICKET=y
CONFIG_WOLFSSL_HAS_OCSP=y
CONFIG_WOLFSSL_HAS_WPAS=y
CONFIG_WOLFSSL_HAS_ECC25519=y
CONFIG_WOLFSSL_HAS_OPENVPN=y
CONFIG_WOLFSSL_ALT_NAMES=y
CONFIG_PACKAGE_jansson=y
CONFIG_PACKAGE_libblobmsg-json=y
CONFIG_PACKAGE_libiwinfo=y
CONFIG_PACKAGE_libjson-c=y
CONFIG_PACKAGE_liblucihttp=y
CONFIG_PACKAGE_liblucihttp-ucode=y
CONFIG_PACKAGE_libmnl=y
CONFIG_PACKAGE_libncurses=y
CONFIG_PACKAGE_libnftnl=y
CONFIG_PACKAGE_libnl-tiny=y
CONFIG_PACKAGE_libubox=y
CONFIG_PACKAGE_libubus=y
CONFIG_PACKAGE_libuci=y
CONFIG_PACKAGE_libuclient=y
CONFIG_PACKAGE_libucode=y
CONFIG_PACKAGE_libudebug=y
CONFIG_PACKAGE_libustream-mbedtls=y
CONFIG_PACKAGE_rpcd-mod-luci=y
CONFIG_PACKAGE_rpcd-mod-rrdns=y
CONFIG_PACKAGE_terminfo=y
CONFIG_PACKAGE_luci-light=y
CONFIG_PACKAGE_luci-ssl=y
CONFIG_PACKAGE_luci-base=y
CONFIG_LUCI_JSMIN=y
CONFIG_LUCI_CSSTIDY=y
CONFIG_PACKAGE_luci-mod-admin-full=y
CONFIG_PACKAGE_luci-mod-network=y
CONFIG_PACKAGE_luci-mod-status=y
CONFIG_PACKAGE_luci-mod-system=y
CONFIG_PACKAGE_luci-app-attendedsysupgrade=y
CONFIG_PACKAGE_luci-app-firewall=y
CONFIG_PACKAGE_luci-app-package-manager=y
CONFIG_PACKAGE_luci-theme-bootstrap=y
CONFIG_PACKAGE_luci-proto-ipv6=y
CONFIG_PACKAGE_luci-proto-ppp=y
CONFIG_PACKAGE_nftables-json=y
CONFIG_PACKAGE_knot-resolver_dnstap=y
CONFIG_PACKAGE_cgi-io=y
CONFIG_PACKAGE_uhttpd=y
CONFIG_PACKAGE_uhttpd-mod-ubus=y
CONFIG_PACKAGE_hostapd-common=y
CONFIG_WPA_MSG_MIN_PRIORITY=3
CONFIG_DRIVER_11AC_SUPPORT=y
CONFIG_DRIVER_11AX_SUPPORT=y
CONFIG_WPA_MBO_SUPPORT=y
CONFIG_PACKAGE_wpad-basic-mbedtls=y
CONFIG_PACKAGE_iw=y
CONFIG_PACKAGE_odhcp6c=y
CONFIG_PACKAGE_odhcp6c_ext_cer_id=0
CONFIG_PACKAGE_odhcpd-ipv6only=y
CONFIG_PACKAGE_odhcpd_ipv6only_ext_cer_id=0
CONFIG_PACKAGE_ppp=y
CONFIG_PACKAGE_ppp-mod-pppoe=y
CONFIG_PACKAGE_uclient-fetch=y
CONFIG_PACKAGE_uboot-envtools=y
CONFIG_PACKAGE_nano=y
CONFIG_PACKAGE_px5g-mbedtls=y
CONFIG_PACKAGE_iwinfo=y
CONFIG_PACKAGE_jshn=y
CONFIG_PACKAGE_libjson-script=y
CONFIG_STRACE_NONE=y
CONFIG_PACKAGE_ubi-utils=y
CONFIG_PACKAGE_ucode-mod-html=y
This is a very basic firmware with luci-ssl, nano and attended-sysupgrade.
Once the compile is complete, your firmware will be here: bin/targets/ramips/mt7621
Hope this helps someone and hopefully we can have the dts file merged into main.
Only quirk I can see so far (and is very cosmetic) but worth noting:
This device has no lan4 connector (and is not even defined in the dts file).
Bingo
August 8, 2025, 1:18pm
7
Strange …
My build shows just 3 ports (as is on my EDUP)
Thanks - and weird!
Is it possibly anything to do with the build process?
Found it:
/etc/board.json
{
"model": {
"id": "mediatek,mt7621-soc"
},
"network": {
"lan": {
"ports": [
"lan1",
"lan2",
"lan3",
"lan4"
],
"protocol": "static"
},
"wan": {
"device": "wan",
"protocol": "dhcp"
}
},
"system": {
"compat_version": "1.1"
},
"wlan": {
[...]
I’m sure this can probably be changed somewhere in the build process to remove the vestigial LAN port. Just cosmetic though.
1 Like
Bingo
October 12, 2025, 7:05pm
10
@andros-ua
We would be "eternally gratefull" if you could patch the SIM SIMAX1800T with the above mentioned patches, and make a fully working upstream EDUP-2960S firmware.
The EDUP 2960S, can use the SIM SIMAX1800T firmware.
Someone made a patch that actually fixes those things
Well didn't fix the lan1 & Lan3 swap
Alex120886 posted a "full patch" w. lans fixed too here.
It would be great, only adding this dtsi to the building we would have a full compatible version of OpenWrt:
// SPDX-License-Identifier: GPL-2.0-or-later OR MIT
#include "mt7621.dtsi"
#include <dt-bindings/gpio/gpio.h>
#include <dt-bindings/input/input.h>
#include <dt-bindings/leds/common.h>
/ {
aliases {
label-mac-device = &gmac1;
led-boot = &led_status_red;
led-failsafe = &led_status_blue;
led-running = &led_status_green;
led-upgrade = &led_status_blue;
};
chosen {
bootargs…
I did build a new openwrt, using the patch .. It worked.
And us beginners, does not have the skills to make a fix + Pull request.
Note: Neither Alex nor I , have had that 4'th Lan issue that Lewis has, when we did build our own firmware.
1 Like
