[Solved] WireGuard+DDNS: Seting up OpenWrt as a wireguard server but not able to get access

[Otey]

Hi everyone!

In Previous topic I asked for help about dump AP setup.
To clarify, it is a different device, but I have similar network config on this server.

I'm trying to setup OpenWrt as a WireGuard server behind OPNsense but currently failed.
The topic will be pretty long. So I use the "Hide Details" function to clean up the topic. Hope it makes you comfortable.
Also the situation will be complicated as it involves OPNsense and OpenWrt, so thank you!

(It's ok to not to read) Why I choose to setup a server rather than just use the plugin in OPNsense?

The reason I don't set WireGuard in OPNsense is because of the convenience of adding client.

OPNsense don't generate QR code after create a peer, it is quite inconvenient to transfer the config to peer devices. Therefore I consider to setup a individual WG server. I think OpenWrt is a great platform for the purpose.

(OpenWrt's LuCI not only support WireGuard UI like wg-easy but also the system management. Otherwise Maybe Alpine+docker+wg-easy if I want to keep the size small or just use a distro like debian or almalinux but both of them seems go too far IMO).

Here's the setup I want:

Network explain:

1. lan (192.168.1.X, .1.1 is router): The most trusted area network.
   I want this network be the only network that able to manage
   the OpenWRT with LuCI or ssh but nothing else.

2. user (192.168.10.X, .10.1 is router): This network is support
   specific users' devices access networks, and able to access services
   inside my lan.

I don't use VLAN for some reason...

Before the current situation:

1. Add a rule about WG:




2. Install OpenWrt and follow the dump AP wiki instruction, but without wireless part.
   dhcp, firewall, dnsmasq are disabled.

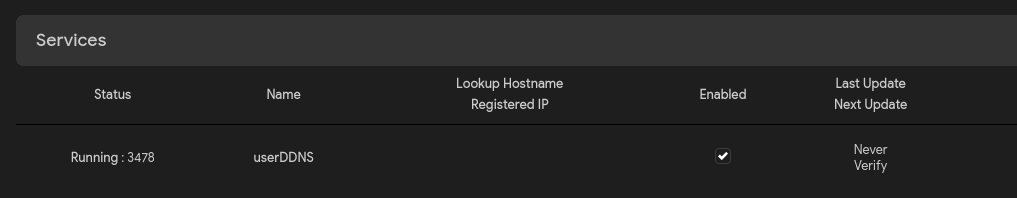

3. Setup DDNS client, seems successful. (I really spend a lot of times on it!)




4. Config my network

/etc/config/network before setup WireGuard

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'eth0'

config device
	option name 'br-user'
	option type 'bridge'
	list ports 'eth1'

config interface 'lan'
	option device 'br-lan'
	option proto 'static'
	option ipaddr '192.168.1.10'
	option netmask '255.255.255.0'
	option gateway '192.168.1.1'
	list dns '192.168.1.1'

config interface 'user'
	option proto 'none'
	option device 'br-user'

To note that, when I set user's proto as dhcp, it did get ip address.
Also both of them didn't get RX, hope this is informative for you.

5. Setup Wireguard Server (I setup just in LuCI)

/etc/config/network after setup WireGuard

carry on the above:

config interface 'wg0_USER'
	option proto 'wireguard'
	option private_key 'SeVeRpRiVaTeKeYsEvErPrIvAtEkEySeVeRpRiVaTe='
	option listen_port '51820'
	list addresses '10.10.10.1/24'
	list dns '192.168.10.1'

config wireguard_wg0_USER
	option public_key 'PeErPuBlIcKeYpEeRpUbLiCkEyPeErPuBlIcKeYpEeR='
	option private_key 'PeErPrIvAtEkEyPeErPrIvAtEkEyPeErPrIvAtEkEyP='
	option description 'test_peer'
	option preshared_key 'PrEsHaReDkEyPrEsHaReDkEyPrEsHaReDkEyPrEsHaR='
	list allowed_ips '10.10.10.2/32'

Then I scan the QR code, try to connect, and it just doesn't work.

• Wrong rules/further configuration needed on OPNsense
• Wrong network config on OpenWRT

I'm sure one of those have trouble, or both of them.
I need help...and I need to take a break... Thank you.

Other maybe useful stuff:

ubus call system board

{
	"kernel": "5.15.137",
	"hostname": "OpenWRT",
	"system": "Intel(R) Core(TM) i5-8250U CPU @ 1.60GHz",
	"model": "Xen HVM domU",
	"board_name": "xen-hvm-domu",
	"rootfs_type": "ext4",
	"release": {
		"distribution": "OpenWrt",
		"version": "23.05.2",
		"revision": "r23630-842932a63d",
		"target": "x86/64",
		"description": "OpenWrt 23.05.2 r23630-842932a63d"
	}
}

[egc]

Before I dive in some general remarks.

Make sure you have a Public IP address on the OPNsense router e.g. not beginning with 10 , 100, 192.168, 172.16-32

The OPNsense router should port forward to 192.168.1.10

To rule out DDNS problems just use the public IP on the OPNsense router instead of the DDNS address.

On the OWRT router enable MASQUERADING on the lan zone

Make sure there is a forwarding rule from wg zone to lan zone and the other way around.

Test from outside with your phone on cellular

[Otey]

Thank you! It fixes all the things.
But is it possible to refuse peers to access OpenWrt LuCI? Now I have rule to block peers to access parts of lan, and I don't want them to access the LuCI.

[Otey]

Ok just set input of zone wireguard -> lan to reject and it now blocks the LuCI access.
Anyway thank you!
