[Solved] Traffic Rules doesn't seem to apply in Netgear R7800 and OpenWRT 24.10

Lorthirk · March 22, 2025, 9:35pm

Hello. I have a Netgear R7800 that today I updated from OpenWRT 23.05 to 24.10. Since I read that the configuration needs to be rebuilt from scratch given the adoption of DSA, I am trying to replicate my old configuration but it seems something is wrong.

These screenshots represents the previous VLAN and Interfaces configurations:

As you can imagine from the colors in the Interfaces, each and every one of them was related to a different Firewall Zone. The default Input/Output/Forward settings were Reject/Accept/Reject, the lan zone had Accept/Accept/Accept while the other ones had Reject/Accept/Reject. The aim for this configuration was to be able to access the Router only from the devices in the lan zone.

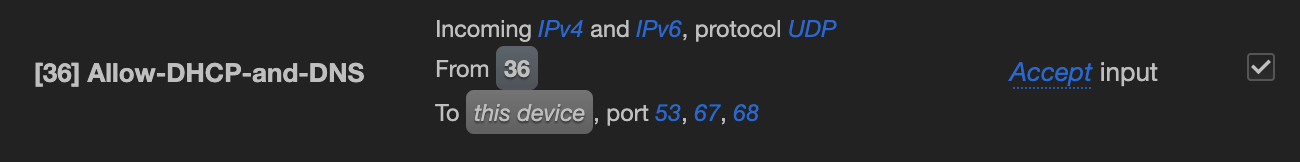

Because of this, I also had the following Traffic Rule (one for each zone) in place to have all the devices in all zones to be able to reach out to the router for DHCP and DNS:

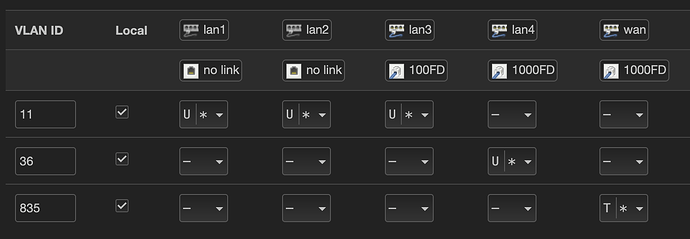

Now, as I said, migrating to 24.10 means that I have to switch to DSA configuration. So this is the VLAN section of br.lan:

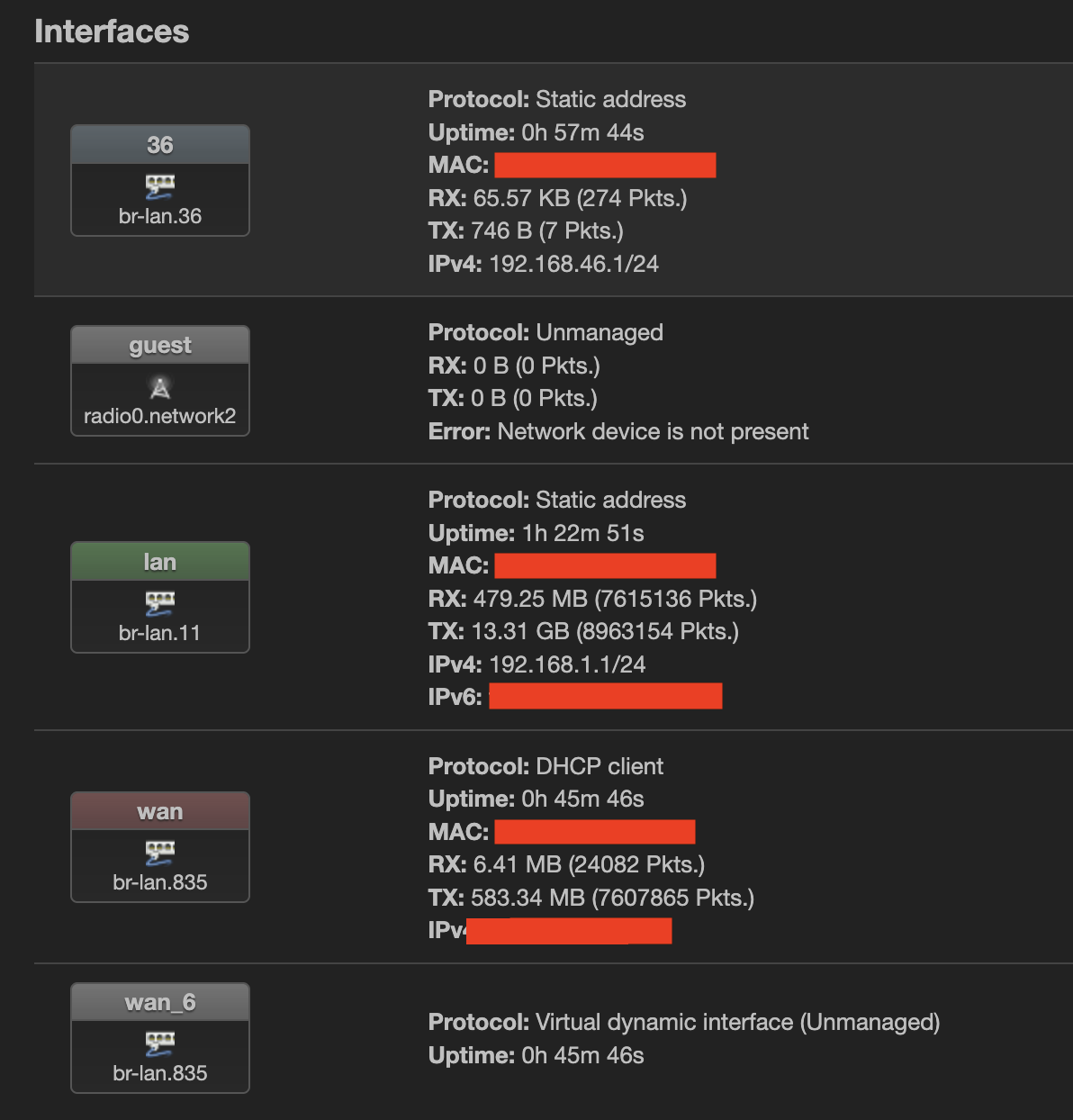

and the new Interfaces:

Again, each VLAN has its own firewall zone, and they are configured with the same Input/Output/Forward. However, despite creating the same Traffic Rule, I see that the devices in zones outside of lan cannot reach to the router for both DHCP and DNS, unless I set Accept to the default Input section in the Firewall.

It would be great if someone could help me to restore my previous setup. Thanks!

psherman · March 22, 2025, 9:48pm

Can you provide specific explanations about what is not working as expected? And let's review your configuration in text format:

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall

Lorthirk · March 22, 2025, 9:57pm

Sorry, it probably got lost in the post My problem is that the devices in zones other than lan fail to get their IP via DHCP, despite a rule that should explicitly allow them.

Here's the output of the commands:

root@OpenWrt:~# ubus call system board
{
	"kernel": "6.6.73",
	"hostname": "OpenWrt",
	"system": "ARMv7 Processor rev 0 (v7l)",
	"model": "Netgear Nighthawk X4S R7800",
	"board_name": "netgear,r7800",
	"rootfs_type": "squashfs",
	"release": {
		"distribution": "OpenWrt",
		"version": "24.10.0",
		"revision": "r28427-6df0e3d02a",
		"target": "ipq806x/generic",
		"description": "OpenWrt 24.10.0 r28427-6df0e3d02a",
		"builddate": "1738624177"
	}
}

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd52:6b6e:d7a1::/48'
	option packet_steering '1'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'lan1'
	list ports 'lan2'
	list ports 'lan3'
	list ports 'lan4'
	list ports 'wan'

config interface 'lan'
	option device 'br-lan.11'
	option proto 'static'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'
	option ip6assign '60'

config interface 'wan'
	option device 'br-lan.835'
	option proto 'dhcp'
	option vendorid 'huawei_HW_E1A.A_SW_1.0.1b/dslforum.org'
	option ip6assign '64'

config bridge-vlan
	option device 'br-lan'
	option vlan '11'
	list ports 'lan1:u*'
	list ports 'lan2:u*'
	list ports 'lan3:u*'

config bridge-vlan
	option device 'br-lan'
	option vlan '36'
	list ports 'lan4:u*'

config bridge-vlan
	option device 'br-lan'
	option vlan '835'
	list ports 'wan:t*'

config device
	option name 'br-lan.835'
	option type '8021q'
	option ifname 'br-lan'
	option vid '835'
	option macaddr 'REDACTED'

config interface '36'
	option proto 'static'
	option device 'br-lan.36'
	option ipaddr '192.168.36.1'
	option netmask '255.255.255.0'

config interface 'guest'
	option proto 'static'
	option ipaddr '192.168.3.1'
	option netmask '255.255.255.0'

root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
	option type 'mac80211'
	option path 'soc/1b500000.pci/pci0000:00/0000:00:00.0/0000:01:00.0'
	option band '5g'
	option channel '36'
	option htmode 'VHT80'
	option cell_density '0'

config wifi-device 'radio1'
	option type 'mac80211'
	option path 'soc/1b700000.pci/pci0001:00/0001:00:00.0/0001:01:00.0'
	option band '2g'
	option channel '1'
	option cell_density '0'

config wifi-iface 'wifinet0'
	option device 'radio0'
	option mode 'ap'
	option ssid 'Zireael 5 GHz'
	option encryption 'sae-mixed'
	option macfilter 'deny'
	list maclist 'REDACTED'
	option key 'REDACTED'
	option ocv '0'
	option network 'lan'

config wifi-iface 'wifinet1'
	option device 'radio1'
	option mode 'ap'
	option ssid 'Zireael 2.4 GHz'
	option encryption 'sae-mixed'
	option macfilter 'deny'
	list maclist 'REDACTED'
	option key 'REDACTED'
	option ocv '0'
	option network 'lan'

config wifi-iface 'wifinet2'
	option device 'radio0'
	option mode 'ap'
	option ssid 'Zireael Guest 5 GHz'
	option encryption 'sae-mixed'
	option macfilter 'deny'
	list maclist 'REDACTED'
	option key 'REDACTED'
	option ocv '0'
	option network 'guest'
	option disabled '1'

config wifi-iface 'wifinet3'
	option device 'radio1'
	option mode 'ap'
	option ssid 'Zireael Guest 2.4 GHz'
	option encryption 'sae-mixed'
	option macfilter 'deny'
	list maclist 'REDACTED'
	option key 'REDACTED'
	option ocv '0'
	option network 'guest'
	option disabled '1'

root@OpenWrt:~# cat /etc/config/dhcp

config dnsmasq
	option domainneeded '1'
	option boguspriv '1'
	option filterwin2k '0'
	option localise_queries '1'
	option rebind_protection '1'
	option rebind_localhost '1'
	option local '/lan/'
	option domain 'lan'
	option expandhosts '1'
	option nonegcache '0'
	option cachesize '1000'
	option authoritative '1'
	option readethers '1'
	option leasefile '/tmp/dhcp.leases'
	option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
	option nonwildcard '1'
	option localservice '1'
	option ednspacket_max '1232'
	option filter_aaaa '0'
	option filter_a '0'

config dhcp 'lan'
	option interface 'lan'
	option start '100'
	option limit '150'
	option leasetime '12h'
	option dhcpv4 'server'
	option dhcpv6 'server'
	option ra 'server'
	list ra_flags 'managed-config'
	list ra_flags 'other-config'

config dhcp 'wan'
	option interface 'wan'
	option ignore '1'

config odhcpd 'odhcpd'
	option maindhcp '0'
	option leasefile '/tmp/hosts/odhcpd'
	option leasetrigger '/usr/sbin/odhcpd-update'
	option loglevel '4'

root@OpenWrt:~# cat /etc/config/firewall

config defaults
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option synflood_protect '1'
	option flow_offloading '1'
	option flow_offloading_hw '1'

config zone
	option name 'lan'
	option input 'ACCEPT'
	option output 'ACCEPT'
	option forward 'ACCEPT'
	list network 'lan'

config zone
	option name 'wan'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	option masq '1'
	option mtu_fix '1'
	list network 'wan'

config forwarding
	option src 'lan'
	option dest 'wan'

config rule
	option name 'Allow-DHCP-Renew'
	option src 'wan'
	option proto 'udp'
	option dest_port '68'
	option target 'ACCEPT'
	option family 'ipv4'

config rule
	option name 'Allow-Ping'
	option src 'wan'
	option proto 'icmp'
	option icmp_type 'echo-request'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-IGMP'
	option src 'wan'
	option proto 'igmp'
	option family 'ipv4'
	option target 'ACCEPT'

config rule
	option name 'Allow-DHCPv6'
	option src 'wan'
	option proto 'udp'
	option dest_port '546'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-MLD'
	option src 'wan'
	option proto 'icmp'
	option src_ip 'fe80::/10'
	list icmp_type '130/0'
	list icmp_type '131/0'
	list icmp_type '132/0'
	list icmp_type '143/0'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Input'
	option src 'wan'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	list icmp_type 'router-solicitation'
	list icmp_type 'neighbour-solicitation'
	list icmp_type 'router-advertisement'
	list icmp_type 'neighbour-advertisement'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-ICMPv6-Forward'
	option src 'wan'
	option dest '*'
	option proto 'icmp'
	list icmp_type 'echo-request'
	list icmp_type 'echo-reply'
	list icmp_type 'destination-unreachable'
	list icmp_type 'packet-too-big'
	list icmp_type 'time-exceeded'
	list icmp_type 'bad-header'
	list icmp_type 'unknown-header-type'
	option limit '1000/sec'
	option family 'ipv6'
	option target 'ACCEPT'

config rule
	option name 'Allow-IPSec-ESP'
	option src 'wan'
	option dest 'lan'
	option proto 'esp'
	option target 'ACCEPT'

config rule
	option name 'Allow-ISAKMP'
	option src 'wan'
	option dest 'lan'
	option dest_port '500'
	option proto 'udp'
	option target 'ACCEPT'

config zone
	option name '36'
	option input 'REJECT'
	option output 'ACCEPT'
	option forward 'REJECT'
	list network '36'

config forwarding
	option src 'lan'
	option dest '36'

config rule
	option name '[36] Allow-DHCP-and-DNS'
	list proto 'udp'
	option src '36'
	option dest_port '53 67 68'
	option target 'ACCEPT'

config forwarding
	option src '36'
	option dest 'wan'

That should be everything!

psherman · March 22, 2025, 10:00pm

You don't have DHCP servers setup for the 36 and guest networks.

Also, DNS (port 53) runs on both TCP and UDP.

You're also likely to have an issue with the guest network if you enable both bands... you should create an empty bridge for the guest network to manage that.

Lorthirk · March 22, 2025, 10:14pm

Thanks for pointing everything out. I applied those changes but apparently it's not working yet. Here's the updated outputs (except for the first one):

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
    option device 'lo'
    option proto 'static'
    option ipaddr '127.0.0.1'
    option netmask '255.0.0.0'

config globals 'globals'
    option ula_prefix 'fd52:6b6e:d7a1::/48'
    option packet_steering '1'

config device
    option name 'br-lan'
    option type 'bridge'
    list ports 'lan1'
    list ports 'lan2'
    list ports 'lan3'
    list ports 'lan4'
    list ports 'wan'

config interface 'lan'
    option device 'br-lan.11'
    option proto 'static'
    option ipaddr '192.168.1.1'
    option netmask '255.255.255.0'
    option ip6assign '60'

config interface 'wan'
    option device 'br-lan.835'
    option proto 'dhcp'
    option vendorid 'huawei_HW_E1A.A_SW_1.0.1b/dslforum.org'
    option ip6assign '64'

config bridge-vlan
    option device 'br-lan'
    option vlan '11'
    list ports 'lan1:u*'
    list ports 'lan2:u*'
    list ports 'lan3:u*'

config bridge-vlan
    option device 'br-lan'
    option vlan '36'
    list ports 'lan4:u*'

config bridge-vlan
    option device 'br-lan'
    option vlan '835'
    list ports 'wan:t*'

config device
    option name 'br-lan.835'
    option type '8021q'
    option ifname 'br-lan'
    option vid '835'
    option macaddr 'REDACTED'

config interface '36'
    option proto 'static'
    option device 'br-lan.36'
    option ipaddr '192.168.46.1'
    option netmask '255.255.255.0'

config interface 'guest'
    option proto 'static'
    option ipaddr '192.168.3.1'
    option netmask '255.255.255.0'
    option device 'br-guest'

config device
    option type 'bridge'
    option name 'br-guest'

root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
    option type 'mac80211'
    option path 'soc/1b500000.pci/pci0000:00/0000:00:00.0/0000:01:00.0'
    option band '5g'
    option channel '36'
    option htmode 'VHT80'
    option cell_density '0'

config wifi-device 'radio1'
    option type 'mac80211'
    option path 'soc/1b700000.pci/pci0001:00/0001:00:00.0/0001:01:00.0'
    option band '2g'
    option channel '1'
    option cell_density '0'

config wifi-iface 'wifinet0'
    option device 'radio0'
    option mode 'ap'
    option ssid 'Zireael 5 GHz'
    option encryption 'sae-mixed'
    option macfilter 'deny'
    list maclist 'REDACTED'
    option key 'REDACTED'
    option ocv '0'
    option network 'lan'

config wifi-iface 'wifinet1'
    option device 'radio1'
    option mode 'ap'
    option ssid 'Zireael 2.4 GHz'
    option encryption 'sae-mixed'
    option macfilter 'deny'
    list maclist 'REDACTED'
    option key 'REDACTED'
    option ocv '0'
    option network 'lan'

config wifi-iface 'wifinet2'
    option device 'radio0'
    option mode 'ap'
    option ssid 'Zireael Guest 5 GHz'
    option encryption 'sae-mixed'
    option macfilter 'deny'
    list maclist 'REDACTED'
    option key 'REDACTED'
    option ocv '0'
    option network 'guest'
    option disabled '1'

config wifi-iface 'wifinet3'
    option device 'radio1'
    option mode 'ap'
    option ssid 'Zireael Guest 2.4 GHz'
    option encryption 'sae-mixed'
    option macfilter 'deny'
    list maclist 'REDACTED'
    option key 'REDACTED'
    option ocv '0'
    option network 'guest'
    option disabled '1'

root@OpenWrt:~# cat /etc/config/dhcp

config dnsmasq
    option domainneeded '1'
    option boguspriv '1'
    option filterwin2k '0'
    option localise_queries '1'
    option rebind_protection '1'
    option rebind_localhost '1'
    option local '/lan/'
    option domain 'lan'
    option expandhosts '1'
    option nonegcache '0'
    option cachesize '1000'
    option authoritative '1'
    option readethers '1'
    option leasefile '/tmp/dhcp.leases'
    option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
    option nonwildcard '1'
    option localservice '1'
    option ednspacket_max '1232'
    option filter_aaaa '0'
    option filter_a '0'

config dhcp 'lan'
    option interface 'lan'
    option start '100'
    option limit '150'
    option leasetime '12h'
    option dhcpv4 'server'
    option dhcpv6 'server'
    option ra 'server'
    list ra_flags 'managed-config'
    list ra_flags 'other-config'

config dhcp 'wan'
    option interface 'wan'
    option ignore '1'

config odhcpd 'odhcpd'
    option maindhcp '0'
    option leasefile '/tmp/hosts/odhcpd'
    option leasetrigger '/usr/sbin/odhcpd-update'
    option loglevel '4'

config dhcp '36'
    option interface '36'
    option start '100'
    option limit '150'
    option leasetime '12h'

config dhcp 'guest'
    option interface 'guest'
    option start '100'
    option limit '150'
    option leasetime '12h'

root@OpenWrt:~# cat /etc/config/firewall

config defaults
    option input 'REJECT'
    option output 'ACCEPT'
    option forward 'REJECT'
    option synflood_protect '1'
    option flow_offloading '1'
    option flow_offloading_hw '1'

config zone
    option name 'lan'
    option input 'ACCEPT'
    option output 'ACCEPT'
    option forward 'ACCEPT'
    list network 'lan'

config zone
    option name 'wan'
    option input 'REJECT'
    option output 'ACCEPT'
    option forward 'REJECT'
    option masq '1'
    option mtu_fix '1'
    list network 'wan'

config forwarding
    option src 'lan'
    option dest 'wan'

config rule
    option name 'Allow-DHCP-Renew'
    option src 'wan'
    option proto 'udp'
    option dest_port '68'
    option target 'ACCEPT'
    option family 'ipv4'

config rule
    option name 'Allow-Ping'
    option src 'wan'
    option proto 'icmp'
    option icmp_type 'echo-request'
    option family 'ipv4'
    option target 'ACCEPT'

config rule
    option name 'Allow-IGMP'
    option src 'wan'
    option proto 'igmp'
    option family 'ipv4'
    option target 'ACCEPT'

config rule
    option name 'Allow-DHCPv6'
    option src 'wan'
    option proto 'udp'
    option dest_port '546'
    option family 'ipv6'
    option target 'ACCEPT'

config rule
    option name 'Allow-MLD'
    option src 'wan'
    option proto 'icmp'
    option src_ip 'fe80::/10'
    list icmp_type '130/0'
    list icmp_type '131/0'
    list icmp_type '132/0'
    list icmp_type '143/0'
    option family 'ipv6'
    option target 'ACCEPT'

config rule
    option name 'Allow-ICMPv6-Input'
    option src 'wan'
    option proto 'icmp'
    list icmp_type 'echo-request'
    list icmp_type 'echo-reply'
    list icmp_type 'destination-unreachable'
    list icmp_type 'packet-too-big'
    list icmp_type 'time-exceeded'
    list icmp_type 'bad-header'
    list icmp_type 'unknown-header-type'
    list icmp_type 'router-solicitation'
    list icmp_type 'neighbour-solicitation'
    list icmp_type 'router-advertisement'
    list icmp_type 'neighbour-advertisement'
    option limit '1000/sec'
    option family 'ipv6'
    option target 'ACCEPT'

config rule
    option name 'Allow-ICMPv6-Forward'
    option src 'wan'
    option dest '*'
    option proto 'icmp'
    list icmp_type 'echo-request'
    list icmp_type 'echo-reply'
    list icmp_type 'destination-unreachable'
    list icmp_type 'packet-too-big'
    list icmp_type 'time-exceeded'
    list icmp_type 'bad-header'
    list icmp_type 'unknown-header-type'
    option limit '1000/sec'
    option family 'ipv6'
    option target 'ACCEPT'

config rule
    option name 'Allow-IPSec-ESP'
    option src 'wan'
    option dest 'lan'
    option proto 'esp'
    option target 'ACCEPT'

config rule
    option name 'Allow-ISAKMP'
    option src 'wan'
    option dest 'lan'
    option dest_port '500'
    option proto 'udp'
    option target 'ACCEPT'

config zone
    option name '36'
    option input 'REJECT'
    option output 'ACCEPT'
    option forward 'REJECT'
    list network '36'

config forwarding
    option src 'lan'
    option dest '36'

config rule
    option name '[36] Allow-DHCP-and-DNS'
    option src '36'
    option dest_port '53 67 68'
    option target 'ACCEPT'
    list proto 'tcp'
    list proto 'udp'

config forwarding
    option src '36'
    option dest 'wan'

config zone
    option name 'guest'
    option input 'REJECT'
    option output 'ACCEPT'
    option forward 'REJECT'
    list network 'guest'

config forwarding
    option src 'guest'
    option dest 'wan'

psherman · March 22, 2025, 10:17pm

Did you restart the router after making the changes?

How are you testing? (wired or wifi or both)?

Lorthirk · March 22, 2025, 10:24pm

Yep, just restarted. I have a server attached to eth4 (which is the physical port attached to VLAN 36) and I see it cannot lease a new IP Also the same happening if I join one of the guest wifi networks...

psherman · March 22, 2025, 10:28pm

Is the server's Ethernet interface expecting the network to be tagged or untagged?

One test we can do is set the 36 zone firewall to accept input:

Meanwhile, you didn't add the DHCP+DNS accept rule for the guest firewall zone -- that will be necessary.

Lorthirk · March 22, 2025, 10:43pm

Good question, but unfortunately I'm not really sure where to look for the answer. The server is a Windows 10, and I can't find anything related in the options. Is that an hardware property?

However, two considerations:

Before the migration it was working as untagged. Here's the excerpt from the old configuration:

config switch_vlan
	option device 'switch0'
	option vlan '3'
	option vid '36'
	option description '36'
	option ports '6t 1'

Setting Input to Accept in 36 makes the DHCP seems to have no effect (isn't it related to the traffic incoming in the zone though?). If I set Accept to the global Input the DHCP works fine though.

Yeah, sorry about that -- I've been working on this all day, and I locked myself out of the firewall a few times, so I had a few factory resets as well and I may have skipped some steps. I'm glad you asked though, because after this the guest network is now working fine! Still no luck about the [36] though

psherman · March 22, 2025, 10:47pm

Does VLAN 36 need to be used on wifi or on more than one Ethernet port?

I don't know how VLANs are configured on Windows, but it's probably untagged if it worked previously.

Try plugging it into one of the other lan ports and see if it gets an IP.

Lorthirk · March 22, 2025, 10:48pm

Yes, as soon as it's connected to one of the ports of VLAN11 the DHCP works fine

psherman · March 22, 2025, 10:50pm

Ok...

If it's only used on one port, I'll recommend a few changes.

Lorthirk · March 22, 2025, 10:52pm

No, it's supposed to be used only on this single port at the moment.

psherman · March 22, 2025, 10:59pm

Ok... let's make a bunch of changes. Make a backup first, just in case anything goes wrong here.

Remove port lan4 and wan from br-lan:

Delete the bridge-VLANs:

Lorthirk:

config bridge-vlan
    option device 'br-lan'
    option vlan '11'
    list ports 'lan1:u*'
    list ports 'lan2:u*'
    list ports 'lan3:u*'

config bridge-vlan
    option device 'br-lan'
    option vlan '36'
    list ports 'lan4:u*'

config bridge-vlan
    option device 'br-lan'
    option vlan '835'
    list ports 'wan:t*'

Also delete the 802.1q stanza:

[quote="Lorthirk, post:5, topic:228182"]

config device
    option name 'br-lan.835'
    option type '8021q'
    option ifname 'br-lan'
    option vid '835'
    option macaddr 'REDACTED'

Edit the wan interface to use wan.835:

config interface 'wan'
    option device 'wan.835'
    option proto 'dhcp'
    option vendorid 'huawei_HW_E1A.A_SW_1.0.1b/dslforum.org'
    option ip6assign '64'

edit the lan to use br-lan:

Edit 36 to use device lan4 and let's also change the name of it to something alphanumeric:

config interface 'lan46'
    option proto 'static'
    option device 'lan4'
    option ipaddr '192.168.46.1'
    option netmask '255.255.255.0'

Likewise, we need to fix the DHCP server for the 36 network:

config dhcp 'lan46'
    option interface 'lan46'
    option start '100'
    option limit '150'
    option leasetime '12h'

And the firewall config needs to use the new name, too:

config zone
    option name 'lan46'
    option input 'REJECT'
    option output 'ACCEPT'
    option forward 'REJECT'
    list network 'lan46'

config forwarding
    option src 'lan'
    option dest 'lan46'

config rule
    option name 'lan46 Allow-DHCP-and-DNS'
    option src 'lan46'
    option dest_port '53 67 68'
    option target 'ACCEPT'
    list proto 'tcp'
    list proto 'udp'

config forwarding
    option src 'lan46'
    option dest 'wan'

Reboot and test again.

Lorthirk · March 22, 2025, 11:25pm

Ok... with this new configuration everything is working as expected!

Just one question though: I thought that the VLAN-based setup provided an additional layer of security, helping the server to stay as much isolated as possible from the rest of the network. Switching now to this port-based setup would be somehow less secure in that regard?

psherman · March 22, 2025, 11:27pm

No difference in security.

Nope. Not directly, anyway. It is the firewall that is responsible for keeping the networks isolated.

If your problem is solved, please consider marking this topic as [Solved]. See How to mark a topic as [Solved] for a short how-to.
Thanks!

Lorthirk · March 22, 2025, 11:38pm

Thanks for the explanation

Marked as solved with great pleasure!

Lorthirk · March 23, 2025, 12:27am

I'm afraid I spoke too soon

I just noticed I still had Accept in the global Input. As soon as I put it back to Reject the issues came back So, while simpler, it seems that this configuration is still not working.

psherman · March 23, 2025, 12:29am

Let’s see the latest firewall config.

dave14305 · March 23, 2025, 12:31am

Did you name everything lan36 or did you use lan46 which was a minor deviation in the suggested config?
