Yesterday I installed OpenWrt on my Redmi AX6000. I can not connect to 192.168.1.1 using wifi connection. It is only possible if i connect my laptop using lan cable. How to fix it?
use the wired connection to enable wifi ?
Yes I enabled wifi using webui and connected succesfully. I am connected to this network. It works, but the speeds are random.
- they usually are
- define "random"
- what are you testing, and how ?
- have you set a country for your wifi ?
I have 1GB and speeds are sometimes 50 megabit, sometimes 700 megabit, sometimes 450.
I test using speedtest.net
I set my my country in settings.
But why I can't connect to 192.168.1.1 when on wifi?
welcome to internet.
test using a wired connection.
because you probably misconfigured something, or aren't connected to the correct wifi.
Wifi is correct. Can I reset OpenWrt to default settings somehow? Will it help?
there's a "Perform reset" option in System -> Backup / Restore Firmware.
probably, but we can only guess.
the default settings are correct, you "only" need to set the wifi name, password, encryption and country.
Ok, probelm connecting to 192.168.1.1 sovled. Is there really nothing to do to have more stabe internet speeds? I am like only 5 meters from router.
Call your ISP and complain...
By default, the config for a new install to a router disables wifi as a security measure. I can't remember if wifi has a default SSID set. 'OpenWRT' without encryption, which isn't secure if left unconfigured.
You seem to have received snark and abuse for your concerns about the wifi speeds - as an openwrt member, i can only apologize, and hope others will stop by and offer useful suggestions.
The wifi basics i would check (for each interface listed in Network -> wireless overview):
- correct country code, (under 'Advanced settings')
- channel set to 'auto', bandwidth set as you want it,
- mode set to the fastest for the given frequency.
Those are the first things to check, after that, degubbing wifi speed changes becomes more of a challenge. Suspicious messages in the log (Status->System Log) ?
Interference from other devices, nearby networks? Others pirating your connection if you haven't set wireless encryption method and password?
Good luck, hopefully you can search this category for wireless speed debugging. There will be many threads on this!
Thank you. It was a very helpful suggestion. I had it set on channel 1 and 36, not auto. We'll see how this works now.
Fyi, specifying a specific channel could force the radio being disabled if that one channel is not available.
At a minimum it may force your traffic onto a channel already crowded by some of your neighbors.
Even though I set it to "auto", it still uses channels 1 (2.4GHz) and 36 (5GHz). I assume it takes a while to set to the optimal channel?
I feel that there is a lot of guessing, but it would be best to see the config to be able to determine what is actually happening on the device.
Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
Remember to redact passwords, MAC addresses and any public IP addresses you may have:
ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall
ifstatus wan | grep address
For the last one (ifstatus wan), please only post the first two octets (in bold: aaa.bbb.ccc.ddd)
root@OpenWrt:~# ubus call system board
{
"kernel": "5.15.167",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Xiaomi Redmi Router AX6000 (stock layout)",
"board_name": "xiaomi,redmi-router-ax6000-stock",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "23.05-SNAPSHOT",
"revision": "r24133-33b45c0a0e",
"target": "mediatek/filogic",
"description": "OpenWrt 23.05-SNAPSHOT r24133-33b45c0a0e"
}
}
=========================================================================================
root@OpenWrt:~# cat /etc/config/network
config interface 'loopback'
option device 'lo'
option proto 'static'
option ipaddr '127.0.0.1'
option netmask '255.0.0.0'
config globals 'globals'
option ula_prefix 'fd9d:be3b:8a3c::/48'
config device
option name 'br-lan'
option type 'bridge'
list ports 'lan2'
list ports 'lan3'
list ports 'lan4'
config interface 'lan'
option device 'br-lan'
option proto 'static'
option ipaddr '192.168.1.1'
option netmask '255.255.255.0'
option ip6assign '60'
config device
option name 'wan'
option macaddr 'macmacmacmacmacmac'
config interface 'wan'
option device 'wan'
option proto 'dhcp'
config interface 'wan6'
option device 'wan'
option proto 'dhcpv6'
=========================================================================================
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/soc/18000000.wifi'
option channel '1'
option band '2g'
option htmode 'HE20'
option country 'PL'
option cell_density '0'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'psk2'
option key 'passpasspasspasspasspass'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/soc/18000000.wifi+1'
option channel '36'
option band '5g'
option htmode 'HE80'
option country 'PL'
option cell_density '0'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'psk2'
option key 'passpasspasspasspasspass'
=========================================================================================
root@OpenWrt:~# cat /etc/config/dhcp
config dnsmasq
option domainneeded '1'
option boguspriv '1'
option filterwin2k '0'
option localise_queries '1'
option rebind_protection '1'
option rebind_localhost '1'
option local '/lan/'
option domain 'lan'
option expandhosts '1'
option nonegcache '0'
option cachesize '1000'
option authoritative '1'
option readethers '1'
option leasefile '/tmp/dhcp.leases'
option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
option nonwildcard '1'
option localservice '1'
option ednspacket_max '1232'
option filter_aaaa '0'
option filter_a '0'
list rebind_domain 'free.aero2.net.pl'
option confdir '/tmp/dnsmasq.d'
config dhcp 'lan'
option interface 'lan'
option start '100'
option limit '150'
option leasetime '12h'
option dhcpv4 'server'
option dhcpv6 'server'
option ra 'server'
option ra_slaac '1'
list ra_flags 'managed-config'
list ra_flags 'other-config'
config dhcp 'wan'
option interface 'wan'
option ignore '1'
config odhcpd 'odhcpd'
option maindhcp '0'
option leasefile '/tmp/hosts/odhcpd'
option leasetrigger '/usr/sbin/odhcpd-update'
option loglevel '4'
=========================================================================================
root@OpenWrt:~# cat /etc/config/firewall
config defaults
option syn_flood 1
option input REJECT
option output ACCEPT
option forward REJECT
# Uncomment this line to disable ipv6 rules
# option disable_ipv6 1
config zone
option name lan
list network 'lan'
option input ACCEPT
option output ACCEPT
option forward ACCEPT
config zone
option name wan
list network 'wan'
list network 'wan6'
option input REJECT
option output ACCEPT
option forward REJECT
option masq 1
option mtu_fix 1
config forwarding
option src lan
option dest wan
# We need to accept udp packets on port 68,
# see https://dev.openwrt.org/ticket/4108
config rule
option name Allow-DHCP-Renew
option src wan
option proto udp
option dest_port 68
option target ACCEPT
option family ipv4
# Allow IPv4 ping
config rule
option name Allow-Ping
option src wan
option proto icmp
option icmp_type echo-request
option family ipv4
option target ACCEPT
config rule
option name Allow-IGMP
option src wan
option proto igmp
option family ipv4
option target ACCEPT
# Allow DHCPv6 replies
# see https://github.com/openwrt/openwrt/issues/5066
config rule
option name Allow-DHCPv6
option src wan
option proto udp
option dest_port 546
option family ipv6
option target ACCEPT
config rule
option name Allow-MLD
option src wan
option proto icmp
option src_ip fe80::/10
list icmp_type '130/0'
list icmp_type '131/0'
list icmp_type '132/0'
list icmp_type '143/0'
option family ipv6
option target ACCEPT
# Allow essential incoming IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Input
option src wan
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
list icmp_type router-solicitation
list icmp_type neighbour-solicitation
list icmp_type router-advertisement
list icmp_type neighbour-advertisement
option limit 1000/sec
option family ipv6
option target ACCEPT
# Allow essential forwarded IPv6 ICMP traffic
config rule
option name Allow-ICMPv6-Forward
option src wan
option dest *
option proto icmp
list icmp_type echo-request
list icmp_type echo-reply
list icmp_type destination-unreachable
list icmp_type packet-too-big
list icmp_type time-exceeded
list icmp_type bad-header
list icmp_type unknown-header-type
option limit 1000/sec
option family ipv6
option target ACCEPT
config rule
option name Allow-IPSec-ESP
option src wan
option dest lan
option proto esp
option target ACCEPT
config rule
option name Allow-ISAKMP
option src wan
option dest lan
option dest_port 500
option proto udp
option target ACCEPT
### EXAMPLE CONFIG SECTIONS
# do not allow a specific ip to access wan
#config rule
# option src lan
# option src_ip 192.168.45.2
# option dest wan
# option proto tcp
# option target REJECT
# block a specific mac on wan
#config rule
# option dest wan
# option src_mac macmacmacmacmacmac
# option target REJECT
# block incoming ICMP traffic on a zone
#config rule
# option src lan
# option proto ICMP
# option target DROP
# port redirect port coming in on wan to lan
#config redirect
# option src wan
# option src_dport 80
# option dest lan
# option dest_ip 192.168.16.235
# option dest_port 80
# option proto tcp
# port redirect of remapped ssh port (22001) on wan
#config redirect
# option src wan
# option src_dport 22001
# option dest lan
# option dest_port 22
# option proto tcp
### FULL CONFIG SECTIONS
#config rule
# option src lan
# option src_ip 192.168.45.2
# option src_mac macmacmacmacmacmac
# option src_port 80
# option dest wan
# option dest_ip 194.25.2.129
# option dest_port 120
# option proto tcp
# option target REJECT
#config redirect
# option src lan
# option src_ip 192.168.45.2
# option src_mac macmacmacmacmacmac
# option src_port 1024
# option src_dport 80
# option dest_ip 194.25.2.129
# option dest_port 120
# option proto tcp
=========================================================================================
root@OpenWrt:~# ifstatus wan | grep address
"addresses",
"ipv4-address": [
"address": "192.168.18.2",
"ipv6-address": [
"ipv4-address": [
"ipv6-address": [
to which device the wan is connected to?
are you using as wired repeater or main router?
is same behaviour seen in wired pc or only in wifi connected devices?
does 2.4 ghz and 5 ghz network signal weak/ what is the rssi?
So it is clear that you have another router upstream of the OpenWrt device.
With that in mind, when you connect to wifi and try to reach 192.168.1.1, are you doing this by connecting to the SSID called "OpenWrt" or are you connecting to the wifi of the upstream router?

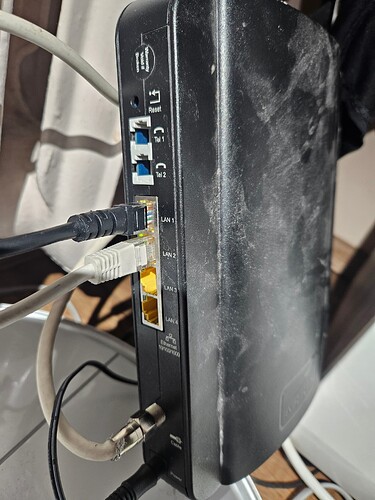

My connection: the signal from the operator comes via a coaxial cable to the operator's modem (which also has wifi, but deactivated because I didn't need to use it). Redmi AX6000 is connected to it via LAN1. I connected an old router to LAN2 (I have my smart home configured on it - Aqara, Xiaomi. It will take me a long time to transfer it to the new one, so for now it works in parallel).
So, let's go back to the initial problem... you said you cannot login to the OpenWrt router when connected to wifi. Is that still an issue?
If so, please check the IP address of the device you are using while you attempt to make that connection (phone, computer, tablet) and report that here.
