Share Internet Connection for Clients, Easy Enable/Disable

[BrunoF]

Hello to all.

I have installed the latest version of OpenWRT in a virtual machine on an ESXi.
This machine has 2 Ethernet ports. One Eth0 is responsible for distributing IP addresses via DHCP including DNS for my network of 20-30 PCs.
On Eth1 the OpenWRT is a client of an internet router. I use DHCP with "3, 127.0.0.1" to tell the clients that their default gateway is themselves. This means that they have no Internet access.
I would like to solve this more elegantly. Also for individual clients.

What is the best way to do this via LuCi? Is there an add-in?

Click to switch the Internet on and off.

Best regards

[eduperez]

If you let the OpenWrt be the gateway (as per default config), then you can easily manipulate the firewall and enable or disable the forwarding rules.

[BrunoF]

yes, exactly. i noticed that.

Firewall is still a closed book.

Can you recommend a tutorial?

[eduperez]

AFAIK, you just need to:

1. Remove the DHCP option, and let OpenWrt be the default gateway.

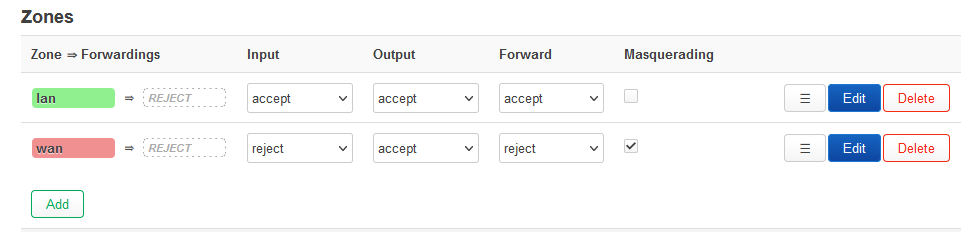

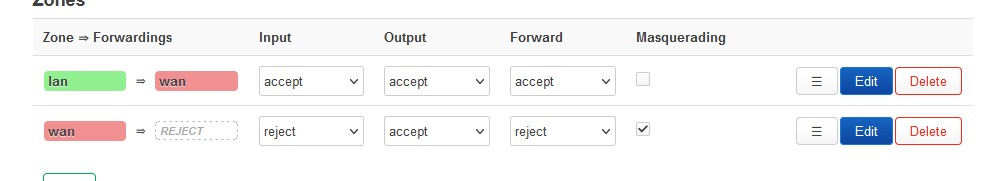

2. In the screen you posted, enable or disable the forwarding from LAN to WAN.

[BrunoF]

i can solve my problem.

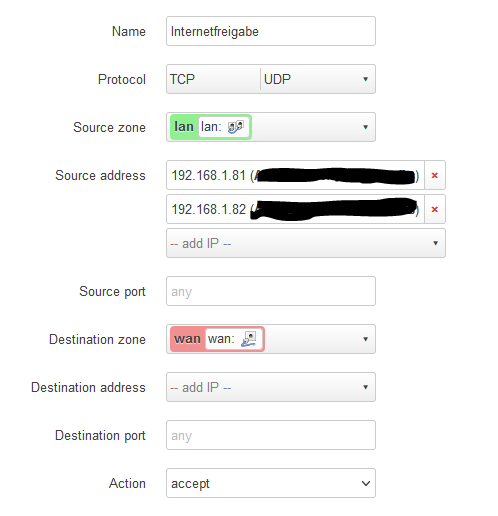

the right word was "Traffic Rules"

Thank you for your Help!

[BrunoF]

i reject all from "LAN".
