Setting up multiple VLANs but LAN ports are missing in 24.10

Installing and Using OpenWrt
1

Hi this might be a stupid questioin, but I cannot find the info I am looking for.

Router: TP LInk A6 EU V2 (C6 firmware 24.1)

I need to use LAN 2 - LAN 4 on eth.0 to create VLANs. Unfortunately these network devices are not available. How can I setup a VLAN per port without the LANs as network devices?

I am trying to use bridges and vlans.

Any help is welcome, also if just a pointer to the documentation.

Thanks in advance
Rob

2

You need to use bridge-VLANs. See the following tutorial.

If you need help to achieve this goal, please describe your VLAN objectives, including the port-by-port VLAN membership and then post your current configuration.

2 Likes
3

My problem is this:

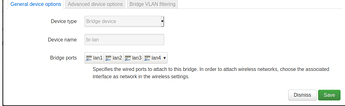

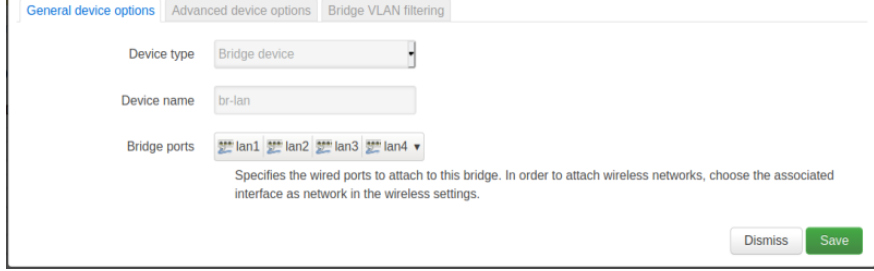

image874×271 45.5 KB

I do not have the lan interfaces. When i tried to add them, the config no longer does anything and i have to go to fail safe and reload the working config i backed up.

Any thoughts?

thanks, Rob
