Seaching for 60 GHz cable / Company Logo

[PolynomialDivision]

I'm searching for a 60 GHz cable that connects the chip with the antenna. Or for the company that is producing that cable. Or the name? (X.FL, JSC Type)?

It is used in

• Wireless Wire (wap60g)
• QCA9008

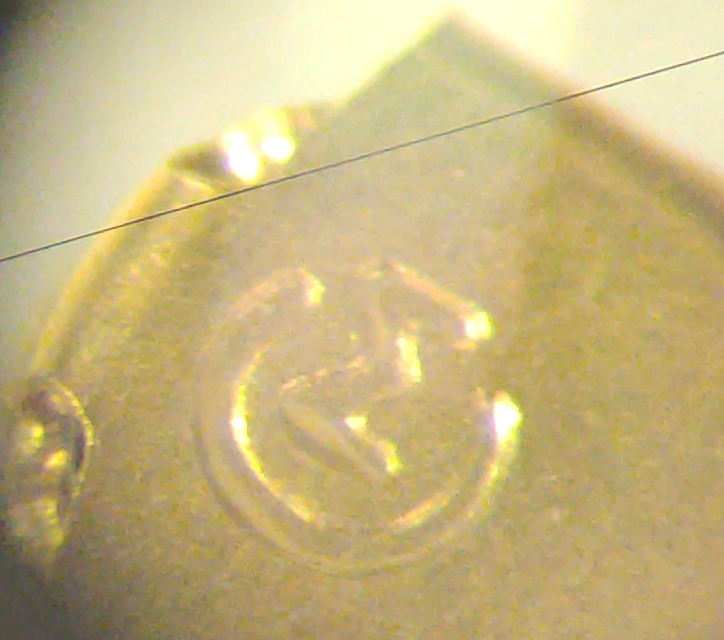

There is a logo on it:

The connector looks like this:

I think it has a size of approxmately 1.25mm.

Promissing Links:

• https://www.hirose.com/product/series/X.FL?lang=en#
• https://www.murata.com/-/media/webrenewal/support/library/catalog/products/switch/switch/o33e.ashx?la=en-us

Any idea?

[PolynomialDivision]

Plane:

[ynezz]

IPEX MHF4
Murata HSC
Amphenol AMC4

[PolynomialDivision]

I'm not sure, I think they are to big. The connector is very very small, but it could be. Thanks.

But now I know, it is definitely a Murata Cable! You can see if you look for Murata HSC in the product sheet that is has the same "M" Logo.

[Ansuel]

Also they looks like normal wifi cable... Nothing special ahahha (I mean they are cable not antenna so i think there is nothing special in it)

[mk24]

Murata only rates that connector to 6 GHz, but apparently it does something at 60.

At 60 GHz the signal loss in cable is going to be huge. It is not practical to connect more than a few inches of coax to the radio there will be a severe performance penalty.

[PolynomialDivision]

@Ansuel

Also they looks like normal wifi cable

They are much smaller.

[PolynomialDivision]

@mk24

At 60 GHz the signal loss in cable is going to be huge. It is not practical to connect more than a few inches of coax to the radio there will be a severe performance penalty.

This is how it is done in the wireless wire:

But maybe the signal is mixed down(? not sure if this is the correct word) directly after receiving the signal. Look at this (this is the antenna):
