RTL8821CS nano pi r2s

Installing and Using OpenWrt
1

Hi, I ran into a situation.
I have a nano pi r2s plus with a wif module

I have a nano pi r2s plus with a wif module(RTL8821CS)

image559×184 15.4 KB

there is no way to set up an access point
Please tell me what can be done.

2

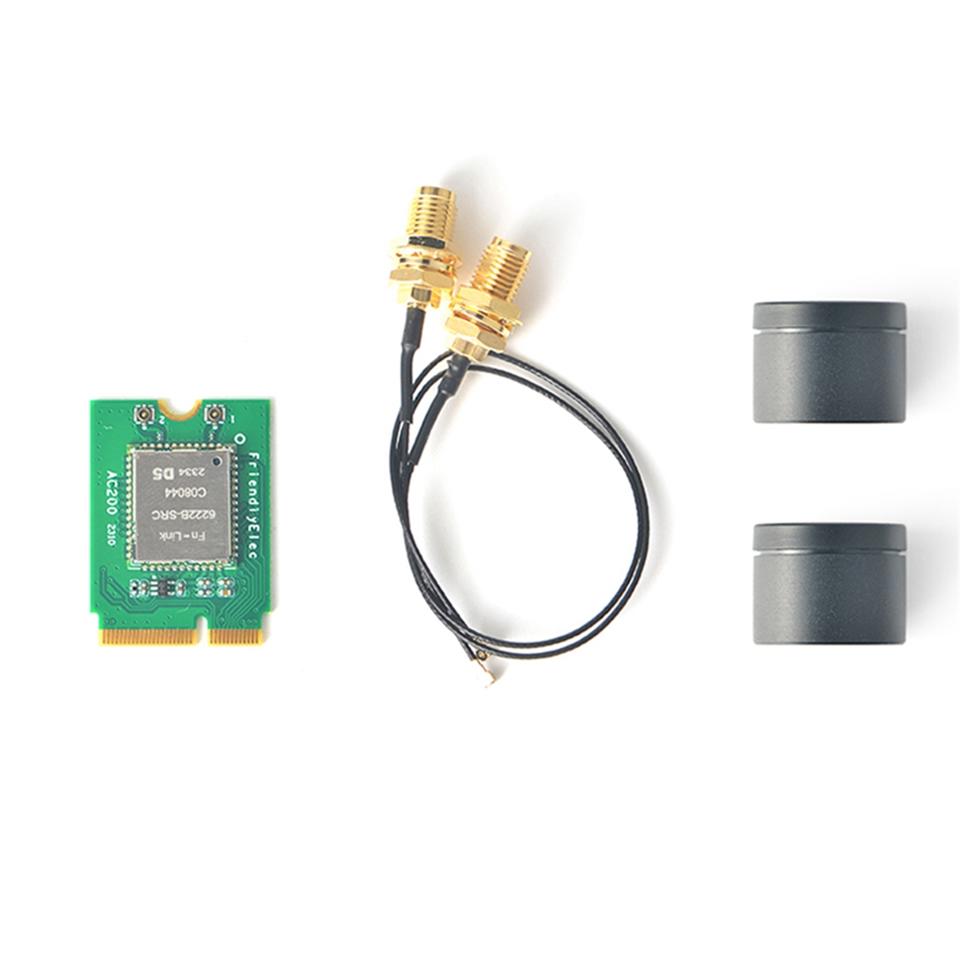

Does not seem to have mainline support. Though worth exploring what driver is used by R2S system.... https://www.fn-link.com/6222B-SRC-Wi-Fi-Module-pd40585380.html

3

Liar liar , supported in mainline, you may need to add some conf options....
https://github.com/torvalds/linux/blob/dd9b004b7ff3289fb7bae35130c0a5c0537266af/drivers/net/wireless/realtek/rtw88/Kconfig#L184

4

how to do it?

5

image1043×292 15.4 KB

6

First build with kmod added via kernel_menuconfig, then make a pull request with the kmod package.

7

thank you, I think it will be difficult for me

8

Probably if you wait another five years the other user will do that for you.

9

I think I made a mistake there 8822cs

The question here is not to wait
if I understood how to assemble it, then yes

10

perhaps there are other modules that already have packages?

11

There is some learning curve involved. Start with getting familiar with ubuntu or debian in a virtual machine

12

I have another module RTL8852BE
Will she work with him?
Which module do you recommend?
