Router BQ G010693 Mesh

Hello Everyone,

I've got some routers from BQ (old company) that already disappeared from the market.

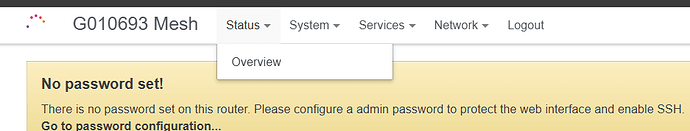

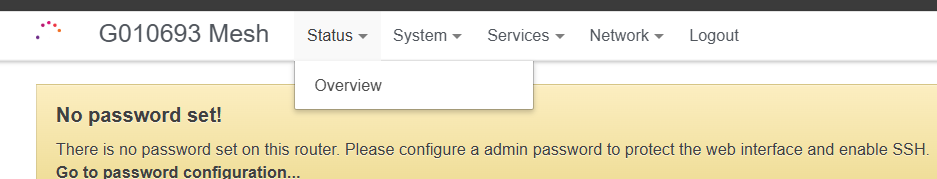

They used this interface:


That's from OpenWRT, but this firmware is so limited, there is no option to delete nothing, and it's impossible to change WiFi settings (only 80 MHz).
What are the best ways to unlock this piece of technology, because it uses good hardware, but it's everything locked...

Thanks for everything,
Luis

Can you get boot log? (In OpenWRT Status/Logs)
Site where you would download firmware update?
SSH access?

Hello,


No bootlog option...
There is no website to download firmware updates now...
No SSH access too

we don't know, you own the devices, we don't.
you could consider sending one to an openwrt dev, in exchange for getting it supported, assuming it's supportable.

Try these URL-s (and show the address displayed, it is tough to guess what youre hiding.

/cgi-bin/luci/admin/status/logs
/cgi-bin/luci/admin/system/startup
/cgi-bin/luci/admin/status/processes

That's a good idea...
Where can I find an OpenWRT Dev ?

find out if device is supportable 1st.

In the mirror, since you have that unique device. We now work hard to identify unsupportable devices so you do not waste effort eventually.

Log from nmap:

So, it's supported, right?


Always redirects to Page not found

nope

if you can't get the hw info in any other way, open it up, post photos.

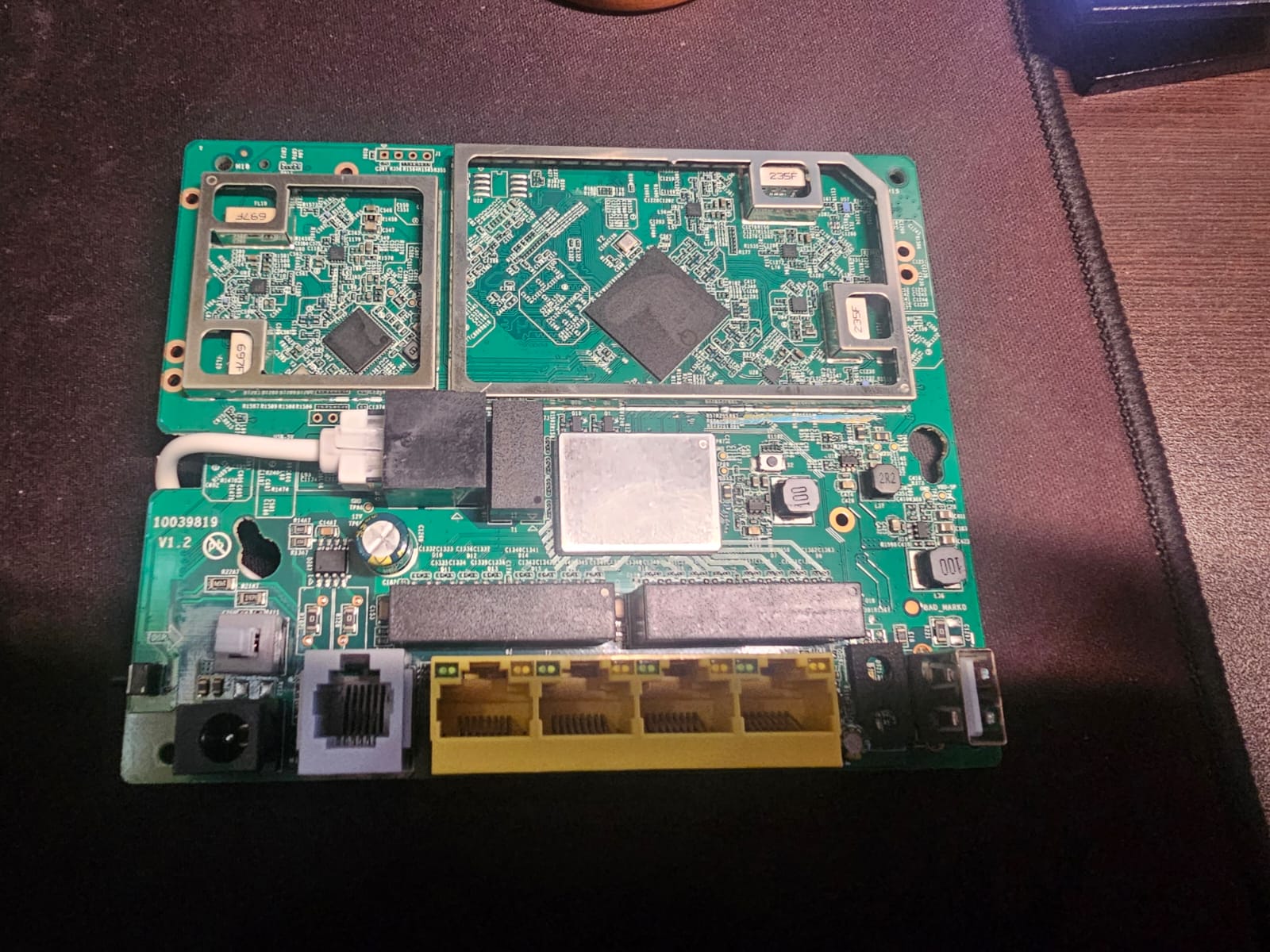

One

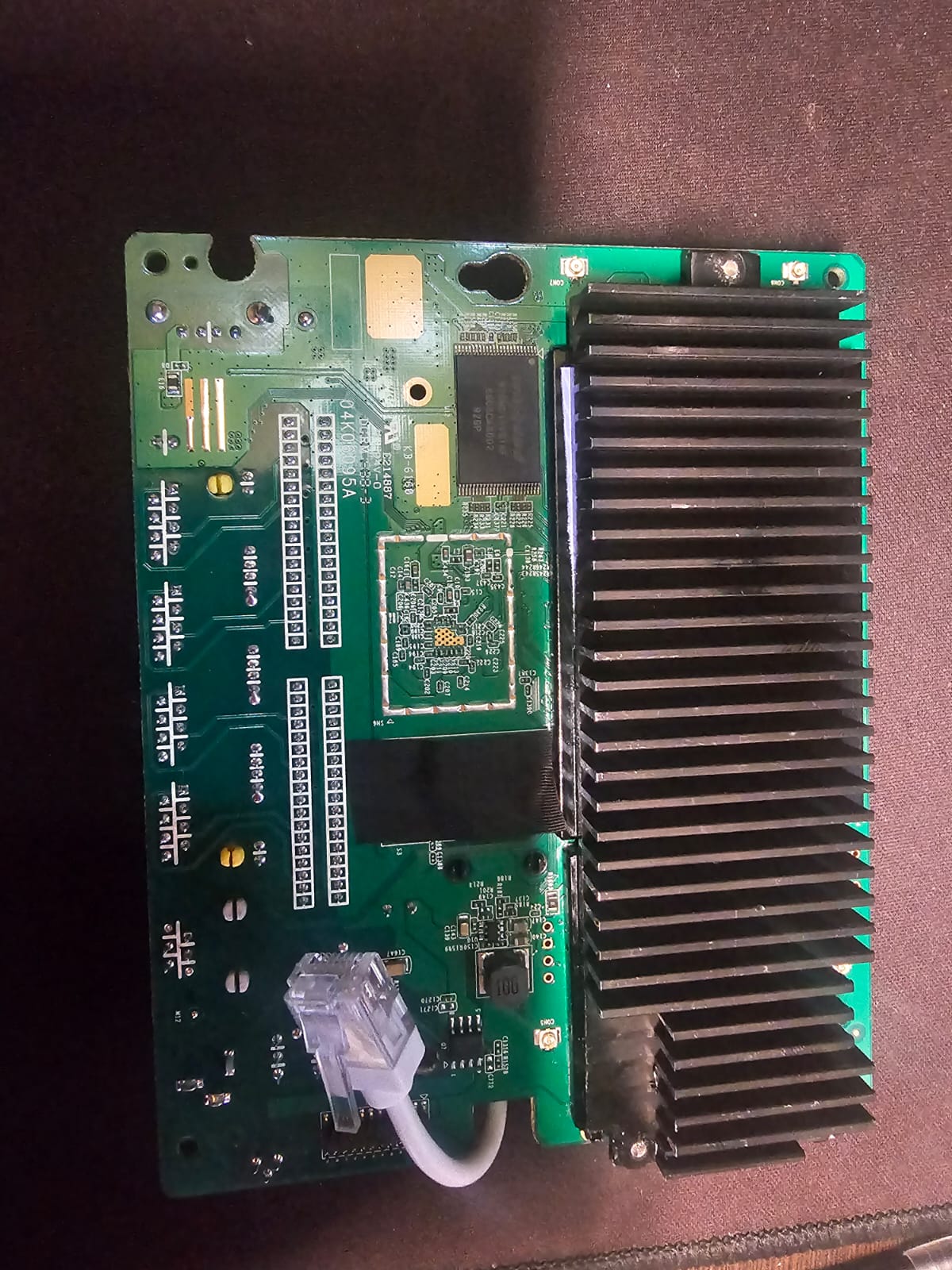

Two

unless you want to remove the heat sinks, you'll need serial console access.


1 Like

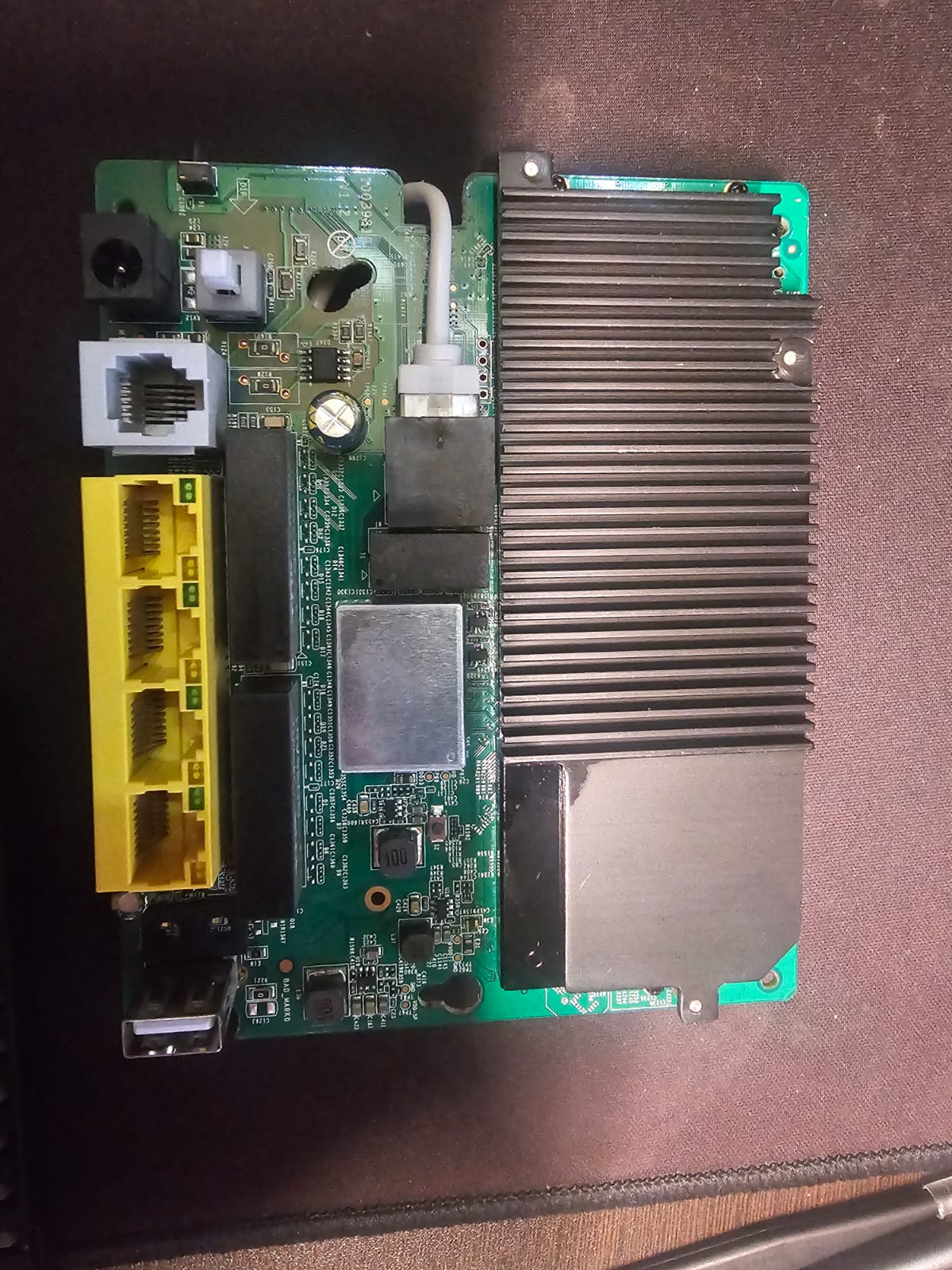

Sorry: 1

2:

Qualcomm something, but I can't make out the writing on the big chip.

Which One big chip?
I can take a better photo

Seems too much spare nail polish at factory. Q alcomm logo shines through?
