Radio inactive on boot

Installing and Using OpenWrt
1

hi,

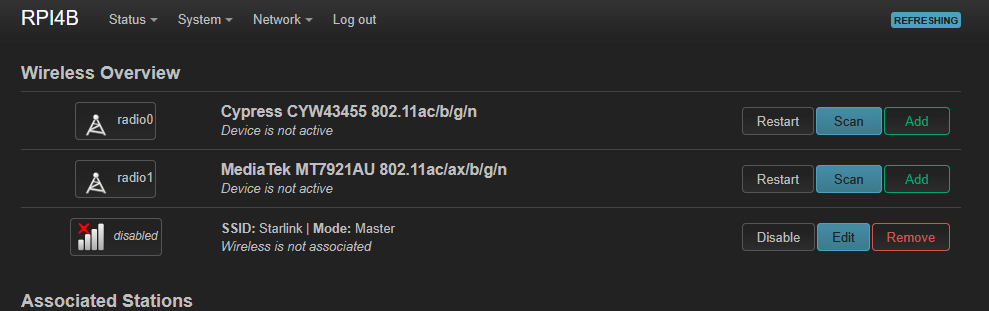

just bought a mt7921au usb wifi dongle today. it works well but does not automatically start on boot. i have to manually press restart and then everything works.

image989×311 19.2 KB

2

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:
grafik
Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall
1 Like
3
root@RPI4B:~# ubus call system board
{
        "kernel": "6.6.93",
        "hostname": "RPI4B",
        "system": "ARMv8 Processor rev 3",
        "model": "Raspberry Pi 4 Model B Rev 1.2",
        "board_name": "raspberrypi,4-model-b",
        "rootfs_type": "ext4",
        "release": {
                "distribution": "OpenWrt",
                "version": "24.10.2",
                "revision": "r28739-d9340319c6",
                "target": "bcm27xx/bcm2711",
                "description": "OpenWrt 24.10.2 r28739-d9340319c6",
                "builddate": "1750711236"
        }
}

root@RPI4B:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fda1:f774:d4c5::/48'
        option packet_steering '1'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'eth0'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ip6assign '60'
        list ipaddr '10.1.1.1/24'

config interface 'wan'
        option proto 'pppoe'
        option device 'eth1'
        option ipv6 'auto'
        option username '---'
        option password '---'


root@RPI4B:~# cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path 'platform/soc/fe300000.mmcnr/mmc_host/mmc1/mmc1:0001/mmc1:0001:1'
        option band '5g'
        option channel '36'
        option htmode 'VHT80'
        option disabled '1'

config wifi-device 'radio1'
        option type 'mac80211'
        option path 'scb/fd500000.pcie/pci0000:00/0000:00:00.0/0000:01:00.0/usb2/2-2/2-2:1.0'
        option band '5g'
        option channel 'auto'
        option htmode 'HE80'
        option country 'BD'
        option cell_density '0'

config wifi-iface 'default_radio1'
        option device 'radio1'
        option network 'lan'
        option mode 'ap'
        option ssid 'Starlink'
        option encryption 'psk2+ccmp'
        option key '---'


cat /etc/config/dhcp

config dnsmasq
        option domainneeded '1'
        option localise_queries '1'
        option rebind_protection '0'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option localservice '1'
        option ednspacket_max '1232'
        option sequential_ip '1'
        option allservers '1'
        list interface 'lan'

config dhcp 'lan'
        option interface 'lan'
        option start '6'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'

config dhcp 'wan'
        option interface 'wan'
        option ignore '1'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'


root@RPI4B:~# cat /etc/config/firewall

config defaults
        option syn_flood '1'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'

config zone
        option name 'lan'
        list network 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'

config zone
        option name 'wan'
        list network 'wan'
        list network 'wan6'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option masq '1'
        option mtu_fix '1'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config include 'pbr'
        option fw4_compatible '1'
        option type 'script'
        option path '/usr/share/pbr/firewall.include'
4

Bangladesh allows very few wifi channels.
1/ set country / save apply
2/ set width to 40 / save apply
3/ choose one of 3 channel options.

5

Probably set SoC *cypress" radio to 2.4ghz band .

6

manually set country, width, channel and the SoC radio. nothing worked. stays inactive.

7
  • older thread, but do a quick flyover, if anything grabs your attention: WiFi does not turn on automatically on startup
  • you can dump logread output to a disk file, right after a reboot, once with and once without USB wifi dongle, and compare the files, whether anything suspicious shows up
  • check if your powering is ok. Though having lots of ports, the powering of USB devices on RPi is not very strong and meant more for input devices and sensors, it can be overwhelmed easily with hard disks, Wifi dongles, >100m LAN dongles and mobile network dongles. If you have a powered USB hub, try if it makes any difference.

,

8

solved it by adding (sleep 1; wifi down radio1; wifi up radio1) & to rc.local

9
