Quantum Fiber W1700k support

For Developers
371

I had this issue of wirless hanging on initial and 6.6 builds, device setup as normal AP.
In my case it hangs after certain time and changing channel fixes it for sometime.

372

Another minor bug

Wireless radio noise is all the same in Luci

noize
noize1817Ɨ281 44.3 KB

root@W1700K:~# iwinfo
phy0.0-ap0 ESSID: "wireless"
         ...
         Signal: 0 dBm  Noise: -72 dBm
         ...

phy0.1-ap0 ESSID: "wireless"
         ...
         Signal: -52 dBm  Noise: -82 dBm
         ...

phy0.2-ap0 ESSID: "wireless"
         ...
         Signal: 0 dBm  Noise: -84 dBm
         ...
1 Like
373

The stock firmware file is listed in /etc/config/axon_platform_manager and it is a plain HTTP, unauthenticated URL. I was able to download the file. Not listing it here, but you can find it there.

I just received my unit and it started at U-Boot 2014.04-rc1 (Dec 01 2023 - 14:34:20) AXON 1.6 and firmware version WXK001-05.00.30.02. After connecting it to the Internet it self-updated within a few minutes to U-Boot 2014.04-rc1 (Jun 12 2024 - 08:14:34) AXON 2.0 and firmware version WXK001-05.00.31.06. Iā€™m going to block my unit MAC in my firewall until I can block the self-updater in the unit config.

1 Like
374

http://gcs-firmware-details-prod-002.storage.googleapis.com/W1700K/WXK001-05.00.31.06.bin

3 Likes
375

Protip: Donā€™t use ā€œrebootā€ (the CLI command) in failsafe. It doesnā€™t save /etc/config changes. Pull the power plug to reboot.

There are two daemons that talk to the internet on the stock firmware.

anld

avec_producer

anld - appears to be from Mediatek. It looks like the firmware updater service. I guess it phones home to Mediatek. I have not debugged what the traffic looks like. Stop with ā€œservice disable anldā€ should stop part of the self-updating firmware ability.

avec_producer - It appears to be the ISP cloud management service (using Apache Pulsar). It talks to the ISP server for wireless management and firmware update commands. Setting the ā€œorchestratorā€ ā€œenableā€ flag to ā€œ0ā€ in /etc/config/axon_platform_manager stops this from running. This should stop the phone home to the ISP management service.

Maybe this was already diagnosed but this thread is quite large now and I donā€™t recall seeing these services listed.

2 Likes
376

This is new information. Nothing like this has been reported.

377

I was mistaken about "anld"... it is the GPS service. I see hurrian previously documented there is a GPS in this router. I took the coordinates saved in /etc/default/anld/location.dat and they are for my house. Fun.

The "anld" service is controlled via axon_platform_manager and can be disabled there in the "gps" section of /etc/config/axon_platform_manager. Setting "service anld disable" is overwritten by axon_platform_manager.

1 Like
378

For those of you wanting to unhide the stock firmware:

  1. service axon_platform_manager stop - I have not been able to find the config setting yet.
  2. Set mapd (multi-AP daemon, proprietary?) to unhide:
# uci set mapd.4.hidden='N'
# uci set mapd.5.hidden='N'
# uci set mapd.6.hidden='N'
# uci commit
# service p1905_managerd restart

After a minute the AP should appear. You can find your AP passphrase in either the /etc/config/wireless file or /etc/map/wts_bss_info_config.

2 Likes
379

Iā€™ve discovered a way to enable UNII-4 on this device. These are channels 169, 173, and 177 on the 5Ghz band. Importantly, this enables a 160Mhz wide channel between 149 and 177, only the third 160Mhz channel in 5Ghz, and the only one that doesnā€™t require DFS radar scanning.

To enable this requires only a slight change in the DTS file and a fix in the regulatory database. If you would like to test, you will need to sysupgrade to the latest version here: https://github.com/OpenWRT-fanboy/w1700k (updating just the regulatory database wonā€™t work)

Note that no WiFi client and few routers/APs support UNII-4. The use case for this is really for mesh setups. However, you can set a 160Mhz channel at 149 and unsupported clients will drop down to 80Mhz automatically.

3 Likes
380

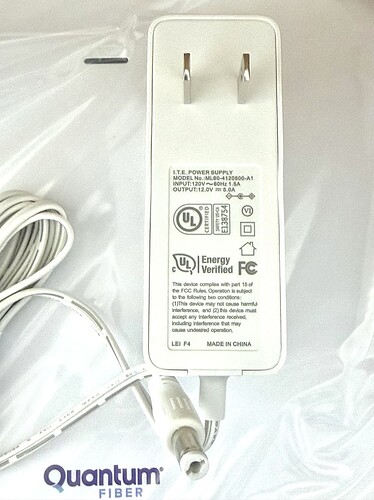

Can anyone here give the OEM Power Supply Unit specs for this device?

381

ps
ps998Ɨ1331 102 KB

Got a brand new unit from :fire:Quantum Fiber W1700K Wifi Bluetooth Internet Router NIBā€‹:fire: | eBay. Thereā€™s still a few left. Surprised no one from Europe hasnā€™t tried to go through the shipping hassle to buy the remaining lot. Should be able to resell easily to European enthusiasts and make a small profit for the effort.

2 Likes
382

Does it have EU plug or only USA standard?

383

Look at the input voltage too .. only 120volts. For Eu you need converter or new power supply.

Kr

K

1 Like
384

In Argentina we use 220 volts and this adapter hasn't exploded yet, so it supports European voltage.

4 Likes
385

Can you put a README.md file in your repo? Please describe what feature sets are available and what is not available and/or the experimental status of a feature.

Also, please document where and how you built your images. I certainly don't trust a binary image with no source and only known as "OpenWRT-fanboy". Looks fake (IMHO). No offense intended.

386

Itā€™s not meant to be user friendly. Itā€™s just a resource for those on this thread. Everything you need to know is posted here.

1 Like
387

https://www.ebay.com/itm/135875159907 will accept $30 if you buy more than one, at least they did for me.
shipping is free.

3 Likes
388

Where do they get these things? This shoulda been OpenWrt Two!

389

Surplus ? Overstock ? or some local Quantum rep gone belly up ?

1 Like
390

I've secured four of these.
Thanks.

1 Like
