Problem Discovery network

Installing and Using OpenWrt
1

Hi,

I'm having a network discovery issue between LAN and LAN2 zones.

  1. Where is my problem ?
  2. Enable IGMP snooping is required ?
  3. mDNS is required ?

thank.

Router:

Hostname openwrt
Model ASUS RT-AC88U
Architecture ARMv7 Processor rev 0 (v7l)
Target Platform bcm53xx/generic
Firmware Version OpenWrt 23.05.5 r24106-10cc5fcd00 / LuCI openwrt-23.05 branch git-24.346.66847-1bb28ba
Kernel Version 5.15.167
Local Time 2024-12-22 12:31:03
Uptime 0h 13m 40s
Load Average 0.06, 0.03, 0.00

Network:

LAN1: 192.168.0.1/24 (Area LAN)
LAN2: 192.168.20.3/24 (Area LAN2)
WAN: 192.168.1.1/24

Firewall:

LAN1 allow to go LAN2
LAN2 allow to go LAN1

Server:

OS: OpenMediaVault
Network: LAN2
IPv4: 192.168.20.3
Gateway: 192.168.20.1
DNS: 192.168.20.1
Service Enable: SMB/CIFS

Computer: 1

OS: Windows 10
Network: LAN2
IPv4: 192.168.20.2
Gateway: 192.168.20.1
DNS: 192.168.20.1
Network Discovery: Work
Access Share: yes

Computer: 2

OS: Windows 10
Network: LAN1
IPv4: 192.168.0.2
Gateway: 192.168.0.1
DNS: 192.168.0.1
Network Discovery: NOT Work
Access Share: yes but manually requiered (Explorer: \\192.168.20.3)

2

Could you explain what is"network discovery" like protocol names etc.

1 Like
3

Hi,

The discovery network with windows to get list computer who get a share.
Computer:

  • Start explorer
  • Go to Network
  • Enable discovery network
  • Server Samba is discovery for to connect

i think a protocol:

LLMNR (Link-Local Multicast Name Resolution)
NetBIOS

The Netbios is not work !!!

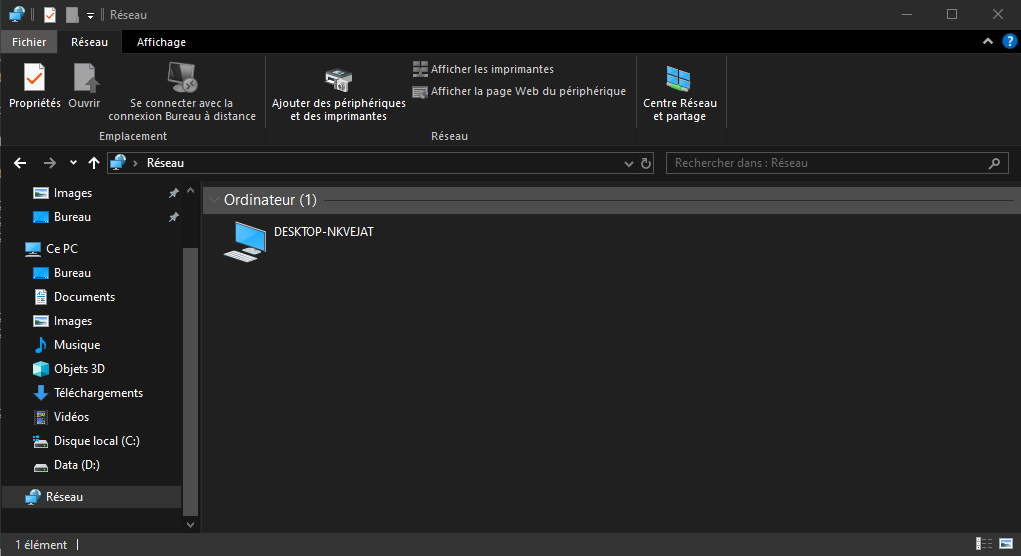

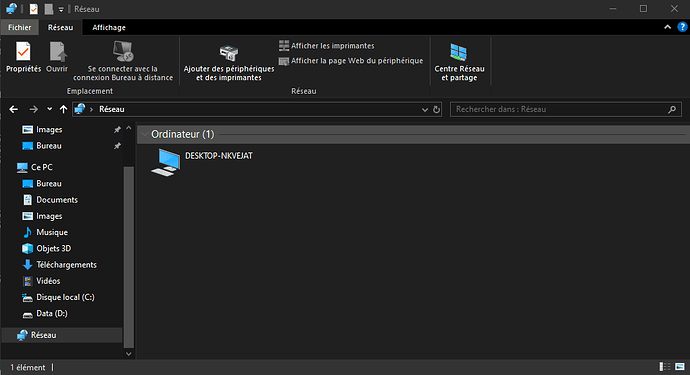

Exemple:

image1021×556 29.9 KB

4

You are aware that the protocols you listed don't traverse networks, correct?

1 Like
5

You need to set samba with bind nñmed to serve srv records for dns domain, or add heap of them to dnsmasq.

6

Where is it in panel ?

7

No idea what aere you talking about, read samba documentation, take microsoft courses, search bings.

8

It's router ?

9

You hae to add dns SRV records to a dns server. Not necessarily you have to do on dnsmasq or openwrt.

10

The IP is reserve by DHCP, it's already them.

11

Luci/network/dhcp/dns records/srv

or
...k/dhcp/forwarders if samba feeds dn.

you will still have to read outside documentation .

12

Hi,

i try them

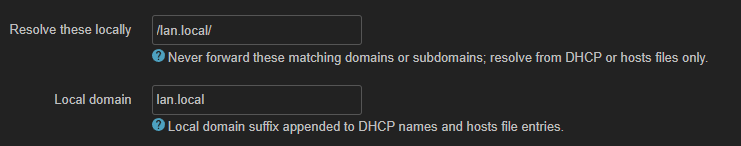

General:

image741×146 4.06 KB

image801×902 41.6 KB

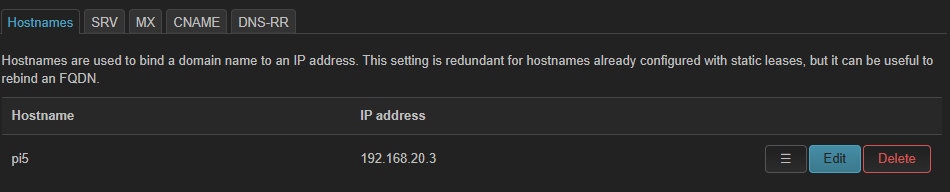

Static Release*

image950×192 7.74 KB

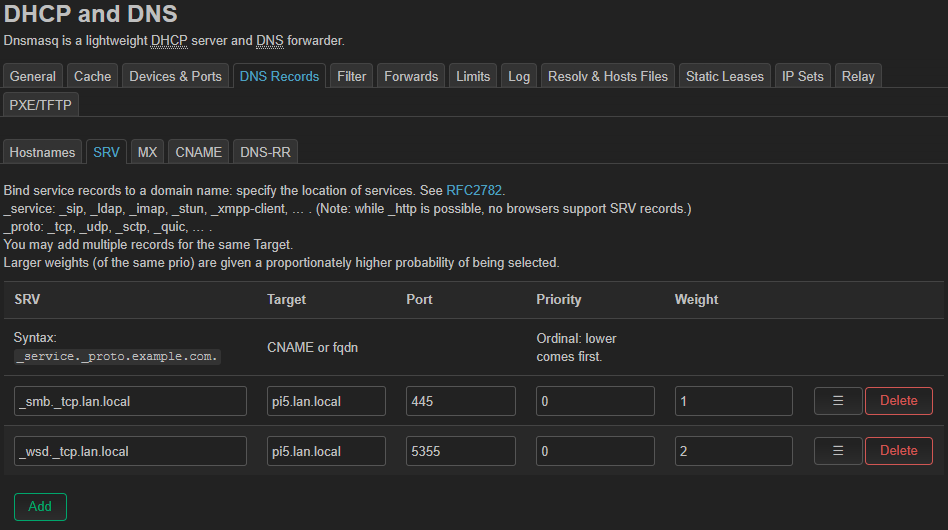

Dns Records / SRV

image948×530 24.1 KB

1 Like
13

Almost there, hold active directory docs in oyther hand :wink:

14

Edit SRV for wsd:

image839×45 2.19 KB

I don't have an AD server, just a router with 2 legs and a PC that wants to see the sharing.

15

I got that, if your nas was full linux you could use sambas active-directory-like dns.
You can enable dns logging then sweep /logread/ for SRV qieries.

16

My server is Raspberry on OpenMediaVault.

image979×616 12.3 KB

17

,local is special domain reserved for MDNS aka BONJOUR aka AVAHI, not useful with windows. Use .lan .home .internal but not .local.

1 Like
18

i will change & try.

home.lan

1 Like
19

It's doesnt work .

Are your idea ?
