Privat Network with Fritzbox and 2 more Segments over OpenWRT-Router

[srhuels]

Hi all,

i try to learn setting up a network with openWRT. I can't find a complete explanation for routing basics. I got e few book for that topic but not a complete example for trying to understand the network coherences.

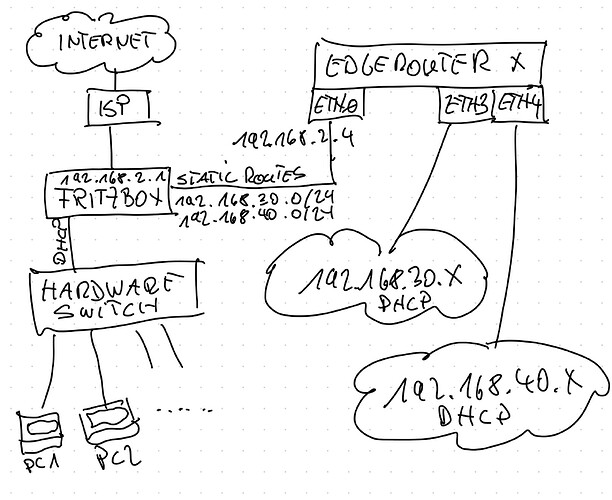

Can you please give me a source for some examples to configure a network like my handdrawing?

Every participant should be able to connect to the internet and each other participant in the network!

Thanks
Regards
Sven

[frollic]

@srhuels

should be able to connect to the internet and each other participant in the network!

then why put them on separate subnets ?

[srhuels]

because we need more ip-Adresse in the network

[frollic]

Multiple ip range static ip addres how?

can i have 3 static ip address on other routers like have option on wr841hp i set three ip address es one on range 192.168.1.1 one on 192.168.0.1 and one 192.0.0.1 but no that option on wa901ndv4 and wr941v5.1

https://openwrt.org/docs/guide-user/base-system/dhcp_configuration#dhcp_pool_for_a_large_network

[elder_tinkerer]

@srhuels

because we need more ip-Adresse in the network

You do need more than 254 addresses on your network?
Well, then you can do it the way @frollic suggested or choose a 172.x.x.x network where you can have 65.534 addresses.
But i don't know if all available devices (especially IOT) can be set to use such a network.
