Printer not working- p910nd

[peta]

Brother DCP 1610w connected via usb. 3 packages i have installed.

kmod-usb-printer
luci-app-p910nd
p910nd

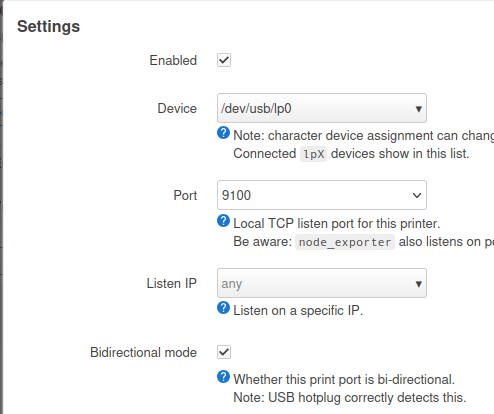

this is how settings for printer looks like in the router.

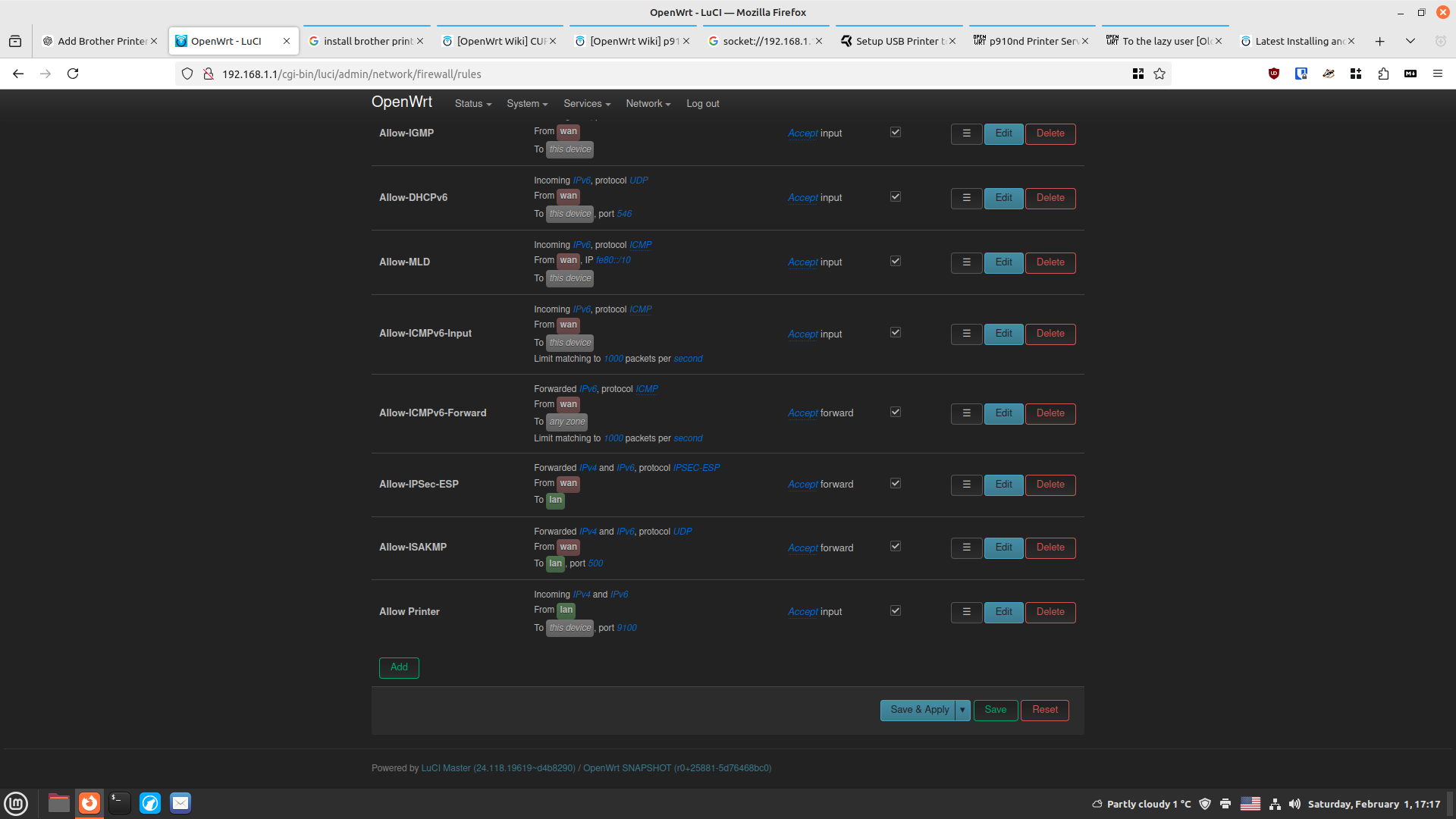

this is firewall rule for print to go

After this i have restarted the router.
I cant reach the address and port via browser.
My Pc(linux mint) has already installed drivers for this using CUPS and i can add it. But nothing happens. it just says print sent. nothing gets printed. printer goes into sleep mode.

i cant use wifi on the printer as it works when it wants to.

Any guru have any idea where should i start troubleshooting as i ran out of ideas.

[frollic]

Post lsusb output.

[peta]

i dont know lsusb but here is dmesg result

[ 3421.807015] usb 1-1: new high-speed USB device number 3 using xhci-hcd [ 3422.044685] usblp 1-1:1.0: usblp0: USB Bidirectional printer dev 3 if 0 alt 0 proto 2 vid 0x04F9 pid 0x035B

[frollic]

USB device name doesn't seem to match your screen shot.

[peta]

I am lost. i followed the guide https://openwrt.org/docs/guide-user/services/print_server/p910ndprinterserver

[frollic]

Well, the guide could be outdated, since your device name seems different than what's in the wiki.

[peta]

is there any guide you recommend or can i use it with CUPS?

[frollic]

Or, you could just double check the USB device name... ?

[peta]

i am trying, but so far i am unsuccessful.
if possible please help me.
my router has only one usb port. i dont know how can i be wrong with USB

[frollic]

No one's saying there's anything wrong with it, just the naming convention for the printer might have changed.

[konus]

ssh into the router and install usbutils. Then type lsusb and check the output

opkg update && opkg install usbutils

lsusb

[peta]

Bus 001 Device 001: ID 1d6b:0002 Linux 6.6.25 xhci-hcd xHCI Host Controller
Bus 001 Device 003: ID 04f9:035b Brother DCP-1610W
Bus 002 Device 001: ID 1d6b:0003 Linux 6.6.25 xhci-hcd xHCI Host Controller

[frollic]

@konus

ssh into the router and install usbutils

While you at it, do ls -l /dev/ /dev/usb/ too.

[peta]

ls -l /dev
drwxr-xr-x    3 root     root            60 Jan  1  1970 bus
crw-------    1 root     root        5,   1 Feb  1 19:38 console
crw-------    1 root     root       10, 126 Jan  1  1970 cpu_dma_latency
lrwxrwxrwx    1 root     root            13 Jan  1  1970 fd -> /proc/self/fd
crw-rw-rw-    1 root     root        1,   7 Jan  1  1970 full
crw-------    1 root     root      254,   0 Jan  1  1970 gpiochip0
crw-------    1 root     root       10, 183 Jan  1  1970 hwrng
crw-------    1 root     root        1,  11 Jan  1  1970 kmsg
srw-rw-rw-    1 root     root             0 Feb  1 17:21 log
crw-------    1 root     root       10, 237 Jan  1  1970 loop-control
brw-------    1 root     root        7,   0 Jan  1  1970 loop0
brw-------    1 root     root        7,   1 Jan  1  1970 loop1
brw-------    1 root     root        7,   2 Jan  1  1970 loop2
brw-------    1 root     root        7,   3 Jan  1  1970 loop3
brw-------    1 root     root        7,   4 Jan  1  1970 loop4
brw-------    1 root     root        7,   5 Jan  1  1970 loop5
brw-------    1 root     root        7,   6 Jan  1  1970 loop6
brw-------    1 root     root        7,   7 Jan  1  1970 loop7
crw-------    1 root     root       90,   0 Jan  1  1970 mtd0
crw-------    1 root     root       90,   1 Jan  1  1970 mtd0ro
crw-------    1 root     root       90,   2 Jan  1  1970 mtd1
crw-------    1 root     root       90,  20 Jan  1  1970 mtd10
crw-------    1 root     root       90,  21 Jan  1  1970 mtd10ro
crw-------    1 root     root       90,   3 Jan  1  1970 mtd1ro
crw-------    1 root     root       90,   4 Jan  1  1970 mtd2
crw-------    1 root     root       90,   5 Jan  1  1970 mtd2ro
crw-------    1 root     root       90,   6 Jan  1  1970 mtd3
crw-------    1 root     root       90,   7 Jan  1  1970 mtd3ro
crw-------    1 root     root       90,   8 Jan  1  1970 mtd4
crw-------    1 root     root       90,   9 Jan  1  1970 mtd4ro
crw-------    1 root     root       90,  10 Jan  1  1970 mtd5
crw-------    1 root     root       90,  11 Jan  1  1970 mtd5ro
crw-------    1 root     root       90,  12 Jan  1  1970 mtd6
crw-------    1 root     root       90,  13 Jan  1  1970 mtd6ro
crw-------    1 root     root       90,  14 Jan  1  1970 mtd7
crw-------    1 root     root       90,  15 Jan  1  1970 mtd7ro
crw-------    1 root     root       90,  16 Jan  1  1970 mtd8
crw-------    1 root     root       90,  17 Jan  1  1970 mtd8ro
crw-------    1 root     root       90,  18 Jan  1  1970 mtd9
crw-------    1 root     root       90,  19 Jan  1  1970 mtd9ro
brw-------    1 root     root       31,   0 Jan  1  1970 mtdblock0
brw-------    1 root     root       31,   1 Jan  1  1970 mtdblock1
brw-------    1 root     root       31,  10 Jan  1  1970 mtdblock10
brw-------    1 root     root       31,   2 Jan  1  1970 mtdblock2
brw-------    1 root     root       31,   3 Jan  1  1970 mtdblock3
brw-------    1 root     root       31,   4 Jan  1  1970 mtdblock4
brw-------    1 root     root       31,   5 Jan  1  1970 mtdblock5
brw-------    1 root     root       31,   6 Jan  1  1970 mtdblock6
brw-------    1 root     root       31,   7 Jan  1  1970 mtdblock7
brw-------    1 root     root       31,   8 Jan  1  1970 mtdblock8
brw-------    1 root     root       31,   9 Jan  1  1970 mtdblock9
crw-rw-rw-    1 root     root        1,   3 Jan  1  1970 null
crw-------    1 root     root        1,   4 Jan  1  1970 port
crw-------    1 root     root      108,   0 Feb  1 17:21 ppp
crw-rw-rw-    1 root     root        5,   2 Feb  1 20:07 ptmx
drwxr-xr-x    2 root     root             0 Jan  1  1970 pts
crw-------    1 root     root       10, 125 Feb  1 17:21 qrtr-tun
crw-rw-rw-    1 root     root        1,   8 Jan  1  1970 random
crw-------    1 root     root      251,   0 Jan  1  1970 remoteproc0
lrwxrwxrwx    1 root     root             8 Jan  1  1970 shm -> /tmp/shm
lrwxrwxrwx    1 root     root            15 Jan  1  1970 stderr -> /proc/self/fd/2
lrwxrwxrwx    1 root     root            15 Jan  1  1970 stdin -> /proc/self/fd/0
lrwxrwxrwx    1 root     root            15 Jan  1  1970 stdout -> /proc/self/fd/1
crw-------    1 root     root       10, 254 Jan  1  1970 switch_ssdk
crw-rw-rw-    1 root     root        5,   0 Feb  1 20:07 tty
crw-rw----    1 root     dialout   247,   0 Feb  1 19:38 ttyMSM0
crw-rw----    1 root     dialout   247,   1 Jan  1  1970 ttyMSM1
crw-rw----    1 root     dialout   247,   2 Jan  1  1970 ttyMSM2
crw-rw----    1 root     dialout     4,  64 Jan  1  1970 ttyS0
crw-rw----    1 root     dialout     4,  65 Jan  1  1970 ttyS1
crw-rw----    1 root     dialout     4,  74 Jan  1  1970 ttyS10
crw-rw----    1 root     dialout     4,  75 Jan  1  1970 ttyS11
crw-rw----    1 root     dialout     4,  76 Jan  1  1970 ttyS12
crw-rw----    1 root     dialout     4,  77 Jan  1  1970 ttyS13
crw-rw----    1 root     dialout     4,  78 Jan  1  1970 ttyS14
crw-rw----    1 root     dialout     4,  79 Jan  1  1970 ttyS15
crw-rw----    1 root     dialout     4,  66 Jan  1  1970 ttyS2
crw-rw----    1 root     dialout     4,  67 Jan  1  1970 ttyS3
crw-rw----    1 root     dialout     4,  68 Jan  1  1970 ttyS4
crw-rw----    1 root     dialout     4,  69 Jan  1  1970 ttyS5
crw-rw----    1 root     dialout     4,  70 Jan  1  1970 ttyS6
crw-rw----    1 root     dialout     4,  71 Jan  1  1970 ttyS7
crw-rw----    1 root     dialout     4,  72 Jan  1  1970 ttyS8
crw-rw----    1 root     dialout     4,  73 Jan  1  1970 ttyS9
crw-------    1 root     root      245,   0 Jan  1  1970 ubi0
crw-------    1 root     root      245,   1 Jan  1  1970 ubi0_0
crw-------    1 root     root      245,   2 Jan  1  1970 ubi0_1
crw-------    1 root     root      245,   3 Jan  1  1970 ubi0_2
crw-------    1 root     root       10, 127 Jan  1  1970 ubi_ctrl
brw-------    1 root     root      254,   0 Jan  1  1970 ubiblock0_1
crw-rw-rw-    1 root     root        1,   9 Jan  1  1970 urandom
drwxr-xr-x    2 root     root            60 Feb  1 20:03 usb
crw-------    1 root     root       10, 130 Jan  1  1970 watchdog
crw-------    1 root     root      249,   0 Jan  1  1970 watchdog0
crw-rw-rw-    1 root     root        1,   5 Jan  1  1970 zero

crw-rw---- 1 root lp 180, 0 Feb 1 20:03 lp0

[frollic]

Ok, dev was correct.

Do a service restart p910nd, while you're in a parallel ssh session are executing logread -f.

[peta]

service restart p910nd doesnt work.

when i write just p910nd. nothing happens.
both from terminal and luci > startup> p910nd restart

i also have restarted router, pc, printer.

[frollic]

That's why you were asked to log the restart.

[peta]

logread -f
Sat Feb  1 20:48:07 2025 daemon.notice netifd: wan (4210): udhcpc: sending renew to server 194.16.0.0
Sat Feb  1 20:48:07 2025 daemon.notice netifd: wan (4210): udhcpc: lease of 155.4.213.250 obtained from 194.16.0.0, lease time 1200
Sat Feb  1 20:48:12 2025 user.notice ddns-scripts[5028]: duckdns: Busybox nslookup - no support to 'force IP Version' (ignored)
Sat Feb  1 20:50:03 2025 daemon.notice ttyd[4591]: [2025/02/01 20:50:03:4039] N: __lws_lc_tag:  ++ [wsisrv|2|adopted] (2)
Sat Feb  1 20:50:03 2025 daemon.notice ttyd[4591]: [2025/02/01 20:50:03:4043] N: HTTP / - 192.168.1.218
Sat Feb  1 20:50:03 2025 daemon.notice ttyd[4591]: [2025/02/01 20:50:03:4880] N: HTTP /token - 192.168.1.218
Sat Feb  1 20:50:03 2025 daemon.notice ttyd[4591]: [2025/02/01 20:50:03:5225] N: __lws_lc_tag:  ++ [wsisrv|3|adopted] (3)
Sat Feb  1 20:50:03 2025 daemon.notice ttyd[4591]: [2025/02/01 20:50:03:5230] N: WS   /ws - 192.168.1.218, clients: 2
Sat Feb  1 20:50:03 2025 daemon.notice ttyd[4591]: [2025/02/01 20:50:03:5263] N: started process, pid: 11356
Sat Feb  1 20:50:08 2025 daemon.notice ttyd[4591]: [2025/02/01 20:50:08:4894] N: __lws_lc_untag:  -- [wsisrv|2|adopted] (2) 5.085s
Sat Feb  1 20:50:15 2025 auth.info login[11545]: root login on 'pts/1'
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3515] N: WS closed from 192.168.1.218, clients: 1
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3517] N: killing process, pid: 11356
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3518] N: __lws_lc_untag:  -- [wsisrv|3|adopted] (1) 2.047min
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3526] N: process killed with signal 1, pid: 11356
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3845] N: __lws_lc_tag:  ++ [wsisrv|4|adopted] (2)
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3849] N: HTTP /token - 192.168.1.218
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3966] N: __lws_lc_tag:  ++ [wsisrv|5|adopted] (3)
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:3971] N: WS   /ws - 192.168.1.218, clients: 2
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:4078] N: started process, pid: 11556
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:5077] N: WS closed from 192.168.1.218, clients: 1
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:5079] N: killing process, pid: 11556
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:5081] N: __lws_lc_untag:  -- [wsisrv|5|adopted] (2) 111.525ms
Sat Feb  1 20:52:06 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:06:5085] N: process killed with signal 1, pid: 11556
Sat Feb  1 20:52:11 2025 daemon.notice ttyd[4591]: [2025/02/01 20:52:11:3866] N: __lws_lc_untag:  -- [wsisrv|4|adopted] (1) 5.002s
Sat Feb  1 20:53:35 2025 daemon.info dnsmasq-dhcp[1]: DHCPREQUEST(br-lan) 192.168.1.113 bc:1d:89:86:5d:a8
Sat Feb  1 20:53:35 2025 daemon.info dnsmasq-dhcp[1]: DHCPACK(br-lan) 192.168.1.113 bc:1d:89:86:5d:a8
Sat Feb  1 20:54:05 2025 daemon.info dnsmasq-dhcp[1]: DHCPREQUEST(br-lan) 192.168.1.147 c0:ee:fb:0c:dc:18

[WildCarrot]

Here follows my settings:

I have Listen IP = any and Bidirectional mode checked.

[badulesia]

Under kernel 6.6, the usb device name has changed from previous OpenWrt versions. I had the same issue myself while trying to link a smartphone with USB. So the documentation may not show the correct name for your version. Double check as @frollic already adviced.
