Potentially bricked MR90X (U-Boot)

Installing and Using OpenWrt
1

I was attempting to install using the UBI Layout https://openwrt.org/toh/mercusys/mr90x_v1#installation_openwrt_u-boot_layout

I didn't have an internet connection while attempting the install, and I didn't see that in Step 20 it was required to install `kmod-mtd-rw'. I had run everything up until this step.

I then connected to my other network to download hte kmod-mtd-rw but on attempting to connect back to the router I was updating, I can no longer SSH into it. It always comes back as "Connection Refused" - I've tried all the LAN ports).

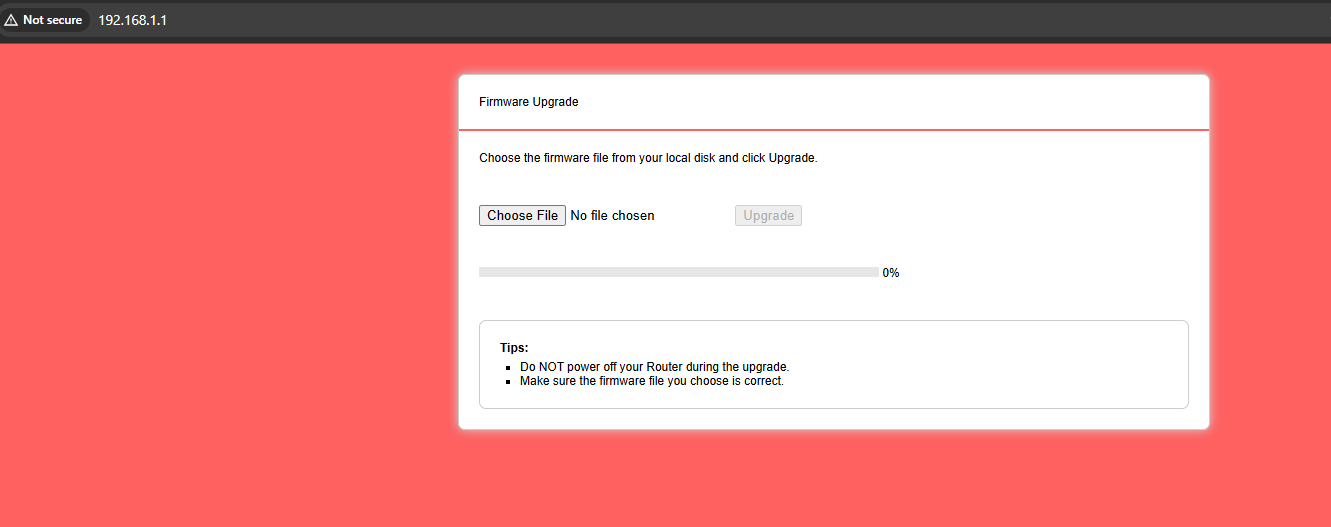

When I navigate to 192.168.1.1 I do see the recovery screen. I've tried flashing the original OEM firmware but no luck.

Screenshot 2025-03-02 150220
Screenshot 2025-03-02 1502201331×527 14.3 KB

Anyone have any advice?

2

Have you tried connect the cable to another LAN port and then upload OEM fw?

3

Yeah. I've tried all ports. Also tried OEM firmware, but I believe I'm too far ahead in the uboot process for the OEM firmware to work.

My guess is I have to try UART and see what I can get from there. Was trying to avoid that.
