sfx2000
413
For fun...
sfx@blaster:~$ iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 42424 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 6.98 GBytes 59.9 Gbits/sec 0 767 KBytes
[ 5] 1.00-2.00 sec 6.92 GBytes 59.5 Gbits/sec 0 895 KBytes
[ 5] 2.00-3.00 sec 7.03 GBytes 60.3 Gbits/sec 0 767 KBytes
[ 5] 3.00-4.00 sec 7.19 GBytes 61.8 Gbits/sec 0 895 KBytes
[ 5] 4.00-5.00 sec 6.98 GBytes 59.9 Gbits/sec 0 767 KBytes
[ 5] 5.00-6.00 sec 6.82 GBytes 58.6 Gbits/sec 0 767 KBytes
[ 5] 6.00-7.00 sec 6.52 GBytes 56.0 Gbits/sec 0 895 KBytes
[ 5] 7.00-8.00 sec 6.59 GBytes 56.6 Gbits/sec 0 895 KBytes
[ 5] 8.00-9.00 sec 6.54 GBytes 56.1 Gbits/sec 0 895 KBytes
[ 5] 9.00-10.00 sec 6.52 GBytes 56.0 Gbits/sec 0 895 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 68.1 GBytes 58.5 Gbits/sec 0 sender
[ 5] 0.00-10.04 sec 68.1 GBytes 58.2 Gbits/sec receiver
iperf Done.
Photonicat Ariaboard RK3568
root@LoliskWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 36294 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 671 MBytes 5.63 Gbits/sec 0 895 KBytes
[ 5] 1.00-2.00 sec 692 MBytes 5.80 Gbits/sec 0 1.25 MBytes
[ 5] 2.00-3.00 sec 645 MBytes 5.41 Gbits/sec 0 1.56 MBytes
[ 5] 3.00-4.00 sec 684 MBytes 5.74 Gbits/sec 0 1.56 MBytes
[ 5] 4.00-5.00 sec 691 MBytes 5.80 Gbits/sec 0 1.56 MBytes
[ 5] 5.00-6.00 sec 691 MBytes 5.79 Gbits/sec 0 1.56 MBytes
[ 5] 6.00-7.00 sec 692 MBytes 5.80 Gbits/sec 0 1.56 MBytes
[ 5] 7.00-8.00 sec 688 MBytes 5.77 Gbits/sec 0 1.56 MBytes
[ 5] 8.00-9.00 sec 683 MBytes 5.73 Gbits/sec 0 1.56 MBytes
[ 5] 9.00-10.00 sec 691 MBytes 5.80 Gbits/sec 0 1.56 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 6.67 GBytes 5.73 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 6.67 GBytes 5.73 Gbits/sec receiver
iperf Done.
root@LoliskWrt:~# ubus call system board
{
"kernel": "6.6.67",
"hostname": "LoliskWrt",
"system": "ARMv8 Processor rev 0",
"model": "Ariaboard Photonicat",
"board_name": "ariaboard,photonicat",
"rootfs_type": "ext4",
"release": {
"distribution": "ImmortalWrt",
"version": "24.10.0-rc3",
"revision": "r32584-afde822cf7f9",
"target": "rockchip/armv8",
"description": "ImmortalWrt 24.10.0-rc3 r32584-afde822cf7f9",
"builddate": "1735200175"
}
}

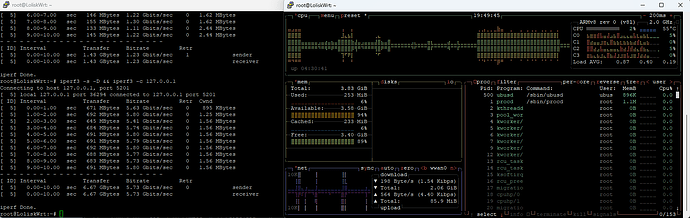

what is that monitoring app?
efahl
416
btop, like htop but uses a ton more disk space...
1 Like
All done using 24.10.0
Ubiquiti EdgeRouter X (ER-X)
root@ERX:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 46418 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 77.5 MBytes 649 Mbits/sec 0 2.56 MBytes
[ 5] 1.00-2.00 sec 50.5 MBytes 424 Mbits/sec 0 2.56 MBytes
[ 5] 2.00-3.00 sec 64.9 MBytes 544 Mbits/sec 0 2.56 MBytes
[ 5] 3.00-4.00 sec 76.9 MBytes 645 Mbits/sec 0 2.56 MBytes
[ 5] 4.00-5.00 sec 66.1 MBytes 555 Mbits/sec 0 2.56 MBytes
[ 5] 5.00-6.00 sec 65.2 MBytes 547 Mbits/sec 0 2.56 MBytes
[ 5] 6.00-7.00 sec 48.4 MBytes 406 Mbits/sec 0 2.56 MBytes
[ 5] 7.00-8.00 sec 48.9 MBytes 410 Mbits/sec 0 2.56 MBytes
[ 5] 8.00-9.00 sec 48.5 MBytes 407 Mbits/sec 0 2.56 MBytes
[ 5] 9.00-10.00 sec 58.6 MBytes 491 Mbits/sec 0 2.56 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 777 MBytes 652 Mbits/sec 0 sender
[ 5] 0.00-10.00 sec 777 MBytes 652 Mbits/sec receiver
iperf Done.
Netgear WAX202
root@WAX202:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 55002 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 68.5 MBytes 574 Mbits/sec 0 639 KBytes
[ 5] 1.00-2.00 sec 64.6 MBytes 542 Mbits/sec 0 639 KBytes
[ 5] 2.00-3.00 sec 36.0 MBytes 302 Mbits/sec 0 639 KBytes
[ 5] 3.00-4.00 sec 60.1 MBytes 504 Mbits/sec 0 639 KBytes
[ 5] 4.00-5.00 sec 44.0 MBytes 369 Mbits/sec 0 639 KBytes
[ 5] 5.00-6.00 sec 68.1 MBytes 571 Mbits/sec 0 639 KBytes
[ 5] 6.00-7.00 sec 37.4 MBytes 314 Mbits/sec 0 639 KBytes
[ 5] 7.00-8.00 sec 66.0 MBytes 553 Mbits/sec 0 639 KBytes
[ 5] 8.00-9.00 sec 65.2 MBytes 547 Mbits/sec 0 639 KBytes
[ 5] 9.00-10.00 sec 47.5 MBytes 398 Mbits/sec 0 639 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 678 MBytes 568 Mbits/sec 0 sender
[ 5] 0.00-10.00 sec 678 MBytes 568 Mbits/sec receiver
iperf Done.
Xiaomi Redmi AX6000
root@RedmiAX6000:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 47346 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 801 MBytes 6.71 Gbits/sec 0 1.75 MBytes
[ 5] 1.00-2.00 sec 785 MBytes 6.59 Gbits/sec 0 1.75 MBytes
[ 5] 2.00-3.00 sec 778 MBytes 6.52 Gbits/sec 0 1.75 MBytes
[ 5] 3.00-4.00 sec 790 MBytes 6.63 Gbits/sec 0 1.75 MBytes
[ 5] 4.00-5.00 sec 794 MBytes 6.66 Gbits/sec 0 1.75 MBytes
[ 5] 5.00-6.00 sec 782 MBytes 6.56 Gbits/sec 0 1.75 MBytes
[ 5] 6.00-7.00 sec 780 MBytes 6.55 Gbits/sec 0 1.75 MBytes
[ 5] 7.00-8.00 sec 781 MBytes 6.55 Gbits/sec 0 1.75 MBytes
[ 5] 8.00-9.00 sec 783 MBytes 6.57 Gbits/sec 0 1.75 MBytes
[ 5] 9.00-10.00 sec 782 MBytes 6.56 Gbits/sec 0 1.75 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 7.67 GBytes 6.59 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 7.67 GBytes 6.59 Gbits/sec receiver
iperf Done.
Linksys MX8500
root@MX8500:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 55330 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 873 MBytes 7.32 Gbits/sec 0 1.37 MBytes
[ 5] 1.00-2.00 sec 860 MBytes 7.22 Gbits/sec 0 1.37 MBytes
[ 5] 2.00-3.00 sec 863 MBytes 7.24 Gbits/sec 0 1.37 MBytes
[ 5] 3.00-4.00 sec 860 MBytes 7.21 Gbits/sec 0 1.37 MBytes
[ 5] 4.00-5.00 sec 862 MBytes 7.23 Gbits/sec 0 1.37 MBytes
[ 5] 5.00-6.00 sec 863 MBytes 7.24 Gbits/sec 0 1.37 MBytes
[ 5] 6.00-7.00 sec 870 MBytes 7.30 Gbits/sec 0 1.37 MBytes
[ 5] 7.00-8.00 sec 863 MBytes 7.24 Gbits/sec 0 1.37 MBytes
[ 5] 8.00-9.00 sec 871 MBytes 7.30 Gbits/sec 0 1.37 MBytes
[ 5] 9.00-10.00 sec 870 MBytes 7.30 Gbits/sec 0 1.37 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 8.45 GBytes 7.26 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 8.45 GBytes 7.26 Gbits/sec receiver
iperf Done.
1 Like
uskra
419
ASUS RT-AX59U on OpenWRT v24.10.0
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 42306 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 792 MBytes 6.64 Gbits/sec 0 1.19 MBytes
[ 5] 1.00-2.00 sec 783 MBytes 6.57 Gbits/sec 0 1.19 MBytes
[ 5] 2.00-3.00 sec 782 MBytes 6.55 Gbits/sec 0 1.19 MBytes
[ 5] 3.00-4.00 sec 778 MBytes 6.53 Gbits/sec 0 1.19 MBytes
[ 5] 4.00-5.00 sec 773 MBytes 6.48 Gbits/sec 0 1.19 MBytes
[ 5] 5.00-6.00 sec 776 MBytes 6.51 Gbits/sec 0 1.19 MBytes
[ 5] 6.00-7.00 sec 781 MBytes 6.54 Gbits/sec 0 1.19 MBytes
[ 5] 7.00-8.00 sec 780 MBytes 6.55 Gbits/sec 0 1.19 MBytes
[ 5] 8.00-9.00 sec 780 MBytes 6.54 Gbits/sec 0 1.19 MBytes
[ 5] 9.00-10.00 sec 781 MBytes 6.56 Gbits/sec 0 1.19 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 7.62 GBytes 6.55 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 7.62 GBytes 6.54 Gbits/sec receiver
iperf Done.
and with a second run
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 43146 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 1.18 GBytes 10.1 Gbits/sec 0 895 KBytes
[ 5] 1.00-2.00 sec 789 MBytes 6.62 Gbits/sec 0 1.06 MBytes
[ 5] 2.00-3.00 sec 787 MBytes 6.60 Gbits/sec 0 1.06 MBytes
[ 5] 3.00-4.00 sec 785 MBytes 6.59 Gbits/sec 0 1.06 MBytes
[ 5] 4.00-5.00 sec 787 MBytes 6.61 Gbits/sec 0 1.06 MBytes
[ 5] 5.00-6.00 sec 792 MBytes 6.64 Gbits/sec 0 1.06 MBytes
[ 5] 6.00-7.00 sec 790 MBytes 6.63 Gbits/sec 0 1.06 MBytes
[ 5] 7.00-8.00 sec 787 MBytes 6.60 Gbits/sec 0 1.06 MBytes
[ 5] 8.00-9.00 sec 791 MBytes 6.63 Gbits/sec 0 1.06 MBytes
[ 5] 9.00-10.00 sec 786 MBytes 6.59 Gbits/sec 0 1.06 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 8.11 GBytes 6.96 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 8.10 GBytes 6.96 Gbits/sec receiver
iperf Done.
M10
420
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 45648 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.01 sec 51.8 MBytes 429 Mbits/sec 0 2.00 MBytes
[ 5] 1.01-2.00 sec 51.4 MBytes 435 Mbits/sec 0 2.00 MBytes
[ 5] 2.00-3.01 sec 51.8 MBytes 432 Mbits/sec 0 2.00 MBytes
[ 5] 3.01-4.00 sec 51.1 MBytes 431 Mbits/sec 0 2.00 MBytes
[ 5] 4.00-5.00 sec 47.2 MBytes 396 Mbits/sec 1 2.00 MBytes
[ 5] 5.00-6.00 sec 51.8 MBytes 434 Mbits/sec 0 2.00 MBytes
[ 5] 6.00-7.00 sec 51.8 MBytes 434 Mbits/sec 0 2.00 MBytes
[ 5] 7.00-8.00 sec 51.8 MBytes 434 Mbits/sec 0 2.00 MBytes
[ 5] 8.00-9.01 sec 51.8 MBytes 432 Mbits/sec 0 2.00 MBytes
[ 5] 9.01-10.00 sec 46.2 MBytes 389 Mbits/sec 0 2.00 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 506 MBytes 425 Mbits/sec 1 sender
[ 5] 0.00-10.00 sec 506 MBytes 425 Mbits/sec receiver
iperf Done.
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.85",
"hostname": "OpenWrt",
"system": "RTL9302B",
"model": "Zyxel XGS1010-12",
"board_name": "zyxel,xgs1010-12",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "SNAPSHOT",
"firmware_url": "https://downloads.openwrt.org/",
"revision": "r29149-6203b50a3b",
"target": "realtek/rtl930x",
"description": "OpenWrt SNAPSHOT r29149-6203b50a3b",
"builddate": "1744050726"
}
}
root@OpenWrt:~#
Netgear XR500
root@MS-OWRT-01:~# ubus call system board
{
"kernel": "6.6.73",
"hostname": "MS-OWRT-01",
"system": "ARMv7 Processor rev 0 (v7l)",
"model": "Netgear Nighthawk XR500",
"board_name": "netgear,xr500",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.0",
"revision": "r28427-6df0e3d02a",
"target": "ipq806x/generic",
"description": "OpenWrt 24.10.0 r28427-6df0e3d02a",
"builddate": "1738624177"
}
}
root@MS-OWRT-01:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 54846 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 517 MBytes 4.33 Gbits/sec 0 3.43 MBytes
[ 5] 1.00-2.00 sec 500 MBytes 4.19 Gbits/sec 0 3.43 MBytes
[ 5] 2.00-3.00 sec 499 MBytes 4.19 Gbits/sec 0 3.43 MBytes
[ 5] 3.00-4.00 sec 484 MBytes 4.06 Gbits/sec 0 3.43 MBytes
[ 5] 4.00-5.00 sec 502 MBytes 4.21 Gbits/sec 0 3.43 MBytes
[ 5] 5.00-6.00 sec 487 MBytes 4.08 Gbits/sec 0 3.43 MBytes
[ 5] 6.00-7.00 sec 501 MBytes 4.20 Gbits/sec 0 3.43 MBytes
[ 5] 7.00-8.00 sec 501 MBytes 4.20 Gbits/sec 0 3.43 MBytes
[ 5] 8.00-9.00 sec 482 MBytes 4.04 Gbits/sec 0 3.43 MBytes
[ 5] 9.00-10.00 sec 500 MBytes 4.19 Gbits/sec 0 3.43 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 4.86 GBytes 4.17 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 4.85 GBytes 4.16 Gbits/sec receiver
iperf Done.
root@MS-OWRT-01:~#
