root@nexus:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 52480 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 2.12 GBytes 18.2 Gbits/sec 0 1.25 MBytes
[ 5] 1.00-2.00 sec 2.07 GBytes 17.7 Gbits/sec 0 1.25 MBytes
[ 5] 2.00-3.00 sec 2.23 GBytes 19.2 Gbits/sec 0 1.25 MBytes
[ 5] 3.00-4.00 sec 2.34 GBytes 20.1 Gbits/sec 0 1.25 MBytes
[ 5] 4.00-5.00 sec 2.35 GBytes 20.2 Gbits/sec 0 1.25 MBytes
[ 5] 5.00-6.00 sec 2.35 GBytes 20.2 Gbits/sec 0 1.25 MBytes
[ 5] 6.00-7.00 sec 2.37 GBytes 20.3 Gbits/sec 0 1.25 MBytes
[ 5] 7.00-8.00 sec 2.35 GBytes 20.1 Gbits/sec 0 1.25 MBytes
[ 5] 8.00-9.00 sec 2.31 GBytes 19.8 Gbits/sec 0 1.25 MBytes
[ 5] 9.00-10.00 sec 2.34 GBytes 20.1 Gbits/sec 0 1.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 23.0 GBytes 19.7 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 23.0 GBytes 19.7 Gbits/sec receiver
iperf Done.
root@nexus:~# ubus call system board
{
"kernel": "6.6.67",
"hostname": "nexus",
"system": "ARMv8 Processor rev 0",
"model": "Bananapi BPI-R4",
"board_name": "bananapi,bpi-r4",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.0-rc4",
"revision": "r28211-d55754ce0d",
"target": "mediatek/filogic",
"description": "OpenWrt 24.10.0-rc4 r28211-d55754ce0d",
"builddate": "1734915335"
}
}
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 33198 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 2.93 GBytes 25.2 Gbits/sec 0 1.25 MBytes
[ 5] 1.00-2.00 sec 2.94 GBytes 25.2 Gbits/sec 0 1.25 MBytes
[ 5] 2.00-3.00 sec 2.94 GBytes 25.2 Gbits/sec 0 1.25 MBytes
[ 5] 3.00-4.00 sec 2.92 GBytes 25.1 Gbits/sec 0 1.25 MBytes
[ 5] 4.00-5.00 sec 2.93 GBytes 25.2 Gbits/sec 0 1.25 MBytes
[ 5] 5.00-6.00 sec 2.90 GBytes 24.9 Gbits/sec 0 1.25 MBytes
[ 5] 6.00-7.00 sec 2.91 GBytes 25.0 Gbits/sec 0 1.25 MBytes
[ 5] 7.00-8.00 sec 2.91 GBytes 25.0 Gbits/sec 0 1.25 MBytes
[ 5] 8.00-9.00 sec 2.94 GBytes 25.2 Gbits/sec 0 1.25 MBytes
[ 5] 9.00-10.00 sec 2.88 GBytes 24.7 Gbits/sec 0 1.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 29.4 GBytes 25.2 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 29.4 GBytes 25.2 Gbits/sec receiver
iperf Done.
root@OpenWrt:~# uname -a
Linux OpenWrt 6.6.71 #0 SMP Thu Jan 16 14:23:28 2025 aarch64 GNU/Linux
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.71",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 0",
"model": "Bananapi BPI-R4",
"board_name": "bananapi,bpi-r4",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "SNAPSHOT",
"revision": "r28708-f9288e238f",
"target": "mediatek/filogic",
"description": "OpenWrt SNAPSHOT r28708-f9288e238f",
"builddate": "1737037408"
}
}
Linksys MX4300 (LN1301)
FOSS SNAPSHOT. A little better than a report above from Oct 2024. Wired connection.
root@MX4300A:~# ubus call system board
{
"kernel": "6.6.71",
"hostname": "MX4300A",
"system": "ARMv8 Processor rev 4",
"model": "Linksys MX4300",
"board_name": "linksys,mx4300",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "SNAPSHOT",
"revision": "r28608-693c1ea81a",
"target": "qualcommax/ipq807x",
"description": "OpenWrt SNAPSHOT r28608-693c1ea81a",
"builddate": "1737032215"
}
}
root@MX4300A:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 56442 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 966 MBytes 8.09 Gbits/sec 0 1023 KBytes
[ 5] 1.00-2.00 sec 882 MBytes 7.40 Gbits/sec 0 1023 KBytes
[ 5] 2.00-3.00 sec 868 MBytes 7.28 Gbits/sec 0 1023 KBytes
[ 5] 3.00-4.00 sec 872 MBytes 7.32 Gbits/sec 0 1023 KBytes
[ 5] 4.00-5.00 sec 867 MBytes 7.27 Gbits/sec 0 1023 KBytes
[ 5] 5.00-6.00 sec 870 MBytes 7.29 Gbits/sec 0 1023 KBytes
[ 5] 6.00-7.00 sec 874 MBytes 7.33 Gbits/sec 0 1023 KBytes
[ 5] 7.00-8.00 sec 867 MBytes 7.28 Gbits/sec 0 1023 KBytes
[ 5] 8.00-9.00 sec 867 MBytes 7.28 Gbits/sec 0 1023 KBytes
[ 5] 9.00-10.00 sec 867 MBytes 7.27 Gbits/sec 0 1023 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 8.60 GBytes 7.38 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 8.59 GBytes 7.38 Gbits/sec receiver
iperf Done.
root@MX4300A:~# iperf3 -s -D && iperf3 -c 127.0.0.1 -u -b 100G -R && killall iperf3
Connecting to host 127.0.0.1, port 5201
Reverse mode, remote host 127.0.0.1 is sending
[ 5] local 127.0.0.1 port 49230 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Jitter Lost/Total Datagrams
[ 5] 0.00-1.00 sec 1.15 GBytes 9.91 Gbits/sec 0.001 ms 0/37824 (0%)
[ 5] 1.00-2.00 sec 1.16 GBytes 9.93 Gbits/sec 0.002 ms 0/37867 (0%)
[ 5] 2.00-3.00 sec 1.15 GBytes 9.92 Gbits/sec 0.002 ms 2/37828 (0.0053%)
[ 5] 3.00-4.00 sec 1.16 GBytes 9.95 Gbits/sec 0.002 ms 0/37948 (0%)
[ 5] 4.00-5.00 sec 1.14 GBytes 9.81 Gbits/sec 0.002 ms 1/37439 (0.0027%)
[ 5] 5.00-6.00 sec 1.16 GBytes 9.92 Gbits/sec 0.002 ms 0/37855 (0%)
[ 5] 6.00-7.00 sec 1.16 GBytes 9.94 Gbits/sec 0.002 ms 0/37910 (0%)
[ 5] 7.00-8.00 sec 1.16 GBytes 9.94 Gbits/sec 0.002 ms 0/37914 (0%)
[ 5] 8.00-9.00 sec 1.15 GBytes 9.91 Gbits/sec 0.001 ms 0/37796 (0%)
[ 5] 9.00-10.00 sec 1.15 GBytes 9.85 Gbits/sec 0.001 ms 0/37591 (0%)
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Jitter Lost/Total Datagrams
[ 5] 0.00-10.00 sec 11.5 GBytes 9.91 Gbits/sec 0.000 ms 0/377979 (0%) sender
[ 5] 0.00-10.00 sec 11.5 GBytes 9.91 Gbits/sec 0.001 ms 3/377972 (0.00079%) receiver
iperf Done.
{
"kernel": "5.15.150",
"hostname": "OpenWrt",
"system": "MediaTek MT7621 ver:1 eco:4",
"model": "TP-Link Archer AX23 v1",
"board_name": "tplink,archer-ax23-v1",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "23.05.3",
"revision": "r23809-234f1a2efa",
"target": "ramips/mt7621",
"description": "OpenWrt 23.05.3 r23809-234f1a2efa"
}
}
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 34976 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 71.4 MBytes 598 Mbits/sec 0 1.06 MBytes
[ 5] 1.00-2.00 sec 71.6 MBytes 601 Mbits/sec 0 1.06 MBytes
[ 5] 2.00-3.00 sec 72.4 MBytes 607 Mbits/sec 0 1.06 MBytes
[ 5] 3.00-4.00 sec 72.8 MBytes 610 Mbits/sec 0 1.06 MBytes
[ 5] 4.00-5.00 sec 70.8 MBytes 594 Mbits/sec 0 1.06 MBytes
[ 5] 5.00-6.00 sec 71.1 MBytes 597 Mbits/sec 0 1.06 MBytes
[ 5] 6.00-7.00 sec 70.2 MBytes 589 Mbits/sec 0 1.06 MBytes
[ 5] 7.00-8.00 sec 72.9 MBytes 611 Mbits/sec 0 1.06 MBytes
[ 5] 8.00-9.00 sec 68.9 MBytes 578 Mbits/sec 0 1.06 MBytes
[ 5] 9.00-10.00 sec 74.8 MBytes 626 Mbits/sec 0 1.06 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 734 MBytes 616 Mbits/sec 0 sender
[ 5] 0.00-10.00 sec 735 MBytes 616 Mbits/sec receiver
iperf Done.
That was me!
I just did an updated run and got virtually the same results as October 2024.
What is this second test you're doing (UDP?) and why do I have a bunch of "lost" datagrams that you don't experience?
And could that explain why my Bitrate is almost 500Mbps lower than yours?
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1 -u -b 100G -R && killall iperf3
Connecting to host 127.0.0.1, port 5201
Reverse mode, remote host 127.0.0.1 is sending
[ 5] local 127.0.0.1 port 35912 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Jitter Lost/Total Datagrams
[ 5] 0.00-1.00 sec 1.09 GBytes 9.39 Gbits/sec 0.002 ms 600/36472 (1.6%)
[ 5] 1.00-2.00 sec 1.11 GBytes 9.50 Gbits/sec 0.001 ms 146/36386 (0.4%)
[ 5] 2.00-3.00 sec 1.11 GBytes 9.52 Gbits/sec 0.004 ms 63/36395 (0.17%)
[ 5] 3.00-4.00 sec 1.11 GBytes 9.50 Gbits/sec 0.003 ms 121/36358 (0.33%)
[ 5] 4.00-5.00 sec 1.11 GBytes 9.50 Gbits/sec 0.003 ms 22/36271 (0.061%)
[ 5] 5.00-6.00 sec 1.11 GBytes 9.51 Gbits/sec 0.003 ms 74/36356 (0.2%)
[ 5] 6.00-7.00 sec 1.11 GBytes 9.56 Gbits/sec 0.001 ms 34/36498 (0.093%)
[ 5] 7.00-8.00 sec 1.10 GBytes 9.43 Gbits/sec 0.008 ms 426/36382 (1.2%)
[ 5] 8.00-9.00 sec 1.11 GBytes 9.52 Gbits/sec 0.002 ms 11/36320 (0.03%)
[ 5] 9.00-10.00 sec 1.10 GBytes 9.46 Gbits/sec 0.001 ms 0/36106 (0%)
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Jitter Lost/Total Datagrams
[ 5] 0.00-10.00 sec 11.1 GBytes 9.53 Gbits/sec 0.000 ms 0/363551 (0%) sender
[ 5] 0.00-10.00 sec 11.0 GBytes 9.49 Gbits/sec 0.001 ms 1497/363544 (0.41%) receiver
iperf Done.
on MT7981b RM65 router:
root@Hilink:~# iperf3 -O5 -t10 -V -c 127.0.0.1
iperf 3.17.1
Linux Hilink 6.6.73 #0 SMP Fri Jan 24 16:16:15 2025 aarch64
Control connection MSS 32741
Time: Sat, 25 Jan 2025 15:27:03 UTC
Connecting to host 127.0.0.1, port 5201
Cookie: qhth22rvllmzgb2y7q6mkrqwro5cih7ix64c
TCP MSS: 32741 (default)
[ 5] local 127.0.0.1 port 42088 connected to 127.0.0.1 port 5201
Starting Test: protocol: TCP, 1 streams, 131072 byte blocks, omitting 5 seconds, 10 second test, tos 0
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 524 MBytes 4.38 Gbits/sec 0 4.25 MBytes (omitted)
[ 5] 1.00-2.00 sec 499 MBytes 4.19 Gbits/sec 0 4.25 MBytes (omitted)
[ 5] 2.00-3.00 sec 473 MBytes 3.97 Gbits/sec 0 4.25 MBytes (omitted)
[ 5] 3.00-4.00 sec 510 MBytes 4.28 Gbits/sec 0 4.25 MBytes (omitted)
[ 5] 4.00-5.00 sec 527 MBytes 4.42 Gbits/sec 0 4.25 MBytes (omitted)
[ 5] 0.01-0.99 sec 522 MBytes 4.38 Gbits/sec 0 4.25 MBytes
[ 5] 0.99-2.00 sec 515 MBytes 4.31 Gbits/sec 0 4.25 MBytes
[ 5] 2.00-2.99 sec 522 MBytes 4.38 Gbits/sec 0 4.25 MBytes
[ 5] 2.99-3.99 sec 528 MBytes 4.43 Gbits/sec 0 4.25 MBytes
[ 5] 3.99-5.00 sec 539 MBytes 4.49 Gbits/sec 0 4.25 MBytes
[ 5] 5.00-5.99 sec 533 MBytes 4.50 Gbits/sec 0 4.25 MBytes
[ 5] 5.99-6.99 sec 499 MBytes 4.18 Gbits/sec 0 4.25 MBytes
[ 5] 6.99-7.99 sec 526 MBytes 4.42 Gbits/sec 0 4.25 MBytes
[ 5] 7.99-8.99 sec 515 MBytes 4.32 Gbits/sec 0 4.25 MBytes
[ 5] 8.99-9.99 sec 490 MBytes 4.11 Gbits/sec 0 4.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
Test Complete. Summary Results:
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-9.99 sec 5.15 GBytes 4.43 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 5.16 GBytes 4.43 Gbits/sec receiver
CPU Utilization: local/sender 84.9% (1.6%u/83.3%s), remote/receiver 73.4% (3.6%u/69.8%s)
snd_tcp_congestion cubic
rcv_tcp_congestion cubic
iperf Done.
on RaspberryPI4 router:
root@RaspberryPI4:~# iperf3 -O5 -t10 -V -c 127.0.0.1
iperf 3.17.1
Linux RaspberryPI4 6.6.73 #0 SMP Sat Jan 25 12:34:13 2025 aarch64
Control connection MSS 32768
Time: Sat, 25 Jan 2025 13:34:35 UTC
Connecting to host 127.0.0.1, port 5201
Cookie: cn7kyz6ceas46bdgtsv7vmxtakzbjm6dfrrh
TCP MSS: 32768 (default)
[ 5] local 127.0.0.1 port 46084 connected to 127.0.0.1 port 5201
Starting Test: protocol: TCP, 1 streams, 131072 byte blocks, omitting 5 seconds, 10 second test, tos 0
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 2.18 GBytes 18.7 Gbits/sec 0 895 KBytes (omitted)
[ 5] 1.00-2.00 sec 2.16 GBytes 18.6 Gbits/sec 0 895 KBytes (omitted)
[ 5] 2.00-3.00 sec 2.19 GBytes 18.8 Gbits/sec 0 895 KBytes (omitted)
[ 5] 3.00-4.00 sec 2.20 GBytes 18.9 Gbits/sec 0 895 KBytes (omitted)
[ 5] 4.00-5.00 sec 2.16 GBytes 18.5 Gbits/sec 0 895 KBytes (omitted)
[ 5] 0.00-1.00 sec 2.20 GBytes 18.9 Gbits/sec 0 895 KBytes
[ 5] 1.00-2.00 sec 2.16 GBytes 18.6 Gbits/sec 0 895 KBytes
[ 5] 2.00-3.00 sec 2.17 GBytes 18.7 Gbits/sec 0 895 KBytes
[ 5] 3.00-4.00 sec 2.19 GBytes 18.8 Gbits/sec 0 895 KBytes
[ 5] 4.00-5.00 sec 1.98 GBytes 17.0 Gbits/sec 0 895 KBytes
[ 5] 5.00-6.00 sec 2.16 GBytes 18.5 Gbits/sec 0 3.25 MBytes
[ 5] 6.00-7.00 sec 1.04 GBytes 8.92 Gbits/sec 0 3.25 MBytes
[ 5] 7.00-8.00 sec 1.03 GBytes 8.87 Gbits/sec 0 3.25 MBytes
[ 5] 8.00-9.00 sec 1.03 GBytes 8.88 Gbits/sec 0 3.25 MBytes
[ 5] 9.00-10.00 sec 1.04 GBytes 8.91 Gbits/sec 0 3.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
Test Complete. Summary Results:
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 17.5 GBytes 15.0 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 17.5 GBytes 15.0 Gbits/sec receiver
CPU Utilization: local/sender 99.9% (1.1%u/98.9%s), remote/receiver 91.7% (1.9%u/89.8%s)
snd_tcp_congestion cubic
rcv_tcp_congestion cubic
iperf Done.
Hello all...
root@horus:~# uname -a
Linux horus 5.15.162 #0 SMP Mon Jul 15 22:14:18 2024 x86_64 GNU/Linux
root@horus:~# ubus call system board
{
"kernel": "5.15.162",
"hostname": "horus",
"system": "Intel(R) Celeron(R) CPU N2808 @ 1.58GHz",
"model": "ULTRATOP ULTRATOP Liva",
"board_name": "ultratop-ultratop-liva",
"rootfs_type": "ext4",
"release": {
"distribution": "OpenWrt",
"version": "23.05.4",
"revision": "r24012-d8dd03c46f",
"target": "x86/64",
"description": "OpenWrt 23.05.4 r24012-d8dd03c46f"
}
}
root@horus:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 59600 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 1.20 GBytes 10.3 Gbits/sec 0 3.31 MBytes
[ 5] 1.00-2.00 sec 1.24 GBytes 10.6 Gbits/sec 0 3.68 MBytes
[ 5] 2.00-3.00 sec 1.23 GBytes 10.6 Gbits/sec 0 4.06 MBytes
[ 5] 3.00-4.00 sec 1.23 GBytes 10.6 Gbits/sec 0 4.06 MBytes
[ 5] 4.00-5.00 sec 1.23 GBytes 10.6 Gbits/sec 0 4.06 MBytes
[ 5] 5.00-6.00 sec 1.23 GBytes 10.6 Gbits/sec 0 4.06 MBytes
[ 5] 6.00-7.00 sec 1.21 GBytes 10.4 Gbits/sec 0 4.06 MBytes
[ 5] 7.00-8.00 sec 1.22 GBytes 10.4 Gbits/sec 1 4.06 MBytes
[ 5] 8.00-9.00 sec 1.15 GBytes 9.89 Gbits/sec 0 4.06 MBytes
[ 5] 9.00-10.00 sec 1.21 GBytes 10.4 Gbits/sec 0 4.06 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 12.2 GBytes 10.4 Gbits/sec 1 sender
[ 5] 0.00-10.00 sec 12.2 GBytes 10.4 Gbits/sec receiver
iperf Done.
root@horus:~#
Nanopi r3s, with latest 24.10rc
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.73",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 0",
"model": "FriendlyElec NanoPi R3S",
"board_name": "friendlyarm,nanopi-r3s",
"rootfs_type": "ext4",
"release": {
"distribution": "OpenWrt",
"version": "24.10.0-rc6",
"revision": "r28388-58d0057481",
"target": "rockchip/armv8",
"description": "OpenWrt 24.10.0-rc6 r28388-58d0057481",
"builddate": "1737575574"
}
}
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 48176 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 821 MBytes 6.88 Gbits/sec 0 639 KBytes
[ 5] 1.00-2.00 sec 829 MBytes 6.95 Gbits/sec 0 639 KBytes
[ 5] 2.00-3.00 sec 832 MBytes 6.98 Gbits/sec 0 639 KBytes
[ 5] 3.00-4.00 sec 820 MBytes 6.88 Gbits/sec 0 639 KBytes
[ 5] 4.00-5.00 sec 827 MBytes 6.94 Gbits/sec 0 1.12 MBytes
[ 5] 5.00-6.00 sec 832 MBytes 6.98 Gbits/sec 0 1.12 MBytes
[ 5] 6.00-7.00 sec 822 MBytes 6.89 Gbits/sec 0 1.12 MBytes
[ 5] 7.00-8.00 sec 832 MBytes 6.98 Gbits/sec 0 1.12 MBytes
[ 5] 8.00-9.00 sec 835 MBytes 7.00 Gbits/sec 0 1.12 MBytes
[ 5] 9.00-10.00 sec 830 MBytes 6.96 Gbits/sec 0 1.12 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 8.09 GBytes 6.95 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 8.09 GBytes 6.95 Gbits/sec receiver
iperf Done.
MX4200V2
Qosmio NSS build
OpenWrt 24.10-SNAPSHOT r28477-51594ca508 / LuCI openwrt-24.10 branch 25.014.55016~7046a1c
root@OpenWrt_FrontRoom_NSS:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 36410 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 910 MBytes 7.63 Gbits/sec 0 639 KBytes
[ 5] 1.00-2.00 sec 916 MBytes 7.68 Gbits/sec 0 1.25 MBytes
[ 5] 2.00-3.00 sec 919 MBytes 7.71 Gbits/sec 0 1.25 MBytes
[ 5] 3.00-4.00 sec 912 MBytes 7.65 Gbits/sec 0 1.25 MBytes
[ 5] 4.00-5.00 sec 912 MBytes 7.65 Gbits/sec 0 1.25 MBytes
[ 5] 5.00-6.00 sec 914 MBytes 7.67 Gbits/sec 0 1.25 MBytes
[ 5] 6.00-7.00 sec 912 MBytes 7.65 Gbits/sec 0 1.25 MBytes
[ 5] 7.00-8.00 sec 919 MBytes 7.71 Gbits/sec 0 1.25 MBytes
[ 5] 8.00-9.00 sec 904 MBytes 7.59 Gbits/sec 0 1.25 MBytes
[ 5] 9.00-10.00 sec 902 MBytes 7.56 Gbits/sec 0 1.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 8.92 GBytes 7.66 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 8.91 GBytes 7.65 Gbits/sec receiver
Mind doing Wireguard test?
Hi..
root@OpenWrt:~# ubus call system board
"kernel": "6.6.73",
"hostname": "OpenWrt",
"system": "Qualcomm Atheros QCA956X ver 1 rev 0",
"model": "TP-Link Archer C7 v5",
"board_name": "tplink,archer-c7-v5",
"rootfs_type": "squashfs",
"release":
"distribution": "OpenWrt",
"version": "24.10.0-rc7",
"revision": "r28417-daef29c75d",
"target": "ath79/generic",
"description": "OpenWrt 24.10.0-rc7 r28417-daef29c75d",
"builddate": "1738018409"
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 57750 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 40.6 MBytes 340 Mbits/sec 0 1.87 MBytes
[ 5] 1.00-2.01 sec 40.9 MBytes 342 Mbits/sec 0 1.87 MBytes
[ 5] 2.01-3.00 sec 39.9 MBytes 336 Mbits/sec 0 1.87 MBytes
[ 5] 3.00-4.01 sec 40.8 MBytes 339 Mbits/sec 0 1.87 MBytes
[ 5] 4.01-5.00 sec 40.1 MBytes 338 Mbits/sec 0 1.87 MBytes
[ 5] 5.00-6.00 sec 40.4 MBytes 340 Mbits/sec 0 1.87 MBytes
[ 5] 6.00-7.00 sec 41.0 MBytes 344 Mbits/sec 0 1.87 MBytes
[ 5] 7.00-8.00 sec 41.8 MBytes 350 Mbits/sec 0 1.87 MBytes
[ 5] 8.00-9.00 sec 40.8 MBytes 342 Mbits/sec 0 1.87 MBytes
[ 5] 9.00-10.00 sec 40.1 MBytes 336 Mbits/sec 0 1.87 MBytes
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 406 MBytes 341 Mbits/sec 0 sender
[ 5] 0.00-10.00 sec 406 MBytes 341 Mbits/sec receiver
iperf Done.
Hi...
ubus call system board
"kernel": "6.6.73",
"hostname": "OpenWrt",
"system": "MediaTek MT7628AN ver:1 eco:2",
"model": "TP-Link Archer C20 v5",
"board_name": "tplink,archer-c20-v5",
"rootfs_type": "squashfs",
"release":
"distribution": "OpenWrt",
"version": "24.10.0-rc7",
"revision": "r28417-daef29c75d",
"target": "ramips/mt76x8",
"description": "OpenWrt 24.10.0-rc7 r28417-daef29c75d",
"builddate": "1738018409"
iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 54762 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.01 sec 46.5 MBytes 388 Mbits/sec 0 1023 KBytes
[ 5] 1.01-2.00 sec 45.8 MBytes 385 Mbits/sec 0 1023 KBytes
[ 5] 2.00-3.00 sec 45.8 MBytes 383 Mbits/sec 0 1023 KBytes
[ 5] 3.00-4.00 sec 45.6 MBytes 383 Mbits/sec 0 1023 KBytes
[ 5] 4.00-5.00 sec 46.1 MBytes 386 Mbits/sec 0 1023 KBytes
[ 5] 5.00-6.00 sec 45.8 MBytes 384 Mbits/sec 0 1023 KBytes
[ 5] 6.00-7.01 sec 46.1 MBytes 386 Mbits/sec 0 1023 KBytes
[ 5] 7.01-8.00 sec 46.0 MBytes 387 Mbits/sec 0 1023 KBytes
[ 5] 8.00-9.00 sec 45.9 MBytes 386 Mbits/sec 0 1023 KBytes
[ 5] 9.00-10.01 sec 45.8 MBytes 382 Mbits/sec 0 1023 KBytes
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.01 sec 459 MBytes 385 Mbits/sec 0 sender
[ 5] 0.00-10.01 sec 459 MBytes 385 Mbits/sec receiver
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.73",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Cudy TR3000 v1",
"board_name": "cudy,tr3000-v1",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.0",
"revision": "r28427-6df0e3d02a",
"target": "mediatek/filogic",
"description": "OpenWrt 24.10.0 r28427-6df0e3d02a",
"builddate": "1738624177"
}
}
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 33736 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 543 MBytes 4.55 Gbits/sec 0 1.44 MBytes
[ 5] 1.00-2.01 sec 552 MBytes 4.61 Gbits/sec 0 2.19 MBytes
[ 5] 2.01-3.00 sec 543 MBytes 4.57 Gbits/sec 0 2.19 MBytes
[ 5] 3.00-4.00 sec 524 MBytes 4.40 Gbits/sec 0 2.19 MBytes
[ 5] 4.00-5.00 sec 458 MBytes 3.84 Gbits/sec 0 2.19 MBytes
[ 5] 5.00-6.00 sec 513 MBytes 4.30 Gbits/sec 0 2.19 MBytes
[ 5] 6.00-7.00 sec 519 MBytes 4.35 Gbits/sec 0 2.19 MBytes
[ 5] 7.00-8.00 sec 522 MBytes 4.38 Gbits/sec 3 2.25 MBytes
[ 5] 8.00-9.00 sec 526 MBytes 4.41 Gbits/sec 0 2.25 MBytes
[ 5] 9.00-10.00 sec 501 MBytes 4.20 Gbits/sec 0 2.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 5.26 GBytes 4.52 Gbits/sec 3 sender
[ 5] 0.00-10.00 sec 5.26 GBytes 4.52 Gbits/sec receiver
iperf Done.
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 36952 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 4.04 GBytes 34.6 Gbits/sec 0 4.25 MBytes
[ 5] 1.00-2.00 sec 4.80 GBytes 41.3 Gbits/sec 0 4.25 MBytes
[ 5] 2.00-3.00 sec 5.19 GBytes 44.6 Gbits/sec 0 4.25 MBytes
[ 5] 3.00-4.00 sec 5.54 GBytes 47.6 Gbits/sec 0 4.25 MBytes
[ 5] 4.00-5.00 sec 5.32 GBytes 45.7 Gbits/sec 0 4.25 MBytes
[ 5] 5.00-6.00 sec 5.57 GBytes 47.9 Gbits/sec 0 4.25 MBytes
[ 5] 6.00-7.00 sec 5.16 GBytes 44.3 Gbits/sec 0 4.25 MBytes
[ 5] 7.00-8.00 sec 5.88 GBytes 50.5 Gbits/sec 1 4.25 MBytes
[ 5] 8.00-9.00 sec 5.76 GBytes 49.5 Gbits/sec 0 4.25 MBytes
[ 5] 9.00-10.00 sec 5.25 GBytes 45.1 Gbits/sec 0 4.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 52.8 GBytes 45.3 Gbits/sec 1 sender
[ 5] 0.00-10.00 sec 52.8 GBytes 45.3 Gbits/sec receiver
iperf Done.
Beelink EQ12. Proxmox OpenWrt VM OpenWrt 24.10.0 r28427
TP-Link RE500 v1 (MT7621) running ImmortalWrt 24.10.0 (which should not affect the result, but still not vanilla OpenWrt).
root@RE500:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 34134 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 77.1 MBytes 646 Mbits/sec 0 639 KBytes
[ 5] 1.00-2.00 sec 74.2 MBytes 623 Mbits/sec 0 639 KBytes
[ 5] 2.00-3.00 sec 75.6 MBytes 635 Mbits/sec 0 639 KBytes
[ 5] 3.00-4.00 sec 73.5 MBytes 617 Mbits/sec 0 639 KBytes
[ 5] 4.00-5.00 sec 75.4 MBytes 632 Mbits/sec 0 639 KBytes
[ 5] 5.00-6.00 sec 63.9 MBytes 536 Mbits/sec 0 639 KBytes
[ 5] 6.00-7.00 sec 69.8 MBytes 585 Mbits/sec 0 639 KBytes
[ 5] 7.00-8.00 sec 52.9 MBytes 444 Mbits/sec 0 639 KBytes
[ 5] 8.00-9.00 sec 65.9 MBytes 552 Mbits/sec 0 639 KBytes
[ 5] 9.00-10.00 sec 68.5 MBytes 574 Mbits/sec 0 639 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 775 MBytes 650 Mbits/sec 0 sender
[ 5] 0.00-10.00 sec 775 MBytes 650 Mbits/sec receiver
iperf Done.
root@RE500:~# ubus call system board
{
"kernel": "6.6.73",
"hostname": "RE500",
"system": "MediaTek MT7621 ver:1 eco:3",
"model": "TP-Link RE500 v1",
"board_name": "tplink,re500-v1",
"rootfs_type": "squashfs",
"release": {
"distribution": "ImmortalWrt",
"version": "24.10.0",
"revision": "r32824-6a73dae98c9c",
"target": "ramips/mt7621",
"description": "ImmortalWrt 24.10.0 r32824-6a73dae98c9c",
"builddate": "1738744361"
}
}
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.77",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 0",
"model": "Bananapi BPI-R4",
"board_name": "bananapi,bpi-r4",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "SNAPSHOT",
"firmware_url": "https://downloads.openwrt.org/",
"revision": "r28959+7-5a03981604",
"target": "mediatek/filogic",
"description": "OpenWrt SNAPSHOT r28959+7-5a03981604",
"builddate": "1739712962"
}
}
root@OpenWrt:~# mhz
count=878502 us50=20000 us250=99999 diff=79999 cpu_MHz=2196.282
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 41750 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 3.06 GBytes 26.3 Gbits/sec 0 1.25 MBytes
[ 5] 1.00-2.00 sec 3.02 GBytes 25.9 Gbits/sec 0 1.25 MBytes
[ 5] 2.00-3.00 sec 3.10 GBytes 26.6 Gbits/sec 0 1.25 MBytes
[ 5] 3.00-4.00 sec 3.10 GBytes 26.6 Gbits/sec 0 1.25 MBytes
[ 5] 4.00-5.00 sec 3.08 GBytes 26.5 Gbits/sec 0 1.25 MBytes
[ 5] 5.00-6.00 sec 3.06 GBytes 26.3 Gbits/sec 0 1.25 MBytes
[ 5] 6.00-7.00 sec 3.02 GBytes 25.9 Gbits/sec 0 1.25 MBytes
[ 5] 7.00-8.00 sec 3.10 GBytes 26.6 Gbits/sec 0 1.25 MBytes
[ 5] 8.00-9.00 sec 3.10 GBytes 26.6 Gbits/sec 0 1.25 MBytes
[ 5] 9.00-10.00 sec 3.08 GBytes 26.5 Gbits/sec 0 1.25 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 30.9 GBytes 26.6 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 30.9 GBytes 26.6 Gbits/sec receiver
iperf Done.
1 Like
Some early benchmarks from AN7581.
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.74",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Gemtek W1700K",
"board_name": "gemtek,w1700k",
"rootfs_type": "initramfs",
"release": {
"distribution": "OpenWrt",
"version": "SNAPSHOT",
"firmware_url": "https://downloads.openwrt.org/",
"revision": "r28775-6e11757e84",
"target": "airoha/an7581",
"description": "OpenWrt SNAPSHOT r28775-6e11757e84",
"builddate": "1739853234"
}
}
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 59986 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 528 MBytes 4.43 Gbits/sec 0 1.19 MBytes
[ 5] 1.00-2.00 sec 534 MBytes 4.48 Gbits/sec 0 1.19 MBytes
[ 5] 2.00-3.00 sec 532 MBytes 4.47 Gbits/sec 0 1.19 MBytes
[ 5] 3.00-4.00 sec 532 MBytes 4.46 Gbits/sec 0 1.19 MBytes
[ 5] 4.00-5.00 sec 536 MBytes 4.49 Gbits/sec 0 1.19 MBytes
[ 5] 5.00-6.00 sec 536 MBytes 4.49 Gbits/sec 0 1.19 MBytes
[ 5] 6.00-7.00 sec 534 MBytes 4.48 Gbits/sec 0 1.19 MBytes
[ 5] 7.00-8.00 sec 538 MBytes 4.51 Gbits/sec 0 1.19 MBytes
[ 5] 8.00-9.00 sec 534 MBytes 4.48 Gbits/sec 0 1.19 MBytes
[ 5] 9.00-10.00 sec 510 MBytes 4.28 Gbits/sec 0 1.19 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 5.19 GBytes 4.46 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 5.19 GBytes 4.46 Gbits/sec receiver
iperf Done.
2 Likes
"kernel": "6.6.73",
"hostname": "OpenWrt",
"system": "ARMv8 Processor rev 4",
"model": "Linksys MX4200v1",
"board_name": "linksys,mx4200v1",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10.0",
"revision": "r28427-6df0e3d02a",
"target": "qualcommax/ipq807x",
"description": "OpenWrt 24.10.0 r28427-6df0e3d02a",
"builddate": "1738624177"
}
}
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 60320 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 922 MBytes 7.73 Gbits/sec 0 895 KBytes
[ 5] 1.00-2.00 sec 796 MBytes 6.68 Gbits/sec 0 1.19 MBytes
[ 5] 2.00-3.00 sec 788 MBytes 6.61 Gbits/sec 0 1.19 MBytes
[ 5] 3.00-4.00 sec 791 MBytes 6.64 Gbits/sec 0 1.19 MBytes
[ 5] 4.00-5.00 sec 794 MBytes 6.66 Gbits/sec 0 1.19 MBytes
[ 5] 5.00-6.00 sec 797 MBytes 6.68 Gbits/sec 0 1.19 MBytes
[ 5] 6.00-7.00 sec 800 MBytes 6.71 Gbits/sec 0 1.19 MBytes
[ 5] 7.00-8.00 sec 800 MBytes 6.71 Gbits/sec 0 1.19 MBytes
[ 5] 8.00-9.00 sec 802 MBytes 6.73 Gbits/sec 0 1.19 MBytes
[ 5] 9.00-10.00 sec 806 MBytes 6.76 Gbits/sec 0 1.19 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 7.91 GBytes 6.79 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 7.91 GBytes 6.79 Gbits/sec receiver
iperf Done.
root@OpenWrt:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 42222 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 2.43 GBytes 20.9 Gbits/sec 0 1.19 MBytes
[ 5] 1.00-2.00 sec 2.79 GBytes 24.0 Gbits/sec 0 1.19 MBytes
[ 5] 2.00-3.00 sec 2.52 GBytes 21.7 Gbits/sec 0 1.19 MBytes
[ 5] 3.00-4.00 sec 2.67 GBytes 22.9 Gbits/sec 0 1.19 MBytes
[ 5] 4.00-5.00 sec 2.34 GBytes 20.1 Gbits/sec 0 1.19 MBytes
[ 5] 5.00-6.00 sec 2.03 GBytes 17.4 Gbits/sec 0 1.19 MBytes
[ 5] 6.00-7.00 sec 1.84 GBytes 15.8 Gbits/sec 0 1.19 MBytes
[ 5] 7.00-8.00 sec 1.98 GBytes 17.0 Gbits/sec 0 1.19 MBytes
[ 5] 8.00-9.00 sec 2.37 GBytes 20.3 Gbits/sec 0 1.19 MBytes
[ 5] 9.00-10.00 sec 2.96 GBytes 25.5 Gbits/sec 0 1.19 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 27.7 GBytes 23.8 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 27.7 GBytes 23.8 Gbits/sec receiver
iperf Done.
root@OpenWrt:~# ubus call system board
{
"kernel": "6.6.73",
"hostname": "OpenWrt",
"system": "Intel(R) Pentium(R) CPU @ 2.00GHz",
"model": "Riverbed DTADB",
"board_name": "riverbed-dtadb",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "24.10-SNAPSHOT",
"revision": "r28432-7609571dcd",
"target": "x86/64",
"description": "OpenWrt 24.10-SNAPSHOT r28432-7609571dcd",
"builddate": "1738765072"
}
}
root@OpenWrt:~#
Mikrotik RB5009

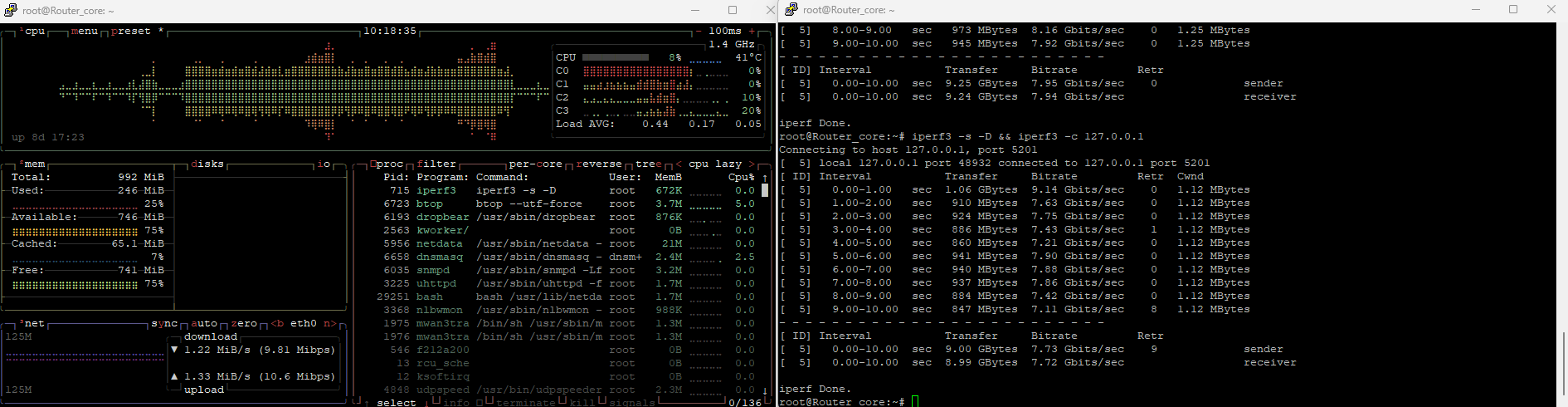

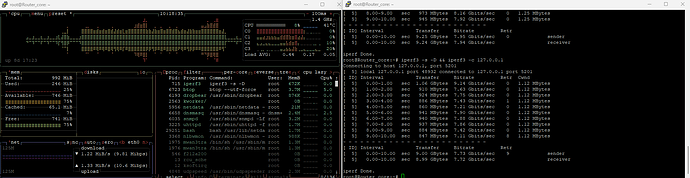

root@Router_core:~# iperf3 -s -D && iperf3 -c 127.0.0.1
Connecting to host 127.0.0.1, port 5201
[ 5] local 127.0.0.1 port 47678 connected to 127.0.0.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 1002 MBytes 8.40 Gbits/sec 0 5.00 MBytes
[ 5] 1.00-2.00 sec 991 MBytes 8.31 Gbits/sec 0 5.00 MBytes
[ 5] 2.00-3.00 sec 1003 MBytes 8.41 Gbits/sec 0 5.00 MBytes
[ 5] 3.00-4.00 sec 987 MBytes 8.28 Gbits/sec 0 5.00 MBytes
[ 5] 4.00-5.00 sec 1003 MBytes 8.42 Gbits/sec 0 5.00 MBytes
[ 5] 5.00-6.00 sec 1001 MBytes 8.39 Gbits/sec 0 5.00 MBytes
[ 5] 6.00-7.00 sec 997 MBytes 8.36 Gbits/sec 0 5.00 MBytes
[ 5] 7.00-8.00 sec 1002 MBytes 8.41 Gbits/sec 0 5.00 MBytes
[ 5] 8.00-9.00 sec 997 MBytes 8.37 Gbits/sec 0 5.00 MBytes
[ 5] 9.00-10.00 sec 962 MBytes 8.07 Gbits/sec 0 5.00 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 9.71 GBytes 8.34 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 9.70 GBytes 8.33 Gbits/sec receiver
iperf Done.
root@Router_core:~# ubus call system board
{
"kernel": "5.15.137",
"hostname": "Router_core",
"system": "ARMv8 Processor rev 1",
"model": "MikroTik RB5009",
"board_name": "mikrotik,rb5009",
"rootfs_type": "squashfs",
"release": {
"distribution": "OpenWrt",
"version": "23.05.2",
"revision": "r23630-842932a63d",
"target": "mvebu/cortexa72",
"description": "OpenWrt 23.05.2 r23630-842932a63d"
}
}
