Pfsense openVPN configuration error in OpenWrt

[mgazzin]

I am now having an issue with VPN client. I uploaded my configuration in the OpenWRT router and I am getting the following:

Sun Jan 28 09:33:03 2024 daemon.err openvpn(FW01)[22380]: VERIFY ERROR: depth=1, error=self-signed certificate in certificate chain: CN=internal-ca, C=IT, ST=State, L=Town, O=ORGANISATION, OU=Unit, serial=11111111111111
Sun Jan 28 09:33:03 2024 daemon.err openvpn(FW01)[22380]: OpenSSL: error:0A000086:SSL routines::certificate verify failed

the following is the VPN configuration:

# cat FW01.ovpn
dev tun0
persist-tun
persist-key
ncp-disable
cipher AES-256-CBC
auth SHA256
tls-client
client
resolv-retry infinite
remote xx.xxx.xxx.xxx yyyy udp4
verify-x509-name "OpenVPN Cert" name
remote-cert-tls server
passtos
explicit-exit-notify

<ca>
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
</ca>
<cert>
-----BEGIN CERTIFICATE-----
-----END CERTIFICATE-----
</cert>
<key>
-----BEGIN PRIVATE KEY-----
-----END PRIVATE KEY-----
</key>
key-direction 1
<tls-auth>
#
# 2048 bit OpenVPN static key
#
-----BEGIN OpenVPN Static key V1-----
-----END OpenVPN Static key V1-----
</tls-auth>

[mgazzin]

If I put certificates on files I am getting:

# openssl rsa -check -noout -in FW01.key.key
RSA key ok

# openssl verify -CAfile FW01.ca.key FW01.cert.key
FW01.cert.key: OK

[egc]

It is possible that the keys/certs are not up to the current minimal standard
You can try adding this in the OpenVPN config (but better is to redo your keys/certs adhering to current minimal standard if possible):
tls-cipher DEFAULT:@SECLEVEL=0

[mgazzin]

Could you please tell me what is the current minimal standard?

[egc]

Nowadays I think it is minimal 2048 key length but to be sure look it up

[mgazzin]

The private key already has 2048 bit:

# openssl rsa -in FW01.key.key -text -noout
Private-Key: (2048 bit, 2 primes)

And in my Manjaro Linux laptop I have the same configuration does not give me any issue.
Is there anything else I can try?

[egc]

@egc

tls-cipher DEFAULT:@SECLEVEL=0

Have yo tried this?
Setting it in the OpenVPN config?

[mgazzin]

I put that line in /etc/openvpn/FW01.ovpn and rebooted openvpn service but it didn't work.

[egc]

@mgazzin

OpenSSL: error:0A000086:SSL routines::certificate verify failed

You can also try this, adding to the openvpn config:

tls-cert-profile insecure

Or redo your certs/keys, All CAs with signature algoritm SHA1 or weaker are rejected by OpenSSL 3.x, in OpenVPN 2.6

[mgazzin]

@egc

tls-cert-profile insecure

No it does not work.
In my Manjaro Linux laptop I have openssl 3.2.0 and it works fine.
What is the reason?

[mgazzin]

I think you are right @egc because I have another VPN config and that one works.
The problem I am having now is the correct routing.

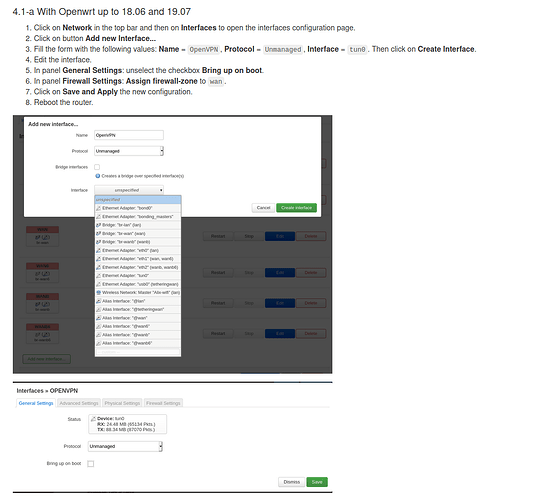

Is this step correct?

I am taking it from:

OpenVPN client using LuCI

Where should I put the remote network address?
Following the configurations steps I have this in my /etc/config/network:

config interface 'vpn'
	option proto 'none'
	option device 'tun0'
	option defaultroute '0'

and this in /etc/config/firewall:

config forwarding
	option src 'lan'
	option dest 'FW04'

The problem is that routing is taking 10.40.30.0/24 network but the real address is 192.168.30.0/24.

[mgazzin]

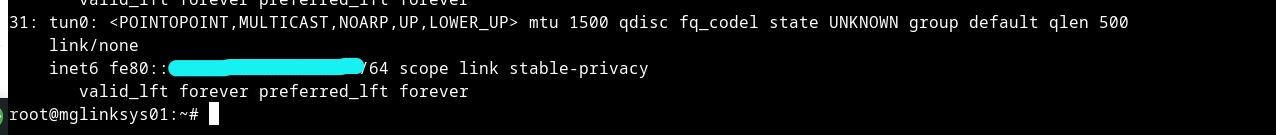

also tun0 is up but does not have any IP:

[mgazzin]

Ok now I have changed from managed to static:

config interface 'vpnFW04'
	option proto 'static'
	option device 'tun0'
	option ipaddr '10.40.30.3'
	option netmask '255.255.255.0'
	option broadcast '10.40.30.255'

and tun0 is up:

The following is PBR configuration:

config policy
       option name 'FW04'
       option dest_addr '192.168.30.0/24'
       option interface 'vpnFW04'
       option enabled '1'

routing is still not working

[egc]

@mgazzin

config interface 'vpn'
	option proto 'none'
	option device 'tun0'
	option defaultroute '0'

I would remove the option defaultroute '0' as you use the openvpn config to set the default route, otherwise it is fine.

Cannot say much about the routing probably make a new thread for this with all the necessary information

[mgazzin]

@egc this was solved creating another certificate in pfsense. Thanks.
Sorry I can't change the tittle to Solved.
