OpenWRT + Wireguard How to specify the network?

Riewekooche · December 9, 2024, 4:15pm

On my Fritzbox7362 with OpenWRT 23.05 i did the following:

Internet by a DHCP-client form a WLAN (of my neighbar. (he knows..)
Distribute the internet by LAN and WLAN (192.168.171.x) master/static address
That's ok so far. - i don't know how to configure the dhcp...

Installed Wireguard works.
My first router (Fritzbox native firmware) shows a working connection to the second Router OpenWrt).

I would like to have a Lan/Wlan-network on the OpenWrt-Router with the same netaddress like on my first router (192.168.1.1) and activated DHCP, so i can reach all my devices at home (first router) and on the way (second router) in the same network over VPN/Wireguard.

Is that possible?
And how th do?

Greetings
Thomas

mk24 · December 9, 2024, 4:44pm

This can't work directly since Wireguard is a layer 3 VPN and you are asking for a layer 2 bridge. Typically the network would be set up with different IP subnets at each location and layer 3 routing between them. For example your PC has an IP of 192.168.5.100 but it can reach a PC 192.168.1.120 in the other house.

If you really need layer 2 you could run a layer 2 tunnel such as gretap inside the Wireguard tunnel. This does have potential issues with MTU and as with all layer 2 VPNs, the tunnel bandwidth being overloaded with broadcast packets.

Riewekooche · December 14, 2024, 4:57pm

In the meantime i realized that there must be 2 different networks on both sides.
i.e. PC1 192.168.1.0 (Fritzbox) and PC2 192.168.2.0 (OpenWRT)

so i must build on my OpenWRT (PC2)

a wireless connection to the guest-network (dhcp client / wwan: ?), where i get the internet.
a lan 192.168.2.1 lan: (static address / master) with a connected WLAN
the Wireguard interface
the correct firewall/routing configuration - my main problem!

I hope to get a configuration, where i can go through the VPN tunnel save into the internet and into my private net at 192.178.1.0, too.

Is there anyone, how has a similar configuration working?

psherman · December 14, 2024, 5:41pm

Can you draw a topology diagram for your network that shows the devices in play (brand+model, firmware, and IP addresses) and also shows from where you will be connecting?

Riewekooche · December 15, 2024, 8:25am

Hi psherman

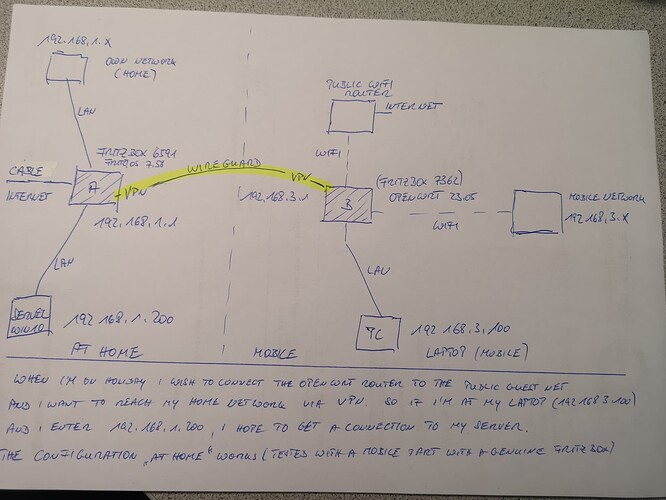

here the config i would like to build:

From 192.168.3.1 i can ping the 192.168.1.1 (but not the 192.168.1.200).
And if i could, how to reach by Win10? (netbios ???)

Please have a look at it.
and a happy 3rd advent sunday

psherman · December 15, 2024, 7:26pm

This is what's known as a road-warrior configuration, and should be achievable as long as your fritzbox at home has a public IPv4 address.

First thing to do is to check that the Fritz is working with a true public address. Please look at the Fritzbox's status page to find the upstream/wan IP address and post only the first to octets (in bold: aaa.bbb.cc.ddd) here.

Then, let's see your travel router's configuration:

Please connect to your OpenWrt device using ssh and copy the output of the following commands and post it here using the "Preformatted text </> " button:

Remember to redact passwords, MAC addresses and any public IP addresses you may have:

ubus call system board
cat /etc/config/network
cat /etc/config/wireless
cat /etc/config/dhcp
cat /etc/config/firewall

Riewekooche · December 16, 2024, 9:21am

Hi psherman
thanks for answering.

Here the asked configs:
(the wlan based on the lan: network is disabled, because i didn't managed it to work)
The public ip of my home fritbox is "5.10.xx.xx" - a fixed ip

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fdb4:f38d:6781::/48'

config atm-bridge 'atm'
        option vpi '1'
        option vci '32'
        option encaps 'llc'
        option payload 'bridged'
        option nameprefix 'dsl'

config dsl 'dsl'
        option annex 'b'
        option tone 'av'
        option ds_snr_offset '0'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'
        list ports 'lan4'

config device
        option name 'lan1'
        option macaddr 'xx xx xx'

config device
        option name 'lan2'
        option macaddr 'xx xx xx'

config device
        option name 'lan3'
        option macaddr 'xx xx xx'

config device
        option name 'lan4'
        option macaddr 'xx xx xx'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.3.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

config device
        option name 'dsl0'
        option macaddr 'xx xx xx'

config interface 'wan'
        option device 'dsl0'
        option proto 'pppoe'
        option username 'username'
        option password 'password'
        option ipv6 '1'
        option peerdns '0'
        list dns '192.168.1.1'

config interface 'wan6'
        option device '@wan'
        option proto 'dhcpv6'

config interface 'wwan'
        option proto 'dhcp'

config interface 'WireGuard_VPN'
        option proto 'wireguard'
        option private_key 'xxxxxxxxxxxxxxxxxxxxxxxxxxx'
        list addresses '192.168.3.1/24'
        list dns '192.168.1.1'
        option mtu '1412'

config wireguard_WireGuard_VPN
        option description 'Imported peer configuration'
        option public_key 'xxxxxxxxxxxxxxxxxxxxxxxx'
        option preshared_key xxxxxxxxxxxxxxxxxxxxxxxxxxxxx'
        option persistent_keepalive '25'
        option endpoint_host 'xxxxxx.myfritz.net'                            <<<< = 5.10.xx.xx
        option endpoint_port '56363'
        list allowed_ips '192.168.1.0/24'
        list allowed_ips '0.0.0.0/24'
        option route_allowed_ips '1'

root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path 'pci0000:00/0000:00:00.0/0000:01:00.0'
        option channel 'auto'
        option band '2g'
        option htmode 'HT20'
        option cell_density '0'

config wifi-iface 'default_radio0'
        option device 'radio0'
        option network 'lan'
        option mode 'ap'
        option ssid 'OpenWrt'
        option encryption 'none'
        option disabled '1'

config wifi-iface 'wifinet1'
        option device 'radio0'
        option mode 'sta'
        option network 'wwan'
        option ssid 'P20pro Thomas'
        option encryption 'psk2'
        option key '020f83d5c6c4'

root@OpenWrt:~# cat /etc/config/dhcp

config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'
        option filter_aaaa '0'
        option filter_a '0'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'

config dhcp 'wan'
        option interface 'wan'
        option ignore '1'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/hosts/odhcpd'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'

root@OpenWrt:~# cat /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'
        option masq '1'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'
        list network 'wwan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config zone
        option name 'WgardFW'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        option mtu_fix '1'
        option masq '1'
        list network 'WireGuard_VPN'

config forwarding
        option src 'lan'
        option dest 'WgardFW'

config forwarding
        option src 'WgardFW'
        option dest 'lan'

psherman · December 17, 2024, 2:37am

Riewekooche:

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.3.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

Riewekooche:

config interface 'WireGuard_VPN'
        option proto 'wireguard'
        option private_key 'xxxxxxxxxxxxxxxxxxxxxxxxxxx'
        list addresses '192.168.3.1/24'
        list dns '192.168.1.1'
        option mtu '1412'

This absolutely will not work. But there are other inconsistencies, too.

So let's start at the home router. I understand that it is not running OpenWrt, but please answer the following:

What is the home router's address and subnet mask (or simply the subnet for its lan).
What is the address of the home router's Wireguard interface
What is the address of the peer that will be the OpenWrt device? This is a peer configuration you will find on your home router; every peer must have a unique address.

You could consider showing screen grabs, or if there is a text config that you can pull, feel free to post that here (sanitizing as necessary).

Riewekooche · December 17, 2024, 4:07am

This is the Wireguard config on my home router (Fritz!box):

Public Key a4Z0rExxxxxxxxxxxxxxxxxxxxxxxxxxx=
Internet-addresse xxxxxxxxxxxxxx.myfritz.net:56363 Is the static IP 5.10.xx.xx

[Interface]
PrivateKey = xxxxxxxxxxxxxxxxxxx=
ListenPort = 56363
Address = 192.168.1.1/24
DNS = 192.168.1.1,192.168.2.1,192.168.3.1
DNS = fritz.box

[Peer]
PublicKey = xxxxxxxxxxxxxxxxxxx=
PresharedKey = xxxxxxxxxxxxxxxxxxxx=
AllowedIPs = 192.168.2.0/24
PersistentKeepalive = 25

[Peer]
PublicKey = xxxxxxxxxxxxxxxxxxxxxxxx=
PresharedKey = xxxxxxxxxxxxxxxxxxxxx=
AllowedIPs = 192.168.3.0/24
PersistentKeepalive = 25

The wireguard connection to 192.168.2.1 (another Fritz!box) works.
The wireguard connection to 192.168.3.1 gets a handshake, but doesnt reach the internet nor the clients in 192.168.1.x like x=200.

psherman · December 17, 2024, 4:20am

The Fritzbox Wireguard configuration doesn't really look right to me, either. I'm surprised it works at all.

You neglected to provide the information about the Fritzbox's lan subnet... what is that?

Riewekooche · December 17, 2024, 6:32am

The subnet is 255.255.255.0

psherman · December 17, 2024, 6:33am

Sorry, I was asking about the subnet, not the subnet mask.

Or, looking at it differently, what is the address of the home router's lan?

Riewekooche · December 17, 2024, 6:56am

Perhaps i don't understand you.
In my opinion the (sub)net of my home-router is 192.168.1.1, like i draw in the picture of the aimed configuration.

psherman · December 17, 2024, 7:04am

Ok... I just wanted to confirm.

If 192.168.1.1 is your router's lan address, this also won't work because WireGuard must be on a non-overlapping subnet. This is one of the reasons I was asking the questions -- I don't understand how your setup is working at all given that there are things that are clearly not right.

Typically, the address of the WG interface will be a unique subnet relative to the lan and then the peers will have addresses within that subnet, but typically /32.

For example:

WG interface: 192.168.17.1/24
Peer #1 Allowed IPs: 192.168.17.2/32
Peer #2 Allowed IPs: 192.168.17.3/32
...

Then, on the actual device that is peer #1, the situation would look like this:

WG interface: 192.168.17.2/24
Peer Allowed IPs: 0.0.0.0/0 # this would send all traffic through the tunnel

As you can see, your configuration does not resemble this at all, and I'm really not sure how or why it is able to work in the first place.

That said, at the risk of breaking your single existing connection, you should probably start over with the methods I'm describing.

Riewekooche · December 18, 2024, 6:31am

You're right. I have some peers with an address in the same subnet like the WG server (my Fritz!box):

[Peer]
PublicKey = xxxxxxxxxxxxxxxxxxxxxxx=
PresharedKey = xxxxxxxxxxxxxxxxxxxxxxxxx=
AllowedIPs = 192.168.1.51/32
PersistentKeepalive = 25

But these are peers on smartphones and a laptop - and not another router.

There must be a difference, i think. At least because the Fritzbox offers a choice between these 2 versions of buildung a WireGuard connection.

I wish to have a Lan2Lan Wireguard and i need the WLAN part, too. (to get the internet by a public wlan and the option of my own wlan out of the router).

At xmas i will try again. When it works with two Fritzboxes, it should be possible with a Fritzbox and an OpenWrt router....

psherman · December 18, 2024, 6:35am

There is no reason the router can't be on the same subnet... it's just another peer.

I don't know how the Fritzbox vendor firmware expects this to be done, but with OpenWrt the remote router would be 'just another peer' on the same subnet.

We can get to all of that. But I would suggest that you get a general connection working first. I recommend restructuring your FB such that all the peers are on the same subnet as the main WG interface. Then, the remote router will have its WG address set accordingly. What you'll have is 3 different subnets: FB lan, WG tunnel, remote router lan. (you can have more subnets, too, of course, but these these are the minimum and all subnets must be non-overlapping).

I wonder if it is the site-to-site part of this configuration that is tripping you up?

Riewekooche · December 21, 2024, 7:43am

I'm a bit confused.
By fiddling around with the OpenWRT config i reached this state:

from the WG peer-side (in the 192.168.3.0 network) i can use the internet.
i can reach the router of the WG server (my Fritzbox 192.168.1.1) by ping and web-interface
i can ping some ips in the 192.168.1.0 - and some NOT
i.e. my server (a win10 machine)
some devices i can ping AND reach the webinterface (like my printer 192.168.1.39
pinging from 192.168.1.1 to 192.168.3.1 doesn't work

Surely a problem of routing - but i don't know how.
I wish to access the router - not only by ping - at least inside my file-explorer.

Any ideas?

psherman · December 21, 2024, 7:46am

This is expected with Windows. The host-level Windows Firewall prohibits connections from other subnets unless you make adjustments to its configuration.

This is probably a firewall configuration and/or routing issue (on the routers). Simple to fix, usually.

Let's see the latest configs for both routers (the below applies to the OpenWrt device; for the FB, please indicate the latest WG addresses and related configurations):

cat /etc/config/network
cat /etc/config/firewall

Riewekooche · December 21, 2024, 8:16am

This is expected with Windows. The host-level Windows Firewall prohibits connections from other subnets unless you make adjustments to its configuration.>

Where can i myke these adjustments?

Here the configs:
First my home router (Fritzbox)

public key xxxxxxxxxxxxxxxxx
internet adress xxxxxxxxx.myfritz.net:56363        <--- 5.10.xx.xx

[Interface]
PrivateKey = YKjFaSCWbdpLwBDTE9Y8g0LlBHQHqi7QkE97Yy1hYHM=
ListenPort = 56363
Address = 192.168.1.1/24
DNS = 192.168.1.1,192.168.2.1,192.168.3.1
DNS = fritz.box

[Peer]
.

[Peer]
PublicKey = xxxxxxxxxxxxxxx
PresharedKey = xxxxxxxxxxxxxxx
AllowedIPs = 192.168.3.0/24
PersistentKeepalive = 25

Second the OpenWRT

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fdb4:f38d:6781::/48'

config atm-bridge 'atm'
        option vpi '1'
        option vci '32'
        option encaps 'llc'
        option payload 'bridged'
        option nameprefix 'dsl'

config dsl 'dsl'
        option annex 'b'
        option tone 'av'
        option ds_snr_offset '0'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'
        list ports 'lan4'

config device
        option name 'lan1'
        option macaddr '08:96:D7:B5:67:7D'

config device
        option name 'lan2'
        option macaddr '08:96:D7:B5:67:7D'

config device
        option name 'lan3'
        option macaddr '08:96:D7:B5:67:7D'

config device
        option name 'lan4'
        option macaddr '08:96:D7:B5:67:7D'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.3.1'
        option netmask '255.255.255.0'
        option ip6assign '60'

config device
        option name 'dsl0'
        option macaddr '08:96:D7:B5:67:80'

config interface 'wan'
        option device 'dsl0'
        option proto 'pppoe'
        option username 'username'
        option password 'password'
        option ipv6 '1'
        option peerdns '0'
        list dns '192.168.1.1'

config interface 'wan6'
        option device '@wan'
        option proto 'dhcpv6'

config interface 'wwan'
        option proto 'dhcp'

config interface 'WireGuard_VPN'
        option proto 'wireguard'
        option private_key 'xxxxxxxxxxxxxxxxxxxx'
        option mtu '1412'
        list addresses '192.168.3.1/32'
        list dns '192.168.1.1'
        list dns '8.8.8.8'
        list dns '192.168.3.1'

config wireguard_WireGuard_VPN
        option description 'Imported peer configuration'
        option public_key 'xxxxxxxxxxxxxxxxx'
        option preshared_key 'xxxxxxxxxxxxxxxxxxxxxxx'
        option persistent_keepalive '25'
        option endpoint_host 'xxxxxx.myfritz.net'   <---- my static ip 5.10.xx.xx. at 192.168.1.1
        option endpoint_port '56363'
        option route_allowed_ips '1'
        list allowed_ips '0.0.0.0/0'

root@OpenWrt:~# cat /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'
        list network 'wwan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config zone
        option name 'WgardFW'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option mtu_fix '1'
        option masq '1'
        list network 'WireGuard_VPN'

config forwarding
        option src 'lan'
        option dest 'WgardFW'

psherman · December 21, 2024, 8:27am

In the windows firewall settings. Where exactly? I have no idea, I don’t use windows.

Riewekooche:

config interface 'WireGuard_VPN'
        option proto 'wireguard'
        option private_key 'xxxxxxxxxxxxxxxxxxxx'
        option mtu '1412'
        list addresses '192.168.3.1/32'
        list dns '192.168.1.1'
        list dns '8.8.8.8'
        list dns '192.168.3.1'

The address here conflicts with your lan address/subnet. It must be something different. You can use something like 192.168.1.2/24 since your other peer is 192.168.1.1 — but you might change both of these to a less common subnet so you don’t encounter issues if you are at a location that uses this subnet.

Riewekooche:

config zone
        option name 'WgardFW'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option mtu_fix '1'
        option masq '1'
        list network 'WireGuard_VPN'

Do you want to be able to connect from the Fritz side to the openwrt device? If so, set input to accept. What about devices behind the openwrt router? If yes, disable masquerading, and allow wgardfw > lan forwarding.
