The script provided above worked, thank you @a7ypically!
Now I hope the exploit still works, because I'm on 3.0.40 FW, the stock was 3.0.33 I think, but that can not be found online.
btw. sorry for off topic.
What is the model ID for the international version?
It's RA70 on the sticker
Well, that is the same for the Chinese one, but on the API endpoint they only publicly list CN FW
Its still not good..
Got OpenWRT working but when I try to flash the new partition layout initramfs image it fails to boot:
IPQ807x# tftpboot openwrt-ipq807x-generic-xiaomi_ax9000-initramfs-uImage.itb
ipq807x_eth_halt: done
eth0 PHY0 Down Speed :10 Half duplex
eth0 PHY1 Down Speed :10 Half duplex
eth0 PHY2 Down Speed :10 Half duplex
eth0 PHY3 up Speed :1000 Full duplex
eth0 PHY4 up Speed :1000 Full duplex
eth0 PHY5 Down Speed :10 Half duplex
ipq807x_eth_init: done
Using eth0 device
TFTP from server 192.168.1.100; our IP address is 192.168.1.1
Filename 'openwrt-ipq807x-generic-xiaomi_ax9000-initramfs-uImage.itb'.
Load address: 0x42000000
Loading: *
Got TFTP_OACK: TFTP remote port: changes from 69 to 64374
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#################################################################
#############################################
5 MiB/s
done
Bytes transferred = 12098548 (b89bf4 hex)
ipq807x_eth_halt: done
IPQ807x# bootm
## Loading kernel from FIT Image at 42000000 ...
Using 'config@hk14' configuration
Trying 'kernel-1' kernel subimage
Description: ARM64 OpenWrt Linux-5.15.87
Type: Kernel Image
Compression: gzip compressed
Data Start: 0x420000e8
Data Size: 12051294 Bytes = 11.5 MiB
Architecture: AArch64
OS: Linux
Load Address: 0x41000000
Entry Point: 0x41000000
Hash algo: crc32
Hash value: fe2bd010
Hash algo: sha1
Hash value: 2b2f8646feda2b95d32c6db02fa3eb8151998cac
Verifying Hash Integrity ... crc32+ sha1+ OK
## Loading fdt from FIT Image at 42000000 ...
Using 'config@hk14' configuration
Trying 'fdt-1' fdt subimage
Description: ARM64 OpenWrt xiaomi_ax9000 device tree blob
Type: Flat Device Tree
Compression: uncompressed
Data Start: 0x42b7e588
Data Size: 45349 Bytes = 44.3 KiB
Architecture: AArch64
Hash algo: crc32
Hash value: 002971e3
Hash algo: sha1
Hash value: f60a148d35ee1e95275bc3df963c22ac076ca05c
Verifying Hash Integrity ... crc32+ sha1+ OK
Booting using the fdt blob at 0x42b7e588
Uncompressing Kernel Image ... OK
ERROR: new format image overwritten - must RESET the board to recover
resetting ...
Tried flashing the initramfs-factory.ubi but i get the same error, i can only switch back to the other rootfs to get it working again with my older 2 rootfs build..
What am I doing wrong?
Is this prebuilt or?
What is the size of image?
This is the image: https://feed.robimarko.eu/openwrt-ipq807x-generic-xiaomi_ax9000-initramfs-factory.ubi 12.25 MB and tried the other one with tftpboot https://feed.robimarko.eu/openwrt-ipq807x-generic-xiaomi_ax9000-initramfs-uImage.itb 11,53 MB
The image I built from openwrt master is 36 MB, that one resets without any error message (its too big?)
Yeah, you can only boot images to around 16MB in size because of the stupid bootloader, but the default works for me.
I hope they didn't mess with the bootloader completely.
Can you test one thing, your TFTP load address is way too low so I suspect there isn't enough space to unpack the image and boot it.
Can you tftpboot to 0x44000000 instead?
It worked!
Should I flash openwrt-ipq807x-generic-xiaomi_ax9000-squashfs-factory.ubi now?
If you have initramfs booted then simply sysupgrade using the sysupgrade image, and please can you run fw_printenv before sysupgrade as well as capture the whole log.
Okay, it worked!
fw_printenv before:
root@OpenWrt:/# fw_printenv
CountryCode=HU
Router_unconfigured=0
SN=<hidden>
atf=1
boot_wait=on
bootargs=ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs rootwait
bootcmd=tftp
bootdelay=1
color=100
eth1addr=<hidden>
eth2addr=<hidden>
eth3addr=<hidden>
eth4addr=<hidden>
eth5addr=<hidden>
ethact=eth0
ethaddr=<hidden>
fdt_high=0x4A400000
fdtcontroladdr=4a977f90
flag_boot_success=1
flag_boot_type=2
flag_ota_reboot=0
flag_try_sys1_failed=0
flag_try_sys2_failed=0
flash_type=2
fsbootargs=ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs
ipaddr=192.168.31.1
machid=8010012
miot_did=<hidden>
miot_key=<hidden>
mode=Router
model=RA70
mtddevname=fs
mtddevnum=0
mtdids=nand0=nand0
mtdparts=mtdparts=nand0:0x3800000@0x1180000(fs),
no_wifi_dev_times=0
nv_sys_pwd=<hidden>
nv_wan_type=dhcp
nv_wifi_enc=psk2
nv_wifi_enc1=psk2
nv_wifi_ssid=Xiaomi_<hidden>
nv_wifi_ssid1=Xiaomi_<hidden>_5G_Game
partition=nand0,0
restore_defaults=0
serverip=192.168.31.100
soc_hw_version=200d0200
soc_version_major=2
soc_version_minor=0
ssh_en=1
stderr=serial@78B3000
stdin=serial@78B3000
stdout=serial@78B3000
telnet_en=1
uart_en=1
wl0_radio=1
wl0_ssid=xiaomi-router-ra70_miap<hidden>_5G
wl1_radio=1
wl1_ssid=xiaomi-router-ra70_miap<hidden>
wl2_ssid=xiaomi-router-ra70_<hidden>_Game
flag_boot_rootfs=0
flag_last_success=0
root@OpenWrt:/#
Is the int. version this tricky, or I did something wrong?
Thank you for helping!
I'm on AX6, Router A is able to connect to Router B.
I followed the instruction but still getting error code 1643, appreciate additional idea.
You can just use the JS exploit scripts instead of that original trick
1 Like
Is there anything on going to enable to flash International version to a singe partition without uart ? I have got the impression that tftboot is the only option at the moment. I'm still waiting my uart adapter.
It should work the same as non international, only difference being the atf env variable.
If that doesn't work, then somebody has to catch what is going on
1 Like

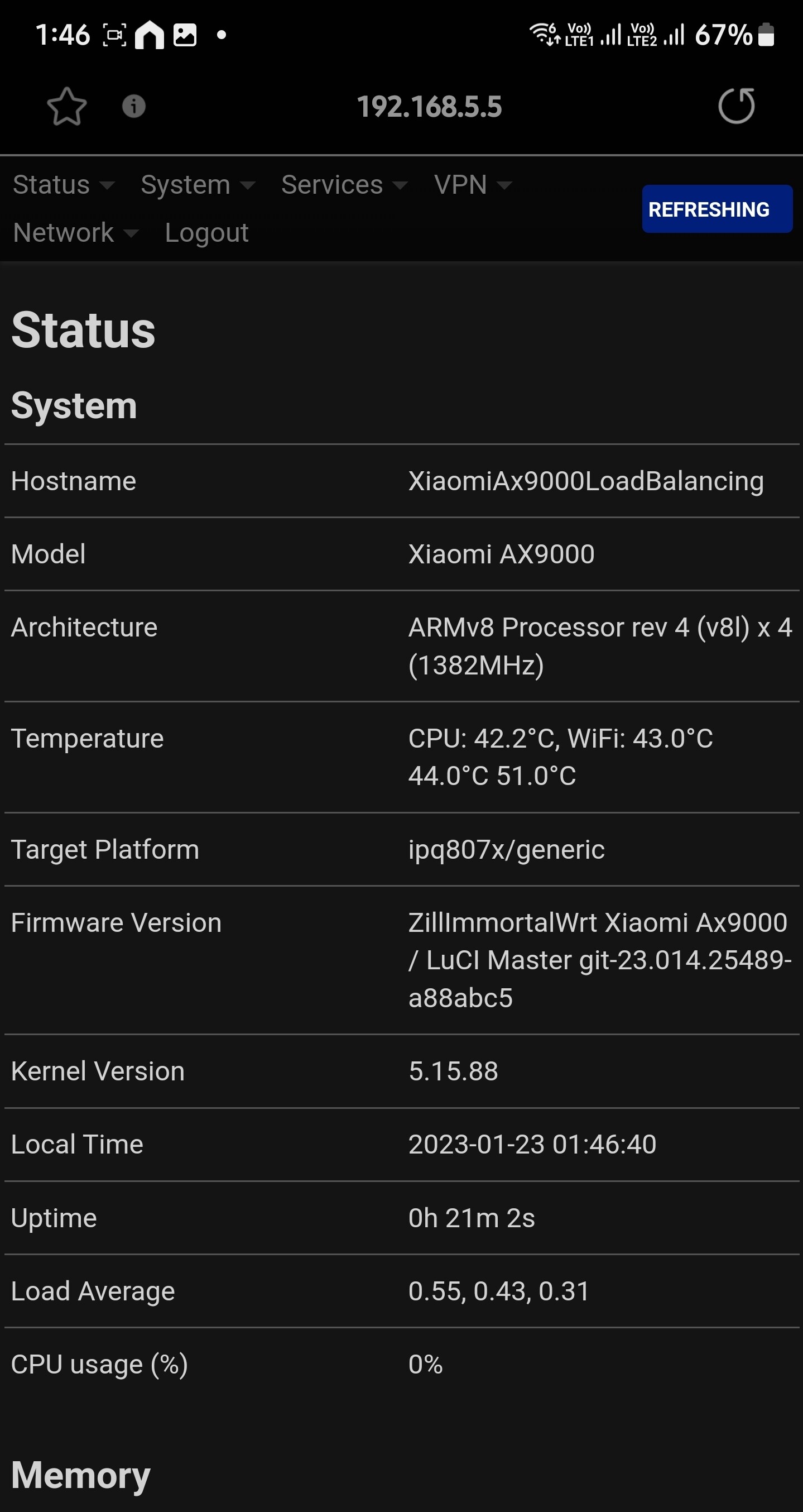

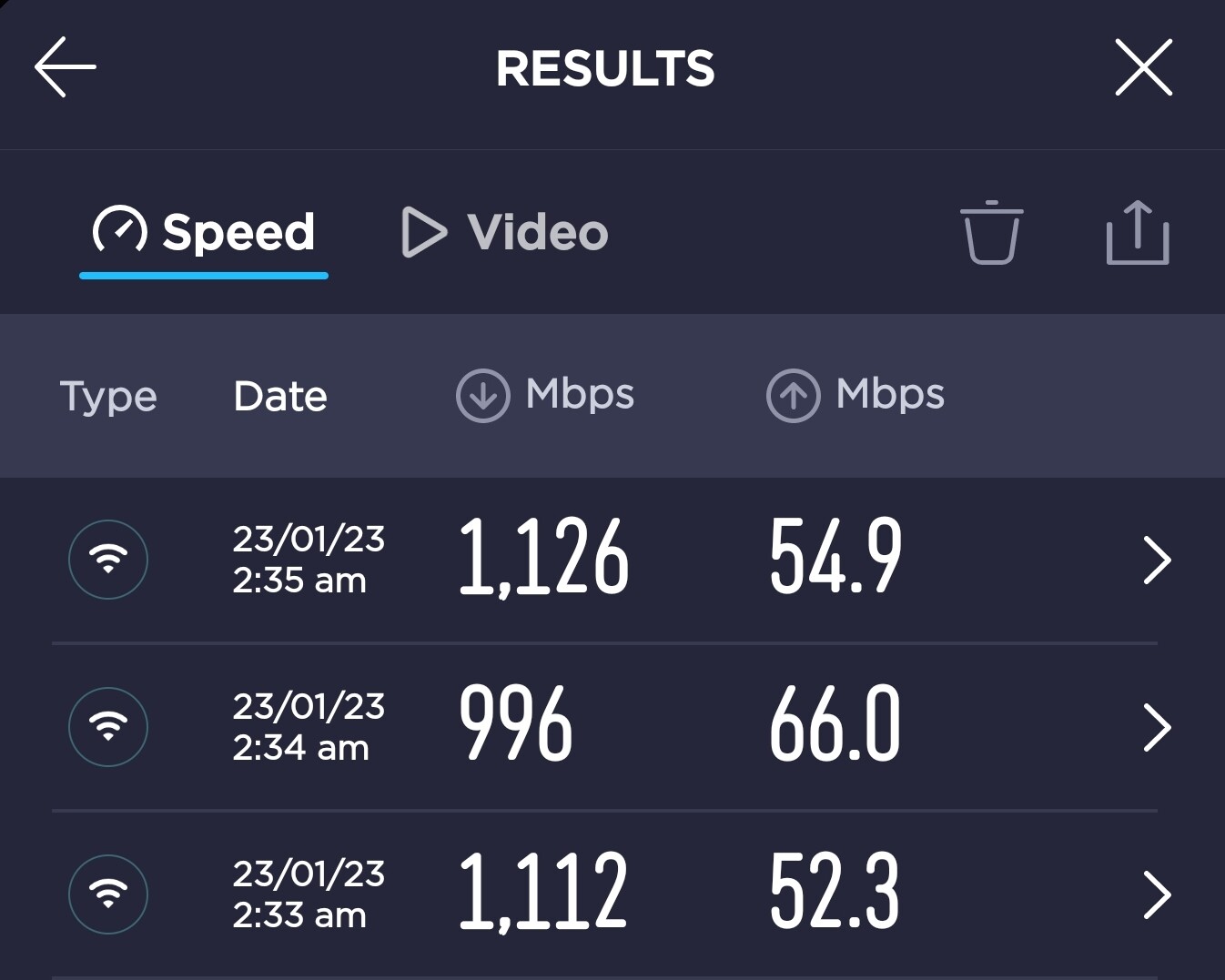

my ax9000..i bricked so many times..flashed fw img with so many versions as long as i can remember..now officially support by openwrt..there's no need to use uart..flash using file initramfs-factory.ubi then sysupgrade should work just fine..here my img overview and internet speed using immortalwrt(needed autocore)
1 Like
I see this router is showing on the official snapshot list now. Does the BDF file still require replacement?
Edit: BDF still needs to be replaced. I just flashed and checked.
You have also International version ?
my friend have
I must have missed the messages - could you remind us what's the benefit of replacing BDF and where to take them from?
