OpenWrt support for Xiaomi AX3000T

Lexeyko · October 14, 2024, 4:03am

In the "new" firmware from October 13 there is no longer a problem with the number of reboots.

gssjshark · October 14, 2024, 4:22am

Thanks for the update! I wasn’t aware.

HSNP · October 14, 2024, 5:48am

Awesome!!! I tried your build and bootloop is gone now

John6077 · October 14, 2024, 6:10am

Hi, this is my router. Production date 07.2024 here is the marking of the foresee F35SQA001G chip. I found a commit on github with this version https://github.com/immortalwrt-mt798x/immortalwrt-mt798x/blob/4776152b99704bf58352e269d0895cf28a9875eb/target/linux/generic/backport-5.4/494-mtd-spinand-add-support-foresee.patch#L106

Summary

Yes firmware 1.0.84
I tried to install the firmware where a new Switch is Airoha AN8855 was added, the router does not start, I had to flash it to the standard firmware

Ser9ei · October 14, 2024, 7:50am

+info:
stock firmware version
output of ‘nvram show’ command from stock
what files were used to install

Ser9ei · October 14, 2024, 8:47am

Hi, about ‘NMBM configuration mismatch’ message in the log.

Some messages with this exception in the log

OpenWrt support for Xiaomi AX3000T - #1101 by harjasqs
OpenWrt support for Xiaomi AX3000T - #1685 by aloner

Do you know about this exception when booting OpenWrt firmware on a router with Winbond chip and 'NMBM'?

The same result were on the snapshot and 23.05.5

robimarko · October 14, 2024, 8:52am

No idea about NMBM.

BTW, that new Foresee NAND shouldn't be hard since the larger part has already been upstreamed:
https://git.kernel.org/pub/scm/linux/kernel/git/next/linux-next.git/commit/drivers/mtd/nand/spi?h=next-20241011&id=f447318fb1d156b4b6da79266724c7ee347d1b59

Ser9ei · October 14, 2024, 8:57am

Who can explain or take recommendations for this case, because stock u-boot has this option and NMBM enabled in the dts, as for me is better for router with Winbond chip to use ubootmod (uboot from OpenWrt without NMBM)?

Linaro · October 14, 2024, 9:20am

There is no uboot env variable flag_ota_root. In the stock firmware it is flag_ota_reboot. The fw_setenv utility compairs old and new value before writing. No need to check them in the script. Also each new fw_setenv call rewrites uboot environment area. What about this variant?

--- a/target/linux/mediatek/filogic/base-files/etc/init.d/bootcount
+++ b/target/linux/mediatek/filogic/base-files/etc/init.d/bootcount
@@ -12,6 +12,16 @@ boot() {
 			fw_setenv bootpart 1
 		fi
 		;;
+	xiaomi,mi-router-ax3000t)
+		fw_setenv -s - <<-EOF
+			flag_boot_rootfs 0
+			flag_boot_success 1
+			flag_last_success 0
+			flag_ota_reboot 0
+			flag_try_sys1_failed 0
+			flag_try_sys2_failed 0
+		EOF
+		;;
 	zyxel,ex5700-telenor)
 		fw_setenv uboot_bootcount 0
 		;;
--- a/target/linux/mediatek/filogic/base-files/lib/upgrade/platform.sh
+++ b/target/linux/mediatek/filogic/base-files/lib/upgrade/platform.sh
@@ -39,13 +39,16 @@ xiaomi_initial_setup()
 		return 0
 	fi

-	fw_setenv boot_wait on
-	fw_setenv uart_en 1
-	fw_setenv flag_boot_rootfs 0
-	fw_setenv flag_last_success 1
-	fw_setenv flag_boot_success 1
-	fw_setenv flag_try_sys1_failed 8
-	fw_setenv flag_try_sys2_failed 8
+	fw_setenv -s - <<-EOF
+		boot_wait on
+		uart_en 1
+		flag_boot_rootfs 0
+		flag_boot_success 1
+		flag_last_success 0
+		flag_ota_reboot 0
+		flag_try_sys1_failed 0
+		flag_try_sys2_failed 0
+	EOF

 	local board=$(board_name)
 	case "$board" in

remittor · October 14, 2024, 9:24am

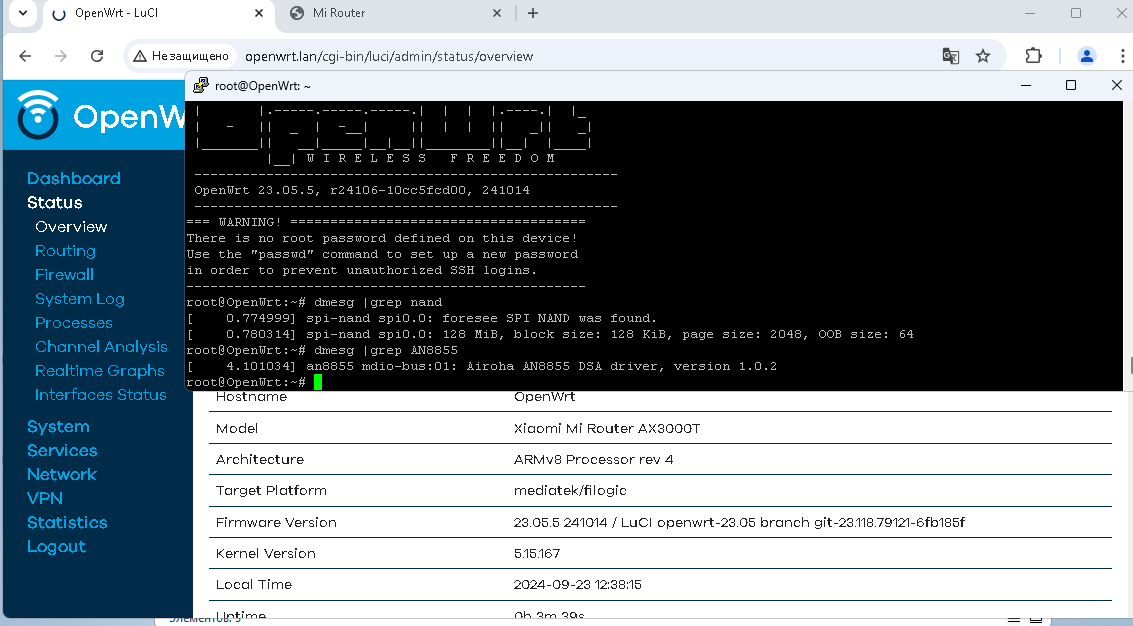

Same:

remittor · October 14, 2024, 9:34am

I builded OpenWrt 23.05.5 (241014) with many patches:

add Winbond W25N01KV support
add Foresee spinand support
add switch-an8855 driver (by @linaro)
fix mtk_eth_soc : https://github.com/openwrt/openwrt/pull/16419

All patches: https://github.com/openwrt-xiaomi/openwrt/commits/xq-23.05.5/

Download: https://drive.google.com/drive/folders/1Crh7Hkv1TOlvaSw8aP5a7IJJDiU_2ULR

Ser9ei · October 14, 2024, 9:36am

I like it, thanks for your feedback

About [ "$(rootfs_type)" = "tmpfs" ] case
We could not be sure that users with tmpfs firmware would try to reboot his router more than once before install the sysupgrade version

Linaro · October 14, 2024, 10:12am

Ok. I corrected the post.

Vivikawa · October 14, 2024, 10:21am

Sorry for the stupid question, I’m just tired of snapshots and the reboot problem. Am I correct in understanding that I can just download your build for RD23 and install initramfs and then sysupgrade and everything will work? I don’t need the rest of the files that are in the archive?

I have RD23 with winbond

oneinchashh · October 14, 2024, 10:25am

i have Xiaomi ax3000t on openwrt snapshot r27055 (openwrt u-boot layout) and im planning to sysupgrade to 23.05.5 u-boot layout. Is it possible if I have ESMT SPI NAND?

YooLc · October 14, 2024, 11:15am

I'm currently trying to apply the an8855 driver to snapshot version with linux kernel 6.6. I've compiled an image but after I flash it onto the device, the kernel was booted but it won't give me a busybox shell.

I'm using the factory u-boot, and flashed the initramfs-factory.ubi to mtd9, because factory firmware is at mtd8. My device is RD03 with Winbond flash and AN8855 switch.

Can anyone give me some clue about it Thanks!

Update: full boot log:

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[    0.000000] Linux version 6.6.56 (yoolc@yoolc-pc) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 13.3.0 r27751-f8c22c94
[    0.000000] Machine model: Xiaomi Mi Router AX3000T
[    0.000000] OF: reserved mem: 0x0000000042ff0000..0x0000000042ffffff (64 KiB) map non-reusable ramoops@42ff0000
[    0.000000] OF: reserved mem: 0x0000000043000000..0x000000004302ffff (192 KiB) nomap non-reusable secmon@43000000
[    0.000000] OF: reserved mem: 0x0000000047c80000..0x0000000047d7ffff (1024 KiB) nomap non-reusable wmcpu-reserve0
[    0.000000] OF: reserved mem: 0x0000000047d80000..0x0000000047dbffff (256 KiB) nomap non-reusable wo-emi@47d80000
[    0.000000] OF: reserved mem: 0x0000000047dc0000..0x0000000047ffffff (2304 KiB) nomap non-reusable wo-data@47dc00
[    0.000000] Zone ranges:
[    0.000000]   DMA      [mem 0x0000000040000000-0x000000004fffffff]
[    0.000000]   DMA32    empty
[    0.000000]   Normal   empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000040000000-0x0000000042ffffff]
[    0.000000]   node   0: [mem 0x0000000043000000-0x000000004302ffff]
[    0.000000]   node   0: [mem 0x0000000043030000-0x0000000047c7ffff]
[    0.000000]   node   0: [mem 0x0000000047c80000-0x0000000047ffffff]
[    0.000000]   node   0: [mem 0x0000000048000000-0x000000004fffffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000004fffffff]
[    0.000000] psci: probing for conduit method from DT.
[    0.000000] psci: PSCIv1.1 detected in firmware.
[    0.000000] psci: Using standard PSCI v0.2 function IDs
[    0.000000] psci: MIGRATE_INFO_TYPE not supported.
[    0.000000] psci: SMC Calling Convention v1.2
[    0.000000] percpu: Embedded 18 pages/cpu s34600 r8192 d30936 u73728
[    0.000000] pcpu-alloc: s34600 r8192 d30936 u73728 alloc=18*4096
[    0.000000] pcpu-alloc: [0] 0 [0] 1
[    0.000000] Detected VIPT I-cache on CPU0
[    0.000000] CPU features: detected: GIC system register CPU interface
[    0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[    0.000000] alternatives: applying boot alternatives
[    0.000000] Kernel command line: console=ttyS0,115200n1 loglevel=8 swiotlb=512 rootfstype=squashfs firmware=0 mt1
[    0.000000] Unknown kernel command line parameters "firmware=0 mtd=ubi uart_en=1", will be passed to user space.
[    0.000000] Dentry cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[    0.000000] Inode-cache hash table entries: 16384 (order: 5, 131072 bytes, linear)
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 64512
[    0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[    0.000000] software IO TLB: area num 2.
[    0.000000] software IO TLB: mapped [mem 0x000000004f900000-0x000000004fa00000] (1MB)
[    0.000000] Memory: 216052K/262144K available (8704K kernel code, 962K rwdata, 2544K rodata, 448K init, 287K bss)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] rcu:     RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2.
[    0.000000]  Tracing variant of Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[    0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2
[    0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[    0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[    0.000000] GICv3: 640 SPIs implemented
[    0.000000] GICv3: 0 Extended SPIs implemented
[    0.000000] Root IRQ handler: gic_handle_irq
[    0.000000] GICv3: GICv3 features: 16 PPIs
[    0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000
[    0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[    0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 44079520s
[    0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns
[    0.000075] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=13000)
[    0.000084] pid_max: default: 32768 minimum: 301
[    0.003004] Mount-cache hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.003012] Mountpoint-cache hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.005222] cacheinfo: Unable to detect cache hierarchy for CPU 0
[    0.005792] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1.
[    0.005954] rcu: Hierarchical SRCU implementation.
[    0.005957] rcu:     Max phase no-delay instances is 1000.
[    0.006407] smp: Bringing up secondary CPUs ...
[    0.006797] Detected VIPT I-cache on CPU1
[    0.006845] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000
[    0.006878] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[    0.006955] smp: Brought up 1 node, 2 CPUs
[    0.006960] SMP: Total of 2 processors activated.
[    0.006964] CPU features: detected: 32-bit EL0 Support
[    0.006967] CPU features: detected: CRC32 instructions
[    0.007000] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[    0.007004] CPU: All CPU(s) started at EL2
[    0.007006] alternatives: applying system-wide alternatives
[    0.010840] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.010859] futex hash table entries: 512 (order: 3, 32768 bytes, linear)
[    0.012133] pinctrl core: initialized pinctrl subsystem
[    0.013016] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.013676] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations
[    0.013713] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[    0.013736] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations
[    0.014128] thermal_sys: Registered thermal governor 'fair_share'
[    0.014133] thermal_sys: Registered thermal governor 'bang_bang'
[    0.014135] thermal_sys: Registered thermal governor 'step_wise'
[    0.014137] thermal_sys: Registered thermal governor 'user_space'
[    0.014251] ASID allocator initialised with 65536 entries
[    0.015339] pstore: Using crash dump compression: deflate
[    0.015345] pstore: Registered ramoops as persistent store backend
[    0.015348] ramoops: using 0x10000@0x42ff0000, ecc: 0
[    0.022503] Modules: 29488 pages in range for non-PLT usage
[    0.022512] Modules: 521008 pages in range for PLT usage
[    0.023564] cryptd: max_cpu_qlen set to 1000
[    0.025667] SCSI subsystem initialized
[    0.026148] libata version 3.00 loaded.
[    0.027769] clocksource: Switched to clocksource arch_sys_counter
[    0.030186] NET: Registered PF_INET protocol family
[    0.030301] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear)
[    0.031383] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear)
[    0.031396] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.031406] TCP established hash table entries: 2048 (order: 2, 16384 bytes, linear)
[    0.031425] TCP bind hash table entries: 2048 (order: 4, 65536 bytes, linear)
[    0.031483] TCP: Hash tables configured (established 2048 bind 2048)
[    0.031564] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.031582] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[    0.031788] NET: Registered PF_UNIX/PF_LOCAL protocol family
[    0.031816] PCI: CLS 0 bytes, default 64
[    0.032175] Unpacking initramfs...
[    0.038406] workingset: timestamp_bits=46 max_order=16 bucket_order=0
[    0.043226] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[    0.043238] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[    0.087138] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled
[    0.088351] printk: console [ttyS0] disabled
[    0.108693] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 72, base_baud = 2500000) is a ST16650V2
[    0.108739] printk: console [ttyS0] enabled
[    0.854562] loop: module loaded
[    0.860108] spi-nand spi0.0: Winbond SPI NAND was found.
[    0.865427] spi-nand spi0.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 96
[    0.873977] Signature found at block 1023 [0x07fe0000]
[    0.879149] NMBM configuration mismatch
[    6.273579] Freeing initrd memory: 22792K
[    6.286462] 10 fixed-partitions partitions found on MTD device spi0.0
[    6.292930] Creating 10 MTD partitions on "spi0.0":
[    6.297812] 0x000000000000-0x000000100000 : "BL2"
[    6.303599] 0x000000100000-0x000000140000 : "Nvram"
[    6.309128] 0x000000140000-0x000000180000 : "Bdata"
[    6.314626] 0x000000180000-0x000000380000 : "Factory"
[    6.321662] 0x000000380000-0x000000580000 : "FIP"
[    6.328020] 0x000000580000-0x0000005c0000 : "crash"
[    6.333555] 0x0000005c0000-0x000000600000 : "crash_log"
[    6.339476] 0x000007600000-0x000007640000 : "KF"
[    6.344752] 0x000000600000-0x000002800000 : "ubi_kernel"
[    6.367373] 0x000002800000-0x000007600000 : "ubi"
[    6.557789] an8855 mdio-bus:1f: Airoha AN8855 DSA driver, version 1.0.2
[    6.567631] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc081300000, irq 75
[    6.577487] i2c_dev: i2c /dev entries driver
[    6.584591] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0)
[    6.593721] NET: Registered PF_INET6 protocol family
[    6.599993] Segment Routing with IPv6
[    6.603682] In-situ OAM (IOAM) with IPv6
[    6.607642] NET: Registered PF_PACKET protocol family
[    6.612972] 8021q: 802.1Q VLAN Support v1.8
[    6.642514] UBI: auto-attach mtd9
[    6.645858] ubi0: default fastmap pool size: 30
[    6.650397] ubi0: default fastmap WL pool size: 15
[    6.655176] ubi0: attaching mtd9
[    6.881109] ubi0: scanning is finished
[    6.889827] ubi0: attached mtd9 (name "ubi", size 78 MiB)
[    6.895233] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
[    6.902115] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
[    6.908896] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
[    6.915845] ubi0: good PEBs: 624, bad PEBs: 0, corrupted PEBs: 0
[    6.921841] ubi0: user volume: 0, internal volumes: 1, max. volumes count: 128
[    6.929053] ubi0: max/mean erase counter: 11/6, WL threshold: 4096, image sequence number: 1213718725
[    6.938260] ubi0: available PEBs: 598, total reserved PEBs: 26, PEBs reserved for bad PEB handling: 20
[    6.947557] ubi0: background thread "ubi_bgt0d" started, PID 518
[    6.947664] clk: Disabling unused clocks
[    6.958156] Freeing unused kernel memory: 448K
[    6.962657] Run /init as init process
[    6.966308]   with arguments:
[    6.969275]     /init
[    6.971537]   with environment:
[    6.974665]     HOME=/
[    6.977012]     TERM=linux
[    6.979710]     firmware=0
[    6.982405]     mtd=ubi
[    6.984838]     uart_en=1
[    7.290724] cp invoked oom-killer: gfp_mask=0x140cca(GFP_HIGHUSER_MOVABLE|__GFP_COMP), order=0, oom_score_adj=0
[    7.300860] CPU: 1 PID: 523 Comm: cp Not tainted 6.6.56 #0
[    7.306337] Hardware name: Xiaomi Mi Router AX3000T (DT)
[    7.311635] Call trace:
[    7.314069]  dump_backtrace+0x9c/0xd8
[    7.317729]  show_stack+0x14/0x1c
[    7.321034]  dump_stack_lvl+0x44/0x58
[    7.324687]  dump_stack+0x14/0x1c
[    7.327992]  dump_header+0x44/0x1a8
[    7.331473]  oom_kill_process+0x154/0x264
[    7.335472]  out_of_memory+0xc4/0x2ec
[    7.339124]  __alloc_pages_slowpath.constprop.0+0x7cc/0xa10
[    7.344686]  __alloc_pages+0x194/0x21c
[    7.348425]  __folio_alloc+0x10/0x18
[    7.351990]  shmem_alloc_folio+0x24/0x2c
[    7.355904]  shmem_get_folio_gfp.isra.0+0x2cc/0x51c
[    7.360771]  shmem_write_begin+0x44/0x98
[    7.364684]  generic_perform_write+0x9c/0x1a8
[    7.369034]  shmem_file_write_iter+0x98/0xbc
[    7.373293]  do_iter_readv_writev+0xa0/0x108
[    7.377555]  do_iter_write+0x74/0x208
[    7.381208]  vfs_iter_write+0x18/0x28
[    7.384860]  iter_file_splice_write+0x1f8/0x378
[    7.389382]  direct_splice_actor+0x2c/0x3c
[    7.393469]  splice_direct_to_actor+0xcc/0x25c
[    7.397901]  do_splice_direct+0x7c/0xb0
[    7.401727]  do_sendfile+0x308/0x478
[    7.405293]  __arm64_sys_sendfile64+0x130/0x160
[    7.409813]  invoke_syscall.constprop.0+0x4c/0xe0
[    7.414506]  do_el0_svc+0x3c/0xb8
[    7.417811]  el0_svc+0x18/0x4c
[    7.420856]  el0t_64_sync_handler+0x118/0x124
[    7.425202]  el0t_64_sync+0x150/0x154
[    7.428884] Mem-Info:
[    7.431148] active_anon:23798 inactive_anon:0 isolated_anon:0
[    7.431148]  active_file:0 inactive_file:0 isolated_file:0
[    7.431148]  unevictable:29329 dirty:0 writeback:0
[    7.431148]  slab_reclaimable:1323 slab_unreclaimable:2136
[    7.431148]  mapped:274 shmem:23738 pagetables:15
[    7.431148]  sec_pagetables:0 bounce:0
[    7.431148]  kernel_misc_reclaimable:0
[    7.431148]  free:419 free_pcp:316 free_cma:0
[    7.469077] Node 0 active_anon:95192kB inactive_anon:0kB active_file:0kB inactive_file:0kB unevictable:117316kB o
[    7.495122] DMA free:1676kB boost:0kB min:1856kB low:2320kB high:2784kB reserved_highatomic:0KB active_anon:9506B
[    7.522206] lowmem_reserve[]: 0 0 0 0
[    7.525865] DMA: 46*4kB (UM) 57*8kB (UM) 5*16kB (U) 6*32kB (U) 5*64kB (U) 4*128kB (UM) 0*256kB 0*512kB 0*1024kB B
[    7.538322] 53067 total pagecache pages
[    7.542144] 0 pages in swap cache
[    7.545446] Free swap  = 0kB
[    7.548322] Total swap = 0kB
[    7.551191] 65536 pages RAM
[    7.553972] 0 pages HighMem/MovableOnly
[    7.557798] 5713 pages reserved
[    7.560927] Tasks state (memory values in pages):
[    7.565615] [  pid  ]   uid  tgid total_vm      rss pgtables_bytes swapents oom_score_adj name
[    7.574226] [    523]     0   523      368      256    32768        0             0 cp
[    7.582136] oom-kill:constraint=CONSTRAINT_NONE,nodemask=(null),cpuset=/,mems_allowed=0,global_oom,task_memcg=/,0
[    7.594145] Out of memory: Killed process 523 (cp) total-vm:1472kB, anon-rss:128kB, file-rss:896kB, shmem-rss:0k0
Killed
[    7.689624] init: Console is alive
[    7.693197] init: - watchdog -
[    7.702332] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[    7.712588] gpio_button_hotplug: loading out-of-tree module taints kernel.
[    7.722679] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[    7.737203] init: - preinit -
/etc/preinit: /etc/diag.sh: line 21: hexdump: not found
/etc/preinit: /etc/diag.sh: line 21: arithmetic syntax error
/etc/preinit: /etc/diag.sh: line 52: basename: not found
/etc/preinit: /etc/diag.sh: line 21: hexdump: not found
/etc/preinit: /etc/diag.sh: line 21: arithmetic syntax error
/etc/preinit: /etc/diag.sh: line 52: basename: not found
/etc/preinit: /etc/diag.sh: line 21: hexdump: not found
/etc/preinit: /etc/diag.sh: line 21: arithmetic syntax error
/etc/preinit: /etc/diag.sh: line 52: basename: not found
/etc/preinit: /etc/diag.sh: line 21: hexdump: not found
/etc/preinit: /etc/diag.sh: line 21: arithmetic syntax error
/etc/preinit: /etc/diag.sh: line 52: basename: not found
/etc/preinit: line 5: strings: not found
/etc/preinit: line 5: head: not found
[    7.866966] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode
[    7.877428] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx
Press the [f] key and hit [enter] to enter failsafe mode
Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level
[    9.943198] random: procd: uninitialized urandom read (4 bytes read)
[    9.945924] procd: - early -
[    9.952680] procd: - watchdog -
[   10.485415] procd: - watchdog -
[   10.488767] procd: - ubus -
[   10.491596] procd: - ubus - failed to chown(/var/run/ubus)

Lexeyko · October 14, 2024, 11:36am

Snapshot does not have a web shell, it must be installed separately or added during assembly.

YooLc · October 14, 2024, 11:53am

sorry, but i mean the busybox shell, because the filesystem is not ready (cannot attach to mtd9)

John6077 · October 14, 2024, 1:05pm

Thank you dear remittor ,
I installed today's assembly, I confirm its operability

Summary

Lexeyko · October 14, 2024, 1:36pm

What is needed for official support of these working patches by official openWrt?
