OpenWRT on Ruckus zf7363

Installing and Using OpenWrt
1

I'm trying to update the firmware of the Ruckus zf7363, which currently has the standalone 100.1.0.0.500 firmware. However, when I try to upload the image to the device, I receive a failure message. I noticed that the firmware that the device supports has the .bl7 extension, but the OpenWRT image available at https://firmware-selector.openwrt.org/?version=24.10.0&target=ath79%2Fgeneric&id=ruckus_zf7363 has the .bin extension.

How can I update the AP's firmware to OpenWRT?

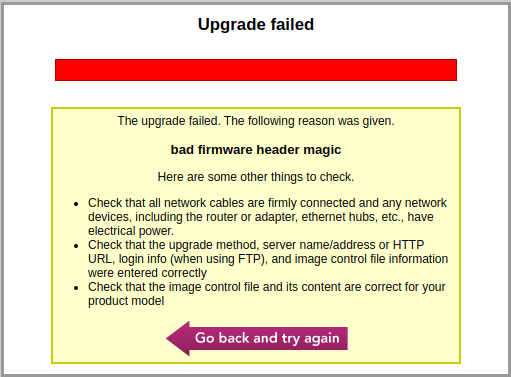

image511×377 21.3 KB

2

Is this any help:
https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=0eebc6f0ddb0791406d30530e3fc25d39428bd5a

1 Like
3

Apparently there is no less invasive way to change the firmware of this model, other than using the serial console of its hardware, right?
