OpenWRT 23.05 AP WAN socket at LAN

[cah1982]

I need 1 extra socket on my Access Pount Mode (TPLink Archer C2 AC750), So rather than have to use an extra switch, I would like to use the WAN port since its not in use as a LAN port

I have tried setting the WANs to Unmanaged, and deleting them

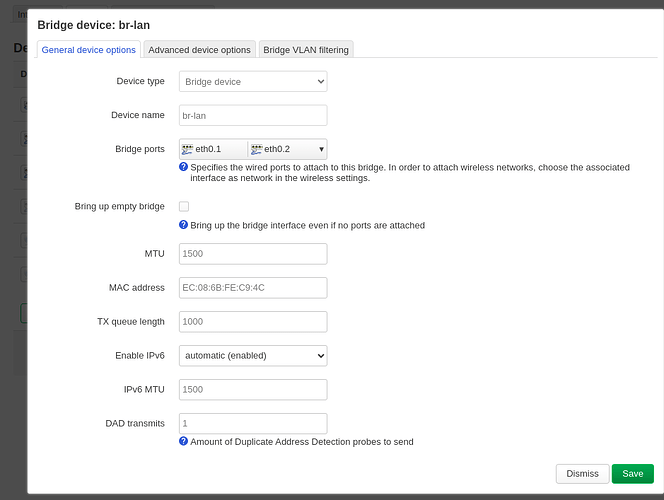

Adding both to bridge ports

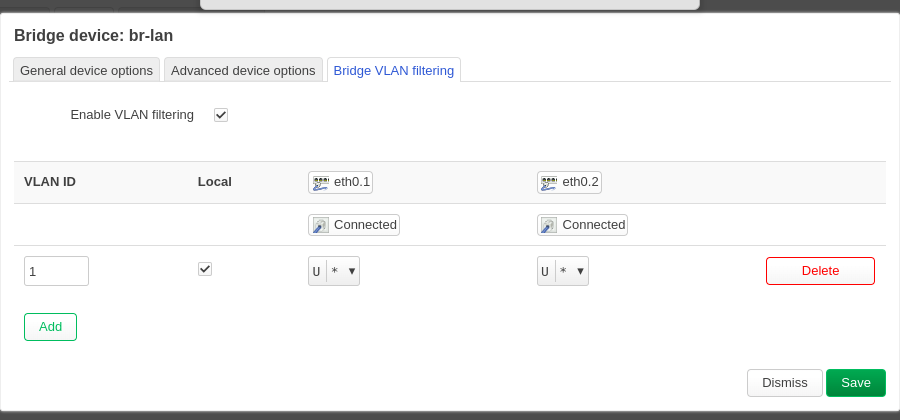

Adding a line in here setting them both to untagged and is primary vlan

but I cant get it to work, im only connecting a small device to the WAN so its not needing much bandwidth

Could someone advise what I need to do and what im doing wrong please

[pavelgl]

I don't own such a device, but it doesn't look like a DSA.
In LuCI->Network you should have a Switch menu.

1. Delete what you have done in the Bridge VLAN Filtering tab.
2. In the Switch tab, delete VLAN2 and make VLAN1 look like this:

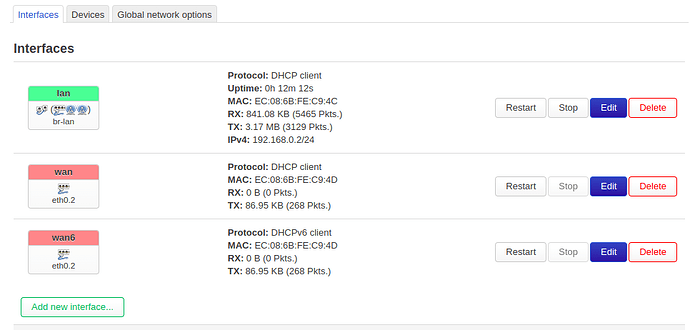

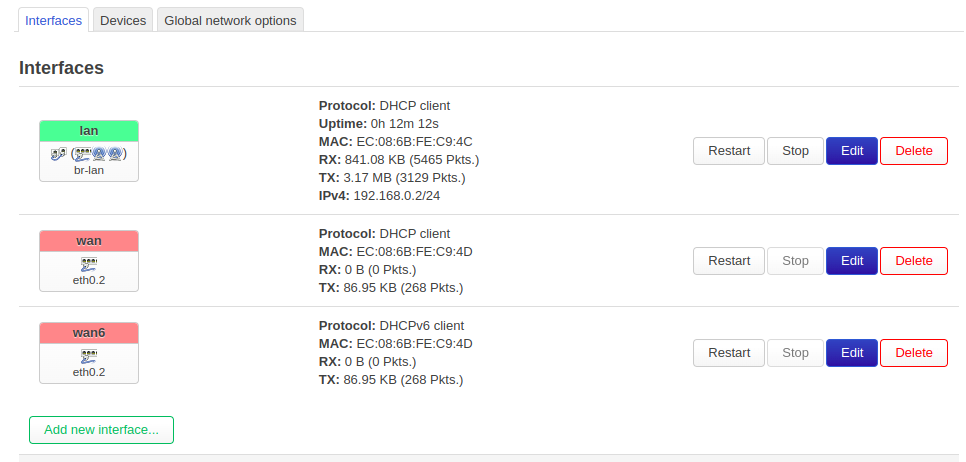

Also delete the wan and wan6 interfaces.

[cah1982]

Cheers, been trying to figure this out all day
