OpenWRT 15/02/2025 snapshot for Pi5 No CPU Activity monitoring

[AndrewW-GIT]

Just installed the snapshot from 15/02/2025 on a pi 5 and works ok. I cant quite get maximum speed on a 1 GB network, but that is not the issue. The top command is showing 0% cpu utilisation for everything even when transferring 1gb a second and still capping slightly, so i cant tune the config. Am i missing a module or something or is this just a bug ?

[frollic]

Define "capping slightly".

[AndrewW-GIT]

losing about 70mbs, and looking to test irq balancing / off loading but i cant see the impact on the cpu. Hence my query about top not displaying utilisation. The part about capping was just back ground and the reason i need to see this data

[MrCarofa]

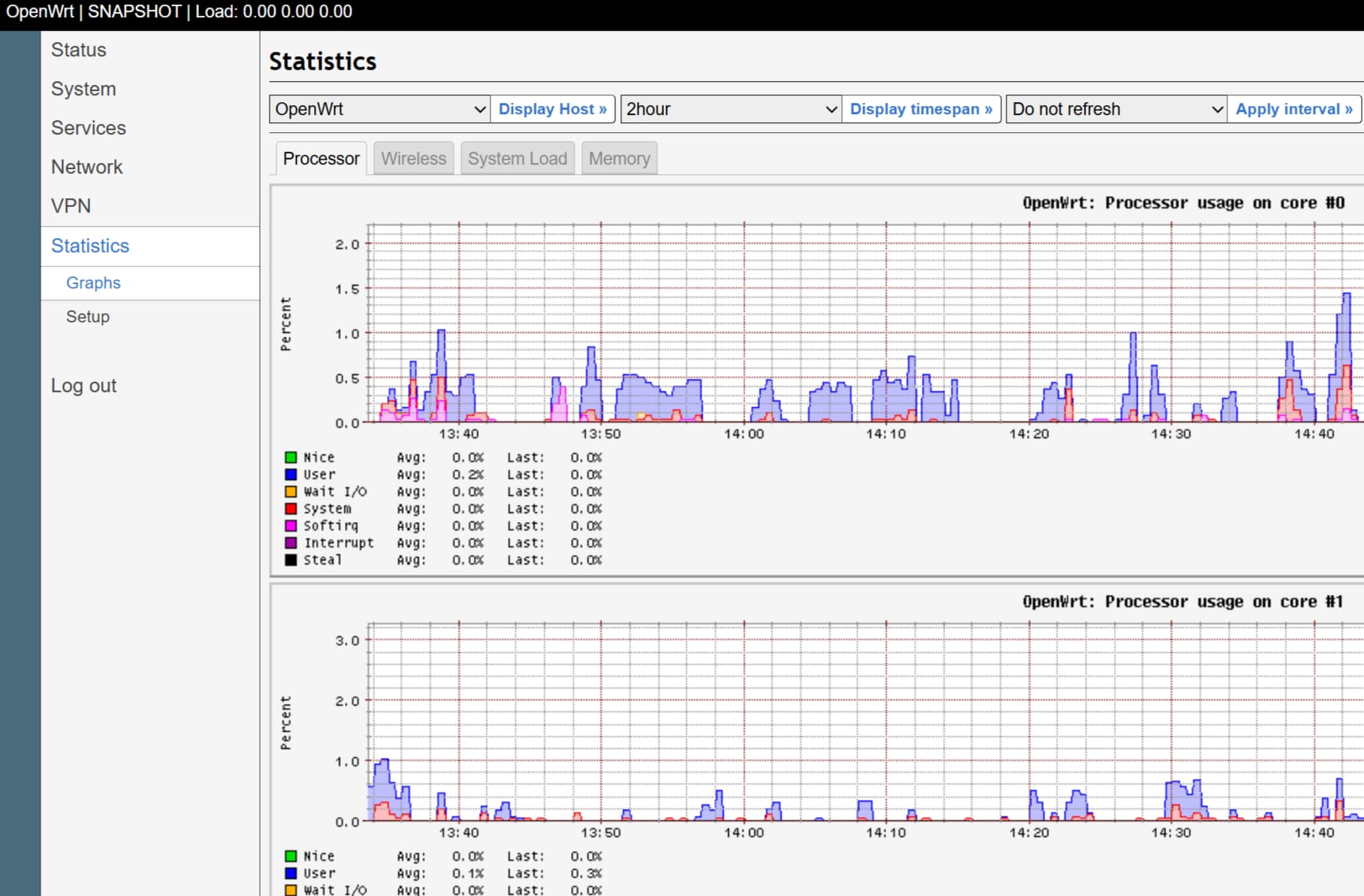

My Pi 5 Snapshot from today is showing the CPU Activities in Luci

[AndrewW-GIT]

Thanks but that's not per process. Im trying to get the linux top command working so i can see per process

[lleachii]

@AndrewW-GIT

losing about 70mbs

Are you saying that "capping" means that you're getting 930 Mbps instead of 1000 Mbps?

@AndrewW-GIT

Im trying to get the linux top command working

Are you receiving errors running the command - or are you just perplexed it reads 0%?

Also see:

Network performance issues RPi5 w/ dual RTL8125 2.5GbE

I might have found the answer, possibly. Packet Steering was not enabled. I have turned that on and will be running new tests. Current setting is 128 but ill test the 256 as well. I'm thinking because this is a Pi5 it's likely its not using the whole CPU due to this setting. Any thoughts?

Network performance issues RPi5 w/ dual RTL8125 2.5GbE

It does appear that adjusting this setting is now offloading more to the CPU on the Pi5. I have yet to do a controlled throughput test yet to officially confirm.
