Not getting enough speed over mesh

Installing and Using OpenWrt Network and Wireless Configuration
1

hello. i previously made mesh network with TP-Link Archer C6 V3 as main router, HAR-20S2U1 as dumb AP.

image1534×1426 156 KB

but i didn’t get speed guaranteed by ISP, which is around 450Mbps, as i purchased 500Mbps internet.

i thought this is wrong. so i replaced dumb AP with CLT-R30B1. but as it did not get any better, i replaced main router with HAR-20S2U1(the previous dumb AP).

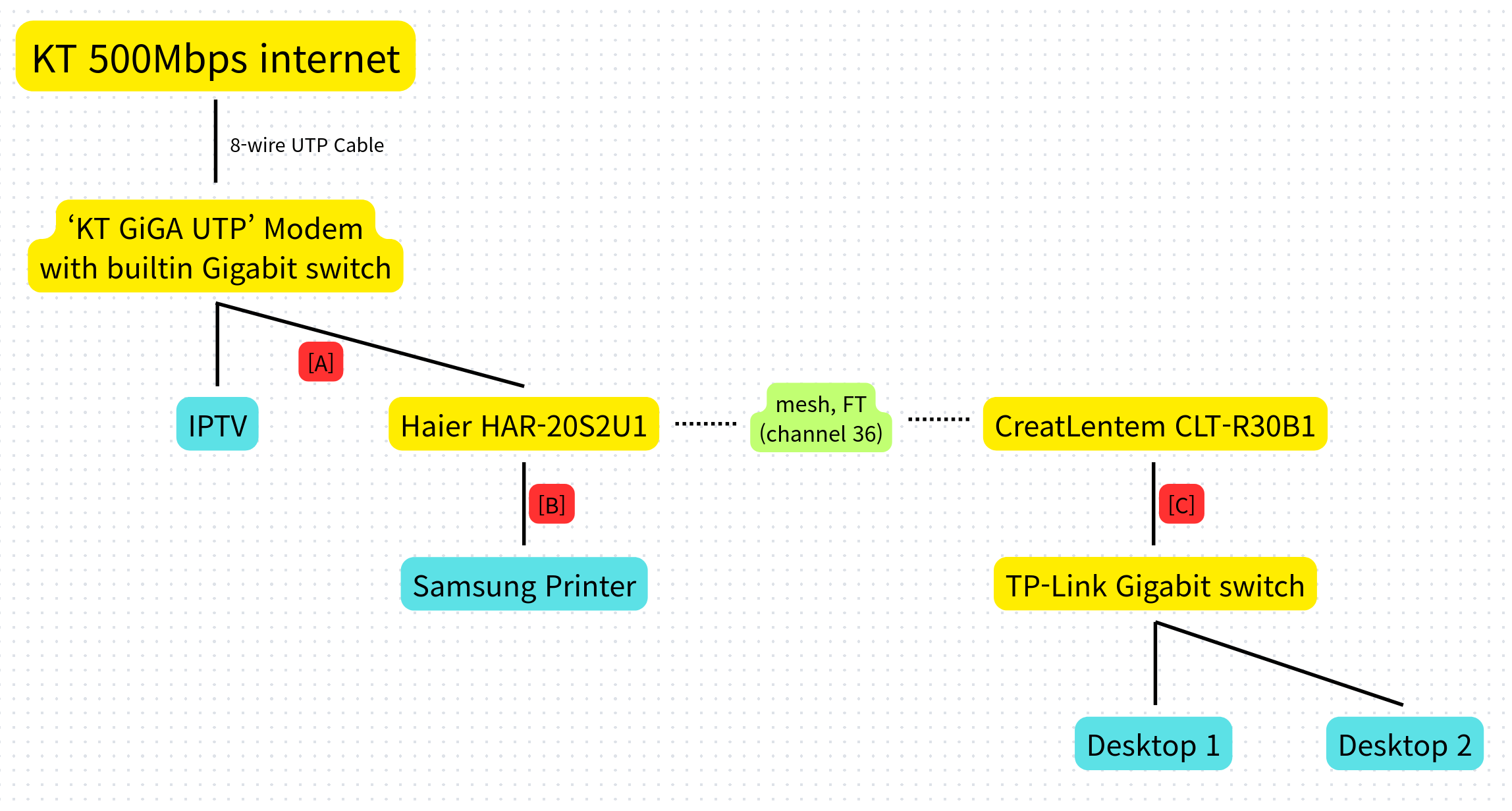

before going into the detail, i am posting overview to my network.

Screenshot 2025-11-24 at 21-17-01 단락 텍스트 - 화이트보드
Screenshot 2025-11-24 at 21-17-01 단락 텍스트 - 화이트보드2296×1232 199 KB

i tested internet speeds at the point [A], [B], [C].

at the point [A], i was able to get full 500Mbps speed as expected.

at the point [B], both wired and wireless, i was able to get full 500Mbps as well.

but at the point [C], both wired and wireless, i was getting only 300Mbps max, 200Mbps min, which is i’m currently at.

image804×190 15.9 KB

the control panel says the APs are getting 1Gbps to each other so it is not about signal strength or similar.

here is my main router’s config.

root@OpenWrt:~# ubus call system board
{
        "kernel": "6.12.58",
        "hostname": "OpenWrt",
        "system": "MediaTek MT7621 ver:1 eco:3",
        "model": "Haier HAR-20S2U1",
        "board_name": "haier,har-20s2u1",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "SNAPSHOT",
                "firmware_url": "https://downloads.openwrt.org/",
                "revision": "r32011-6c3eea4cfe",
                "target": "ramips/mt7621",
                "description": "OpenWrt SNAPSHOT r32011-6c3eea4cfe",
                "builddate": "1763942953"
        }
}
root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        list ipaddr '127.0.0.1/8'

config globals 'globals'
        option dhcp_default_duid REDACTED
        option ula_prefix 'fd91:f4e0:cb59::/48'
        option packet_steering '1'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        list ipaddr '192.168.1.1/24'
        option ip6assign '60'

config interface 'wan'
        option device 'wan'
        option proto 'dhcp'

config interface 'wan6'
        option device 'wan'
        option proto 'dhcpv6'

root@OpenWrt:~# cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0'
        option band '2g'
        option channel '1'
        option htmode 'HE40'
        option cell_density '0'
        option country 'KR'

config wifi-device 'radio1'
        option type 'mac80211'
        option path '1e140000.pcie/pci0000:00/0000:00:01.0/0000:02:00.0+1'
        option band '5g'
        option channel '36'
        option htmode 'HE80'
        option country 'KR'
        option cell_density '0'

config wifi-iface 'wifinet0'
        option device 'radio0'
        option mode 'ap'
        option ssid 'home1776'
        option encryption 'psk2'
        option key REDACTED
        option ieee80211w '1'
        option ocv '0'
        option wpa_disable_eapol_key_retries '1'
        option network 'lan'

config wifi-iface 'wifinet1'
        option device 'radio1'
        option mode 'ap'
        option ssid 'home1777'
        option encryption 'sae'
        option key REDACTED
        option ieee80211r '1'
        option nasid '1716'
        option ft_over_ds '0'
        option ocv '0'
        option wpa_disable_eapol_key_retries '1'
        option network 'lan'

config wifi-iface 'wifinet2'
        option device 'radio1'
        option mode 'mesh'
        option encryption 'sae'
        option mesh_id 'home1777'
        option mesh_fwding '1'
        option mesh_rssi_threshold '0'
        option key REDACTED
        option network 'lan'

root@OpenWrt:~# cat /etc/config/dhcp

config dnsmasq
        option domainneeded '1'
        option boguspriv '1'
        option filterwin2k '0'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option nonegcache '0'
        option cachesize '1000'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.d/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        option ednspacket_max '1232'
        option filter_aaaa '0'
        option filter_a '0'
        option doh_backup_noresolv '-1'
        option noresolv '1'
        list doh_backup_server ''
        list server '/mask.icloud.com/'
        list server '/mask-h2.icloud.com/'
        list server '/use-application-dns.net/'
        list server '127.0.0.1#5053'
        list server '127.0.0.1#5054'
        list doh_server '127.0.0.1#5053'
        list doh_server '127.0.0.1#5054'

config dhcp 'lan'
        option interface 'lan'
        option start '100'
        option limit '150'
        option leasetime '12h'
        option dhcpv4 'server'
        option dhcpv6 'server'
        option ra 'server'
        option ra_slaac '1'
        list ra_flags 'managed-config'
        list ra_flags 'other-config'

config dhcp 'wan'
        option interface 'wan'
        option ignore '1'

config odhcpd 'odhcpd'
        option maindhcp '0'
        option leasefile '/tmp/odhcpd.leases'
        option leasetrigger '/usr/sbin/odhcpd-update'
        option loglevel '4'
        option piofolder '/tmp/odhcpd-piofolder'
        option hostsdir '/tmp/hosts'

root@OpenWrt:~# cat /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'
        option flow_offloading '1'
        option flow_offloading_hw '1'

config zone
        option name 'lan'
        list network 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'

config zone
        option name 'wan'
        list network 'wan'
        list network 'wan6'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'DROP'
        option masq '1'
        option mtu_fix '1'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

and here is my dumb AP’s config.


root@DumbAP:~# ubus call system board
{
        "kernel": "6.12.45",
        "hostname": "DumbAP",
        "system": "ARMv8 Processor rev 4",
        "model": "CreatLentem CLT-R30B1 (112M)",
        "board_name": "creatlentem,clt-r30b1-112m",
        "rootfs_type": "squashfs",
        "release": {
                "distribution": "OpenWrt",
                "version": "SNAPSHOT",
                "firmware_url": "https://downloads.openwrt.org/",
                "revision": "r31026-f26260c7e7",
                "target": "mediatek/filogic",
                "description": "OpenWrt SNAPSHOT r31026-f26260c7e7",
                "builddate": "1757542290"
        }
}
root@DumbAP:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        list ipaddr '127.0.0.1/8'

config globals 'globals'
        option packet_steering '1'

config device
        option name 'br-lan'
        option type 'bridge'
        list ports 'lan1'
        list ports 'lan2'
        list ports 'lan3'
        option ipv6 '0'

config interface 'lan'
        option device 'br-lan'
        option proto 'static'
        option ipaddr '192.168.1.2'
        option delegate '0'
        option hostname 'DumbAP'
        option dns '192.168.1.1'
        option gateway '192.168.1.1'
        option netmask '255.255.255.0'
        option broadcast '192.168.1.255'

config interface 'wan'
        option device 'wan'
        option proto 'dhcp'

config interface 'wan6'
        option device 'wan'
        option proto 'dhcpv6'

root@DumbAP:~# cat /etc/config/wireless

config wifi-device 'radio0'
        option type 'mac80211'
        option path 'platform/soc/18000000.wifi'
        option band '2g'
        option channel '1'
        option htmode 'HE40'
        option txpower '15'
        option cell_density '0'

config wifi-device 'radio1'
        option type 'mac80211'
        option path 'platform/soc/18000000.wifi+1'
        option band '5g'
        option channel '36'
        option htmode 'VHT80'
        option txpower '20'
        option country 'KR'
        option cell_density '0'

config wifi-iface 'wifinet0'
        option device 'radio1'
        option mode 'mesh'
        option network 'lan'
        option encryption 'sae'
        option key REDACTED
        option mesh_id 'home1777'
        option mesh_fwding '1'
        option mesh_rssi_threshold '0'

config wifi-iface 'wifinet1'
        option device 'radio1'
        option mode 'ap'
        option ssid 'home1777'
        option encryption 'sae'
        option key REDACTED
        option ieee80211r '1'
        option mobility_domain '1716'
        option ft_over_ds '0'
        option ocv '0'
        option wpa_disable_eapol_key_retries '1'
        option network 'lan'

config wifi-iface 'wifinet2'
        option device 'radio0'
        option mode 'ap'
        option ssid 'home1778'
        option encryption 'psk2'
        option key REDACTED
        option wpa_disable_eapol_key_retries '1'
        option network 'lan'

root@DumbAP:~# cat /etc/config/dhcp
(nothing to see here as i correctly set up dumb ap)

root@DumbAP:~# cat /etc/config/firewall

config defaults
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'REJECT'
        option synflood_protect '1'
        option flow_offloading '1'
        option flow_offloading_hw '1'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'wan'
        option input 'REJECT'
        option output 'ACCEPT'
        option forward 'DROP'
        option masq '1'
        option mtu_fix '1'
        list network 'wan'
        list network 'wan6'

config forwarding
        option src 'lan'
        option dest 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

both APs are using my custom build of OpenWRT to easily install wpad-openssl.

main AP is currently using luci-app-adblock, luci-app-https-dns-proxy but it did not provide enough speed without it.

2

Your extender is 50x faster than main AP.
Back up extender configs and try it in place of main - if better do same with other.

1 Like
3

Your expectation fails to consider that approximately half of the bandwidth is serving the client and the other half is backhaul.

3 Likes
4

The reply from @lleachii is correct. You lose half the wireless bandwith when repeating a wireless signal.

You need a triple radio AP and router to use one of the 5GHz radios as backhaul and the other as AP.

Or if you can, use a wired backhaul to connect the router and the AP.

5

what happens if i use AX3000-rated AP at both end? will it be capped by 500Mbps and become 250Mbps? or will it be capped by 3000Mbps wireless speed thus becoming 1500Mbps subnet link speed?

6

AX3000 means 2.4gbps air capacity
1/2(theoretically 1/9, rrealistically ~1/3) is taken away by being shared medium, 1.2Gbps -> exactly half is flushed down by mesh - 600Mbps transfer max by faraway client. (that is ~30% of full duplex "g(gabit ethernet")
Also 160MHz will ne disrupted by radars.

1 Like
7

This topic was automatically closed 10 days after the last reply. New replies are no longer allowed.
