Hello,

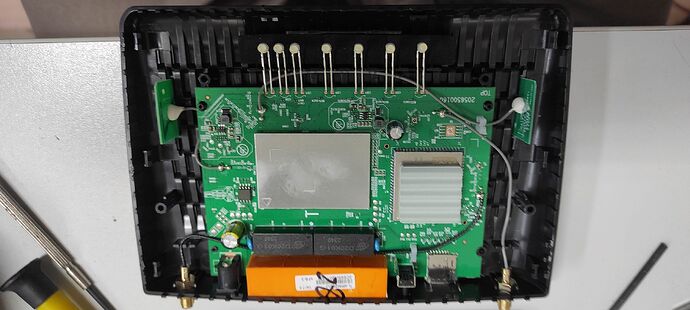

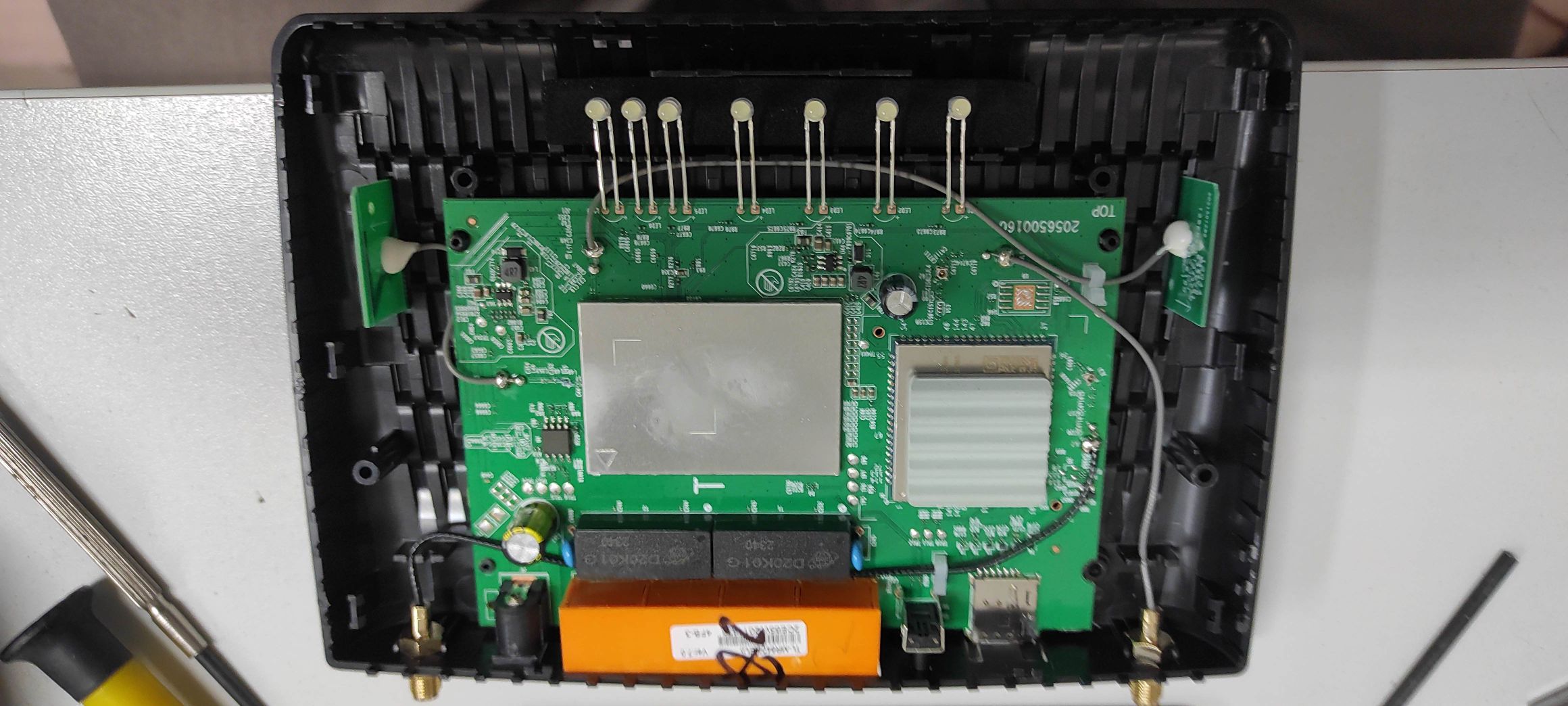

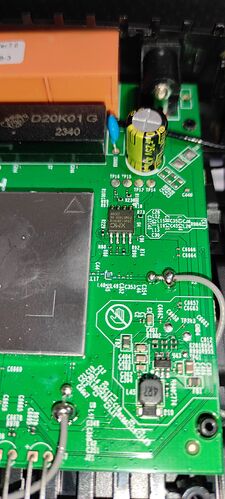

i use many V5 Devices and our new batch are V7. I opened them and flashed the V5 Firmware.
I dont know how to submit new device informations to openwrt, so i use this board.
i found the folowing:
Post it ?
Use the </> button when you do.
Split into several posts
Save it to pastebin.com and post the link.
I'll be interested to see the output of cat /sys/kernel/debug/usb/devices
Sorry, i accidentialy flashed the V4 over the V7, after i flashed the V5, the LED mapping seems OK. try to investigage differences between V5 and V7. Logs attached.
root@OpenWrt:~# dmesg
[ 0.000000] Linux version 5.15.167 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 12.3.0 r24106-10cc5fcd00) 12.3.0, GNU ld (GNU Binutils) 2.40.0) #0 Mon Sep 23 12:34:46 2024
[ 0.000000] Board has DDR2
[ 0.000000] Analog PMU set to hw control
[ 0.000000] Digital PMU set to hw control
[ 0.000000] SoC Type: MediaTek MT7628AN ver:1 eco:2
[ 0.000000] printk: bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00019655 (MIPS 24KEc)
[ 0.000000] MIPS: machine is TP-Link TL-MR6400 v5
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x0000000007ffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000007ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000007ffffff]
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 32480
[ 0.000000] Kernel command line: console=ttyS0,115200 rootfstype=squashfs,jffs2
[ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes, linear)
[ 0.000000] Writing ErrCtl register=0001dbf0
[ 0.000000] Readback ErrCtl register=0001dbf0
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 120932K/131072K available (5982K kernel code, 611K rwdata, 748K rodata, 1224K init, 217K bss, 10140K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] NR_IRQS: 256
[ 0.000000] intc: using register map from devicetree
[ 0.000000] CPU Clock: 580MHz
[ 0.000000] timer_probe: no matching timers found
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 6590553264 ns
[ 0.000002] sched_clock: 32 bits at 290MHz, resolution 3ns, wraps every 7405115902ns
[ 0.007635] Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
[ 0.073550] pid_max: default: 32768 minimum: 301
[ 0.079119] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.086141] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.102380] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.111927] futex hash table entries: 256 (order: -1, 3072 bytes, linear)
[ 0.118680] pinctrl core: initialized pinctrl subsystem
[ 0.125835] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.132173] thermal_sys: Registered thermal governor 'step_wise'
[ 0.149361] clocksource: Switched to clocksource MIPS
[ 0.161790] NET: Registered PF_INET protocol family
[ 0.166712] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.174885] tcp_listen_portaddr_hash hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.183117] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.190561] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.197956] TCP bind hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.204767] TCP: Hash tables configured (established 1024 bind 1024)
[ 0.211088] UDP hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.217387] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear)
[ 0.224656] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.230190] PCI: CLS 0 bytes, default 32
[ 0.238821] workingset: timestamp_bits=14 max_order=15 bucket_order=1
[ 0.252111] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.257711] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.269151] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252)
[ 0.279739] mt7621_gpio 10000600.gpio: registering 32 gpios
[ 0.285417] mt7621_gpio 10000600.gpio: registering 32 gpios
[ 0.291187] mt7621_gpio 10000600.gpio: registering 32 gpios
[ 0.297192] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled
[ 0.306647] printk: console [ttyS0] disabled
[ 0.310902] 10000c00.uartlite: ttyS0 at MMIO 0x10000c00 (irq = 28, base_baud = 2500000) is a 16550A
[ 0.319646] printk: console [ttyS0] enabled
[ 0.328036] printk: bootconsole [early0] disabled
[ 0.339553] spi-mt7621 10000b00.spi: sys_freq: 193333333
[ 0.370106] spi-nor spi0.0: XM25QH128C (16384 Kbytes)
[ 0.375327] 4 fixed-partitions partitions found on MTD device spi0.0
[ 0.381863] OF: Bad cell count for /palmbus@10000000/spi@b00/flash@0/partitions
[ 0.389315] OF: Bad cell count for /palmbus@10000000/spi@b00/flash@0/partitions
[ 0.397155] OF: Bad cell count for /palmbus@10000000/spi@b00/flash@0/partitions
[ 0.404665] OF: Bad cell count for /palmbus@10000000/spi@b00/flash@0/partitions
[ 0.412581] Creating 4 MTD partitions on "spi0.0":
[ 0.417466] 0x000000000000-0x000000020000 : "boot"
[ 0.426708] 0x000000020000-0x0000007c0000 : "firmware"
[ 0.433941] 2 tplink-fw partitions found on MTD device firmware
[ 0.440067] Creating 2 MTD partitions on "firmware":
[ 0.445112] 0x000000000000-0x000000235469 : "kernel"
[ 0.450161] mtd: partition "kernel" doesn't end on an erase/write block -- force read-only
[ 0.461905] 0x00000023546c-0x0000007a0000 : "rootfs"
[ 0.466979] mtd: partition "rootfs" doesn't start on an erase/write block boundary -- force read-only
[ 0.477674] mtd: setting mtd3 (rootfs) as root device
[ 0.484093] 1 squashfs-split partitions found on MTD device rootfs
[ 0.490477] 0x0000005d0000-0x0000007a0000 : "rootfs_data"
[ 0.497338] 0x0000007c0000-0x0000007d0000 : "config"
[ 0.505774] 0x0000007d0000-0x000000800000 : "factory"
[ 0.544254] rt3050-esw 10110000.esw: mediatek esw at 0xb0110000, irq 25 initialized
[ 0.552427] mtk_soc_eth 10100000.ethernet: generated random MAC address 1e:55:cb:00:49:5b
[ 0.561567] mtk_soc_eth 10100000.ethernet eth0: mediatek frame engine at 0xb0100000, irq 5
[ 0.572507] NET: Registered PF_INET6 protocol family
[ 0.585235] Segment Routing with IPv6
[ 0.589094] In-situ OAM (IOAM) with IPv6
[ 0.593327] NET: Registered PF_PACKET protocol family
[ 0.598633] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 0.612193] 8021q: 802.1Q VLAN Support v1.8
[ 0.618641] clk: Disabling unused clocks
[ 0.638112] VFS: Mounted root (squashfs filesystem) readonly on device 31:3.
[ 0.652074] Freeing unused kernel image (initmem) memory: 1224K
[ 0.658094] This architecture does not have kernel memory protection.
[ 0.664675] Run /sbin/init as init process
[ 0.668826] with arguments:
[ 0.668832] /sbin/init
[ 0.668838] with environment:
[ 0.668843] HOME=/
[ 0.668850] TERM=linux
[ 1.597069] init: Console is alive
[ 1.601367] init: - watchdog -
[ 3.191927] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 3.291419] usbcore: registered new interface driver usbfs
[ 3.297125] usbcore: registered new interface driver hub
[ 3.302685] usbcore: registered new device driver usb
[ 3.316498] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 3.327373] fsl-ehci: Freescale EHCI Host controller driver
[ 3.335265] ehci-platform: EHCI generic platform driver
[ 3.351200] phy phy-10120000.usbphy.0: remote usb device wakeup disabled
[ 3.358028] phy phy-10120000.usbphy.0: UTMI 16bit 30MHz
[ 3.363338] ehci-platform 101c0000.ehci: EHCI Host Controller
[ 3.369199] ehci-platform 101c0000.ehci: new USB bus registered, assigned bus number 1
[ 3.377409] ehci-platform 101c0000.ehci: irq 26, io mem 0x101c0000
[ 3.409379] ehci-platform 101c0000.ehci: USB 2.0 started, EHCI 1.00
[ 3.416989] hub 1-0:1.0: USB hub found
[ 3.421832] hub 1-0:1.0: 1 port detected
[ 3.434429] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 3.442448] ohci-platform: OHCI generic platform driver
[ 3.448252] ohci-platform 101c1000.ohci: Generic Platform OHCI controller
[ 3.455281] ohci-platform 101c1000.ohci: new USB bus registered, assigned bus number 2
[ 3.463557] ohci-platform 101c1000.ohci: irq 26, io mem 0x101c1000
[ 3.544547] hub 2-0:1.0: USB hub found
[ 3.549434] hub 2-0:1.0: 1 port detected
[ 3.565257] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 3.574383] init: - preinit -
[ 5.232448] random: jshn: uninitialized urandom read (4 bytes read)
[ 5.426109] random: jshn: uninitialized urandom read (4 bytes read)
[ 5.600672] random: jshn: uninitialized urandom read (4 bytes read)
[ 6.041078] rt3050-esw 10110000.esw: port 2 link up
[ 6.090178] rt3050-esw 10110000.esw: port 2 link down
[ 6.308438] random: procd: uninitialized urandom read (4 bytes read)
[ 6.979360] usb 1-1: new high-speed USB device number 2 using ehci-platform
[ 8.612626] mount_root: jffs2 not ready yet, using temporary tmpfs overlay
[ 8.630631] urandom-seed: Seed file not found (/etc/urandom.seed)
[ 8.772614] procd: - early -
[ 8.775982] procd: - watchdog -
[ 9.646675] procd: - watchdog -
[ 9.650777] procd: - ubus -
[ 9.844306] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.854431] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.861668] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.878702] procd: - init -
[ 10.978069] random: jshn: uninitialized urandom read (4 bytes read)
[ 11.077180] random: ubusd: uninitialized urandom read (4 bytes read)
[ 11.119591] random: ubus: uninitialized urandom read (4 bytes read)
[ 11.380969] kmodloader: loading kernel modules from /etc/modules.d/*
[ 11.604332] rt3050-esw 10110000.esw: port 2 link up
[ 12.004834] usbcore: registered new interface driver cdc_wdm
[ 12.030255] Loading modules backported from Linux version v6.1.110-0-g5f55cad62cc9d
[ 12.038054] Backport generated by backports.git v6.1.110-1-0-g965f73fc
[ 12.112987] usbcore: registered new interface driver usbserial_generic
[ 12.119822] usbserial: USB Serial support registered for generic
[ 12.654223] mt76_wmac 10300000.wmac: ASIC revision: 76280001
[ 12.679448] mt76_wmac 10300000.wmac: Invalid MAC address, using random address fa:1c:6b:06:b4:63
[ 12.701768] mt76_wmac 10300000.wmac: Firmware Version: 20151201
[ 12.707809] mt76_wmac 10300000.wmac: Build Time: 20151201183641
[ 12.749388] mt76_wmac 10300000.wmac: firmware init done
[ 12.912798] mt76_wmac 10300000.wmac: registering led 'mt76-phy0'
[ 12.921150] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
[ 13.163086] PPP generic driver version 2.4.2
[ 13.190528] NET: Registered PF_PPPOX protocol family
[ 13.219876] qmi_wwan 1-1:1.4: cdc-wdm0: USB WDM device
[ 13.230922] qmi_wwan 1-1:1.4 wwan0: register 'qmi_wwan' at usb-101c0000.ehci-1, WWAN/QMI device, 6a:36:49:15:12:c9
[ 13.241812] usbcore: registered new interface driver qmi_wwan
[ 13.396554] usbcore: registered new interface driver option
[ 13.402429] usbserial: USB Serial support registered for GSM modem (1-port)
[ 13.410008] option 1-1:1.0: GSM modem (1-port) converter detected
[ 13.416613] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB0
[ 13.423983] option 1-1:1.1: GSM modem (1-port) converter detected
[ 13.430651] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB1
[ 13.437970] option 1-1:1.2: GSM modem (1-port) converter detected
[ 13.444650] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB2
[ 13.451990] option 1-1:1.3: GSM modem (1-port) converter detected
[ 13.458569] usb 1-1: GSM modem (1-port) converter now attached to ttyUSB3
[ 13.602913] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 16.490020] urngd: v1.0.2 started.
[ 20.404786] random: crng init done
[ 20.408270] random: 31 urandom warning(s) missed due to ratelimiting
[ 70.900380] rt3050-esw 10110000.esw: port 2 link down
[ 76.409435] rt3050-esw 10110000.esw: port 2 link up
[ 79.821918] jffs2_scan_eraseblock(): End of filesystem marker found at 0x0
[ 79.828940] jffs2_build_filesystem(): unlocking the mtd device...
[ 79.828948] done.
[ 79.837224] jffs2_build_filesystem(): erasing all blocks after the end marker...
[ 82.044276] br-lan: port 1(eth0.1) entered blocking state
[ 82.057463] br-lan: port 1(eth0.1) entered disabled state
[ 82.063366] device eth0.1 entered promiscuous mode
[ 82.068245] device eth0 entered promiscuous mode
[ 82.160929] br-lan: port 1(eth0.1) entered blocking state
[ 82.166450] br-lan: port 1(eth0.1) entered forwarding state
[ 83.059911] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[ 91.568504] done.
[ 91.570586] jffs2: notice: (1916) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found.
[ 92.043927] overlayfs: upper fs does not support tmpfile.
[ 222.291100] rt3050-esw 10110000.esw: port 2 link down
[ 222.297081] br-lan: port 1(eth0.1) entered disabled state
[ 225.796054] rt3050-esw 10110000.esw: port 3 link up
[ 225.801536] br-lan: port 1(eth0.1) entered blocking state
[ 225.807037] br-lan: port 1(eth0.1) entered forwarding state
[ 231.773983] rt3050-esw 10110000.esw: port 3 link down
[ 231.780005] br-lan: port 1(eth0.1) entered disabled state
[ 234.929623] rt3050-esw 10110000.esw: port 1 link up
[ 234.935091] br-lan: port 1(eth0.1) entered blocking state
[ 234.940633] br-lan: port 1(eth0.1) entered forwarding state
[ 246.730715] rt3050-esw 10110000.esw: port 1 link down
[ 246.736690] br-lan: port 1(eth0.1) entered disabled state
[ 248.325723] rt3050-esw 10110000.esw: port 0 link up
[ 248.331267] br-lan: port 1(eth0.1) entered blocking state
[ 248.336767] br-lan: port 1(eth0.1) entered forwarding state
root@OpenWrt:~# cat /sys/kernel/debug/usb/devices
T: Bus=01 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=480 MxCh= 1
B: Alloc= 0/800 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 2.00 Cls=09(hub ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1
P: Vendor=1d6b ProdID=0002 Rev= 5.15
S: Manufacturer=Linux 5.15.167 ehci_hcd
S: Product=EHCI Host Controller
S: SerialNumber=101c0000.ehci
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 4 Ivl=256ms
T: Bus=01 Lev=01 Prnt=01 Port=00 Cnt=01 Dev#= 2 Spd=480 MxCh= 0
D: Ver= 2.00 Cls=ef(misc ) Sub=02 Prot=01 MxPS=64 #Cfgs= 1
P: Vendor=2c7c ProdID=0125 Rev= 3.18
S: Manufacturer=Quectel
S: Product=EC25-EUC
S: SerialNumber=0123456789ABCDEF
C:* #Ifs= 5 Cfg#= 1 Atr=a0 MxPwr=500mA
I:* If#= 0 Alt= 0 #EPs= 2 Cls=ff(vend.) Sub=ff Prot=ff Driver=option
E: Ad=81(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E: Ad=01(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 1 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=00 Prot=00 Driver=option
E: Ad=83(I) Atr=03(Int.) MxPS= 10 Ivl=32ms
E: Ad=82(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E: Ad=02(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 2 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=00 Prot=00 Driver=option
E: Ad=85(I) Atr=03(Int.) MxPS= 10 Ivl=32ms
E: Ad=84(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E: Ad=03(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 3 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=00 Prot=00 Driver=option
E: Ad=87(I) Atr=03(Int.) MxPS= 10 Ivl=32ms
E: Ad=86(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E: Ad=04(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
I:* If#= 4 Alt= 0 #EPs= 3 Cls=ff(vend.) Sub=ff Prot=ff Driver=qmi_wwan
E: Ad=89(I) Atr=03(Int.) MxPS= 8 Ivl=32ms
E: Ad=88(I) Atr=02(Bulk) MxPS= 512 Ivl=0ms
E: Ad=05(O) Atr=02(Bulk) MxPS= 512 Ivl=0ms
T: Bus=02 Lev=00 Prnt=00 Port=00 Cnt=00 Dev#= 1 Spd=12 MxCh= 1
B: Alloc= 0/900 us ( 0%), #Int= 0, #Iso= 0
D: Ver= 1.10 Cls=09(hub ) Sub=00 Prot=00 MxPS=64 #Cfgs= 1
P: Vendor=1d6b ProdID=0001 Rev= 5.15
S: Manufacturer=Linux 5.15.167 ohci_hcd
S: Product=Generic Platform OHCI controller
S: SerialNumber=101c1000.ohci
C:* #Ifs= 1 Cfg#= 1 Atr=e0 MxPwr= 0mA
I:* If#= 0 Alt= 0 #EPs= 1 Cls=09(hub ) Sub=00 Prot=00 Driver=hub
E: Ad=81(I) Atr=03(Int.) MxPS= 2 Ivl=255ms
found on V7:
spi-nor spi0.0: XM25QH128C (16384 Kbytes)
128mb RAM
instead of V5:
spi-nor spi0.0: s25fl064k (8192 Kbytes)
64MB RAM
can anyone of the developers add the device to the openwrt source and the wiki ?
