NanoPi R5S resize squashfs

hedzwillroll · February 16, 2025, 3:19pm

Hi,

I've flashed https://downloads.openwrt.org/releases/24.10.0/targets/rockchip/armv8/openwrt-24.10.0-rockchip-armv8-friendlyarm_nanopi-r5s-squashfs-sysupgrade.img.gz to the 16GB eMMC of this NanoPi R5S device, using FriendlyARM's eflasher, from an SD card, and am trying to expand the squashfs storage.

I have tried the automated script at:
https://openwrt.org/docs/guide-user/advanced/expand_root
but it doesn't appear to work.
(I have installed parted, losetup and resize2fs and also cfdisk though I only used that to look and made no changes)

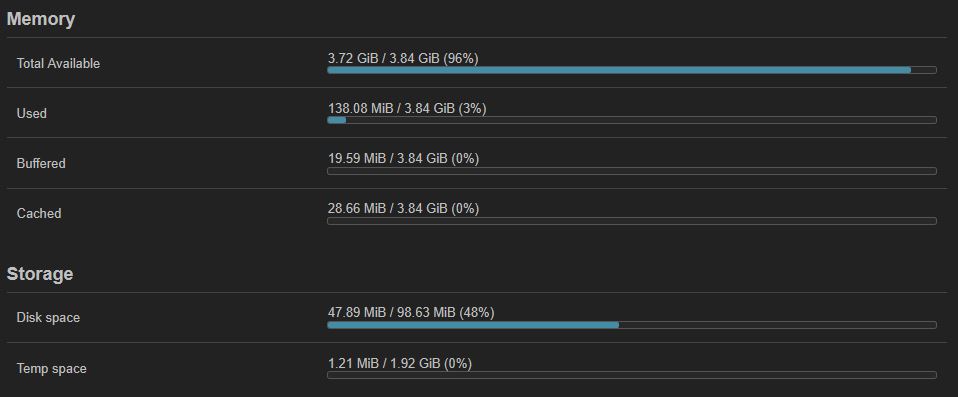

root@OpenWrt:~# df -Th

Filesystem	Type	Size	Used	Available	Use%	Mounted on
/dev/root	squashfs	3.5M	3.5M	0	100%	/rom
tmpfs	tmpfs	1.9G	1.2M	1.9G	0%	/tmp
/dev/loop0	f2fs	98.6M	47.9M	50.7M	49%	/overlay
overlayfs:/overlay	overlay	98.6M	47.9M	50.7M	49% /
tmpfs	tmpfs	512.0K	0	512.0K	0%	/dev

root@openWrt:~# lsblk -o +FSTYPE; losetup -l

NAME	MAJ:MIN	SIZE	RO	TYPE	MOUNTPOINTS	FSTYPE
loop0	7:0	14.5G	0	loop	/overlay	f2fs
mmcblk1	179:0	14.6G	0	disk
├─mmcblk1p1	179:1	16M	0	part		ext4
└─mmcblk1p2	179:2	14.5G	0	part	/rom	squashfs
mmcblk1boot0	179:32	4M	1	disk
mmcblk1boot1	179:64	4M	1	disk
nvme0n1	259:0	465.8G	0	disk
└─nvme0n1p1	259:1	465.7G	0	part		ext4

NAME	SIZELIMIT	OFFSET	AUTOCLEAR	RO	BACK-FILE	DIO	LOG-SEC
/dev/loop0	0	3538944	1	0	/mmcblk1p2	0	512

Can anyone advise why the expand-root script isn't working, please?

brada4 · February 16, 2025, 4:43pm

expanding root is not for mtd filrsystems, they are at their maximum size.
swuashfs is composed once for sysupgrade image, add more files it will be bigger and vice versa, on top of that /overlay in remaining space tracks changes you add on top of readonly squash fs

hedzwillroll · February 16, 2025, 4:46pm

So how do I expand overlay?

I guess you can see what I want to acheive?
How best to make full use of the 16GB?

brada4 · February 16, 2025, 4:55pm

Add new partition 1gb away from openwrt
https://openwrt.org/docs/guide-user/storage/usb-drives-quickstart
all except usb drivers and your new filesystem will be mmc....p3

d687r02j8g · February 16, 2025, 4:58pm

You have the option of using ext4 image on your device. You can use the script to expand the file system on ext4 for sure.

https://downloads.openwrt.org/releases/24.10.0/targets/rockchip/armv8/openwrt-24.10.0-rockchip-armv8-friendlyarm_nanopi-r5s-ext4-sysupgrade.img.gz

hedzwillroll · February 16, 2025, 4:58pm

Why do I need USB drivers?

If I'm understanding this https://forum.openwrt.org/t/resizing-overlay-partition-on-squashfs/222475
correctly, I can build my own image to have a given partition size and flash that?
But then there's not guarantee that sysupgrade will preserve the config

hedzwillroll · February 16, 2025, 4:59pm

I just liked the idea of squashfs so I can factory restore if I ever need to

hedzwillroll · February 16, 2025, 5:21pm

So I just ran owut upgrade --fstype ext4 and converted to ext4 which now occupies all the available space.

https://openwrt.org/docs/guide-user/installation/sysupgrade.owut#changing_file_system_type

Can anyone tell me what the syntax is for the uci-defaults box on the firmware selector page? How would I add the resize script(s) in that box?

d687r02j8g · February 16, 2025, 5:26pm

The script you ran will automatically persist and run on upgrades.

It persists by writing to /etc/sysupgrade.conf. you can check this by running

cat /etc/sysupgrade.conf

You should see 2 files when you run this command

ls -l /etc/uci-defaults/*-resize

When you use owut/attendedsysupgrade to do upgrades, all packages and uci-defaults should persist.

hedzwillroll · February 16, 2025, 5:33pm

Thanks for that.

If I was building an image using the firmware selector, how could I include 70-rootpt-resize and 80-rootfs-resize? There is a box for uci-defaults scripts.

Can I just paste

cat << "EOF" > /etc/uci-defaults/70-rootpt-resize if [ ! -e /etc/rootpt-resize ] \ && type parted > /dev/null \ && lock -n /var/lock/root-resize then ROOT_BLK="$(readlink -f /sys/dev/block/"$(awk -e \ '$9=="/dev/root"{print $3}' /proc/self/mountinfo)")" ROOT_DISK="/dev/$(basename "${ROOT_BLK%/*}")" ROOT_PART="${ROOT_BLK##*[^0-9]}" parted -f -s "${ROOT_DISK}" \ resizepart "${ROOT_PART}" 100% mount_root done touch /etc/rootpt-resize reboot fi exit 1 EOF cat << "EOF" > /etc/uci-defaults/80-rootfs-resize if [ ! -e /etc/rootfs-resize ] \ && [ -e /etc/rootpt-resize ] \ && type losetup > /dev/null \ && type resize2fs > /dev/null \ && lock -n /var/lock/root-resize then ROOT_BLK="$(readlink -f /sys/dev/block/"$(awk -e \ '$9=="/dev/root"{print $3}' /proc/self/mountinfo)")" ROOT_DEV="/dev/${ROOT_BLK##*/}" LOOP_DEV="$(awk -e '$5=="/overlay"{print $9}' \ /proc/self/mountinfo)" if [ -z "${LOOP_DEV}" ] then LOOP_DEV="$(losetup -f)" losetup "${LOOP_DEV}" "${ROOT_DEV}" fi resize2fs -f "${LOOP_DEV}" mount_root done touch /etc/rootfs-resize reboot fi exit 1 EOF cat << "EOF" >> /etc/sysupgrade.conf /etc/uci-defaults/70-rootpt-resize /etc/uci-defaults/80-rootfs-resize EOF

in the Script to run on first boot (uci-defaults) section, provided I have added wget, losetup, parted and resize2fs in the Installed Packages section?

d687r02j8g · February 16, 2025, 5:36pm

That makes sense. It should work. Give it a go and report back pls.

hedzwillroll · February 16, 2025, 6:00pm

It only created 70-rootpt-resize for some reason?
(and didn't add either to /etc/sysupgrade.conf)

Do you think it need line breaks?

d687r02j8g · February 16, 2025, 6:04pm

Is there a reason you want to do this?

You could just keep backups using the built in system. Then if you have an issue, restore the image and then the backup.

hedzwillroll · February 16, 2025, 6:06pm

Just want to expand the filesystem as part of flashing the image really

d687r02j8g · February 16, 2025, 6:08pm

Are you planning on deploying many of these devices? Or is it just the one?

If it's just the one, then the script you've run has persisted now. When you upgrade using owut, the filesystem will expand after the upgrade too.

hedzwillroll · February 16, 2025, 6:11pm

Yeah, perhaps I will just give up on this

Was nearly there though, it created the first script 70-rootpt-resize, whic I've just realised is actually empty, so I guess the fireware builder doesn't like the syntax.

d687r02j8g · February 16, 2025, 6:49pm

I know you can use the build system to create custom images with custom files in it. Depends on how much you want an image with it baked in

https://openwrt.org/docs/guide-user/additional-software/imagebuilder#custom_files

I just use the normal backups and if anything goes wrong I restore an image from the online image builder then restore my backup file. This brings me back to before I broke anything!

hedzwillroll · February 16, 2025, 10:44pm

Just FYI,

I got this to work by adding the following to the Script to run on first boot (uci-defaults) section:

cat << "EOF" >> /etc/sysupgrade.conf
/etc/uci-defaults/70-rootpt-resize
/etc/uci-defaults/80-rootfs-resize
EOF

cat << "EOF" > /etc/uci-defaults/70-rootpt-resize
if [ ! -e /etc/rootpt-resize ] \
&& type parted > /dev/null \
&& lock -n /var/lock/root-resize
then
ROOT_BLK="$(readlink -f /sys/dev/block/"$(awk -e \
'$9=="/dev/root"{print $3}' /proc/self/mountinfo)")"
ROOT_DISK="/dev/$(basename "${ROOT_BLK%/*}")"
ROOT_PART="${ROOT_BLK##*[^0-9]}"
parted -f -s "${ROOT_DISK}" \
resizepart "${ROOT_PART}" 100%
mount_root done
touch /etc/rootpt-resize
reboot
fi
exit 1
EOF

cat << "EOF" > /etc/uci-defaults/80-rootfs-resize
if [ ! -e /etc/rootfs-resize ] \
&& [ -e /etc/rootpt-resize ] \
&& type losetup > /dev/null \
&& type resize2fs > /dev/null \
&& lock -n /var/lock/root-resize
then
ROOT_BLK="$(readlink -f /sys/dev/block/"$(awk -e \
'$9=="/dev/root"{print $3}' /proc/self/mountinfo)")"
ROOT_DEV="/dev/${ROOT_BLK##*/}"
LOOP_DEV="$(awk -e '$5=="/overlay"{print $9}' \
/proc/self/mountinfo)"
if [ -z "${LOOP_DEV}" ]
then
LOOP_DEV="$(losetup -f)"
losetup "${LOOP_DEV}" "${ROOT_DEV}"
fi
resize2fs -f "${LOOP_DEV}"
mount_root done
touch /etc/rootfs-resize
reboot
fi
exit 1
EOF

I also added losetup, parted and resize2fs to the Installed Packages section.

It did not take after the first reboot, but did after the second (perhaps I could have added sh /etc/uci-defaults/70-rootpt-resize to make it run for the first reboot)

phildubach · February 20, 2025, 9:04pm

I managed to grow my overlay on the R5S running the new stock OpenWRT 24.10 squashfs. It took me a while to figure out that the overlay is actually an f2fs, not ext2/3/4, so resize2fs won't work. Use resize.f2fs instead.
Essentially, you can (nearly) follow these instructions.

Here's what I used:

opkg install f2fs-tools parted losetup
parted -f -s /dev/mmcblk1 resizepart 2 100%
LOOP="$(losetup -n -O NAME | sort | sed -n -e "1p")"
ROOT="$(losetup -n -O BACK-FILE ${LOOP} | sed -e "s|^|/dev|")"
OFFS="$(losetup -n -O OFFSET ${LOOP})"
LOOP="$(losetup -f)"
losetup -o ${OFFS} ${LOOP} ${ROOT}
fsck.f2fs -f ${LOOP}
mount ${LOOP} /mnt
umount ${LOOP}
resize.f2fs ${LOOP}
reboot

Directly resizing /dev/loop0 doesn't work, as this is already mounted. The script above picks the next available loop device (likely /dev/loop1), maps that to /mnt/mmcblk1p2 (which also contains the RO squashfs, but then a f2fs for the overlay at an offset). After reboot, we see the expanded overlay. Note that I have the bigger R5S with 32GB eMMC and 4GB RAM.

root@friendly:~# lsblk
NAME         MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTS
loop0          7:0    0 28.8G  0 loop /overlay
mmcblk1      179:0    0 28.9G  0 disk
├─mmcblk1p1  179:1    0   16M  0 part
└─mmcblk1p2  179:2    0 28.8G  0 part /rom
mmcblk1boot0 179:32   0    4M  1 disk
mmcblk1boot1 179:64   0    4M  1 disk
root@friendly:~# df -h
Filesystem                Size      Used Available Use% Mounted on
/dev/root                 3.5M      3.5M         0 100% /rom
tmpfs                     1.9G    352.0K      1.9G   0% /tmp
/dev/loop0               28.8G    458.0M     28.4G   2% /overlay
overlayfs:/overlay       28.8G    458.0M     28.4G   2% /
tmpfs                   512.0K         0    512.0K   0% /dev

Compared to the FriendlyWRT image (with docker) I used before, the OpenWRT build doesn't come with lots of pre-installed clutter you may not need. Also, with the new image, podman seems to work, whereas docker on the FriendlyWRT had some config issues with firewall and network.
Sadly, I have so far not managed to get the SSD I stuck into the R5S to work again. It did work with FriendlyWRT. Perhaps some device tree changes are needed.

hedzwillroll · February 22, 2025, 5:23pm

I had trouble getting a WD/Sandisk SSD to work with Debian 12 on the R5S.
I had to add pcie_aspm=off to the boot options
It worked with Arch though, ISTR (or one of the other flavours anyway)

https://github.com/inindev/nanopi-r5/issues/23

However, my WD/Sandisk SN570 is working on 24.10.
I take it you installed kmod-nvme and pciutils? Does it show up in /dev?
