Mwan3 does not failov

iko3 · December 27, 2023, 4:50pm

Hi,
I'm new to OpenWRT and I installed it on my LTE router to have a backup connection when my ISP goes down.

I configured mwan3 following the wiki guide, but it doesn't seem to work as I expect it to. When my primary connection goes down it doesn't automatically switch to LTE, even though the router is able to ping on LTE interface.

Here is my configuration:

here is output from cat /etc/config/network

config interface 'loopback'
	option device 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd2d:31a8:fd1e::/48'
	option packet_steering '1'

config device
	option name 'br-lan'
	option type 'bridge'
	list ports 'lan2'

config interface 'wan_eth'
	option proto 'dhcp'
	option device 'lan1'
	option metric '10'

config interface 'wan_lte'
	option proto 'qmi'
	option device '/dev/cdc-wdm0'
	option apn 'telenor.fwa'
	option pincode '4714'
	option auth 'none'
	option pdptype 'ipv4v6'
	option metric '20'

config interface 'lan'
	option proto 'static'
	option device 'br-lan'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'

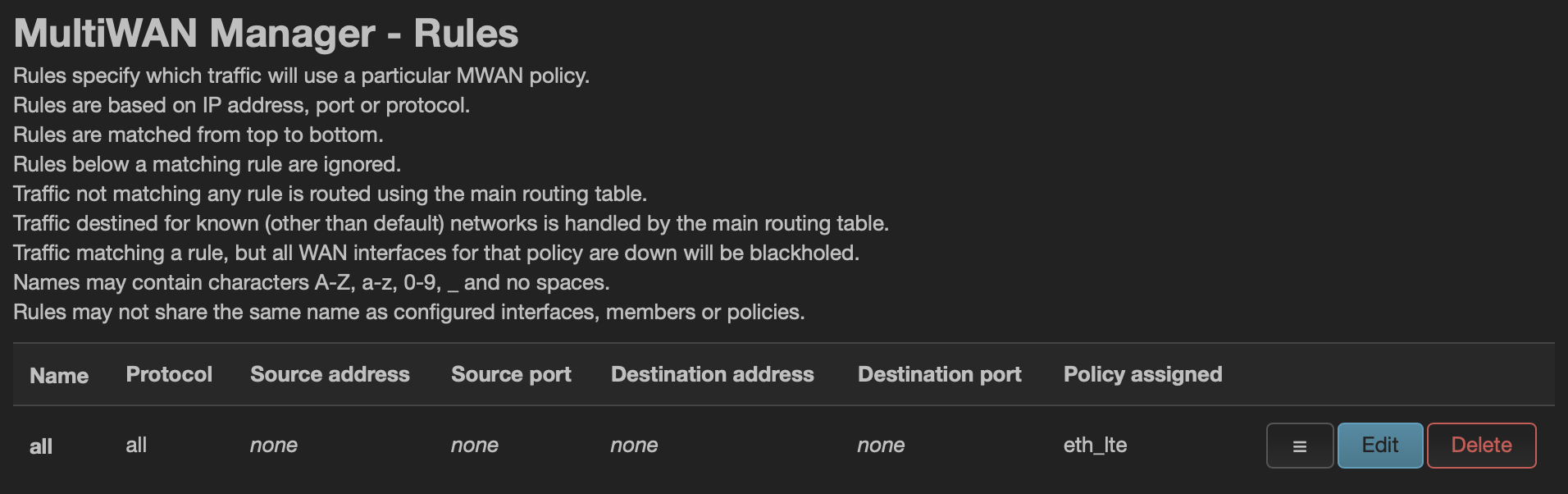

Here is my MultiWan configuration:

Any ideas on what may be wrong?

Arie · December 27, 2023, 5:08pm

If I'm reading your screenshot correctly, the wan_lte mwan3 member is actually using the wan_eth interface instead of the wan_lte interface you configured for LTE. And it should probably use the wan_lte_4 interface.
That wan_lte_4 interface also doesn't seem to be in the right firewall group.

iko3 · December 27, 2023, 7:05pm

It went a bitt too quick to re-create my setup I've changed the interface and uploaded updated screenshot.

Here is also the output from /etc/config/mwan3

config globals 'globals'
	option mmx_mask '0x3F00'
	option logging '1'
	option loglevel 'info'

config interface 'wan_eth'
	option initial_state 'online'
	option family 'ipv4'
	option track_method 'ping'
	option reliability '1'
	option count '1'
	option size '56'
	option max_ttl '60'
	option timeout '4'
	option interval '10'
	option failure_interval '5'
	option recovery_interval '5'
	option down '5'
	option up '5'
	option interface 'wan_eth'
	option metric '10'
	option weight '1'
	option enabled '1'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	list track_ip '1.1.1.1'

config policy 'eth_lte'
	list use_member 'wan_eth'
	list use_member 'wan_lte'
	option last_resort 'unreachable'

config rule 'all'
	option proto 'all'
	option sticky '1'
	option use_policy 'eth_lte'

config member 'm_wan_eth'
	option interface 'wan_eth'
	option metric '10'
	option weight '1'

config member 'm_wan_lte'
	option interface 'wan_lte'
	option metric '20'
	option weight '1'

config interface 'wan_lte'
	option enabled '1'
	option initial_state 'online'
	option family 'ipv4'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	option track_method 'ping'
	option reliability '1'
	option count '1'
	option size '56'
	option max_ttl '60'
	option timeout '4'
	option interval '10'
	option failure_interval '5'
	option recovery_interval '5'
	option down '5'
	option up '5'

I'm not able to set firewall group for wan_lte_4, it was created by uqmi together with wan_lte

iko3 · December 27, 2023, 7:21pm

I don't see mwan3 trying to switch over to wan_lte after I disconnect wan_eth:

Wed Dec 27 19:14:26 2023 user.notice mwan3track[16048]: Interface wan_eth (lan1) is online
Wed Dec 27 19:14:26 2023 user.notice mwan3track[16049]: Interface wan_lte (wwan0) is online
Wed Dec 27 19:15:00 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 10
Wed Dec 27 19:15:04 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 10
Wed Dec 27 19:15:08 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 10
Wed Dec 27 19:15:12 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 10
Wed Dec 27 19:15:16 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 10
Wed Dec 27 19:15:20 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 10
Wed Dec 27 19:15:24 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 10
Wed Dec 27 19:15:24 2023 user.notice mwan3track[16048]: Interface wan_eth (lan1) is disconnecting
Wed Dec 27 19:15:34 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 9
Wed Dec 27 19:15:38 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 9
Wed Dec 27 19:15:42 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 9
Wed Dec 27 19:15:46 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 9
Wed Dec 27 19:15:50 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 9
Wed Dec 27 19:15:54 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 9
Wed Dec 27 19:15:58 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 9
Wed Dec 27 19:16:07 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 8
Wed Dec 27 19:16:11 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 8
Wed Dec 27 19:16:15 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 8
Wed Dec 27 19:16:19 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 8
Wed Dec 27 19:16:23 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 8
Wed Dec 27 19:16:27 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 8
Wed Dec 27 19:16:31 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 8
Wed Dec 27 19:16:40 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 7
Wed Dec 27 19:16:44 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 7
Wed Dec 27 19:16:48 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 7
Wed Dec 27 19:16:52 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 7
Wed Dec 27 19:16:56 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 7
Wed Dec 27 19:17:00 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 7
Wed Dec 27 19:17:04 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 7
Wed Dec 27 19:17:13 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:17:17 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:17:21 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:17:25 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:17:29 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:17:33 2023 user.info mwan3track[16048]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:17:37 2023 user.info mwan3track[16048]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:17:37 2023 user.notice mwan3track[16048]: Interface wan_eth (lan1) is offline
Wed Dec 27 19:17:38 2023 user.notice mwan3-hotplug[16598]: Execute disconnected event on interface wan_eth (lan1)
Wed Dec 27 19:18:59 2023 user.info mwan3track[16048]: Check (ping) success for target "1.1.1.1" on interface wan_eth (lan1). Current score: 0
Wed Dec 27 19:18:59 2023 user.info mwan3track[16048]: Lost 49 ping(s) on interface wan_eth (lan1). Current score: 0
Wed Dec 27 19:18:59 2023 user.notice mwan3track[16048]: Interface wan_eth (lan1) is connecting
Wed Dec 27 19:19:05 2023 user.info mwan3track[16048]: Check (ping) success for target "1.1.1.1" on interface wan_eth (lan1). Current score: 1
Wed Dec 27 19:19:10 2023 user.info mwan3track[16048]: Check (ping) success for target "1.1.1.1" on interface wan_eth (lan1). Current score: 2
Wed Dec 27 19:19:15 2023 user.info mwan3track[16048]: Check (ping) success for target "1.1.1.1" on interface wan_eth (lan1). Current score: 3
Wed Dec 27 19:19:20 2023 user.info mwan3track[16048]: Check (ping) success for target "1.1.1.1" on interface wan_eth (lan1). Current score: 4
Wed Dec 27 19:19:20 2023 user.notice mwan3track[16048]: Interface wan_eth (lan1) is online

kukulo · December 27, 2023, 7:21pm

You should be consistent in member naming convention in the mwan3 policy and member settings.

config policy 'eth_lte'
	list use_member 'wan_eth'
	list use_member 'wan_lte'
	option last_resort 'unreachable

Correct the above names to what you have defined in members. E.g.
m_wan_eth
m_wan_lte

iko3 · December 27, 2023, 7:30pm

thanks for pointing this out. Here is my updated setup:

config globals 'globals'
	option mmx_mask '0x3F00'
	option logging '1'
	option loglevel 'debug'

config interface 'wan_eth'
	option initial_state 'online'
	option family 'ipv4'
	option track_method 'ping'
	option reliability '1'
	option count '1'
	option size '56'
	option max_ttl '60'
	option timeout '4'
	option interval '10'
	option failure_interval '5'
	option recovery_interval '5'
	option down '5'
	option up '5'
	option interface 'wan_eth'
	option metric '10'
	option weight '1'
	option enabled '1'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	list track_ip '1.1.1.1'

config policy 'eth_lte'
	option last_resort 'unreachable'
	list use_member 'm_wan_eth'
	list use_member 'm_wan_lte'

config rule 'all'
	option proto 'all'
	option sticky '1'
	option use_policy 'eth_lte'

config member 'm_wan_eth'
	option interface 'wan_eth'
	option metric '10'
	option weight '1'

config member 'm_wan_lte'
	option interface 'wan_lte'
	option metric '20'
	option weight '1'

config interface 'wan_lte'
	option enabled '1'
	option initial_state 'online'
	option family 'ipv4'
	list track_ip '1.1.1.1'
	list track_ip '8.8.8.8'
	option track_method 'ping'
	option reliability '1'
	option count '1'
	option size '56'
	option max_ttl '60'
	option timeout '4'
	option interval '10'
	option failure_interval '5'
	option recovery_interval '5'
	option down '5'
	option up '5'

still not switching over to lte, here are the logs:

.......
Wed Dec 27 19:26:09 2023 user.info mwan3track[19095]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:26:13 2023 user.info mwan3track[19095]: Check (ping) failed for target "8.8.8.8" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:26:17 2023 user.info mwan3track[19095]: Check (ping) failed for target "1.1.1.1" on interface wan_eth (lan1). Current score: 6
Wed Dec 27 19:26:17 2023 user.notice mwan3track[19095]: Interface wan_eth (lan1) is offline
Wed Dec 27 19:26:17 2023 user.notice mwan3-hotplug[19634]: Execute disconnected event on interface wan_eth (lan1)

kukulo · December 27, 2023, 7:33pm

Define three policies: m_wan_eth only, m_wan_lte only and balanced if you want it also. Set m_wan_eth only policy as first, lte as a second and balanced as a third. And define a default rule to use one of the policies. Do not forget sticky rule for https connections.

config policy 'wan_only'
        list use_member 'm_wan_eth'

config policy 'wanb_only'
        list use_member 'm_wan_lte'

config policy 'balanced'
        list use_member 'm_wan_eth'
        list use_member 'm_wan_lte'



config rule 'https'
       option sticky '1'
        option dest_port '443'
       option proto 'tcp'
        option use_policy 'balanced'

config rule 'default_rule_v4'
        option dest_ip '0.0.0.0/0'
        option use_policy 'balanced'
        option family 'ipv4'

Then restart mwan3. For failower working you need to wait approx 5 seconds after a failed ping.

iko3 · December 27, 2023, 8:20pm

it worked Thank you so much for your help!
I tried so many different setups in last days, and your config with policies and rules solved it! Thanks again!
