MT7921AU not detected

kkyoon · August 16, 2023, 12:54pm

bought a wifi dongle

image767×194 6.13 KB
And I Plugged usb wifi dongle to OpenWRT x86 server
Lastly, I checked kernel modules

root@OpenWrt:~# cat /proc/modules  | grep mt7921
mt7921u 20480 0 - Live 0xffffffffa0476000
mt7921_common 57344 1 mt7921u, Live 0xffffffffa0462000
mt76_usb 24576 1 mt7921u, Live 0xffffffffa0422000
mt76_connac_lib 45056 2 mt7921u,mt7921_common, Live 0xffffffffa0411000
mt76 49152 8 mt7921u,mt7921_common,mt76x2e,mt76x2_common,mt76x02_lib,mt7603e,mt76_usb,mt76_connac_lib, Live 0xffffffffa03fe000
mac80211 544768 9 rtw88_pci,rtw88_core,rtl8xxxu,mt7921_common,mt76x2e,mt76x02_lib,mt7603e,mt76_connac_lib,mt76, Live 0xffffffffa0367000
cfg80211 307200 10 rtw88_core,rtl8xxxu,rtl8812au,mt7921_common,mt76x2_common,mt76x02_lib,mt7603e,mt76_connac_lib,mt76,mac80211, Live 0xffffffffa02ee000

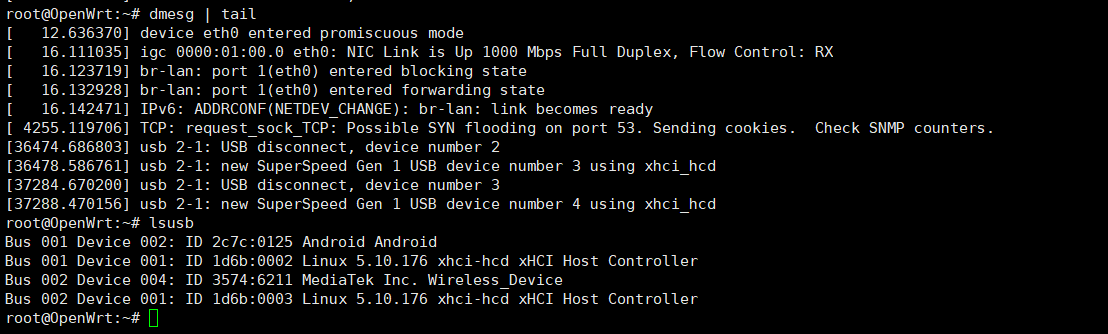

But wifi dongle was not detected in system

image1108×334 14.7 KB

image1142×420 18.4 KB

I don't know what the problem is.
Please give me some advice

frollic · August 16, 2023, 12:59pm

it's isn't ?

what's the 3574:6211 Mediatek Inc. Wireless_Device then ?

kernel version might also be an issue.

kkyoon · August 16, 2023, 1:10pm

The kernel version is as follows

frollic · August 16, 2023, 1:11pm

then you know what the initial problem is ...

kkyoon · August 16, 2023, 1:15pm

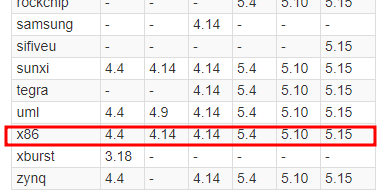

Where is webpage that has kernel version information for OpenWRT?

frollic · August 16, 2023, 1:16pm

googled "openwrt kernel" ?

kkyoon · August 16, 2023, 1:21pm

Thank you for your advice.
It still doesn't support the 5.18+ version kernel on OpenWRT x86, so mt7921u doesn't seem to be supported.

slh · August 16, 2023, 5:17pm

23.05~ and master have kernel v6.1 based wireless drivers (backports) and the mt76 driver versions are even newer than that.

kkyoon · August 18, 2023, 12:25am

I changed OpenWRT version from 22.xx to master
Still undetected

root@OpenWrt:~# lsusb
Bus 001 Device 005: ID 3574:6211 MediaTek Inc. Wireless_Device
Bus 001 Device 004: ID 2c7c:0125 Android Android
Bus 002 Device 001: ID 1d6b:0003 Linux 5.15.126 xhci-hcd xHCI Host Controller
Bus 001 Device 007: ID 3574:6211 MediaTek Inc. Wireless_Device
Bus 001 Device 001: ID 1d6b:0002 Linux 5.15.126 xhci-hcd xHCI Host Controller
root@OpenWrt:~# opkg list | grep mt
kmod-mt76 - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt76-connac - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt76-core - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt76-usb - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt7603 - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt76x02-common - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt76x2 - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt76x2-common - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt7921-common - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt7921-firmware - 5.15.126+2023-07-26-cd3dfe39-1
kmod-mt7921u - 5.15.126+2023-07-26-cd3dfe39-1
mtd - 26
root@OpenWrt:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq master br-lan state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3c brd ff:ff:ff:ff:ff:ff
3: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP qlen 1000
    link/ether 00:e0:1a:8c:d0:3d brd ff:ff:ff:ff:ff:ff
    inet 192.168.0.94/24 brd 192.168.0.255 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 fe80::2e0:1aff:fe8c:d03d/64 scope link
       valid_lft forever preferred_lft forever
4: eth2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3e brd ff:ff:ff:ff:ff:ff
5: eth3: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3f brd ff:ff:ff:ff:ff:ff
6: br-lan: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3c brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.1/24 brd 192.168.1.255 scope global br-lan
       valid_lft forever preferred_lft forever
    inet6 fd86:c2bb:755a::1/60 scope global te`Preformatted text`ntative noprefixroute
       valid_lft forever preferred_lft forever
7: wlan0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether e0:e1:a9:38:21:01 brd ff:ff:ff:ff:ff:ff
8: wlan1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether e0:e1:a9:38:0c:f7 brd ff:ff:ff:ff:ff:ff
root@OpenWrt:~#

kkyoon · August 21, 2023, 8:42am

Something's wrong. Even the 802.11n dongle is not detected.

root@OpenWrt:~# lsusb
Bus 001 Device 009: ID 148f:7601 MediaTek 802.11 n WLAN
Bus 001 Device 004: ID 2c7c:0125 Android Android
Bus 002 Device 001: ID 1d6b:0003 Linux 5.15.126 xhci-hcd xHCI Host Controller
Bus 001 Device 008: ID 148f:7601 MediaTek 802.11 n WLAN
Bus 001 Device 001: ID 1d6b:0002 Linux 5.15.126 xhci-hcd xHCI Host Controller
root@OpenWrt:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq master br-lan state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3c brd ff:ff:ff:ff:ff:ff
3: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP qlen 1000
    link/ether 00:e0:1a:8c:d0:3d brd ff:ff:ff:ff:ff:ff
    inet 192.168.0.94/24 brd 192.168.0.255 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 fe80::2e0:1aff:fe8c:d03d/64 scope link
       valid_lft forever preferred_lft forever
4: eth2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3e brd ff:ff:ff:ff:ff:ff
5: eth3: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3f brd ff:ff:ff:ff:ff:ff
6: br-lan: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN qlen 1000
    link/ether 00:e0:1a:8c:d0:3c brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.1/24 brd 192.168.1.255 scope global br-lan
       valid_lft forever preferred_lft forever
    inet6 fd86:c2bb:755a::1/60 scope global tentative noprefixroute
       valid_lft forever preferred_lft forever
root@OpenWrt:~#
