Hi, I have OpenWRT 24.10.0 on a NanoPC-T6 and 6GHz AP mode seems to be not working on EDUP-AX1672 adapter
2.4G and 5G AP wifi works fine

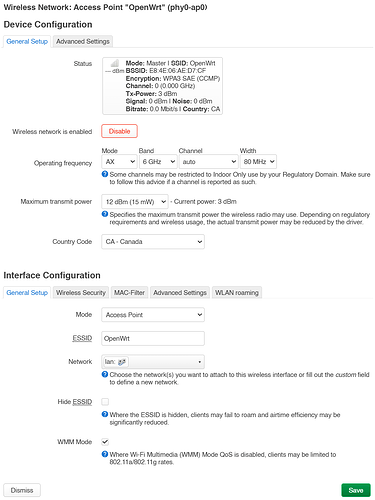

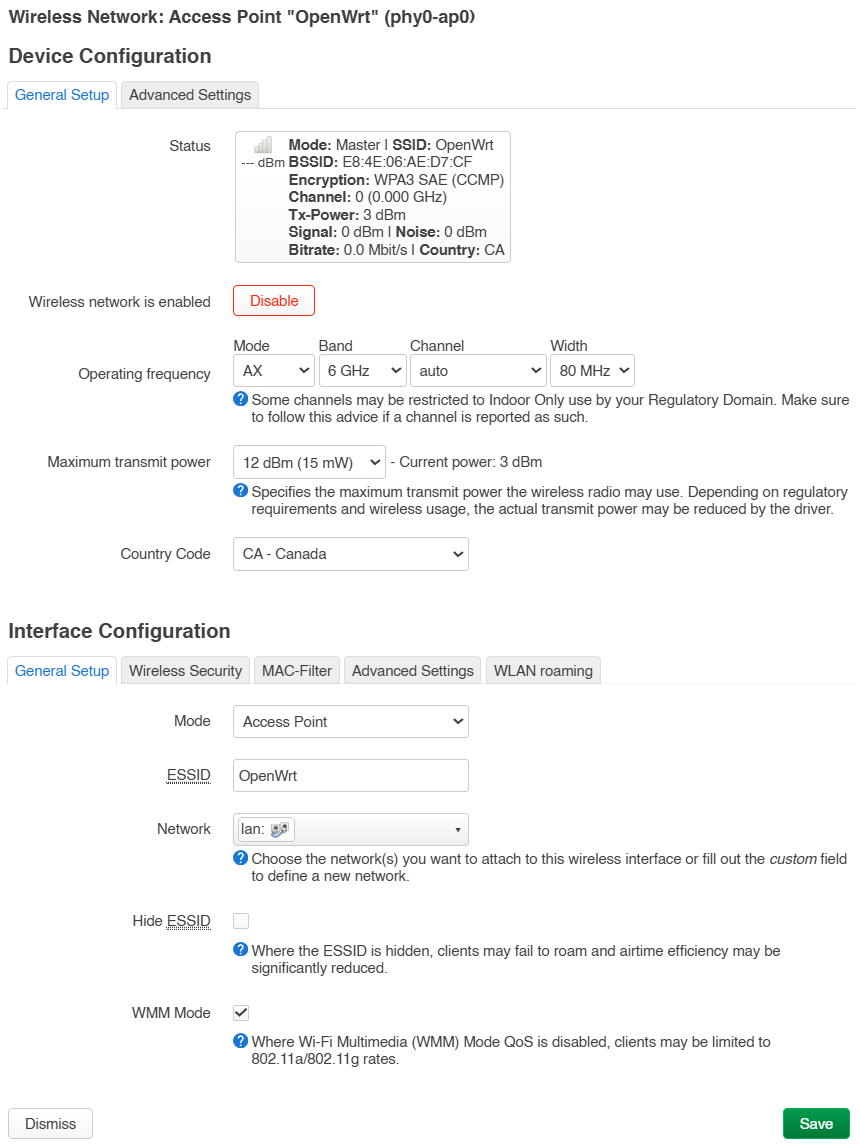

luci:
lsusb:
root@OpenWrt:~# lsusb
Bus 001 Device 001: ID 1d6b:0002 Linux 6.6.73 xhci-hcd xHCI Host Controller
Bus 002 Device 001: ID 1d6b:0001 Linux 6.6.73 ohci_hcd Generic Platform OHCI controller
Bus 003 Device 001: ID 1d6b:0002 Linux 6.6.73 ehci_hcd EHCI Host Controller
Bus 004 Device 001: ID 1d6b:0001 Linux 6.6.73 ohci_hcd Generic Platform OHCI controller
Bus 005 Device 001: ID 1d6b:0002 Linux 6.6.73 ehci_hcd EHCI Host Controller
Bus 006 Device 001: ID 1d6b:0003 Linux 6.6.73 xhci-hcd xHCI Host Controller
Bus 007 Device 001: ID 1d6b:0002 Linux 6.6.73 xhci-hcd xHCI Host Controller
Bus 008 Device 001: ID 1d6b:0003 Linux 6.6.73 xhci-hcd xHCI Host Controller
Bus 008 Device 002: ID 0e8d:7961 MediaTek Inc. Wireless_Device
iw dev:
root@OpenWrt:~# iw dev
phy#0
Interface phy0-ap0
ifindex 5
wdev 0x1
addr e8:4e:06:ae:d7:cf
ssid OpenWrt
type AP
channel 1 (5955 MHz), width: 80 MHz, center1: 5985 MHz
txpower 3.00 dBm
multicast TXQ:
qsz-byt qsz-pkt flows drops marks overlmt hashcol tx-bytes tx-packets
0 0 0 0 0 0 0 0 0
/etc/config/wireless:
root@OpenWrt:~# cat /etc/config/wireless
config wifi-device 'radio0'
option type 'mac80211'
option path 'platform/fc400000.usb/xhci-hcd.4.auto/usb8/8-1/8-1:1.0'
option country 'CA'
option cell_density '0'
option band '6g'
option htmode 'HE80'
option channel 'auto'
option txpower '12'
config wifi-iface 'default_radio0'
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'sae'
option key '12345678'
option ocv '0'
config wifi-device 'radio1'
option type 'mac80211'
option path 'platform/fc400000.usb/xhci-hcd.5.auto/usb8/8-1/8-1:1.0'
option band '6g'
option htmode 'HE20'
option txpower '12'
option country 'CA'
option cell_density '0'
option disabled '1'
config wifi-iface 'default_radio1'
option device 'radio1'
option network 'lan'
option mode 'ap'
option ssid 'OpenWrt'
option encryption 'sae'
option key '12345678'
option disabled '1'
iw phy:
root@OpenWrt:~# iw phy
Wiphy phy0
wiphy index: 0
max # scan SSIDs: 4
max scan IEs length: 482 bytes
max # sched scan SSIDs: 10
max # match sets: 16
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* managed
* AP
* AP/VLAN
* monitor
* P2P-client
* P2P-GO
* P2P-device
Band 1:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x2270ce120dc0b306423f00):
HE40/2.4GHz
242 tone RUs/2.4GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x19 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0220ce120000a000000c00):
HE40/2.4GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x19 0x1c 0xc7 0x71
Frequencies:
* 2412.0 MHz [1] (30.0 dBm)
* 2417.0 MHz [2] (30.0 dBm)
* 2422.0 MHz [3] (30.0 dBm)
* 2427.0 MHz [4] (30.0 dBm)
* 2432.0 MHz [5] (30.0 dBm)
* 2437.0 MHz [6] (30.0 dBm)
* 2442.0 MHz [7] (30.0 dBm)
* 2447.0 MHz [8] (30.0 dBm)
* 2452.0 MHz [9] (30.0 dBm)
* 2457.0 MHz [10] (30.0 dBm)
* 2462.0 MHz [11] (30.0 dBm)
* 2467.0 MHz [12] (disabled)
* 2472.0 MHz [13] (disabled)
* 2484.0 MHz [14] (disabled)
Band 2:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15
VHT Capabilities (0x339071b2):
Max MPDU length: 11454
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
SU Beamformee
MU Beamformee
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
VHT extended NSS: supported
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x4470ce120dc0b306423f00):
HE40/HE80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0420ce120000a000000c00):
HE40/HE80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
Frequencies:
* 5180.0 MHz [36] (23.0 dBm)
* 5200.0 MHz [40] (23.0 dBm)
* 5220.0 MHz [44] (23.0 dBm)
* 5240.0 MHz [48] (23.0 dBm)
* 5260.0 MHz [52] (24.0 dBm) (radar detection)
* 5280.0 MHz [56] (24.0 dBm) (radar detection)
* 5300.0 MHz [60] (24.0 dBm) (radar detection)
* 5320.0 MHz [64] (24.0 dBm) (radar detection)
* 5500.0 MHz [100] (24.0 dBm) (radar detection)
* 5520.0 MHz [104] (24.0 dBm) (radar detection)
* 5540.0 MHz [108] (24.0 dBm) (radar detection)
* 5560.0 MHz [112] (24.0 dBm) (radar detection)
* 5580.0 MHz [116] (24.0 dBm) (radar detection)
* 5600.0 MHz [120] (disabled)
* 5620.0 MHz [124] (disabled)
* 5640.0 MHz [128] (disabled)
* 5660.0 MHz [132] (24.0 dBm) (radar detection)
* 5680.0 MHz [136] (24.0 dBm) (radar detection)
* 5700.0 MHz [140] (24.0 dBm) (radar detection)
* 5720.0 MHz [144] (24.0 dBm) (radar detection)
* 5745.0 MHz [149] (30.0 dBm)
* 5765.0 MHz [153] (30.0 dBm)
* 5785.0 MHz [157] (30.0 dBm)
* 5805.0 MHz [161] (30.0 dBm)
* 5825.0 MHz [165] (30.0 dBm)
* 5845.0 MHz [169] (disabled)
* 5865.0 MHz [173] (disabled)
* 5885.0 MHz [177] (disabled)
Band 4:
HE Iftypes: managed
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x4470ce120dc0b306423f00):
HE40/HE80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Ng = 16 SU Feedback
Ng = 16 MU Feedback
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
20MHz in 40MHz HE PPDU 2.4GHz
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
HE Iftypes: AP
HE MAC Capabilities (0x00011a081044):
+HTC HE Supported
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x0420ce120000a000000c00):
HE40/HE80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
Partial Bandwidth Extended Range
PPE Threshold Present
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x79 0x1c 0xc7 0x71 0x1c 0xc7 0x71
Frequencies:
* 5955.0 MHz [1] (12.0 dBm)
* 5975.0 MHz [5] (12.0 dBm)
* 5995.0 MHz [9] (12.0 dBm)
* 6015.0 MHz [13] (12.0 dBm)
* 6035.0 MHz [17] (12.0 dBm)
* 6055.0 MHz [21] (12.0 dBm)
* 6075.0 MHz [25] (12.0 dBm)
* 6095.0 MHz [29] (12.0 dBm)
* 6115.0 MHz [33] (12.0 dBm)
* 6135.0 MHz [37] (12.0 dBm)
* 6155.0 MHz [41] (12.0 dBm)
* 6175.0 MHz [45] (12.0 dBm)
* 6195.0 MHz [49] (12.0 dBm)
* 6215.0 MHz [53] (12.0 dBm)
* 6235.0 MHz [57] (12.0 dBm)
* 6255.0 MHz [61] (12.0 dBm)
* 6275.0 MHz [65] (12.0 dBm)
* 6295.0 MHz [69] (12.0 dBm)
* 6315.0 MHz [73] (12.0 dBm)
* 6335.0 MHz [77] (12.0 dBm)
* 6355.0 MHz [81] (12.0 dBm)
* 6375.0 MHz [85] (12.0 dBm)
* 6395.0 MHz [89] (12.0 dBm)
* 6415.0 MHz [93] (12.0 dBm)
* 6435.0 MHz [97] (12.0 dBm)
* 6455.0 MHz [101] (12.0 dBm)
* 6475.0 MHz [105] (12.0 dBm)
* 6495.0 MHz [109] (12.0 dBm)
* 6515.0 MHz [113] (12.0 dBm)
* 6535.0 MHz [117] (12.0 dBm)
* 6555.0 MHz [121] (12.0 dBm)
* 6575.0 MHz [125] (12.0 dBm)
* 6595.0 MHz [129] (12.0 dBm)
* 6615.0 MHz [133] (12.0 dBm)
* 6635.0 MHz [137] (12.0 dBm)
* 6655.0 MHz [141] (12.0 dBm)
* 6675.0 MHz [145] (12.0 dBm)
* 6695.0 MHz [149] (12.0 dBm)
* 6715.0 MHz [153] (12.0 dBm)
* 6735.0 MHz [157] (12.0 dBm)
* 6755.0 MHz [161] (12.0 dBm)
* 6775.0 MHz [165] (12.0 dBm)
* 6795.0 MHz [169] (12.0 dBm)
* 6815.0 MHz [173] (12.0 dBm)
* 6835.0 MHz [177] (12.0 dBm)
* 6855.0 MHz [181] (12.0 dBm)
* 6875.0 MHz [185] (12.0 dBm)
* 6895.0 MHz [189] (12.0 dBm)
* 6915.0 MHz [193] (12.0 dBm)
* 6935.0 MHz [197] (12.0 dBm)
* 6955.0 MHz [201] (12.0 dBm)
* 6975.0 MHz [205] (12.0 dBm)
* 6995.0 MHz [209] (12.0 dBm)
* 7015.0 MHz [213] (12.0 dBm)
* 7035.0 MHz [217] (12.0 dBm)
* 7055.0 MHz [221] (12.0 dBm)
* 7075.0 MHz [225] (12.0 dBm)
* 7095.0 MHz [229] (12.0 dBm)
* 7115.0 MHz [233] (12.0 dBm)
valid interface combinations:
* #{ managed, P2P-client } <= 2, #{ AP, P2P-GO } <= 1, #{ P2P-device } <= 1,
total <= 3, #channels <= 2
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 1
max scan plan interval: 65535
max scan plan iterations: 0
Supported extended features:
* [ RRM ]: RRM
* [ SET_SCAN_DWELL ]: scan dwell setting
* [ BEACON_RATE_LEGACY ]: legacy beacon rate setting
* [ BEACON_RATE_HT ]: HT beacon rate setting
* [ BEACON_RATE_VHT ]: VHT beacon rate setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ ACK_SIGNAL_SUPPORT ]: ack signal level support
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ CAN_REPLACE_PTK0 ]: can safely replace PTK 0 when rekeying
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
* [ BEACON_RATE_HE ]: HE beacon rate support (AP/mesh)
* [ POWERED_ADDR_CHANGE ]: can change MAC address while up
